Manwal tal-Utent tal-Fryer tal-Gass Kummerċjali tal-Art tal-WILPREP

Introduzzjoni

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your WILPREP Commercial Gas Floor Fryer. Please read this manual thoroughly before installation and use. Proper adherence to these instructions will ensure optimal performance and longevity of your appliance.

Informazzjoni Importanti dwar is-Sigurtà

Your safety and the safety of others are paramount. Always follow basic safety precautions when using this appliance.

• Read all instructions completely before operating the fryer.
• This appliance must be installed by a qualified and licensed professional in accordance with all local codes and regulations.
• Ensure adequate ventilation in the area where the fryer is installed and operated.
• Taħżinx jew tużax gażolina jew fwar u likwidi oħra li jaqbdu fil-viċinanza ta' dan jew kwalunkwe apparat ieħor.
• Keep children and unauthorized personnel away from the appliance during operation and when hot.
• Always disconnect power and gas supply before cleaning, servicing, or performing any maintenance.
• Hot oil can cause severe burns. Exercise extreme caution when handling hot oil or operating the fryer.
• The appliance features an automatic gas supply cut-off at 450°F (232°C) to prevent overheating and ensure safe operation.

Setup u Installazzjoni

Spakkjar

Carefully remove the fryer from its packaging. Inspect the unit for any signs of shipping damage. Retain all packaging materials for future transport or if the unit needs to be returned.

Pjazzament

Position the fryer on a level, stable, and non-combustible surface. Ensure there is sufficient clearance from walls and other equipment as specified by local fire and safety codes. Adequate ventilation is crucial for safe operation.

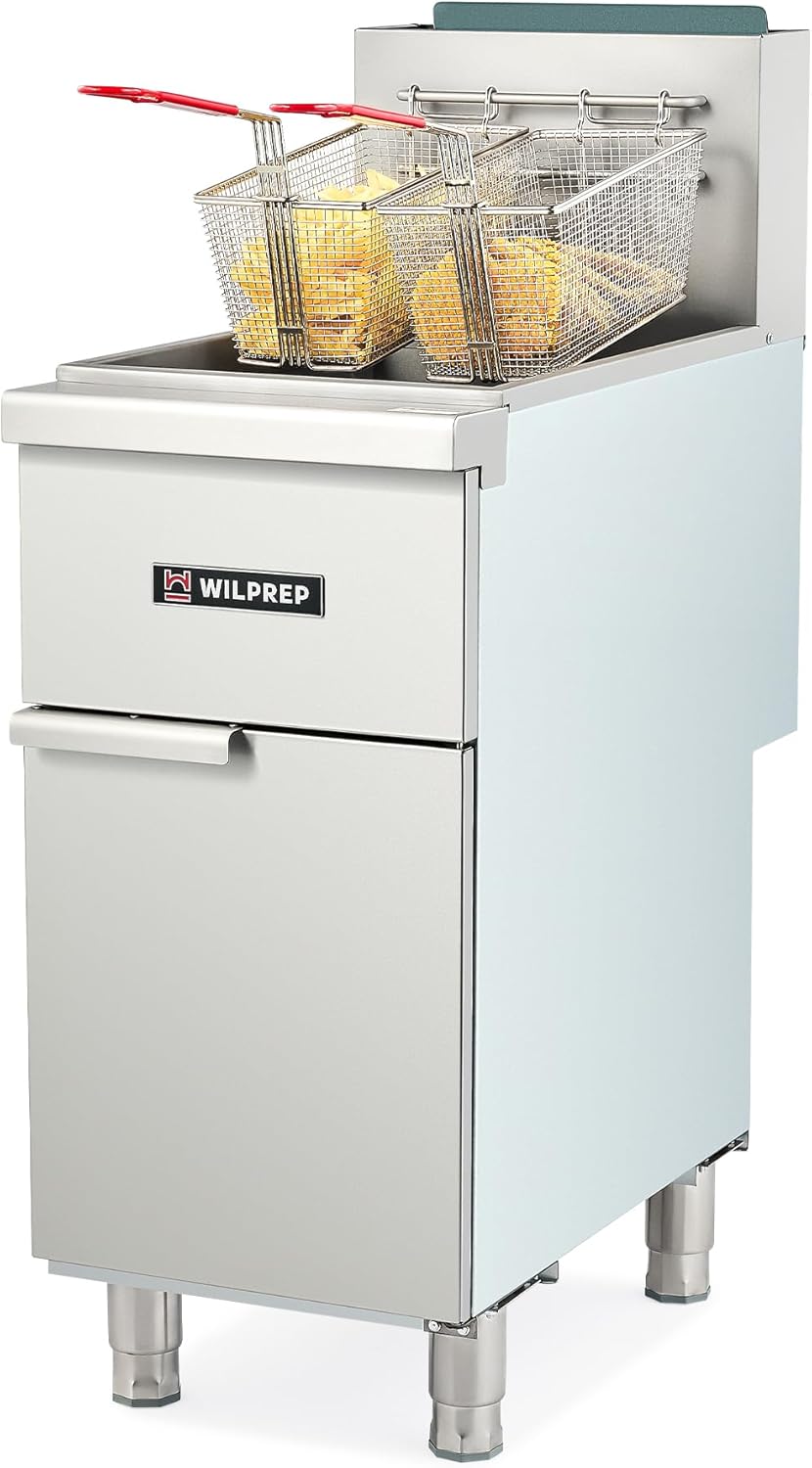

Image: The WILPREP Commercial Gas Floor Fryer, showcasing its stainless steel construction and two fry baskets filled with french fries. This image illustrates the overall appearance and primary function of the unit.

Konnessjoni tal-Gass

Gas connection must be performed exclusively by a licensed gas technician. Ensure the correct gas type (Natural Gas) and pressure are supplied to the unit. Refer to local codes and the appliance's data plate for specific requirements.

Saqajn Aġġustabbli

The fryer is equipped with four adjustable feet, allowing you to customize the working height from 6 inches to 7-1/2 inches. This feature ensures optimal stability and facilitates easy cleaning underneath the unit.

Immaġni: Dettaljata view of the adjustable legs on the WILPREP Commercial Gas Floor Fryer, demonstrating how the height can be modified for stability and cleaning access.

Mili taż-Żejt

Before initial operation and after each oil change, ensure the fry pot is filled with cooking oil to the indicated "MIN" and "MAX" fill lines. Do not overfill or underfill, as this can affect performance and safety.

Istruzzjonijiet Operattivi

Kontrolli u Aġġustament tat-Temperatura

The fryer features a millivolt control thermostat, enabling precise temperature adjustment from 200°F (93°C) to 400°F (204°C). For safety, the unit automatically cuts off the gas supply if the oil temperature reaches 450°F (232°C).

Image: A close-up of the temperature control dial, showing settings from 200°F to 400°F and indicating the automatic shutoff feature at 450°F.

Proċedura ta' Tqabbid

1. Ensure the main gas supply valve to the fryer is open.
2. Turn the thermostat dial to the desired operating temperature.
3. Follow the specific ignition instructions provided on the appliance's control panel or inside the access door. (Note: Ignition steps may vary slightly by specific model; always refer to the label on your appliance).

Using Fry Baskets

The fryer includes two 1.5 lb. detachable fry baskets, each equipped with coated handles for heat protection and comfortable handling. The baskets are designed with two hanging heights, allowing for convenient draining of excess oil after frying.

Image: Illustration of the two 1.5 lb. fry baskets in use, demonstrating their capacity and the hanging feature for draining excess oil.

Manutenzjoni u Tindif

Tindif ta 'Kuljum

After each use, allow the cooking oil to cool completely. Remove the fry baskets and clean them thoroughly with warm, soapy water. Wipe down the exterior surfaces of the fryer with a damp cloth to remove grease and food residue.

Tnixxija taż-Żejt

The built-in full port drain valve simplifies the process of draining used oil. Place a suitable, heat-resistant container under the drain valve and open it to empty the fry pot. Ensure the oil is cool before draining.

Immaġni: Interna view of the fryer, highlighting the oil drain valve and its extension for easy and efficient oil removal.

Tindif Ġenerali

The fryer's robust stainless steel construction is designed for durability and ease of cleaning. Use non-abrasive cleaners and soft cloths to maintain its polished finish. Avoid harsh chemicals or abrasive pads that could scratch the surface.

Issolvi l-problemi

This section provides solutions to common issues you might encounter. For problems not listed here, or if solutions do not resolve the issue, contact a qualified service technician.

Speċifikazzjonijiet

Key technical specifications for the WILPREP Commercial Gas Floor Fryer, Model NGCGF90.

Image: A visual representation of the fryer's dimensions (15.6" W x 30" D x 45.7" H) and key specifications, including fry basket capacity and fry pot capacity.

Garanzija u Appoġġ

For any questions, technical assistance, or warranty claims regarding your WILPREP Commercial Gas Floor Fryer, please contact Wilprep customer support. Refer to your purchase documentation for specific warranty terms and contact information.

You can also visit the official Wilprep store on Amazon for more information and support: Ħanut Wilprep
