1. Prodott Aktarview
The 6-inch Canless Wafer Downlight from Juno features an innovative, slim design that allows for quick and easy installation into as little as 3 inches of plenum space. This makes it suitable for ceiling spaces where traditional recessed housings may not fit. Wafers install directly into drywall, eliminating the need for separate recessed housings. Once installed, this versatile downlight offers an all-in-one design with switchable white color temperature and adjustable lumen output technology, providing the equivalent of 15 static products in one unit.
2. Karatteristiċi ewlenin
- Canless Design: No housing required, installs directly from below the ceiling.
- Iffrankar tal-Enerġija: Long-life LEDs with a high-efficiency driver for superior illumination and extended service life.
- Dimmable: Smooth dimming capability down to 10 percent.
- Ratings & Listings: Certified for wet locations, CSA certified, and IC Rated for direct contact with insulation.
- Installazzjoni faċli: Designed for quick retrofit, remodel, or new construction without the need for housing.

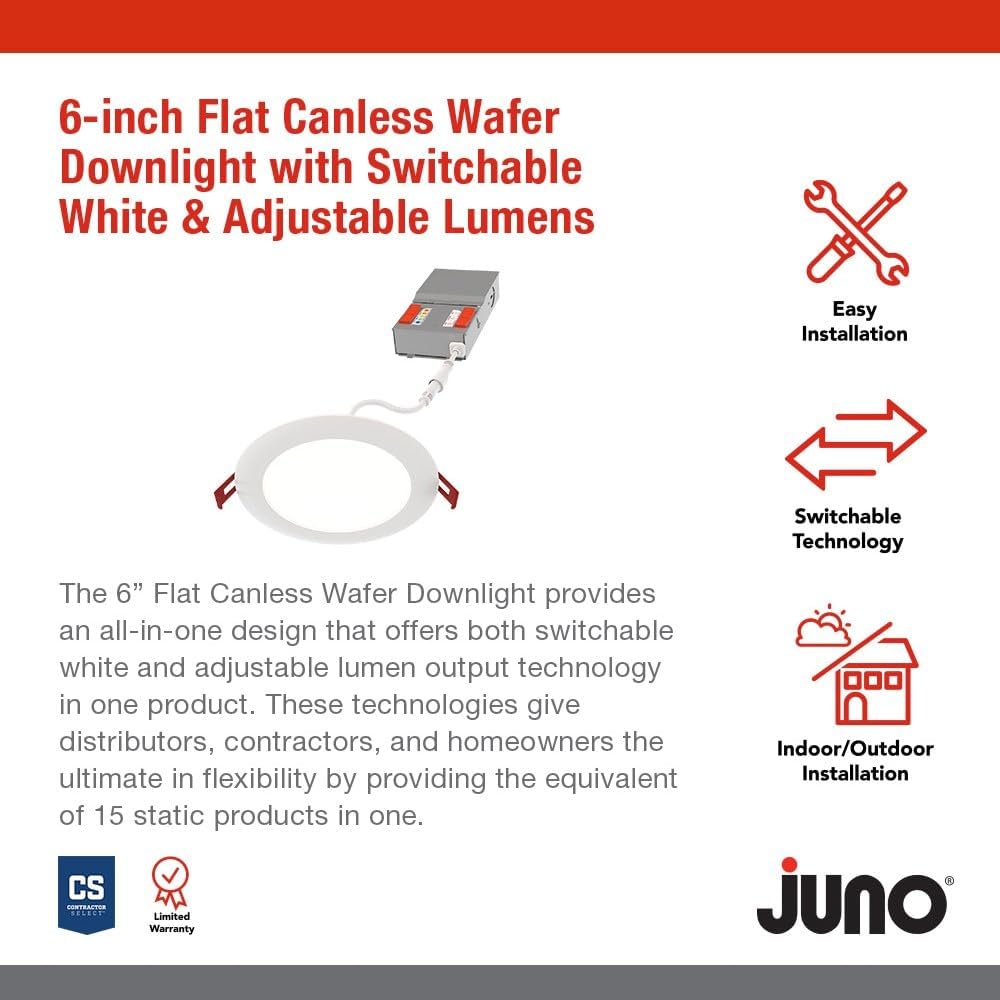

Immaġni: Fuqview of key features including easy installation and switchable technology.
3. Konfigurazzjoni u Installazzjoni
The Juno Canless LED Wafer Downlight is designed for straightforward installation. Please ensure power is turned off at the circuit breaker before beginning any electrical work.
3.1. Komponenti
The product includes the LED wafer downlight and a remote driver box. The fixture and remote driver box are IC rated for direct contact with insulation.
Image: The main components of the downlight system, showing the LED wafer and its remote driver box.
3.2. Passi ta 'installazzjoni
- Ensure power is disconnected at the main circuit breaker.
- Cut a hole in the ceiling according to the specified diameter for the 6-inch model. Refer to the product dimensions for precise measurements.
- Connect the remote driver box to the building's electrical wiring. Follow local electrical codes and guidelines.
- Connect the LED wafer downlight to the remote driver box.
- Insert the remote driver box into the ceiling opening.
- Push the LED wafer downlight into the ceiling opening. The spring clips will secure the fixture in place.
- Irrestawra l-enerġija u ttestja d-dawl.
Image: Detailed dimensions of the 6-inch downlight, showing its slim profile għal installazzjoni faċli.
4. Istruzzjonijiet Operattivi
This downlight offers adjustable settings to customize your lighting experience.
4.1. Aġġustament tat-Temperatura tal-Kulur
The remote driver box features a switch to select from five color temperature options:
- 2700K Abjad artab
- 3000K Abjad Saħħan
- 3500K abjad newtrali
- 4000K Abjad Kessaħ
- 5000K Dawl tal-Jum
4.2. Lumen Output Adjustment
The remote driver box also includes a switch for three adjustable lumen output settings:
- Baxx
- Medju
- Għoli
Image: Close-up of the remote driver box, highlighting the switches for adjusting color temperature and lumen output.
4.3. Dimming
The downlight is dimmable to 10 percent with compatible dimmers. Ensure your dimmer switch is suitable for LED lighting to achieve optimal performance.
5. Manutenzjoni
The Juno Canless LED Wafer Downlight requires minimal maintenance. To clean the fixture, ensure power is off and gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the finish or electrical components.
6 Issolvi l-problemi
If you experience issues with your downlight, consider the following common solutions:
- Ebda Dawl: Check the circuit breaker to ensure power is on. Verify all electrical connections are secure.
- Dawl Teptip: Ensure the dimmer switch is compatible with LED lighting. Check for loose connections.
- Incorrect Color/Brightness: Verify the switches on the remote driver box are set to your desired color temperature and lumen output.
Għal passi aktar dettaljati għas-soluzzjoni tal-problemi, jekk jogħġbok irreferi għall-uffiċjal Gwida għas-Soluzzjoni tal-Problemi (PDF).
7. Speċifikazzjonijiet
| Attribut | Valur |
|---|---|
| Brand | Ġuno |
| Isem tal-Mudell | Bla bott |
| Numru tal-Parti | WF6 ALO20 SWW5 90CRI MVOLT MW M6 |
| Daqs | 6-il pulzier |
| Kulur | Abjad Matte |
| Materjal | Aluminju |
| Stil | Trim Ċatt |
| Formola ta' Tagħmir tad-Dawl | Riċessa |
| Tip ta' Kamra | Bathroom, Bedroom, Conference Room, Game Room, Living Room |
| Dimensjonijiet tal-Prodott | 6.69"T x 6.69"W x 1.25"Għ |
| Użu fuq ġewwa/barra | Ġewwa, Barra |
| Sors tal-Enerġija | Hardwired |
| Tip ta' Installazzjoni | Immonta bil-flus |
| Karatteristika Speċjali | Adjustable Color Temperature, Dimmable, Energy Efficient, Low Voltage, Waterproof |
| Tip ta' Sors tad-Dawl | LED |
| Voltage | 120 Volts |
| Kulur Dawl | Abjad Aġġustabbli |
| Wattage | 16 watt |
| Livell ta 'Reżistenza għall-Ilma | Waterproof |
| Manifattur | Dawl tad-Ditti tal-Akutezza |
| UPC | 197589217360 |
8. Garanzija u Appoġġ
This Juno product comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact the manufacturer directly.
For additional support and to explore other Juno products, visit the official Ħanut Juno fuq Amazon.
