Introduzzjoni
Welcome to the DURATECH 12V 2-in-1 Cordless Grass Shear & Hedge Trimmer. This versatile tool is designed for efficient and comfortable garden maintenance, allowing you to easily switch between grass shearing and hedge trimming tasks. Its lightweight, cordless design and dual safety features ensure a safe and effective trimming experience for various garden needs.
Informazzjoni Importanti dwar is-Sigurtà
- Aqra l-istruzzjonijiet kollha bir-reqqa qabel l-użu.
- Dejjem ilbes tagħmir protettiv personali xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà.
- Keep hands and feet away from blades during operation.
- Ensure the dual safety lock is engaged before starting the tool.
- Disconnect the battery before cleaning, maintenance, or changing attachments.
- Tħaddimx f'kundizzjonijiet imxarrbin jew ħdejn likwidi/gassijiet fjammabbli.
- Aħżen l-għodda u l-batterija f'post niexef u sigur 'il bogħod mit-tfal.
Kontenut tal-Pakkett
- 1 x DURATECH 12V Cordless Grass Shear & Hedge Trimmer Unit
- 1 x 8" Shrub Blade
- 1 x 4" Grass Blade
- 1 x 2.0Ah Li-Ion Battery
- 1xBattery Charger
- 1 x Borża tal-Ħażna
- 1 x Blade Guard (for hedge trimmer blade)
Image: The complete package including the main unit, two interchangeable blades, battery, charger, and storage bag.
Prodott Overview
Image: Labeled diagram showing the Battery Pack Release Button, Handle, Lock Off Button, Battery Capacity Indicator, Blade Release Button, ON/OFF Switch, Ventilation Holes, Grass Shear Blade, and Hedge Trimmer Blade.
Komponenti Ewlenin
- Unità Prinċipali: Houses the motor, battery compartment, and controls.
- Grass Shear Blade: 4" (120mm) max cutting width, ideal for weeds and grass.
- Xafra tat-Trimmer tal-Ħeġġa: 8" (160mm) max cutting length, 0.31" (7.95mm) max cutting thickness, suitable for shrubs and small branches.
- 12V Li-Ion Battery: Provides cordless power for up to 50 minutes of use.
- Ċarġer: Għall-iċċarġjar mill-ġdid tal-batterija.
- Dual Safety Lock: Jipprevjeni l-istartjar aċċidentali.
- Manku Ergonomiku: Designed for comfortable one-handed operation.
Setup
Iċċarġjar tal-batterija
The 2000mAh lithium battery provides up to 50 minutes of runtime on a full 3.5-hour charge.
- Locate the battery pack at the base of the handle.
- Press the Battery Pack Release Button and slide the battery out.
- Connect the charger to the charging port on the battery.
- Ipplaggja l-ċarġer fi żbokk elettriku standard.
- The indicator light on the charger will be red during charging and turn green when fully charged.
Image: Illustration showing the battery connected to the charger, with indicators for charging (red) and fully charged (green).
Twaħħil/Bidla tax-Xfafar
The 2-in-1 design allows for quick and tool-free blade changes.
- Ensure the tool is OFF and the battery is removed for safety.
- Press the Blade Release Button located on the top of the unit.
- Pull down the blade rear box to detach the current blade.
- Align the new blade (either grass shear or hedge trimmer) with the gear mechanism.
- Insert the blade into position until you hear a locking click, ensuring it is securely fastened.
Image: A four-step visual guide demonstrating how to press the release button, remove the old blade, align the new blade, and insert it until it clicks.
Istruzzjonijiet Operattivi
Tibda l-Għodda
The tool features a dual safety lock to prevent accidental activation.
- Ensure the desired blade is securely attached and the battery is inserted.
- Slide the top safety lock button forward (1).
- Simultaneously press the ON/OFF trigger button (2) to start the tool.
- Release the top safety lock button once the machine has started.
Image: Visual representation of the dual safety lock mechanism, indicating the two steps to activate the trimmer.
L-Użu tax-Xafra tal-Qtugħ tal-Ħaxix
Ideal for trimming grass around edges, flowerbeds, and small areas.

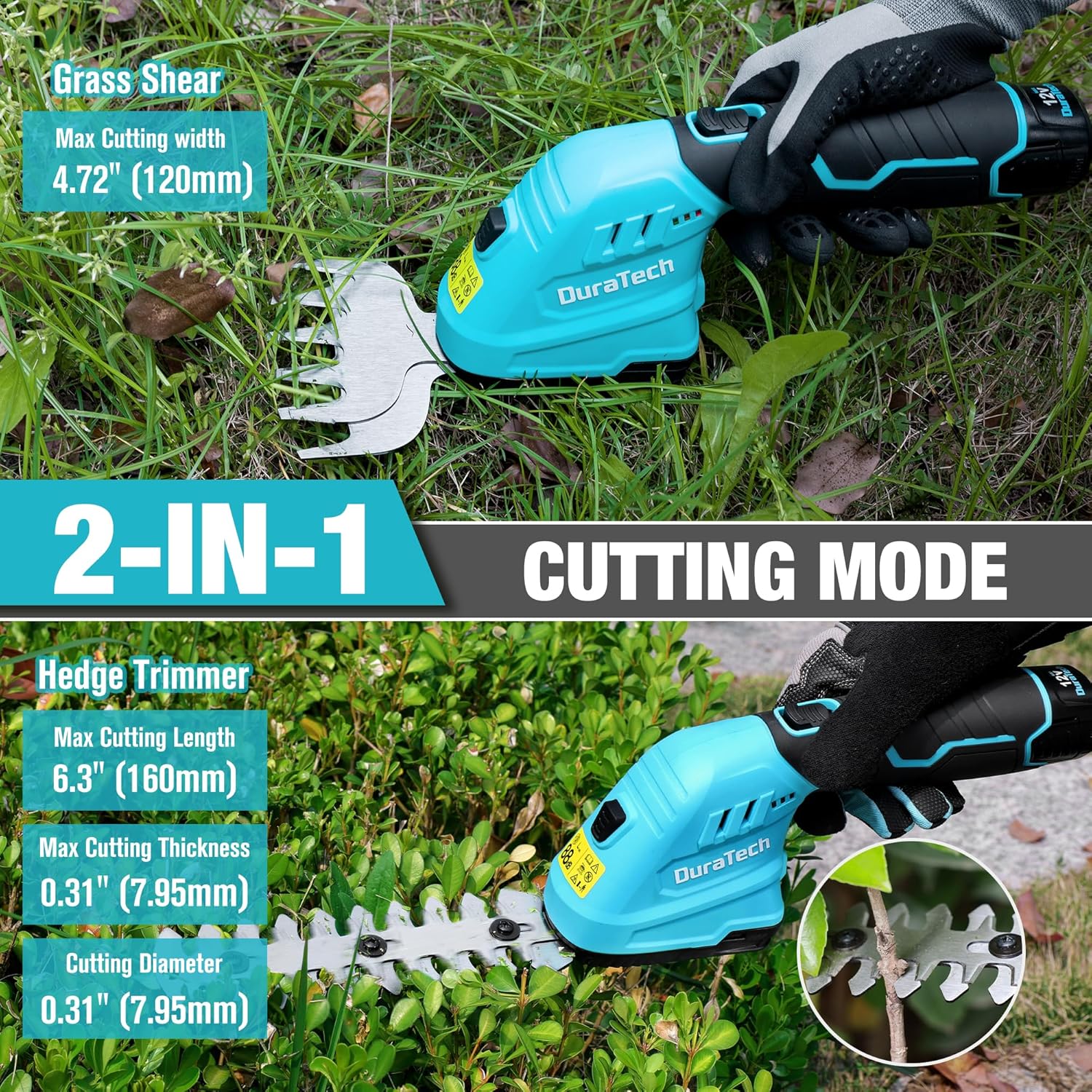

Image: The grass shear attachment being used to trim grass, highlighting its 4.72" (120mm) max cutting width.
L-Użu tax-Xafra tat-Trimmer tal-Ħedge
Perfect for shaping shrubs and trimming small branches (under 5/16" or 7.95mm).
Image: The hedge trimmer attachment being used to trim a bush, showing its 6.3" (160mm) max cutting length and 0.31" (7.95mm) max cutting thickness.
Image: Illustrates the ergonomic handle allowing for comfortable trimming of side hedges at 0°, 90°, and 180° angles.
Manutenzjoni
- Tindif tax-xafra: After each use, remove the blade and clean any sap, debris, or grass clippings. Use a stiff brush and a damp drapp.
- Lubrikazzjoni tax-xafra: Apply a light coat of machine oil to the blades regularly to prevent rust and ensure smooth operation.
- Ħażna: Always attach the blade guard to the hedge trimmer blade when not in use. Store the tool and accessories in the provided storage bag in a dry, cool place.
- Kura tal-batterija: Store the battery in a cool, dry place. Do not store fully discharged. Recharge before long periods of inactivity.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Għodda ma tibda | Batterija mhux iċċarġjata | Iċċarġja l-batterija kompletament. |
| Għodda ma tibda | Is-serratura tas-sigurtà mhux imwaħħla sew | Ensure the top safety lock button is slid forward and the trigger is pressed simultaneously. |
| Għodda ma tibda | Xafra mhux imwaħħla sew | Re-attach the blade, ensuring it clicks into place. |
| Prestazzjoni mnaqqsa tat-tqattigħ | Ix-xfafar huma matt jew maħmuġin | Clean blades and lubricate. Sharpen or replace blades if necessary. |
| Prestazzjoni mnaqqsa tat-tqattigħ | Overgrown material | Do not attempt to cut branches thicker than 5/16" (hedge trimmer) or dense, wet grass (grass shear). |
| Il-batterija tiskula malajr | Il-batterija mhix kompletament iċċarġjata | Ensure battery is fully charged before use (green indicator). |
| Il-batterija tiskula malajr | Old or worn battery | Consider replacing the battery if it no longer holds a charge effectively. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | DURATECH |
| Sors tal-Enerġija | Imħaddem bil-batterija (12V Li-Ion) |
| Kapaċità tal-batterija | 2000mAh |
| Veloċità Bla Tagħbija | 1100 RPM |
| Hedge Trimmer Blade Cutting Length | 6.3 pulzieri (160mm) |
| Hedge Trimmer Blade Max Cutting Thickness | 0.31 pulzieri (7.95mm) |
| Grass Shear Blade Cutting Width | 4.72 pulzieri (120mm) |
| Piż tal-oġġett | 1.66 lbs |
| Materjal tax-xafra | Azzar b'Karbonju Għoli jew Azzar Inossidabbli |
| Kulur | Aħmar u Iswed |
| Numru tal-Mudell | 1 |
| Pajjiż ta' Oriġini | Iċ-Ċina |
Garanzija u Appoġġ
DURATECH products are designed for reliability and durability. For warranty information, technical support, or replacement parts, please contact DURATECH customer service through the official webis-sit jew il-punt tax-xiri tiegħek. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
Visit the official DURATECH Store: DURATECH Store
