1. Introduzzjoni
This manual provides essential information for the safe and efficient operation of your Growatt ARK-2.5H-A1 BMS HVC 60050-A1 High Voltage Battery Management System. Please read this manual thoroughly before installation and operation, and keep it for future reference.
The Growatt High Voltage Battery Management System (BMS) HVC 60050-A1 is designed for ARK 2.5 high voltage batteries. It is compatible with Growatt SPH and SPA series hybrid inverters, enabling optimized energy storage solutions. This system features intelligent battery management, flexible capacity options ranging from 5.12 kWh up to 25.6 kWh, and a modular design for easy expansion and installation. It ensures maximum protection for your home energy system through integrated safety functions including overvoltage, undervoltage, overload, short circuit, and overheating protection. Designed for indoor use, this reliable and durable BMS seamlessly integrates into both existing and newly installed PV systems within the Growatt Home ecosystem and supports remote firmware upgrades.

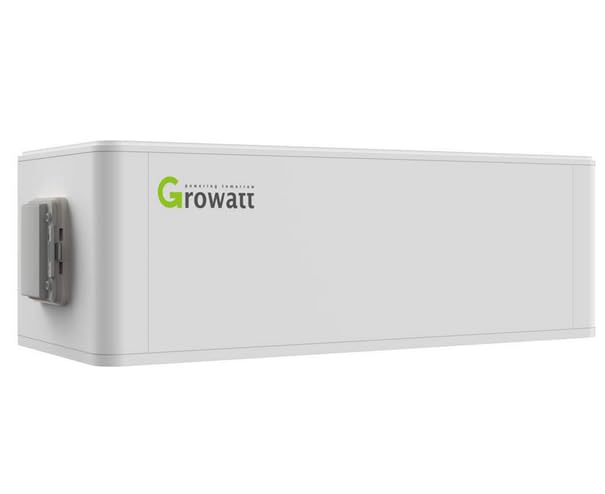

Figure 1: Growatt ARK-2.5H-A1 BMS HVC 60050-A1 High Voltage Battery Management System, front view.
2. Istruzzjonijiet tas-Sigurtà
Dejjem segwi l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment jew ħsara lill-prodott:
- L-installazzjoni u l-manutenzjoni għandhom isiru minn persunal kwalifikat biss.
- Do not attempt to open, disassemble, or modify the BMS unit.
- Ensure proper grounding and electrical connections according to local codes and standards.
- Keep the unit away from water, moisture, and flammable materials.
- Tesponix l-unità għal temperaturi estremi jew dawl tax-xemx dirett.
- Verify all connections are secure before powering on the system.
- In case of malfunction, disconnect power immediately and contact technical support.
Twissija: Vol għolitage present. Risk of electric shock. Follow all safety guidelines strictly.
3. Kontenut tal-Pakkett
The Growatt ARK-2.5H-A1 BMS HVC 60050-A1 package typically includes:
- Growatt ARK-2.5H-A1 BMS HVC 60050-A1 Unit
- Aċċessorji tal-immuntar (jekk applikabbli)
- Communication cables (if applicable)
- Manwal għall-Utent (dan id-dokument)
Please check all items upon unboxing. If any components are missing or damaged, contact your supplier immediately.
4. Gwida għall-Installazzjoni
The Growatt ARK-2.5H-A1 BMS features a modular design for easy installation and expansion. Follow these general steps for installation:
- Għażla tas-Sit: Choose a suitable indoor location that is dry, well-ventilated, and within the specified operating temperature range. Ensure sufficient space for air circulation and future maintenance.
- Immuntar: Securely mount the BMS unit and associated battery modules according to the provided mounting instructions. Ensure the structure can support the total weight of the system.
- Konnessjonijiet elettriċi: Connect the BMS to the ARK 2.5 high voltage battery modules and the compatible Growatt hybrid inverter (SPH/SPA series). Pay close attention to polarity and ensure all connections are tight and secure. Refer to the wiring diagram in the full installation manual for detailed instructions.
- Konnessjonijiet ta 'Komunikazzjoni: Connect the necessary communication cables between the BMS and the inverter for proper system monitoring and control.
- L-ertjar: Kun żgur li s-sistema hija ertjata sew biex tevita perikli elettriċi.
- Qawwa Inizjali: Before powering on, double-check all connections. Follow the specific power-up sequence outlined in the detailed installation manual.

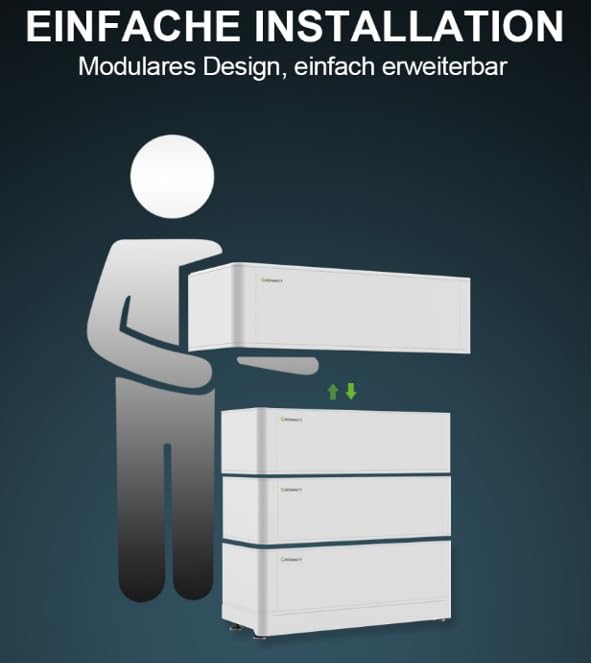

Figure 2: Illustration demonstrating the modular design and easy installation of the Growatt ARK battery system.

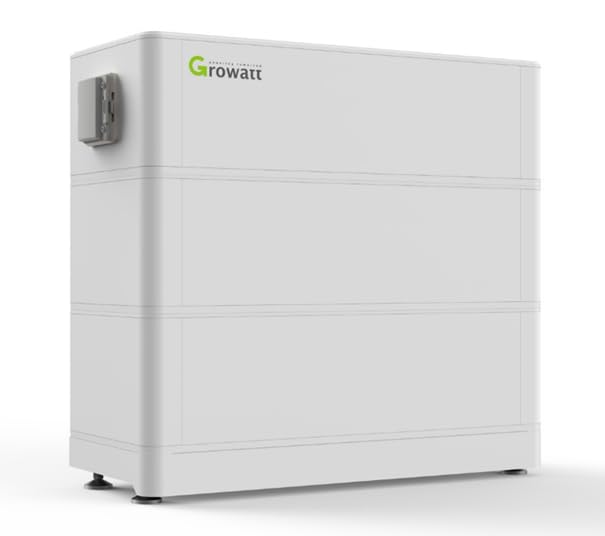

Figure 3: Assembled Growatt ARK-2.5H-A1 BMS with multiple battery modules, showcasing the stackable design.
5. Operazzjoni
The Growatt ARK-2.5H-A1 BMS operates in conjunction with compatible Growatt inverters to manage the charging and discharging of the battery system. Once installed and connected, the system will typically operate automatically, optimizing energy flow based on your inverter's settings and grid conditions.
5.1. Monitoraġġ tas-Sistema
Monitor the system status, battery charge level, and energy flow through the Growatt inverter's display or via the Growatt monitoring platform (e.g., ShinePhone app or ShineWeb portal). The BMS provides real-time data to the inverter for intelligent power management.
5.2. Intelligent Battery Management
The integrated BMS intelligently manages battery charging and discharging cycles, ensuring optimal performance and extending battery lifespan. It includes dynamic charge power control and protection against grid overload.
6. Manutenzjoni
Regular maintenance helps ensure the longevity and optimal performance of your Growatt BMS and battery system. Always disconnect power before performing any maintenance.
- Spezzjoni Viżwali: Periodically inspect the unit and cables for any signs of damage, corrosion, or loose connections.
- Tindif: Keep the unit clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
- Ventilazzjoni: Ensure that ventilation openings are not blocked to prevent overheating.
- Aġġornamenti tal-Firmware: The BMS supports remote firmware upgrades. Ensure your system's firmware is kept up-to-date for improved performance and new features. Consult the Growatt support portal or your installer for update procedures.
- Kontroll Professjonali: It is recommended to have a qualified technician perform a comprehensive system check-up annually.
7 Issolvi l-problemi
This section provides solutions to common issues. For problems not listed here, or if issues persist, contact Growatt technical support.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Is-sistema ma tixgħelx | Loose connections, no input power, BMS fault | Check all cable connections. Verify power supply. Consult detailed manual for fault codes. |
| Il-batterija mhux qed tiċċarġja/tiskarika | Communication error, inverter settings, battery fault | Check communication cables. Verify inverter settings. Check battery module status indicators. |
| Error code displayed on inverter | Ħsara speċifika tas-sistema | Refer to the inverter's user manual for error code definitions and troubleshooting steps. |
8. Speċifikazzjonijiet Tekniċi
| Karatteristika | Speċifikazzjoni |
|---|---|
| Mudell | ARK-2.5H-A1 BMS HVC 60050-A1 |
| Batteriji Kompatibbli | Growatt ARK 2.5 High Voltage Batteriji |
| Invertituri Kompatibbli | Growatt SPH and SPA series hybrid inverters |
| Għażliet ta' Kapaċità | 5.12 kWh up to 25.6 kWh (with multiple modules) |
| Disinn | Modular, Easy Installation |
| Funzjonijiet ta' Protezzjoni | Overvoltage, Undervoltage, Overload, Short Circuit, Overheating |
| Ambjent Operattiv | Użu fuq ġewwa |
| Dimensjonijiet (Pakkett) | 80 x 35 x 30 ċm |
| Piż (Pakkett) | 12 kg |
| Numru tal-Parti tal-Manifattur | AA-BAT-SYS-0001 |
9. Informazzjoni dwar Garanzija
Growatt products are covered by a limited warranty. The specific terms and duration of the warranty may vary by region and product model. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official Growatt website or contact your authorized Growatt dealer. The warranty typically covers defects in materials and workmanship under normal use and service conditions.
Note: Unauthorized disassembly, modification, or improper installation will void the product warranty.
10. Appoġġ għall-Klijent
If you encounter any issues or have questions regarding your Growatt ARK-2.5H-A1 BMS, please contact Growatt technical support or your local authorized dealer.
- Appoġġ onlajn: Visit the official Growatt website for FAQs, documentation, and online support forms.
- Servizz Tekniku: Contact Growatt's technical service hotline (if available in your region) for direct assistance.
- Negozjanti Awtorizzati: Your installer or local Growatt dealer can provide immediate support and service.
When contacting support, please have your product model (ARK-2.5H-A1) and serial number ready.
