Prodott Overview
The Hotone Pulze is a modern Bluetooth digital modeling amplifier with a minimalist exterior design, suitable for a variety of electric and acoustic instruments. Its meticulously designed enclosure and speakers ensure high-quality audio playback performance and professional instrument tones within a portable form factor, faithfully reproducing classic sounds found on records. With a fully touchscreen operation combined with Bluetooth 5.0 module and a companion mobile app, Pulze offers a user-friendly, intelligent operating experience. It integrates recording, live streaming, and more features to inspire and capture your musical creativity at any time.
The Hotone Pulze 30-watt Portable Modeling Amplifier in Eclipse color, featuring a sleek design with a carry handle.
1. Twaqqif u Użu Inizjali
This section guides you through the initial setup of your Hotone Pulze amplifier, from unboxing to first use.
1.1. Tneħħija tal-kaxxa u Tqegħid
Neħħi bil-galbu amplifier from its packaging. Place it on a stable, flat surface. Ensure adequate ventilation around the unit.
1.2. Konnessjoni tal-Enerġija
Connect the provided power adapter to the DC IN port on the amplifier and then to a suitable power outlet. The power indicator will illuminate.
1.3. Konnessjoni tal-Istrument
Plug your instrument cable into the input jack on the amplifier. Ensure the cable is securely connected.
The Hotone Pulze amplifier highlighting its multiple connectivity options: USB, Bluetooth, and Aux In, for versatile audio playback and instrument connection.
1.4. L-Ewwel Xgħel
Press and hold the power button until the screen illuminates. The amplifier will boot up and be ready for use.
Dan il-video jipprovdi ħarsa komprensivaview of the Hotone Pulze Amplifier, wirjaasing its key features such as the touchscreen interface, mobile app integration, portability, and various connectivity options. It also demonstrates different usage scenarios, including practice, recording, and live streaming.
2. Operating Your Pulze Ampaktar ħaj
Discover the full potential of your Pulze amplifier with its advanced features and intuitive controls.
2.1. Core Technology and Tones
The Pulze amplifier utilizes Hotone's signature CDCM HD and F.I.R.E. digital modeling technology, providing a vast array of authentic amplifier and effect tones. Explore over 170 effects and 7 effect modules with 200 tone preset slots.
An illustration of the Hotone Pulze amplifier's advanced digital modeling technology, including CDCM HD and F.I.R.E. for high-quality sound.
The Hotone Pulze amplifier's interface showing a wide array of 170+ effects, 7 effect modules, and 200 tone preset slots.
2.2. Touchscreen and Mobile App Control
Navigate settings and customize your sound using the intuitive full-color touchscreen. For enhanced control and preset management, download the companion mobile app, which connects via Bluetooth 5.0.
The Hotone Pulze amplifier's full-color touchscreen and mobile app interface, allowing for extensive customization of settings and tones.
2.3. Practice and Recording Features
The Pulze amplifier includes a phones jack for silent practicing, a built-in drum machine for rhythm accompaniment, and a 2-in/2-out audio interface for direct recording to your computer. It also supports Bluetooth on-the-go recording and traditional aux-in jack recording for live streams.

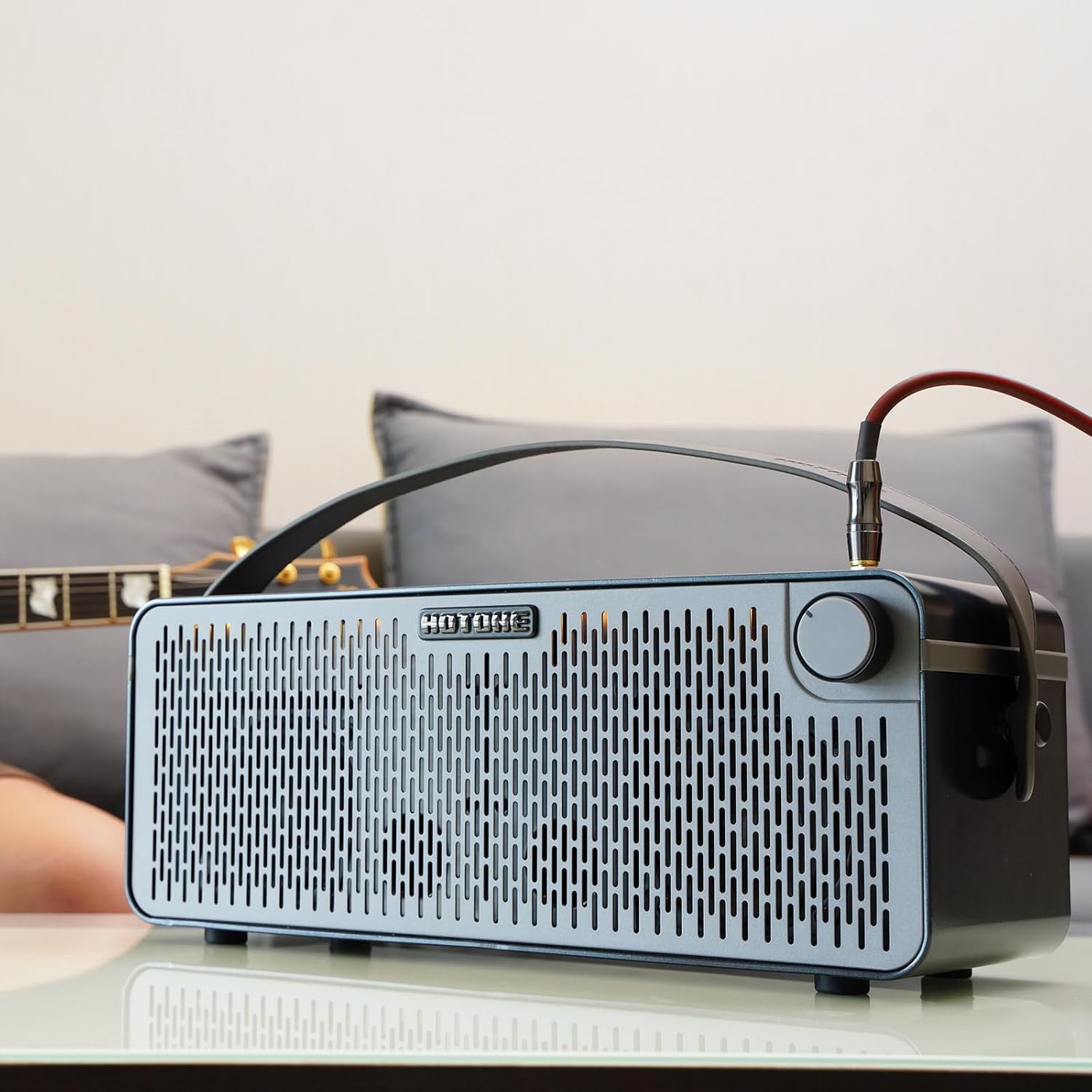

The Hotone Pulze amplifier positioned in a home environment, demonstrating its integration into daily practice or listening sessions.
3. Manutenzjoni
Proper maintenance ensures the longevity and optimal performance of your Hotone Pulze ampaktar ħaj.
3.1. Tindif
Imsaħ il-barra tal- amplifier with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish. Avoid spraying liquids directly onto the unit.
3.2. Ħażna
Meta ma tkunx qed tużah, aħżen amplifier in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If storing for extended periods, disconnect the power adapter.
3.3. Immaniġġjar
Immaniġġja l- amplifier with care to prevent drops or impacts. Use the integrated carry handle for transport. Avoid placing heavy objects on top of the unit.
4 Issolvi l-problemi
If you encounter any issues with your Pulze amplifier, refer to the following common problems and solutions. If the problem persists, contact customer support.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda Qawwa | L-adapter tal-enerġija mhux imqabbad jew is-sokit difettuż. | Ensure power adapter is securely connected and the outlet is functional. Try a different outlet. |
| Ebda Output tal-Ħoss | Volume too low, incorrect input selected, or faulty cable. | Increase master volume. Check input selection on the touchscreen. Test with a different instrument cable. Ensure headphones are not plugged in if using speakers. |
| Kwistjonijiet ta' Konnettività Bluetooth | Bluetooth not enabled, device too far, or interference. | Ensure Bluetooth is enabled on both the amplifier and your device. Move devices closer. Avoid sources of interference. |
| App Mhux Konnessjoni | App not updated, Bluetooth issue, or incorrect pairing. | Update the mobile app to the latest version. Re-pair the Bluetooth connection. Restart both the amplifer u l-apparat mobbli tiegħek. |
5. Speċifikazzjonijiet Tekniċi
Detailed specifications for the Hotone Pulze 30-watt Portable Modeling Ampaktar ħaj.
| Speċifikazzjoni | Valur |
|---|---|
| Piż tal-oġġett | 11.97 liri |
| Dimensjonijiet tal-Prodott | 6.34 x 17.91 x 6.73 pulzieri |
| ASIN | B0CPDWHP6B |
| Numru tal-mudell tal-oġġett | AP-30BK |
| Re tal-Klijentviews | 4.3 minn 5 stilel (8 klassifikazzjonijiet) |
| Data L-Ewwel Disponibbli | 4 ta’ Diċembru 2023 |
| Isem tal-Kulur | iswed |
| Apparati Kompatibbli | Kitarra |
| Tip ta' Konnettur | 6.35mm Jack, USB |
| Tip ta' Materjal | Acrylonitrile Butadiene Styrene (ABS) |
| Output Wattage | 30 Watts |
| Sors tal-Enerġija | Corded Elettriku |
| Brand | HOTONE |
| Kulur | iswed |
| Materjal | Acrylonitrile Butadiene Styrene (ABS) |
6. Garanzija u Appoġġ
Your Hotone Pulze amplifier comes with a manufacturer's warranty. For detailed warranty information and support, please refer to the official Hotone websit jew ikkuntattja lis-servizz tal-konsumatur tagħhom.
6.1. Pjanijiet ta' Protezzjoni
Additional protection plans are available for purchase to extend coverage beyond the standard manufacturer's warranty. These plans offer peace of mind for potential future issues.
- Pjan ta' Protezzjoni ta' Sentejn
- Pjan ta' Protezzjoni ta' Sentejn
- Protezzjoni Kompleta: Pjan wieħed ikopri x-xiri kollu eliġibbli tal-passat u tal-futur
6.2. Appoġġ għall-Klijent
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please visit the HOTONE Store jew irreferi għall-informazzjoni ta' kuntatt ipprovduta mal-imballaġġ tal-prodott tiegħek.
