VOTRONIC 0538 VAC 1215 Battery Charger Instruction Manual

1. Introduzzjoni

This manual provides essential information for the safe and efficient use of your VOTRONIC 0538 VAC 1215 Battery Charger. Designed specifically for fire department and commercial vehicles according to DIN 14679, this fully automatic charger ensures precise adherence to battery charging voltages. It features 6 adjustable charging programs and microprocessor control for fast, gentle, and complete battery charging. Please read these instructions carefully before installation and operation.

2. Istruzzjonijiet tas-Sigurtà

• Always disconnect the charger from the mains power before making any connections or disconnections to the battery.
• Ensure proper ventilation during charging to prevent the accumulation of explosive gases.
• Tesponix il-ċarġer għax-xita, umdità, jew temperaturi estremi.
• Avoid short-circuiting the battery terminals or charger output.
• Only use the charger for the specified battery types (lead-acid, gel, AGM).
• Żomm fejn ma jintlaħaqx mit-tfal.
• Jekk il-kejbil tad-dawl ikun bil-ħsara, għandu jiġi sostitwit mill-manifattur, mill-aġent tas-servizz tiegħu, jew minn persuni kwalifikati bl-istess mod biex jiġi evitat periklu.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• VOTRONIC 0538 VAC 1215 Battery Charger
• 4-meter Ölflex charging cable
• Manwal ta 'Istruzzjoni (dan id-dokument)

4. Setup

Segwi dawn il-passi għas-setup inizjali:

1. Immuntar tal-Ċarġer: Choose a dry, well-ventilated location for mounting the charger. Ensure sufficient space around the unit for heat dissipation. The compact design and low weight make it suitable for vehicle halls.
2. Konnessjoni tal-batterija: Connect the 4-meter Ölflex charging cable to the battery terminals. Ensure correct polarity: positive (+) to positive, negative (-) to negative. The intelligent charge control automatically accounts for voltage losses on the vehicle's internal wiring and charging plug.
3. Connecting to Mains Power: Ipplaggja l-korda tal-enerġija tal-ċarġer f'sokit standard ta' 230V AC.
4. Konnessjonijiet Fakultattivi: The charger supports connections for a remote control/indicator, a charging current distributor, switchable start, switch output motor start interlock, and a temperature sensor for optimized charging. Refer to the detailed wiring diagram in the full technical manual for these advanced connections.

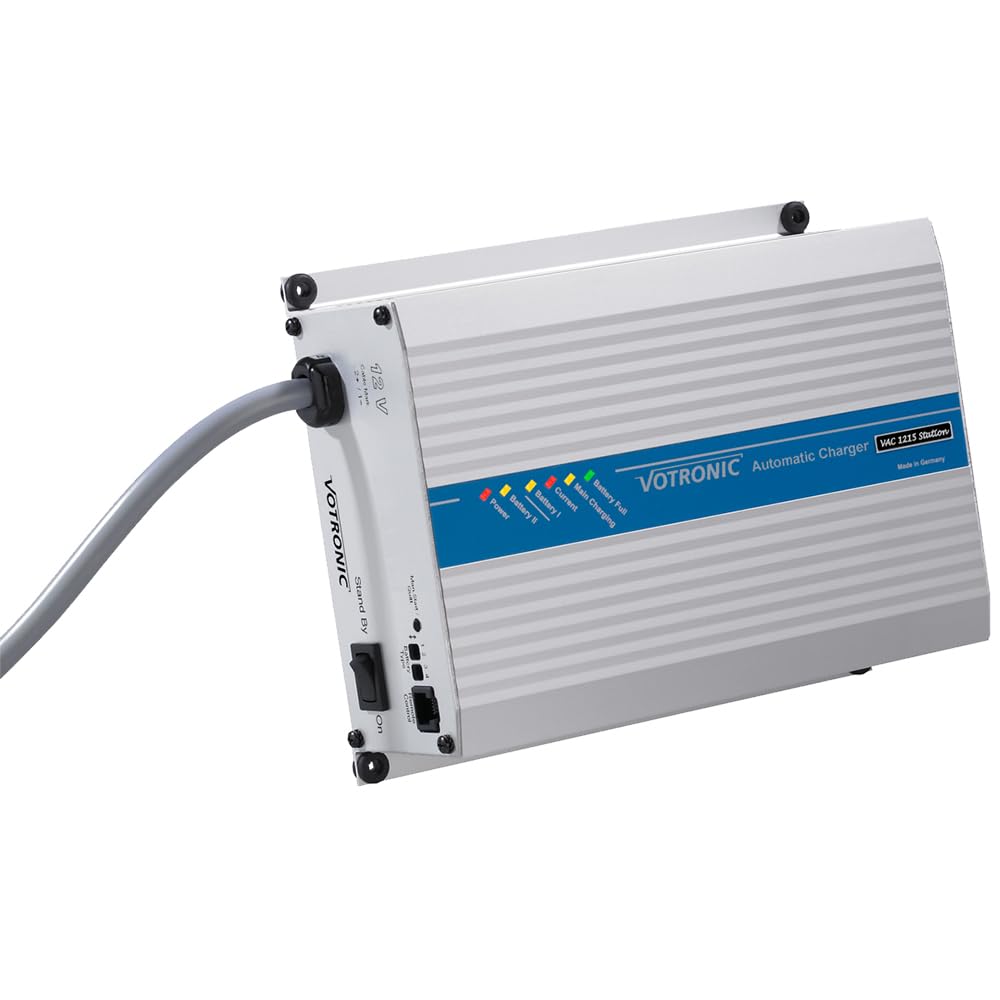

Image 1: VOTRONIC 0538 VAC 1215 Battery Charger with the 4-meter Ölflex charging cable connected. This image illustrates the main unit and its primary connection cable.

5. Istruzzjonijiet Operattivi

The VOTRONIC 0538 VAC 1215 features intelligent microprocessor-controlled charging:

• Operazzjoni Awtomatika: Once connected to the battery and mains power, the charger automatically detects the battery status and begins the charging process.
• Charging Programs: The charger offers 6 adjustable charging programs, optimized for various battery types (acid, gel, AGM). Select the appropriate program for your battery to ensure optimal charging and longevity. Refer to the charger's display or indicators for program selection.
• 6-Stage Charging Characteristic: The optimized 6-stage charging characteristic ensures a gentle and complete charge, preventing overcharging and extending battery life.
• Automatic Battery Regeneration: This function helps to maintain battery health and can improve the performance of older batteries.
• Manual Charge Start: For deeply discharged batteries, a manual charge start option is available. Consult the charger's interface for instructions on initiating this function.
• Użu Kontinwu: The charger is designed for continuous operation, ensuring the battery remains fully charged at all times without risk of damage.

6. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-ċarġer tiegħek:

• Tindif: Naddaf il-barra tal-ċarġer perjodikament b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
• Kontroll tal-Konnessjoni: Regularly inspect all cable connections for tightness and signs of wear or corrosion. Ensure the 4-meter Ölflex charging cable is free from damage.
• Ventilazzjoni: Ensure that the ventilation openings on the charger are not blocked to prevent overheating.
• Ħażna: If storing the charger for an extended period, disconnect it from both the battery and mains power and store it in a dry, cool place.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi, irreferi għall-passi komuni li ġejjin għas-soluzzjoni tal-problemi:

• Il-Ċarġer Mhux Mixgħul:
  • Check if the mains power cable is securely plugged into a working outlet.
  • Verify that the battery is correctly connected with the right polarity.
• Batterija Mhux Iċċarġja:
  • Ensure the correct charging program is selected for your battery type.
  • Iċċekkja l-konnessjonijiet kollha għal laxkezza jew korrużjoni.
  • The battery might be severely discharged; try the manual charge start function if available.
  • Inspect the 4-meter Ölflex charging cable for any visible damage.
• Is-sħana żejda:
  • Aċċerta ruħek li jkun hemm ventilazzjoni adegwata madwar il-ċarġer.
  • Check if the ambient temperature is within the operating limits.

If the problem persists after following these steps, contact VOTRONIC customer support or a qualified technician.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. You may also visit the official VOTRONIC webis-sit għal aktar assistenza u dettalji ta’ kuntatt.

Manufacturer: VOTRONIC
