1. Introduzzjoni
This manual provides essential information for the VESTEL 20FR26 32037169 control board, a replacement component for various electric ovens and cooktops. It is designed to assist qualified technicians with installation, operation, and maintenance. This board is compatible with specific models from brands such as SHARP, TELEFUNKEN, TECHLIFE, and PERLA.
2. Informazzjoni dwar is-Sigurtà
- Always disconnect power to the appliance before attempting any installation, maintenance, or repair.
- L-installazzjoni u s-servizz għandhom isiru biss minn tekniku kwalifikat.
- Ilbes tagħmir protettiv personali (PPE) xieraq waqt l-installazzjoni.
- Ensure all connections are secure and correctly wired according to the appliance's wiring diagram.
- Do not operate the appliance if the control board is damaged or improperly installed.
3. Prodott Aktarview
The VESTEL 20FR26 32037169 is a printed circuit board (PCB) designed to manage the functions of an electric oven or cooktop. It features integrated digital displays for settings and a timer function. The board includes various electronic components, connectors, and mounting points for secure integration into the appliance.
Figura 1: Quddiem view of the VESTEL 20FR26 32037169 control board, showing the digital displays, capacitors, and integrated circuits. This view highlights the main operational components.

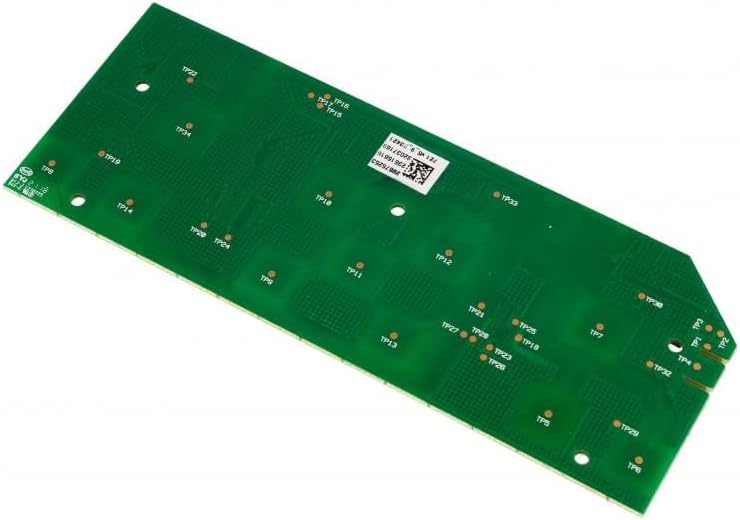

Figura 2: Wara view of the VESTEL 20FR26 32037169 control board, displaying solder points and circuit traces. This side typically connects to the appliance's wiring harness.

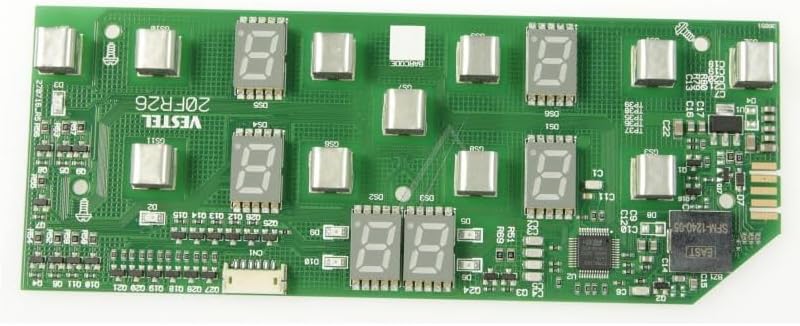

Figura 3: Quddiem dettaljat view of the VESTEL 20FR26 32037169 control board, providing a closer look at the VESTEL branding, model number "20FR26", and specific component layouts.
4. Setup u Installazzjoni
Installation of this control board should only be performed by a qualified technician.
- Preparazzjoni: Ensure the appliance is completely disconnected from the main power supply.
- Aċċess: Iftaħ l-apparat b'attenzjoniasing to access the existing control board. Refer to the appliance's service manual for specific access procedures.
- Tneħħija tal-Bord il-Qadim: Disconnect all wiring harnesses and mounting screws from the old control board. Note the orientation and connection points for accurate reinstallation.
- Installazzjoni ta' Bord Ġdid: Position the VESTEL 20FR26 32037169 control board in the designated slot. Secure it with the appropriate screws.
- Wiring: Reconnect all wiring harnesses to the new board, ensuring each connector is firmly seated in its correct position. Double-check all connections against the appliance's wiring diagram.
- Għeluq: Close the appliance casing.
- Ittestjar: Reconnect the appliance to the main power supply and perform a functional test to ensure all features, including the timer, operate correctly.
5. Istruzzjonijiet Operattivi
This control board primarily manages the functions of your oven or cooktop. Specific operational details, such as temperature settings, cooking modes, and burner controls, are typically managed through the appliance's user interface (knobs, buttons) which communicates with this board.
Funzjoni Timer: The integrated timer function allows for setting specific cooking durations. Consult your appliance's main user manual for detailed instructions on how to set, adjust, and cancel the timer using the appliance's external controls. The digital displays on the control board will show the timer status.
6. Manutenzjoni
The control board itself requires minimal maintenance.
- Tindif: If the appliance interior or exterior requires cleaning, ensure the appliance is disconnected from power. Use a soft, dry cloth to wipe down external surfaces. Avoid using abrasive cleaners or excessive moisture near electronic components.
- Spezzjoni: Periodically, a qualified technician may inspect the board for signs of wear, corrosion, or loose connections, especially during routine appliance servicing.
7 Issolvi l-problemi
- Ebda Qawwa/Wiri Mitfi:
- Iċċekkja jekk l-apparat huwiex imqabbad sew mal-provvista tal-enerġija.
- Verify the circuit breaker or fuse for the appliance.
- If power is present but the display remains off, professional inspection of the control board and wiring is required.
- Ħsara fil-Timer:
- Ensure the timer is set correctly according to the appliance's user manual.
- If the timer does not activate or count down, there may be an issue with the control board or the appliance's interface.
- Operazzjoni inkonsistenti:
- If the oven or cooktop functions are erratic, it could indicate a fault with the control board or other appliance components.
- Parir Ġenerali: For any persistent issues, it is recommended to contact a qualified appliance repair technician. Do not attempt to repair the control board yourself unless you are a trained professional.
8. Speċifikazzjonijiet
- Manifattur: VESTEL
- Numri tal-Mudell: 20FR26, 32037169
- Dimensjonijiet tal-Prodott: Approximately 1 x 1 x 1 cm (Note: This dimension may refer to packaging or a generic entry.)
- Karatteristika Speċjali: Funzjoni Timer
- Tip ta' Installazzjoni: Built-in (for compatible appliances)
- Pajjiż ta' Oriġini: l-Italja
- Kompatibilità: SHARP, TELEFUNKEN, TECHLIFE, PERLA (specific models as listed in product description)
9. Garanzija u Appoġġ
This product is a replacement part. For specific warranty information, please refer to the original appliance manufacturer's warranty policy or the retailer's return policy at the time of purchase.
Ritorni: If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the retailer's help page on returns. If you have received a defective or damaged product, consult the retailer's help page on defective or damaged items. For specific information on purchases made through a marketplace, consult the retailer's help page for marketplace purchases.
Appoġġ Tekniku: For technical assistance or professional installation, it is recommended to contact a certified appliance technician.
