1. Prodott Aktarview
The TSUN TSOL-MS600-D is a 600W microinverter, representing the latest 3rd generation technology designed for balcony solar systems and other small-scale photovoltaic installations. This essential component converts direct current (DC) generated by solar panels into alternating current (AC) suitable for household appliances and direct grid feeding.
Key features include a high CEC efficiency of 96.7%, integrated WiFi for monitoring via the free Talent Home App, and robust IP67 protection for outdoor use. The inverter's output can be remotely upgraded to 800W, offering flexibility for future expansion. It is certified according to VDE-AR-N-4105 and EN50549-1 standards, ensuring compliance and safety for grid connection.
Image 1.1: The TSUN TSOL-MS600-D Microinverter, a compact device designed for converting solar energy into usable household electricity.
2. Informazzjoni dwar is-Sigurtà
Jekk jogħġbok aqra l-istruzzjonijiet kollha tas-sigurtà bir-reqqa qabel l-installazzjoni u t-tħaddim. Jekk ma ssegwix dawn l-istruzzjonijiet, dan jista' jirriżulta f'xokk elettriku, nar, jew korriment serju.
- L-installazzjoni għandha titwettaq minn persunal kwalifikat skont il-kodiċijiet u r-regolamenti elettriċi lokali.
- Do not attempt to open or repair the microinverter. Refer all servicing to authorized service personnel.
- Ensure the microinverter is properly grounded.
- Disconnect all power sources (DC from solar panels and AC from grid) before performing any maintenance or installation work.
- The microinverter can reach high temperatures during operation. Avoid direct contact.
- Żomm lit-tfal 'il bogħod miż-żona tal-installazzjoni.
3. Kontenut tal-Pakkett
The package for the TSUN TSOL-MS600-D Microinverter typically includes:
- 1 x TSUN TSOL-MS600-D WiFi Microinverter
Nota: Connecting cables (DC extension cables, AC output cable) are sold separately and must be purchased according to your specific installation requirements.
4. Setup u Installazzjoni
The TSUN TSOL-MS600-D microinverter is designed for straightforward installation. It can be securely mounted on a wall or placed on a stable surface, thanks to its durable and maintenance-free design with IP67 protection, making it suitable for outdoor environments like gardens, balconies, and terraces.
4.1 Post tal-Immuntar
- Choose a location that is easily accessible for connections and future maintenance.
- Kun żgur li jkun hemm ventilazzjoni adegwata madwar l-unità biex tevita li tissaħħan iżżejjed.
- The mounting surface must be strong enough to support the weight of the inverter.
4.2 Konnessjonijiet elettriċi
Connect the DC input cables from your solar panels to the corresponding DC input connectors on the microinverter. Ensure correct polarity. Then, connect the AC output cable from the microinverter to your home's electrical grid, adhering to all local electrical codes and safety standards.

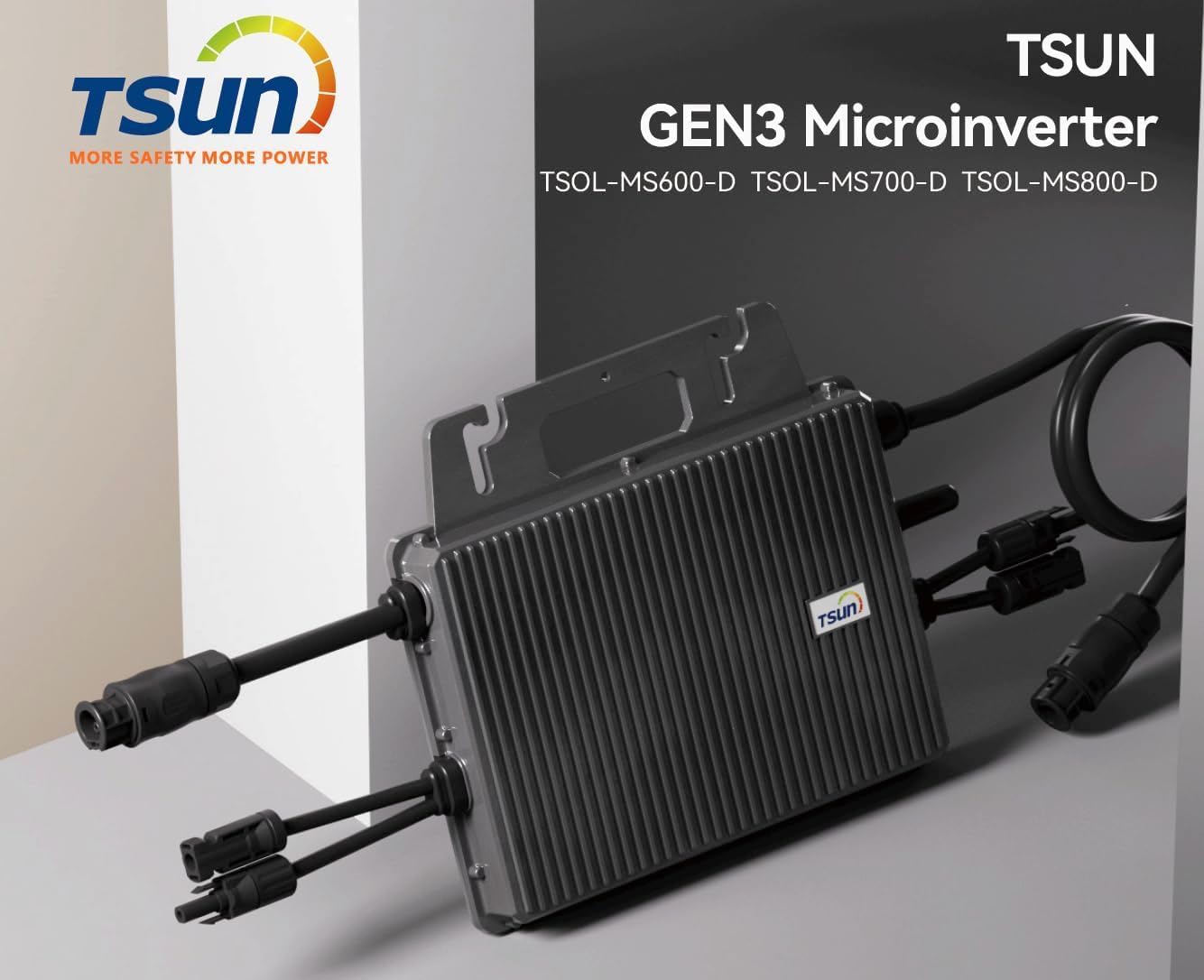

Image 4.1: The TSUN GEN3 Microinverter, showing its robust design and connection points for solar panels and grid output.
5. Operazzjoni
Once installed and connected, the TSUN TSOL-MS600-D microinverter will automatically begin converting the DC power generated by your solar panels into AC power. This AC power is then fed directly into your home's electrical system, reducing your reliance on grid electricity.
- Operazzjoni Awtomatika: The inverter operates automatically when sufficient solar power is available.
- Effiċjenza Għolja: With a CEC efficiency of 96.7%, the inverter maximizes energy harvest from your solar array.
- Grid Synchronization: The inverter synchronizes with the grid frequency and voltage to ensure safe and compliant power injection.
6. WiFi Monitoring and App Control
The TSUN TSOL-MS600-D features built-in WiFi connectivity, allowing you to monitor your solar system's performance in real-time via the free 'Talent Home' mobile application. This app provides detailed insights into power generation, energy consumption, and system status.
6.1 Talent Home App Features
- Real-time monitoring of current power output (kW).
- Daily, monthly, and yearly energy generation statistics (kWh).
- Module-level monitoring system for detailed performance analysis.
- Fast network configuration for easy setup.

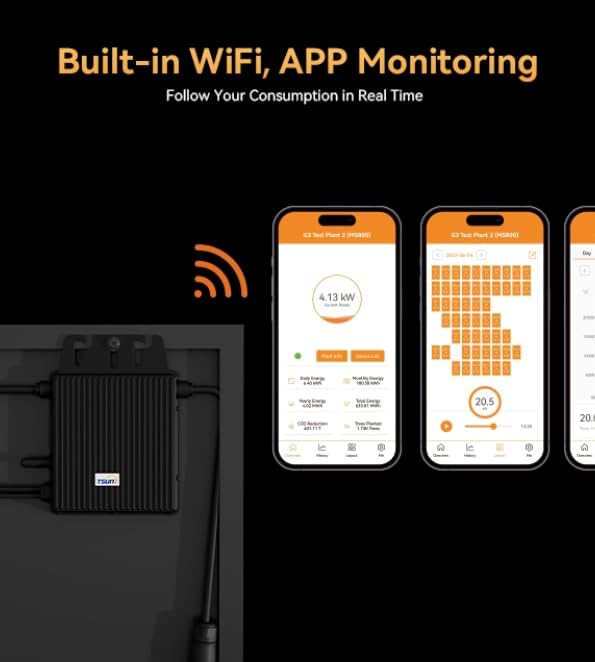

Image 6.1: Illustration of the built-in WiFi and APP monitoring capabilities, allowing users to track their energy consumption in real-time.
Immaġni 6.2: Fuqview of the monitoring platform, demonstrating how the microinverter connects to a WiFi router, cloud, and the Talent Home App for comprehensive system oversight.
6.2 Output Upgrade to 800W
The 600W output of the microinverter can be upgraded to 800W via an Online Remote Upgrade (ORU). To initiate this upgrade, you will need to provide the microinverter's serial number, and the device must be connected to the internet. The upgrade process typically takes approximately 3-5 days to complete.
7. Manutenzjoni
The TSUN TSOL-MS600-D microinverter is designed for maintenance-free operation. However, periodic visual inspections are recommended to ensure optimal performance and longevity.
- Regularly check all electrical connections for tightness and signs of corrosion.
- Ensure the area around the inverter is clear of debris to allow for proper airflow.
- Clean the exterior of the inverter with a soft, damp cloth if necessary. Do not use harsh chemicals or abrasive materials.
8 Issolvi l-problemi
If you encounter issues with your TSUN TSOL-MS600-D microinverter, consider the following basic troubleshooting steps:
- Ebda Enerġija Output: Check all DC and AC connections to ensure they are secure. Verify that solar panels are receiving sufficient sunlight.
- Problemi ta' Konnettività tal-WiFi: Ensure your WiFi router is functioning correctly and within range of the inverter. Restart the router and the inverter if necessary. Refer to the Talent Home App for network status.
- Ħruġ ta' Enerġija Baxxa: Check for shading on solar panels. Ensure panels are clean. Review performance data in the Talent Home App for anomalies.
- Indikaturi ta' Żball: Consult the Talent Home App for specific error codes or messages, which can provide more detailed diagnostic information.
For persistent issues, contact TSUN customer support or an authorized service partner.
9. Speċifikazzjonijiet
Image 9.1: Key features and certifications of the TSUN TSOL-MS600-D Microinverter, including warranty and operating temperature range.
| Parametru | Valur |
|---|---|
| Isem tal-Mudell | TSUN TSOL-MS600-D |
| Qawwa tal-Ħruġ Rated | 600 W (Upgradeable to 800 W via ORU) |
| Input Voltage (DC) | 12 V (from solar panels) |
| Ħruġ Voltage (AC) | 230 V AC |
| CEC Effiċjenza | 96.7% |
| Temperatura operattiva | -40°C sa +65°C |
| Klassi ta' Protezzjoni | IP67 |
| Ċertifikazzjonijiet | VDE-AR-N-4105, EN50549-1 |
| Konnettività | WiFi |
| Monitoraġġ App | Talent Home App |
| Recommended PV Array Size | Up to 1100 WattPeak (550W per MPPT) |
10. Garanzija u Appoġġ
The TSUN TSOL-MS600-D Microinverter comes with a 12-year manufacturer's warranty, ensuring long-term reliability and peace of mind. TSUN is committed to providing high-quality products and excellent customer service.
10.1 Appoġġ għall-Klijent
For technical assistance, warranty claims, or any other inquiries, please contact TSUN customer support through their official website or an authorized service partner. Ensure you have your product model and serial number ready when contacting support.
You can find more information and support resources on the official TSUN websit: www.tsun-ess.com
