Manwal tal-Utent tal-Printer tat-Tikketti Bluetooth Pristar P15 Mini

1. Introduzzjoni

The Pristar P15 Mini Bluetooth Label Printer is a compact, portable, and rechargeable thermal label maker designed to simplify your organization tasks. With its wireless Bluetooth connectivity, you can easily create and print custom labels directly from your iOS or Android smartphone using the intuitive 'Marklife' application. This manual provides detailed instructions on setting up, operating, maintaining, and troubleshooting your P15 label printer to ensure optimal performance and a seamless labeling experience.

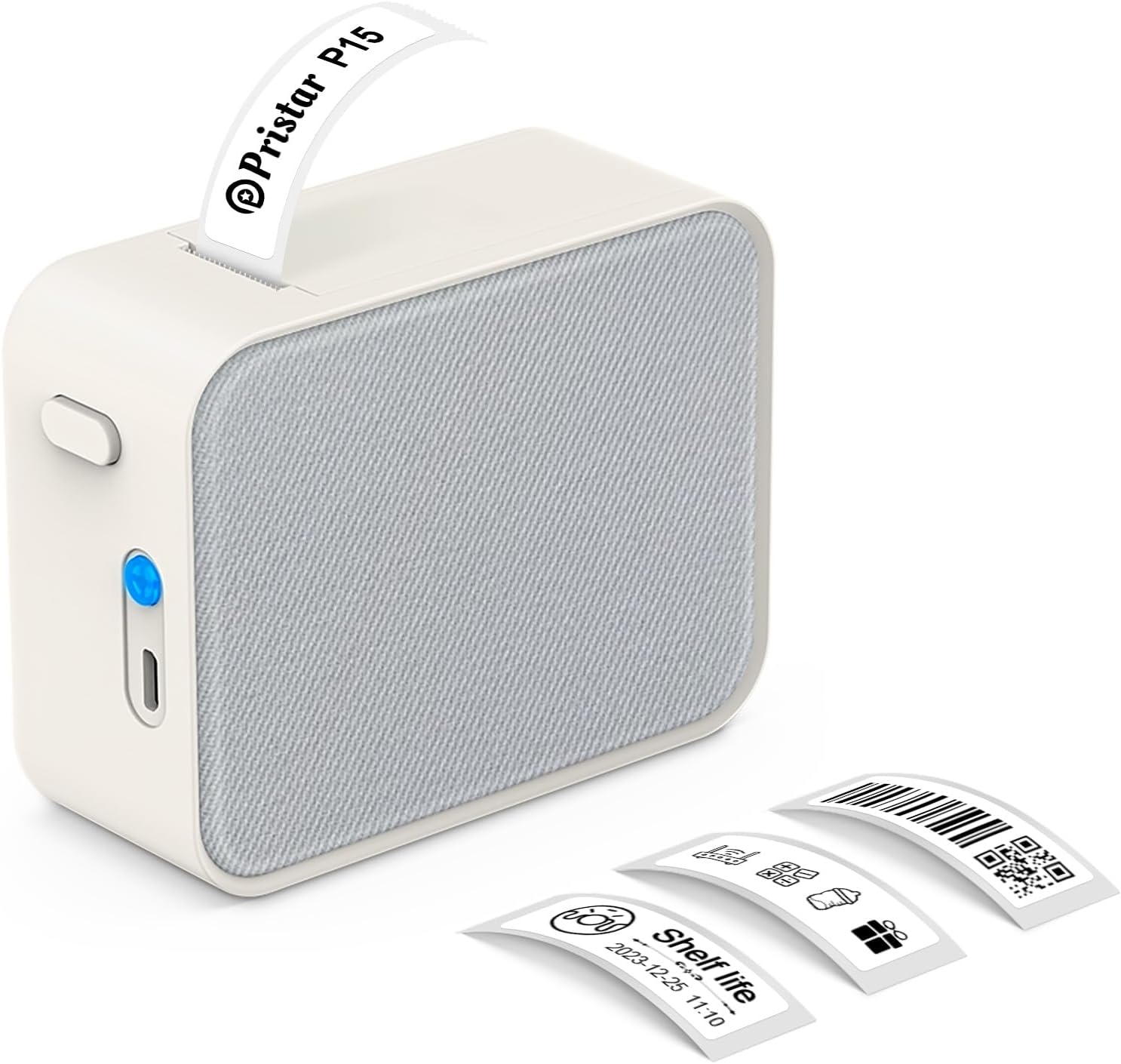

Figure 1.1: Pristar P15 Mini Bluetooth Label Printer

2. Informazzjoni dwar is-Sigurtà

Please read all safety instructions carefully before using the Pristar P15 label printer. Failure to follow these instructions may result in injury or damage to the device.

• Tiżżarmax, isewwi, jew timmodifikax l-apparat.
• Żomm l-apparat 'il bogħod mill-ilma, l-umdità, u temperaturi għoljin.
• Use only the specified USB-C cable for charging.
• Avoid exposing the print head to direct sunlight or strong light.
• Żomm fejn ma jintlaħaqx mit-tfal.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• 1 x Pristar P15 Label Printer (with built-in 1200mAh rechargeable lithium battery)
• 1 x Roll of Label Paper (12x40mm, White)
• 1 x USB-C Charging Cable (Power adapter not included)
• 1 x Manwal ta 'Istruzzjoni

4. Gwida ta' Setup

4.1 Iċċarġjar tal-Printer

Before first use, fully charge the printer. Connect the provided USB-C cable to the charging port on the printer and plug the other end into a USB power source (e.g., computer, wall adapter). The indicator light will show charging status.

4.2 Tagħbija tal-Karta tat-Tikketti

Proper loading of the label paper is crucial for clear printing.

1. Open the printer cover by sliding the release button.
2. Insert the label roll with the label face down, ensuring the leading edge of the labels extends slightly out of the slot.
3. Agħlaq l-għatu tal-istampatur sew sakemm tikklikkja f'postu.

Figure 4.1: Label Paper Installation and App Connection Steps

4.3 Installazzjoni tal-App

The Pristar P15 operates via the 'Marklife' application.

• Scan the QR code provided in the quick start guide or search for "Marklife" in your device's app store (App Store for iOS, Google Play Store for Android).
• Niżżel u installa l-applikazzjoni.

4.4 Konnessjoni Bluetooth

Connect your printer to the 'Marklife' app.

• Kun żgur li l-Bluetooth huwa attivat fuq l-ismartphone tiegħek.
• Open the 'Marklife' app.
• Within the app, search for and connect to your P15 printer. Do not connect via your phone's general Bluetooth settings.

5. Istruzzjonijiet Operattivi

The 'Marklife' app provides extensive features for creating and customizing labels.

5.1 Basic Label Creation

1. Open the 'Marklife' app and ensure your printer is connected.
2. Select the desired label size (e.g., 12x40mm).
3. Tap on the text box to enter your desired label content.
4. Use the editing tools to customize fonts, sizes, and styles.
5. Tap the 'Print' button to send the label to the printer.

5.2 Karatteristiċi Avvanzati tal-App

The 'Marklife' app offers a wide range of customization options:

• Fonts & Languages: Access over 60 fonts and 8 languages for diverse labeling needs.
• Ikoni u Frejms: Choose from 1000+ icons and various frames to enhance your labels.
• Kodiċijiet tal-bar u Kodiċijiet QR: Generate and print barcodes and QR codes directly from the app.
• Image & Text Import: Import pictures, or use features like Excel import, scanning, and voice input for text.
• Mudelli: Utilize free templates for quick label creation. (Note: Some templates may require payment, and signing in allows saving customized templates.)

Figure 5.1: Smart App Control Interface

5.3 Teknoloġija tal-Istampar Termali

The P15 uses thermal printing, eliminating the need for ink or toner, making it cost-effective and environmentally friendly. It supports 12-15mm label printing with a 203 DPI resolution for clear results.

5.4 Label Tape Features

Pristar label tapes are designed for durability and ease of use:

• Reżistenti għall-Ilma u ż-Żejt: Labels maintain integrity even when exposed to water or oil.
• Kontra l-grif: Resistant to fading or damage from rubbing.
• Reżistenza tad-dmugħ: Durable and not easily torn by hand.
• L-ebda Residwu li Jwaħħal: Designed for easy removal without leaving adhesive residue.

Figura 5.2: Karatteristiċi tal-Karta tat-Tikketti Termali P15

5.5 Applikazzjoni Wiesgħa

The P15 is versatile for various organizational tasks:

• Ħażna fid-Dar: Label food containers, pantry items, and storage bins.
• Office Classification: Organizza files, dokumenti, u provvisti tal-uffiċċju.
• Prezz Tags: Create clear and professional price labels.
• School Information Management: Label school supplies, books, and projects.
• Ġestjoni tal-Kejbil: Identify cables and wires for electronics.

Figure 5.3: Home Organization Examples

Figure 5.4: Work Organization Examples

6. Manutenzjoni

To ensure the longevity and optimal performance of your Pristar P15 label printer, follow these maintenance guidelines:

• Tindif tar-ras tal-istampar: If print quality degrades, gently wipe the thermal print head with a cotton swab lightly dampened with isopropyl alcohol. Ensure the printer is off and dry before use.
• Tindif ta' barra: Use a soft, dry cloth to clean the exterior of the printer. Do not use abrasive cleaners or solvents.
• Ħażna: Aħżen il-printer f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi. Neħħi r-romblu tat-tikketti jekk se taħżnu għal perjodu twil ta' żmien.

7 Issolvi l-problemi

If you encounter issues with your Pristar P15 label printer, refer to the following common problems and solutions:

8. Speċifikazzjonijiet

Key technical specifications for the Pristar P15 Mini Bluetooth Label Printer:

9. Garanzija u Appoġġ

Pristar products are manufactured to high-quality standards. For warranty information and technical support, please refer to the contact details provided on the product packaging or the official Pristar websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal kwalunkwe talba ta' garanzija.

For further assistance, you may contact Pristar customer service at pristar_service@outlook.com.
