Manwal tal-Utent tal-Kit tal-Panel Solari Flessibbli ECO-WORTHY 130W 12V

1. Introduzzjoni

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your ECO-WORTHY 130W 12V Flexible Solar Panel Kit. Please read these instructions thoroughly before using the product.

Prodott Overview

The ECO-WORTHY 130W 12V Flexible Solar Panel Kit is designed for off-grid power solutions, suitable for various applications including RVs, boats, campers, and homes. It features a lightweight, flexible monocrystalline solar panel and a 30A PWM charge controller.

Karatteristiċi Ewlenin

• High Daily Output: Capable of generating approximately 520Wh per day under optimal sunlight conditions.
• Disinn flessibbli: Constructed with advanced polymer materials, allowing for a 245° curve and making it 70% lighter than traditional glass solar panels. This design simplifies transportation and installation on uneven surfaces.
• Integrated Charge Controller: Includes a 30A 12V PWM charge controller with an LCD display. This controller is compatible with lead-acid, gel, and lithium phosphate batteries.
• Protezzjonijiet tas-Sigurtà: The charge controller offers short-circuit protection, open-circuit protection, reverse protection, and over-load protection.
• Iċċarġjar USB: Dual USB output ports (5V / 2A max per port) are available for charging mobile devices.
• Iċċarġjar effiċjenti: Features 3-stage PWM charge management to optimize system efficiency and extend battery lifespan.

2. Informazzjoni dwar is-Sigurtà

Dejjem osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment personali jew ħsara lit-tagħmir:

• Aqra l-istruzzjonijiet kollha qabel l-installazzjoni u t-tħaddim.
• Do not attempt to disassemble or modify the solar panel or controller.
• Ensure all connections are secure and correctly polarized to avoid electrical hazards.
• Ilbes tagħmir protettiv personali (PPE) xieraq waqt l-installazzjoni, inklużi ingwanti u protezzjoni għall-għajnejn.
• Avoid touching exposed wires or terminals when the system is active.
• Install the solar panel in a location with adequate ventilation and away from flammable materials.
• Disconnect the solar panel from the charge controller before performing any maintenance or wiring changes.
• Keep children and unauthorized personnel away from the solar power system.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra meta tiftaħ il-pakkett:

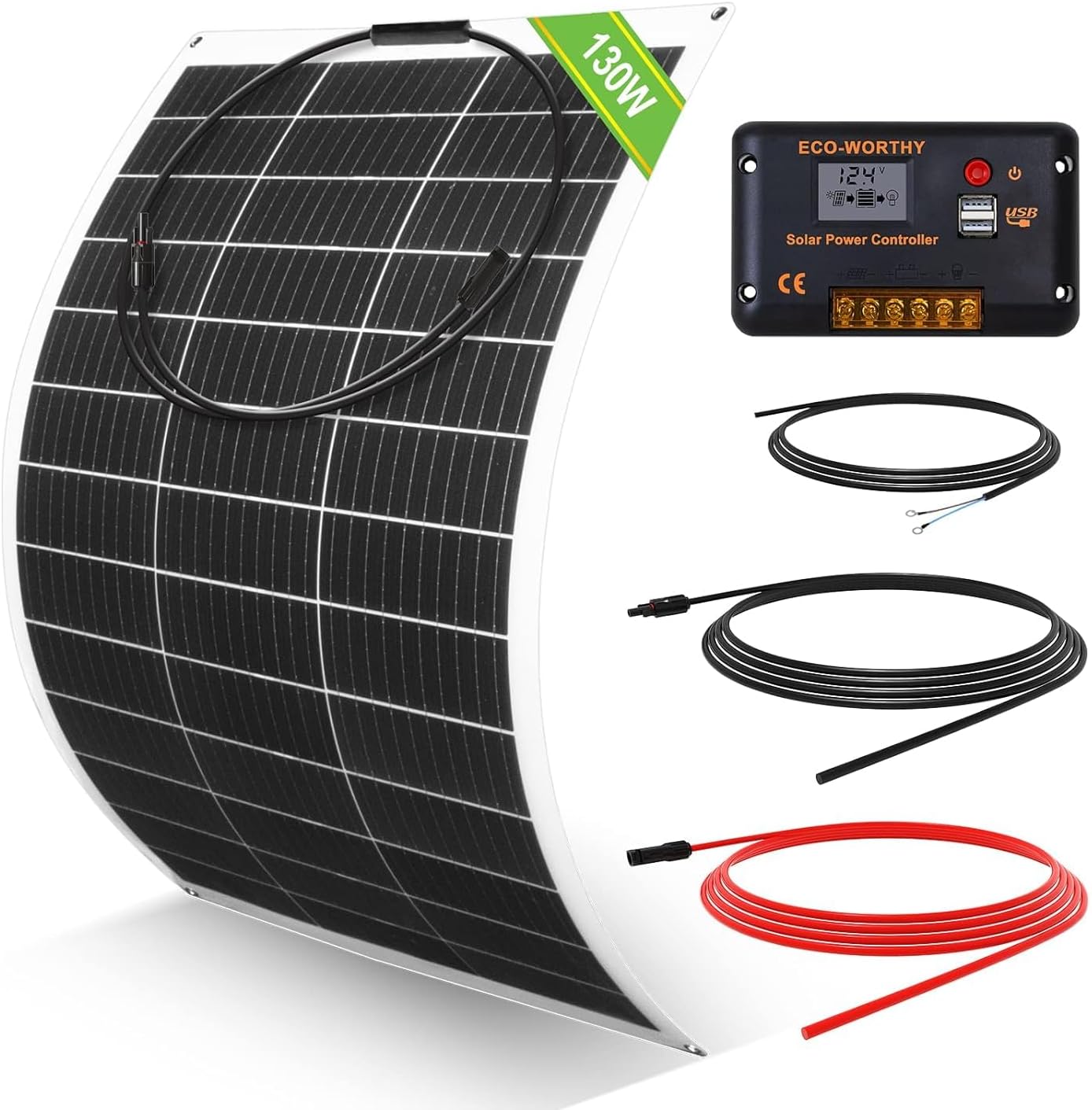

• 1x ECO-WORTHY 130W Flexible Monocrystalline Solar Panel
• 1x ECO-WORTHY 30A 12V PWM Charge Controller
• 1x Solar Cable (MC4 to bare wire)
• 1x Tray Cable (for battery connection)
• 1x Y-Branch Connector Set (for parallel connection of multiple panels, if applicable)

4. Setup u Installazzjoni

Follow these steps for proper installation of your solar panel kit.

4.1 Panel Placement

The flexible solar panel can be installed on various surfaces, including RVs, boats, campers, and other uneven surfaces. Choose a location that receives maximum direct sunlight throughout the day and is free from obstructions.

4.2 Passi tal-Wiring

Follow these four steps for connecting your solar panel kit. It is crucial to connect the battery to the controller first.

1. Wire the Solar Panels: Connect your solar panel(s) into a 12V array. If using multiple panels, ensure they are connected in parallel using Y-branch connectors to maintain 12V system voltage.
2. Prepare the Battery Bank: Ensure your 12V battery bank is ready for connection.
3. Connect Charge Controller to Battery: Connect the charge controller to the battery bank using the provided tray cable. Dejjem qabbad il-batterija mal-kontrollur l-ewwel. Kun żgur li l-polarità hija korretta (pożittiv għal pożittiv, negattiv għal negattiv).
4. Connect Solar Panel to Controller: Insert the solar panel array output into the PV input terminals of the charge controller. Ensure correct polarity.

5. Istruzzjonijiet Operattivi

Once installed, your ECO-WORTHY solar panel kit will begin generating power. The 30A PWM charge controller manages the charging process and provides system status.

5.1 Charge Controller Functions

• Display LCD: Shows real-time system information such as battery voltage, charging current, and load status.
• Kompatibilità tal-batterija: The controller automatically detects 12V/24V systems and is suitable for lead-acid, gel, and lithium phosphate batteries.
• Portijiet USB: Use the dual 5V/2A USB ports to charge small electronic devices.
• Ħruġ tat-Tagħbija: The controller features a load output for connecting DC loads, which can be managed with timing functions.
• Algoritmu tal-Iċċarġjar: Employs a 3-stage PWM charging algorithm (Bulk, Absorption, Float) to ensure efficient and safe battery charging.

5.2 Ġenerazzjoni tal-Enerġija

The 130W flexible solar panel is designed to generate up to 520Wh of power per day under ideal conditions (approximately 4 hours of full sunshine). Actual power generation may vary based on weather conditions, panel orientation, and shading.

6. Manutenzjoni

Regular maintenance ensures optimal performance and longevity of your solar panel kit.

• Pannelli Nodfa: Naddaf perjodikament il-wiċċ tal-pannell solari b'ċarruta ratba u damp cloth to remove dust, dirt, and debris. Avoid abrasive materials or harsh chemicals.
• Spezzjona Konnessjonijiet: Regularly check all electrical connections for tightness and corrosion. Ensure cables are not frayed or damaged.
• Monitora l-Prestazzjoni: Observe the charge controller's display to ensure the system is charging correctly and the battery voltage is within expected ranges.
• Iċċekkja għad-dell: Ensure the solar panel is not shaded by trees, buildings, or other objects, as shading can significantly reduce power output.
• Saħħa tal-batterija: If using lead-acid batteries, check electrolyte levels and specific gravity periodically.

7 Issolvi l-problemi

If you encounter issues with your ECO-WORTHY solar panel kit, refer to the following common problems and solutions:

7.1 No Power Output from Solar Panel

• Check Sunlight: Ensure the panel is receiving direct sunlight and is not shaded.
• Spezzjona Konnessjonijiet: Verify that all MC4 connectors and wiring to the charge controller are secure and correctly polarized.
• Panel Nadif: Remove any dirt or debris from the panel surface.
• Test Panel Voltage: Use a multimeter to check the open-circuit voltage (Voc) of the solar panel. It should be close to the specified maximum voltage (21.1V).

7.2 Il-Batterija Mhux Qed Tiċċarġja

• Iċċekkja l-Konnessjonijiet tal-Batterija: Ensure the battery is correctly connected to the charge controller with proper polarity.
• Verify Controller Settings: Confirm the charge controller is set to the correct battery type (if adjustable).
• Controller Fault: Check the charge controller's display for any error codes or indicators. Refer to the controller's specific manual for error interpretations.
• Kundizzjoni tal-batterija: Ensure the battery itself is in good working condition and not fully discharged or damaged.

7.3 USB Ports Not Working

• Iċċekkja Battery Voltage: Il-batterija voltage might be too low for the USB ports to operate.
• Controller Status: Ensure the charge controller is powered on and functioning correctly.
• Kompatibbiltà tal-Apparat: Some devices may draw too much current or be incompatible.

If troubleshooting steps do not resolve the issue, please contact ECO-WORTHY customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

ECO-WORTHY is committed to providing quality products and customer satisfaction. For any questions, technical assistance, or warranty inquiries, please contact our customer support team.

• Servizz tal-Klijent: Our support team aims to respond to inquiries within 24 hours.
• Manwal tal-Prodott: An English manual is provided for detailed guidance.

Please refer to the official ECO-WORTHY webis-sit jew id-dokumentazzjoni tax-xiri tiegħek għal termini u kundizzjonijiet speċifiċi tal-garanzija.
