Manwal tal-Utent tal-Starter tal-Qabża tal-Batterija tal-Karozza Portabbli ACEZUK M02 7000A

1. Introduzzjoni

This manual provides essential instructions for the safe and effective use of your ACEZUK M02 Portable Car Battery Jump Starter. Please read this manual thoroughly before operation and retain it for future reference.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA:

• Do not attempt to jump-start a frozen battery.
• Kun żgur li l-konnessjoni tal-polarità hija xierqa (il-klamp aħmar)amp għal pożittiv, iswed clamp to negative). Reverse polarity can cause damage.
• Tqabbadx iż-żewġ clamps flimkien.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Opera f'żona b'ventilazzjoni tajba.
• Remove the jump starter from the vehicle battery immediately after the vehicle starts.
• Evita li tesponi l-apparat għal temperaturi estremi jew dawl tax-xemx dirett għal perjodi twal.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• 1 x ACEZUK M02 Jump Starter
• 1 x Smart Jumper Clamps
• 1 x Kejbil USB (Tip Ċ)
• 1 x Każ tal-Ħażna
• 1 x Manwal għall-Utent

Figure 3.1: Package Contents of the ACEZUK M02 Jump Starter.

4. Prodott Aktarview

The ACEZUK M02 is a powerful and versatile portable jump starter designed for 12V vehicles. It features a 7000A peak current, suitable for gasoline engines up to 10.0L and diesel engines up to 8.0L. It also functions as a portable power bank and an emergency LED light.

Karatteristiċi ewlenin:

• L-ogħla Kurrent Għoli: 7000A for reliable vehicle starting.
• Kompatibilità Wiesgħa: Supports 12V vehicles with up to 10.0L gas or 8.0L diesel engines.
• Bank tal-Enerġija ta' 21800mAh: Dual USB ports (5V/2.4A, QC3.0) for charging mobile devices.
• Wiri LED: Clear indication of battery status, input/output, and temperature warnings.
• Multi-mode LED Light: Includes illumination, SOS, strobe, and warning modes for emergencies.
• Protezzjoni Avvanzata tas-Sigurtà: Built-in safeguards against overcharge, over-discharge, short circuit, reverse polarity, and extreme temperatures.

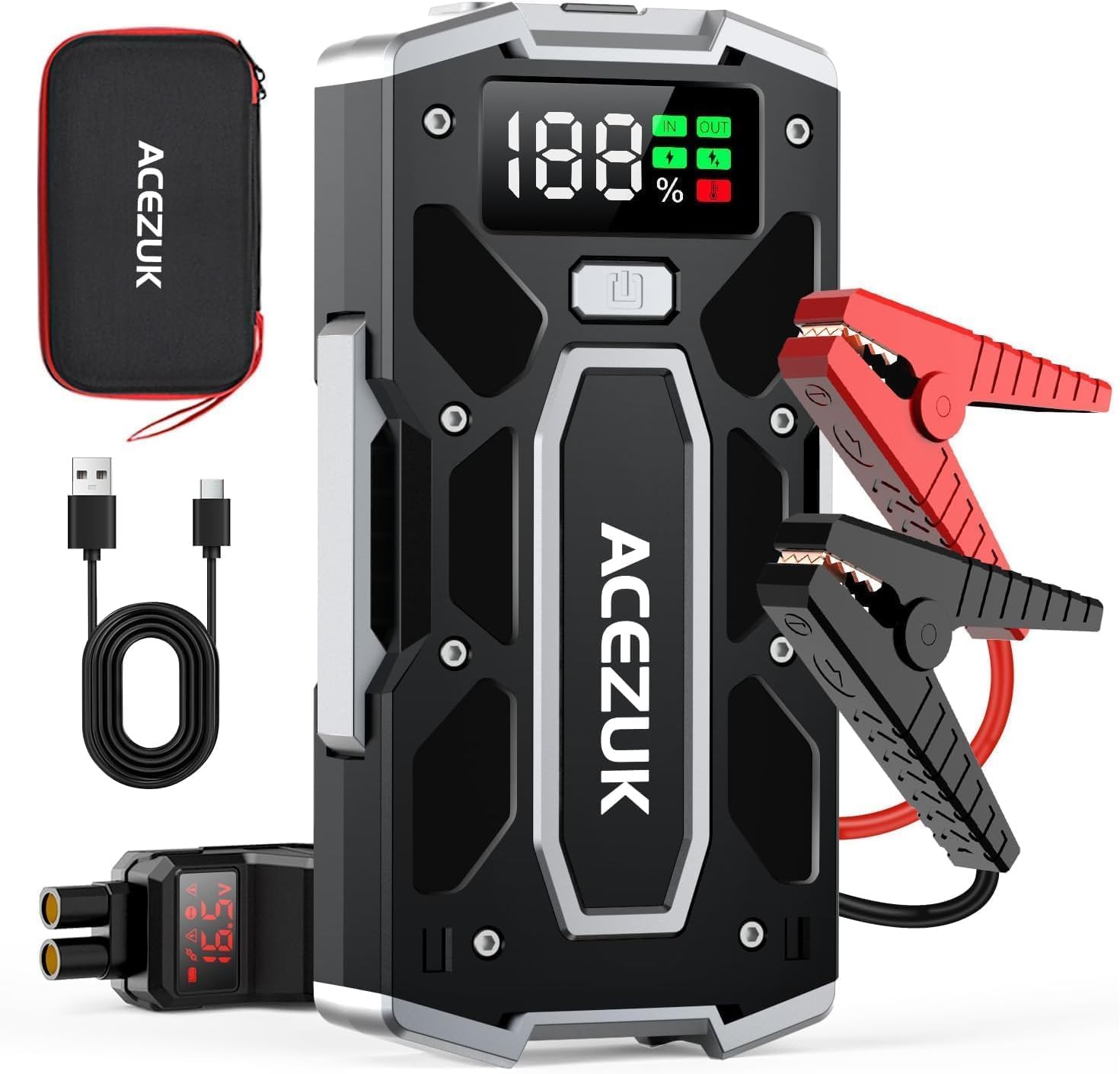

Figure 4.1: ACEZUK M02 Jump Starter main unit and accessories.

5. Setup u Iċċarġjar

Iċċarġjar inizjali:

1. Before first use, fully charge the jump starter.
2. Connect the provided USB cable to the jump starter's input port and a suitable USB power adapter (not included).
3. The LED display will show the charging progress. Charge until the display indicates 100%.

It is recommended to recharge the device every 3-6 months to maintain optimal battery health, even if not in use.

6. Istruzzjonijiet Operattivi

6.1. Aqbeż Tibda Vettura:

Ensure the jump starter is at least 50% charged before attempting to jump-start a vehicle.

1. Step 1: Insert Jumper Cable. Plug the smart jumper cable into the jump starter's port. Ensure a secure connection.
2. Step 2: Connect Clamps to Battery. Qabbad il- AĦMAR pożittiv (+) clamp to the vehicle's positive battery terminal. Connect the ISWED negattiv (-) clamp to the vehicle's negative battery terminal. The smart clamps will indicate a correct connection.
3. Step 3: Start Your Engine. Ladarba l-clamps are correctly connected and the smart cable indicates readiness, start your vehicle's engine.
4. Step 4: Remove Clamps. Immediately after the engine starts, disconnect the clamps from the vehicle battery, then unplug the jumper cable from the jump starter.

Figure 6.1: Step-by-step guide for jump-starting a vehicle.

6.2. Using as a Power Bank:

The ACEZUK M02 features two USB output ports for charging electronic devices:

• One standard USB port (5V/2.4A).
• One QC3.0 USB port (5V/3A, 9V/2A, 12V/1.5A) for fast charging compatible devices.

Connect your device's USB charging cable to the appropriate port on the jump starter. The LED display will show "OUT" indicating power output.

Figure 6.2: The jump starter can charge multiple USB devices.

6.3. Bl-użu tad-Dawl LED:

The integrated LED light offers four modes for various situations:

1. Illuminazzjoni: Press the light button once for steady illumination.
2. Modalità SOS: Press twice for SOS signal.
3. Modalità Strobe: Press three times for strobe light.
4. Modalità ta' Twissija: Press four times for a red warning light (if applicable, based on product image).
5. Agħfas mill-ġdid biex itfi d-dawl.

Figure 6.3: LED light modes for emergency and general use.

7. Manutenzjoni

• Store the jump starter in its protective case in a cool, dry place when not in use.
• Erġa' ċċarġja l-apparat kull 3-6 xhur biex tevita li jiskarga fil-fond u ttawwal il-ħajja tal-batterija.
• Naddaf il-parti ta 'barra b'karta ratba, damp drapp. Tużax kimiċi ħarxa jew abrażivi.
• Inspect the jumper cables and clamps for any damage before each use.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

ACEZUK joffri 2-year free return and exchange service for this product. If you encounter any issues or have questions, please contact ACEZUK customer support for assistance. Please refer to the contact information provided with your purchase or on the official ACEZUK websit.
