Kavey 1.2 Cubic Feet Digital Home Safe User Manual

1. Introduzzjoni

Thank you for choosing the Kavey 1.2 Cubic Feet Digital Home Safe. This safe is designed to provide secure storage for your valuables, documents, and personal items. It features a digital keypad, a dual alarm system, a mute function, and an internal LED light for enhanced convenience and security. Please read this manual thoroughly before operating the safe to ensure proper use and to maximize its security features.

Figure 1: Kavey 1.2 Cubic Feet Digital Home Safe with open door.

2. Prodott Aktarview

The Kavey Digital Home Safe combines robust construction with advanced electronic features to protect your belongings. Key features include:

• Tastiera Diġitali: Features 3D glowing buttons for quick and error-free access.
• Sistema ta' Allarm Doppju: Activates after 3 incorrect password attempts or violent vibration, emitting a 70-decibel alarm.
• Funzjoni Mute: Allows silent operation of the keypad for discreet access.
• Aċċess ta' Emerġenza: Includes emergency keys and a universal USB Type-C power jack for power failure situations.
• Kostruzzjoni Durabbli: Made from low carbon alloy steel with laser-cut micro-slit panels for enhanced anti-prying and anti-drilling resistance.
• Karatteristiċi ta' ġewwa: Removable and adjustable shelf, internal LED lighting, and flannelette lining to protect valuables from scratches.

Figure 2: Digital Keypad and Unlocking Methods.

3. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett bir-reqqa biex tiżgura li l-oġġetti kollha huma preżenti:

• 1 x Kavey 1.2 Cubic Feet Digital Home Safe
• 2 x Ċwievet ta' Emerġenza
• 4 x Viti ta' Espansjoni
• 1 x USB Type-C Cable
• 4 x Non-slip Pads
• 1 x Manwal tal-Utent (dan id-dokument)

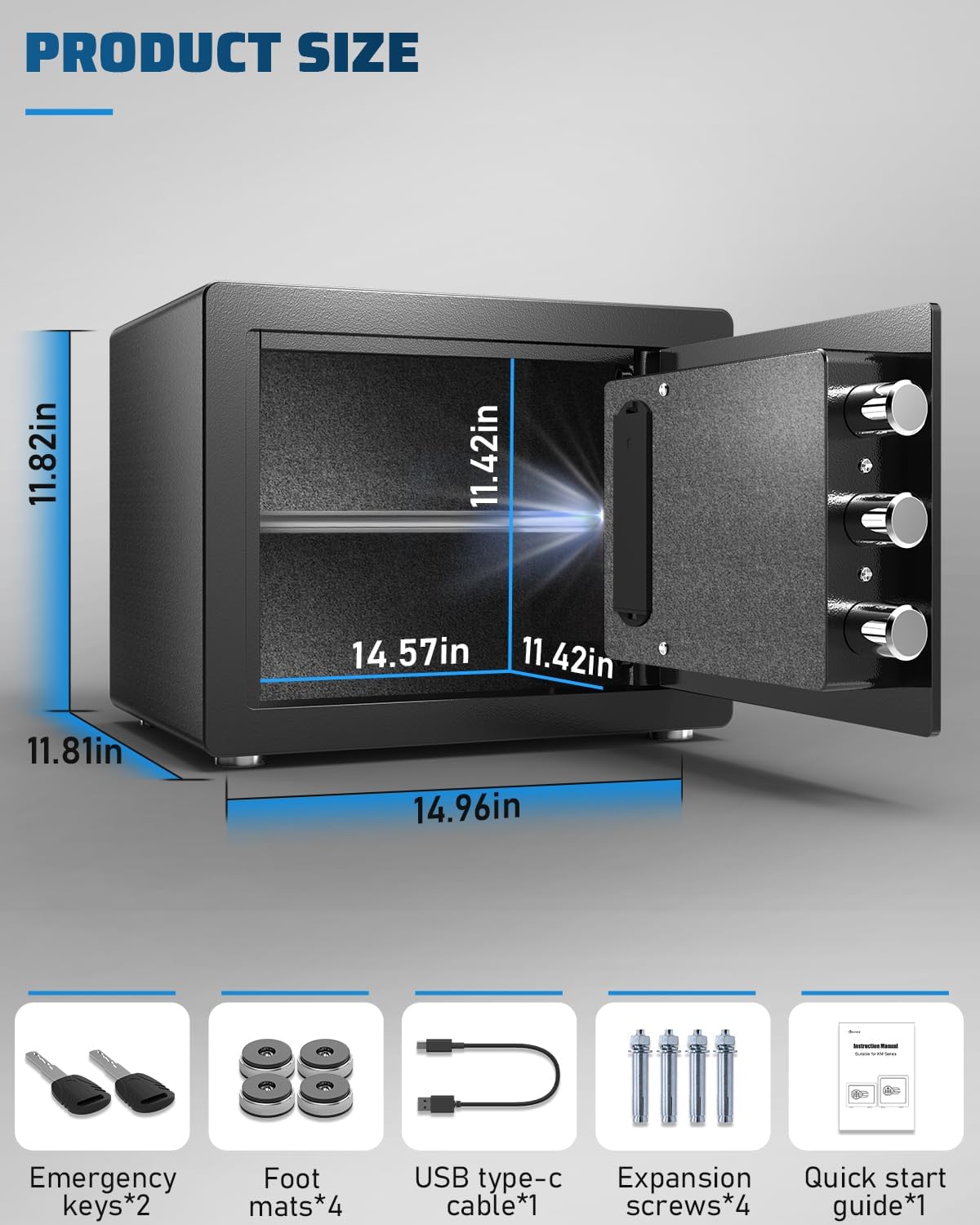

Figura 3: Dimensjonijiet tal-Prodott u Aċċessorji Inklużi.

4. Setup

4.1 Ftuħ Inizjali

Malli tirċievi s-sejf tiegħek, dan se jkun imsakkar. Uża waħda miċ-ċwievet tal-emerġenza pprovduti biex tiftaħha għall-ewwel darba.

1. Locate the hidden keyhole, usually behind the Kavey logo or a removable panel on the keypad.
2. Daħħal iċ-ċavetta tal-emerġenza u dawwarha lejn l-arloġġ.
3. While the key is turned, rotate the knob on the safe door clockwise to open the safe.

4.2 Installazzjoni tal-batterija

The safe requires 4 AA batteries (not included) to power the digital keypad. The battery compartment is located on the inside of the safe door.

1. Iftaħ is-sejf billi tuża ċ-ċavetta tal-emerġenza.
2. Sib l-għatu tal-kompartiment tal-batterija fuq ġewwa tal-bieb.
3. Neħħi l-għatu u daħħal 4 batteriji AA ġodda, waqt li tiżgura l-polarità korretta (+/-).
4. Ibdel l-għatu tal-kompartiment tal-batterija.

4.3 Immuntar tas-Sejf

For enhanced security, it is recommended to mount the safe to a floor or wall using the provided expansion screws.

Figure 4: Safe Mounting Instructions.

1. Choose a suitable location for the safe.
2. Place the safe in the desired position and mark the drilling spots through the pre-drilled holes on the back or bottom of the safe.
3. Move the safe and drill holes (approximately 10mm diameter) in the wall or floor using a drill bit appropriate for the surface material.
4. Reposition the safe over the drilled holes.
5. Insert the expansion screws through the safe's holes and into the drilled holes.
6. Tighten the screws securely to fix the safe in place.

5. Istruzzjonijiet Operattivi

5.1 Setting/Changing the Password

The safe comes with a default password (usually '1234' or '000000'). It is highly recommended to change this immediately.

1. With the safe door open, press the internal red reset button (usually located on the inside of the door near the hinge). The keypad will beep, and the indicator light will flash.
2. Enter your new password (3-8 digits) on the keypad.
3. Press the '#' button to confirm. The safe will beep twice, indicating successful password change.

5.2 Il-Ftuħ tas-Sejf

There are three primary methods to open the safe:

1. Using Password: Enter your 3-8 digit password, then press '#'. Rotate the knob clockwise within 5 seconds to open the door.
2. Użu taċ-Ċavetta ta' Emerġenza: If batteries are dead or you forget the password, use the emergency key as described in Section 4.1.
3. Using USB Type-C Power + Password: If batteries are dead and emergency keys are not preferred, connect a USB Type-C cable to the external power jack on the keypad. This will temporarily power the keypad, allowing you to enter your password and open the safe.

Figure 5: Three Opening Methods.

5.3 Funzjoni Mute

To enable or disable the keypad sound:

• Press '1' twice, then press '#'. The safe will confirm the change in sound status.

Figure 6: Mute Function for Silent Operation.

5.4 Dual Alarm System

The safe is equipped with a dual alarm system for enhanced security:

• Incorrect Password Alarm: If an incorrect password is entered 3 consecutive times, the alarm will sound for 60 seconds.
• Allarm tal-Vibrazzjoni: If the safe experiences violent vibration or movement, the alarm will activate for 60 seconds.

The alarm emits a sound of up to 70 decibels, audible throughout your home.

Figure 7: Dual Alarm System Coverage.

5.5 Dawl LED Intern

The internal LED light illuminates the safe's interior when opened, allowing for easy visibility of contents in low-light conditions.

5.6 Blata aġġustabbli

The safe includes a removable and adjustable shelf, providing flexible storage space to accommodate items of various sizes.

6. Manutenzjoni

6.1 Sostituzzjoni tal-batterija

Meta l-batterija voltage drops below 4.8V, the safe will emit a prompt sound to remind you to replace the batteries. Replace all 4 AA batteries promptly to ensure continuous operation of the digital keypad.

6.2 Tindif

Naddaf il-barra tas-sejf b'ċarruta ratba u damp drapp. Evita li tuża prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-finitura.

7 Issolvi l-problemi

• Safe does not open with password:
  a. Ensure batteries are not depleted. Use the USB Type-C cable for temporary power or the emergency key.
  b. Re-enter the password carefully. If you suspect you forgot it, use the emergency key to open and reset the password.
• It-tastiera ma tirrispondix:
  a. Check battery levels and replace if necessary.
  b. Use the USB Type-C cable to provide external power.
• L-allarm jinstema' b'mod mhux mistenni:
  a. Check if the safe has been moved or vibrated significantly.
  b. Ensure no one has attempted to enter an incorrect password multiple times.
• Vol baxxtage Twissija: If the safe emits a prompt sound indicating low voltage, replace the batteries immediately.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Kavey offers comprehensive customer support for your safe:

• Servizz tal-Prodott: One-year product service from the date of purchase.
• Ritorni: 90-day unconditional returns policy.
• Key Matching Service: Available for lost or damaged keys.
• Servizz tal-Klijent: 24-hour online customer service. If you encounter any issues with your safe, please contact us directly. Our experienced customer service team will respond within 24 hours to assist you.

How to Find the Seller on Amazon:

1. Log in to your Amazon buyer's account.
2. Mur fuq 'L-Ordnijiet Tiegħek'.
3. Find your Kavey safe order and click 'Get help' or 'Contact Seller'.

Figure 8: Kavey Professional After-Sales Service.
