1. Introduzzjoni
This manual provides detailed instructions for the assembly, operation, and maintenance of your Rokuhan Z Gauge R095 Double Track Elevated Line Set. Please read this manual thoroughly before setting up and operating the product to ensure correct usage and longevity.
2. Kontenut tal-Pakkett
The Rokuhan Z Gauge R095 Double Track Elevated Line Set includes all necessary rail components to construct a basic double-line elevated layout. Please verify that all components are present upon unboxing.
- Elevated track sections for a complete double-line oval layout.
- Support pillars for elevated sections.
- Power connection cables.
Note: Vehicles, structures, controllers, and power supplies are sold separately and are not included in this set.
Immaġni 2.1: Fuqview of the Rokuhan Z Gauge R095 Double Track Elevated Line Set components, showing the complete oval layout and power connectors.
3. Istruzzjonijiet tal-Assemblea
Follow these steps to assemble your elevated track layout:
- Ħoll il-Komponenti: Carefully remove all track sections, support pillars, and power cables from the packaging.
- Assemble Base Track: Begin by connecting the curved and straight track sections to form the desired oval shape on a flat, stable surface. Ensure all track connectors are securely joined.
- Attach Support Pillars: Place the support pillars under the designated points of the track sections. Ensure the track is level and stable on the pillars. The external dimensions of the assembled layout are approximately 480mm x 920mm.
- Qabbad Kejbils tal-Enerġija: Attach the power connection cables to the designated points on the track. These cables will connect to your separately sold power supply and controller.
- Ivverifika l-Konnessjonijiet: Double-check all track connections and pillar placements to ensure stability and proper electrical contact.

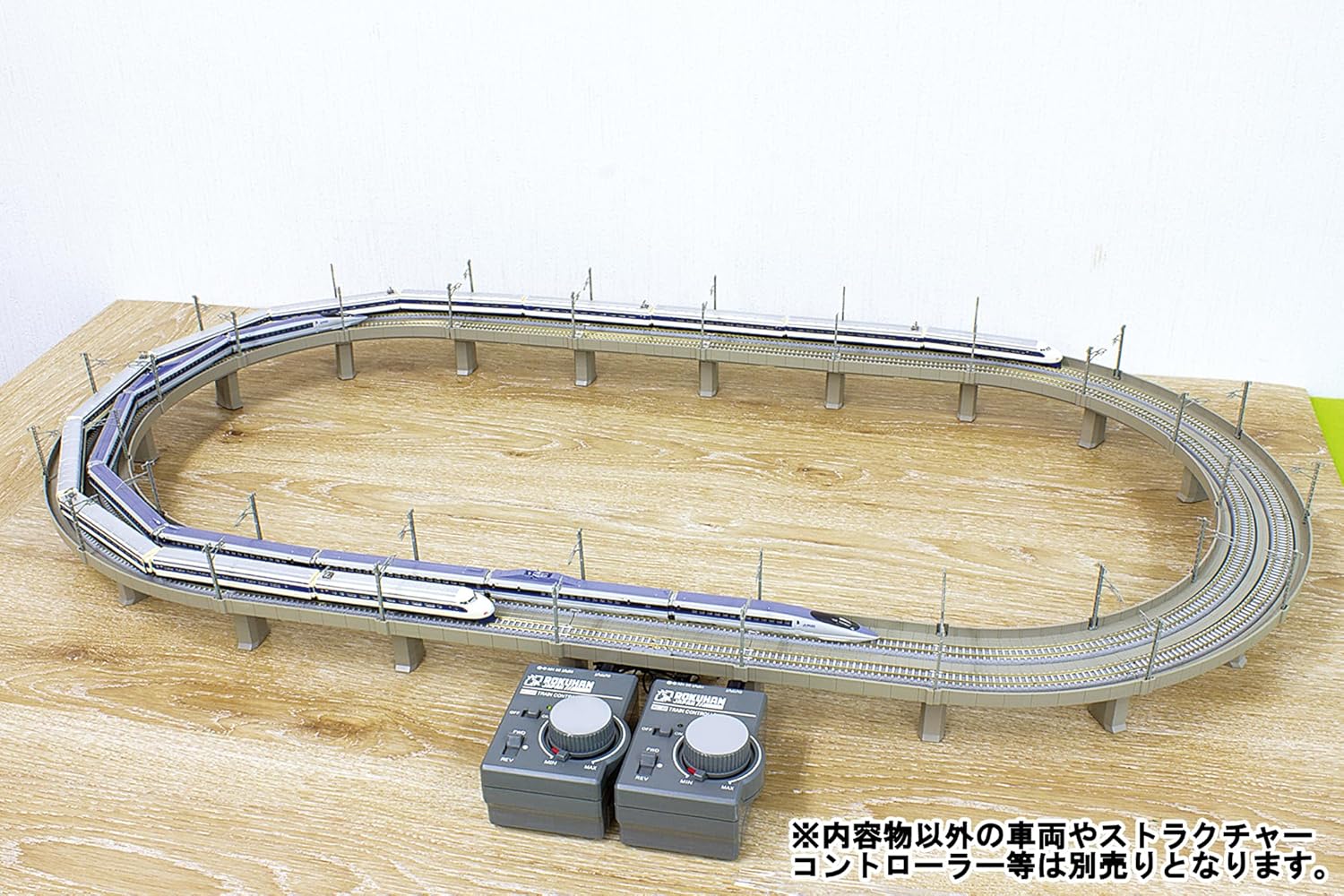

Image 3.1: An assembled Rokuhan Z Gauge R095 Double Track Elevated Line Set, demonstrating the complete elevated oval layout. Note that trains and controllers are not included.
4. Operazzjoni
This Z Gauge railway model system operates by supplying power directly through the rails. It does not use batteries for driving, illumination, or other functions of the trains themselves.
- Provvista tal-Enerġija: Connect your separately sold power supply and controller to the track via the provided power cables.
- Placing Trains: Carefully place your Z Gauge trains onto the tracks. Ensure all wheels are properly seated on the rails.
- Controlling Trains: Use your Z Gauge controller to adjust the speed and direction of the trains.
- Kompatibilità: The elevated layout is suitable for various Z Gauge trains, including Shinkansen models and other existing train types.
- Espansjoni: The Z Gauge layout can be expanded further by combining this set with separately sold rails and railway accessories, allowing for extended tracks and three-dimensional crossings.
Image 4.1: A Shinkansen model train operating on the Rokuhan Z Gauge elevated track. Trains are sold separately.

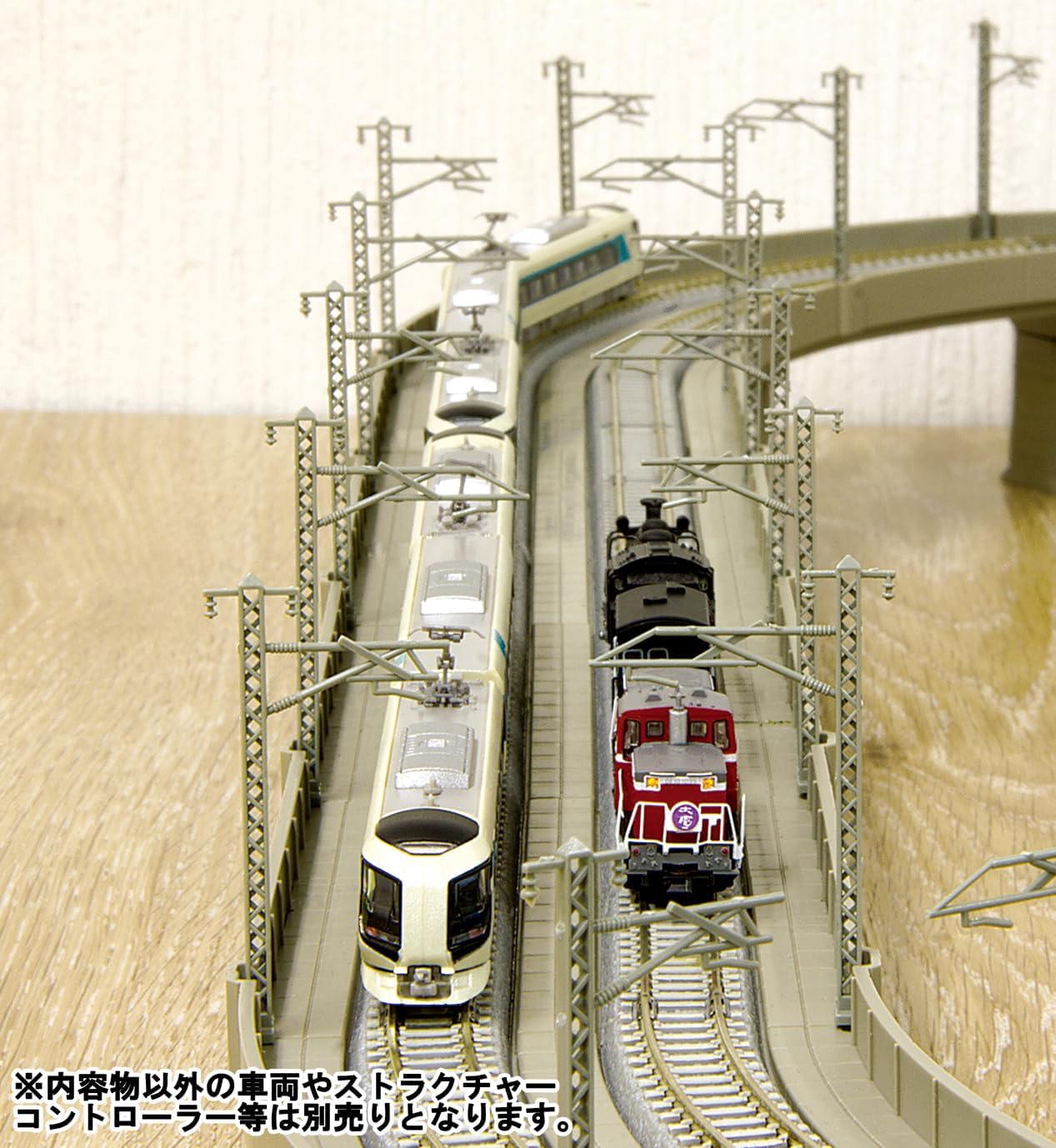

Image 4.2: Two distinct Z Gauge trains running simultaneously on the parallel tracks of the elevated line set, showcasing its double-track capability. Trains are sold separately.

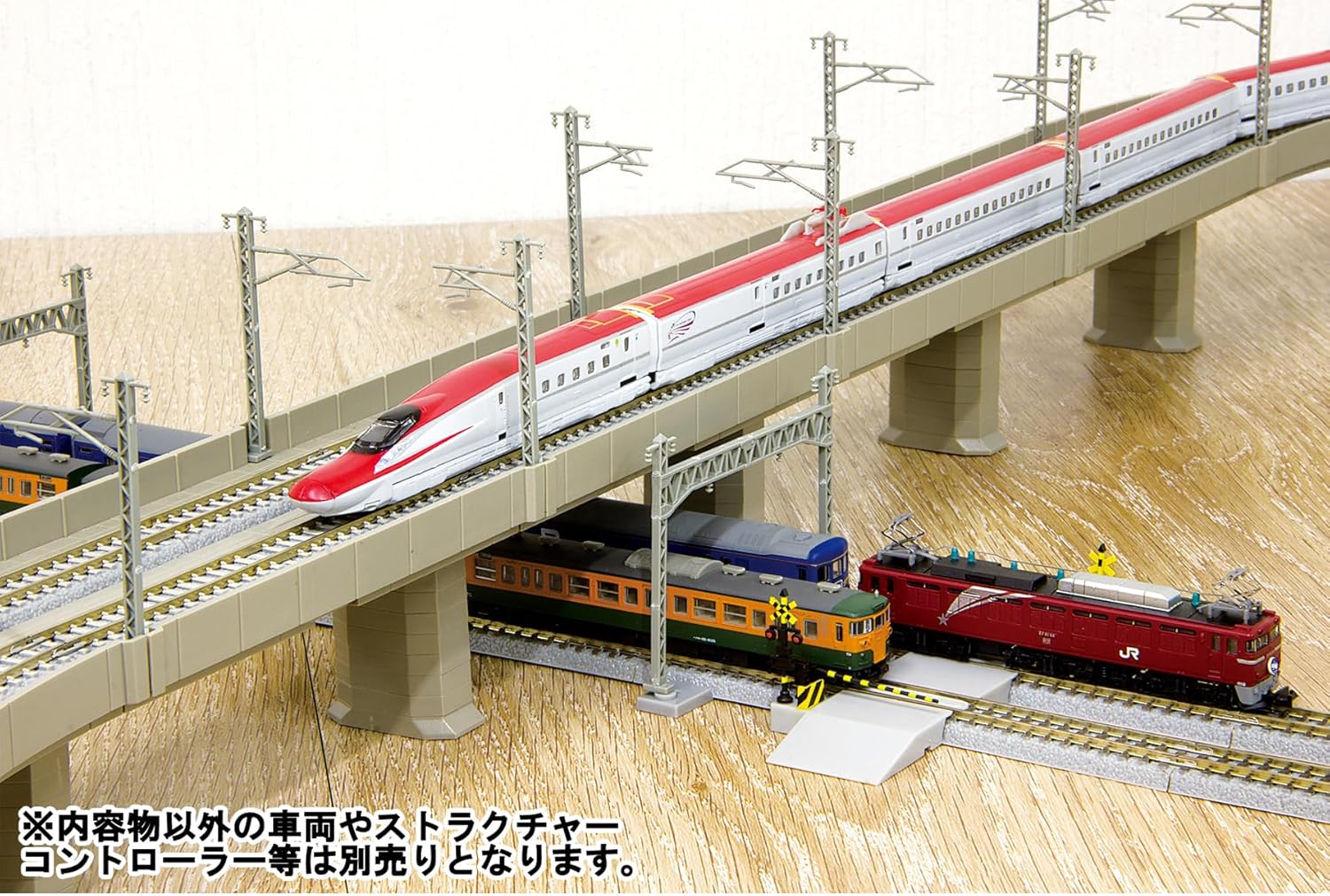

Immaġni 4.3: Eksample of expanding the layout, showing the elevated track crossing over ground-level tracks. Additional tracks and trains are sold separately.
5. Kura u Manutenzjoni
Proper care and maintenance will ensure the longevity and optimal performance of your Rokuhan Z Gauge R095 set.
- Cleaning Tracks: Regularly clean the track surfaces with a soft, lint-free cloth to remove dust and debris. This ensures good electrical contact for your trains.
- Ħażna: When not in use, store the track components in a clean, dry place away from direct sunlight and extreme temperatures.
- Immaniġġjar: Handle track sections and pillars carefully to avoid bending or breaking connectors.
- Kuntatti elettriċi: Ensure all electrical contacts on the track and power cables are clean and free from corrosion.
6 Issolvi l-problemi
If you encounter issues with your Rokuhan Z Gauge R095 set, consider the following common solutions:
- Ferrovija Mhux Miexja:
- Check if the power supply is connected and turned on.
- Ensure all track sections are securely connected and making good electrical contact.
- Clean the track surfaces and the train's wheels.
- Verify the train is correctly placed on the tracks.
- Qawwa intermittenti:
- Inspect track connections for looseness.
- Clean any dirt or oxidation from track connectors.
- Track Instability:
- Ensure all support pillars are firmly in place and on a level surface.
- Verify track sections are fully engaged with each other.
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | R095 |
| Skala | Z Gauge |
| Materjal | Plastik |
| Assemblea Meħtieġa | No (refers to pre-assembled track sections, but user assembly of layout is required) |
| Batteriji Meħtieġa | No (for the track set itself) |
| External Dimensions (assembled) | Approx. 480mm x 920mm (18.9 x 36.2 inches) |
| Product Dimensions (packaging) | 10 x 2 x 2.7 ċm; 1.16 kg |
| Età Rakkomandata | 13 snin 'il fuq |
8. Informazzjoni dwar is-Sigurtà
- This product contains small parts and is not suitable for children under 3 years of age due to choking hazards.
- Always supervise children during operation of the model railway.
- Ensure the power supply is disconnected before performing any maintenance or adjustments to the track or trains.
- Tesponix il-prodott għall-ilma jew għal umdità eċċessiva.
- Use only compatible Z Gauge power supplies and controllers.
9. Garanzija u Appoġġ
Specific warranty information for the Rokuhan Z Gauge R095 Double Track Elevated Line Set is not provided in this manual. For warranty details or technical support, please refer to the manufacturer's official websit jew ikkuntattja lill-bejjiegħ bl-imnut tiegħek.
