Introduzzjoni
Thank you for choosing the SoBuy KMB66-W Children's Storage Bench and Bookcase. This versatile furniture piece is designed to provide a comfortable seating area, convenient book storage, and integrated toy storage for your child's room. Constructed from durable MDF (E1), it ensures stability and safety for daily use. Please read this manual carefully before assembly and use to ensure proper installation and longevity of your product.
Figure 1: The SoBuy KMB66-W Children's Storage Bench and Bookcase.
Setup u Assemblea
The SoBuy KMB66-W bench is delivered disassembled and requires assembly. An easy-to-understand instruction manual is included in the packaging. Please ensure all parts are present before beginning assembly. It is recommended to have two people for assembly to ensure stability and ease of construction.
Għodod Meħtieġa (Mhux Inklużi):
- Tornavit tar-ras Phillips
- Martell (għall-kavilji, jekk applikabbli)
Passi tal-Assemblea:
- Ħoll il-Komponenti: Neħħi l-partijiet kollha mill-imballaġġ bir-reqqa u poġġihom fuq wiċċ nadif u artab biex tevita l-grif. Ivverifika li l-komponenti kollha elenkati fil-lista tal-partijiet inklużi huma preżenti.
- Arma qafas: Follow the step-by-step diagrams in the provided instruction manual to connect the main frame pieces using the designated screws and dowels.
- Install Book Shelves: Attach the two book shelves to the backrest structure as indicated in the manual.
- Insert Seat Cushion: The soft gray seat cushion is designed to fit securely. The back cushion is fastened with Velcro strips.
- Arma l-Kaxxi tal-Ħażna: Assemble the two storage boxes according to the instructions. Ensure the wheels are securely attached to the bottom of each box for smooth movement.
- Daħħal il-Kaxxi tal-Ħażna: Slide the assembled storage boxes into the designated compartments under the seat.

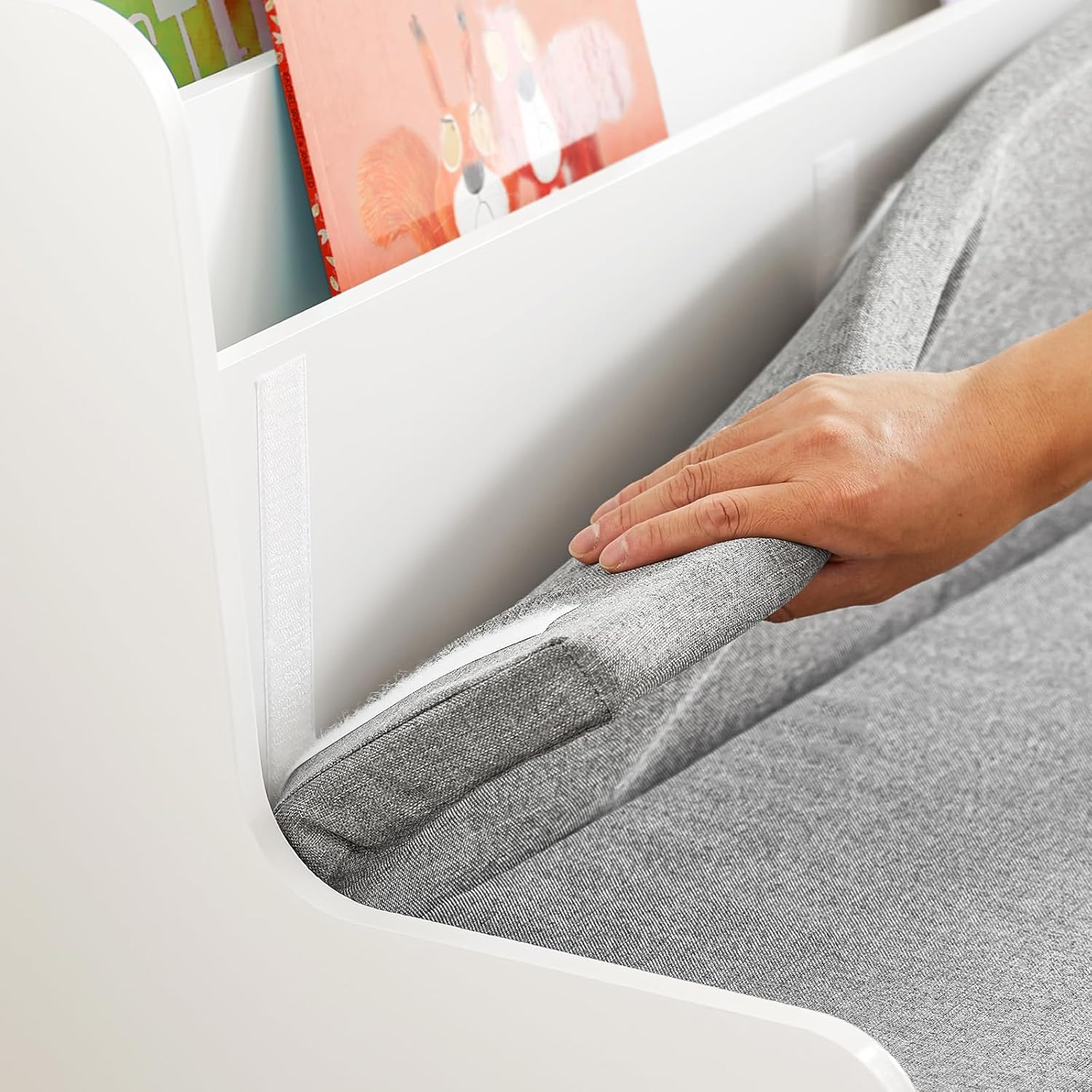

Figure 2: Velcro fastening for the back cushion.

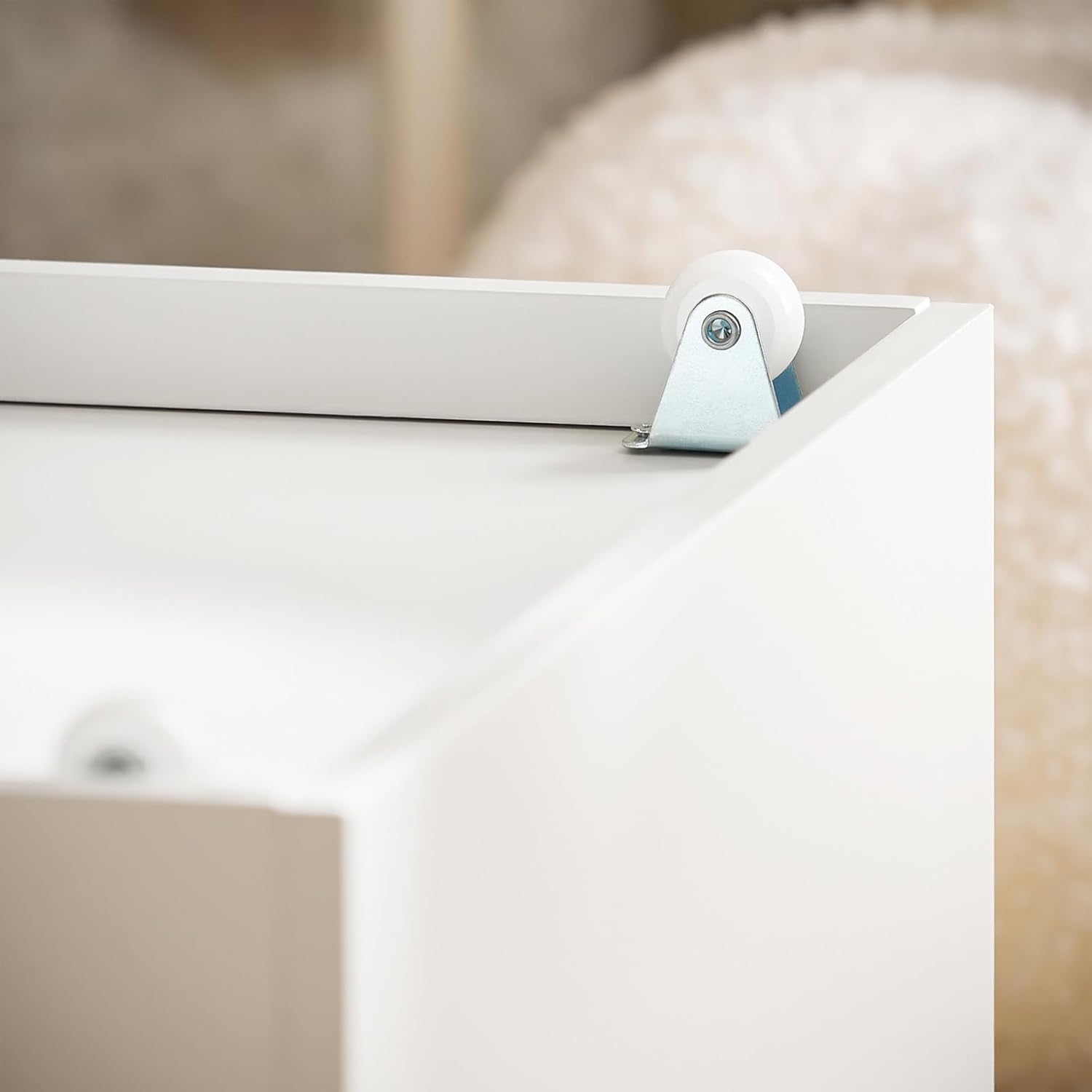

Figure 3: Detail of a storage box wheel.
Always refer to the detailed diagrams and instructions provided in your product's specific assembly manual for precise steps and component identification.
Istruzzjonijiet Operattivi
The SoBuy KMB66-W bench is designed for multi-functional use in a child's environment.
L-Użu tas-Sedil:
- The bench provides a comfortable seating area for children to sit, read, or play.
- The maximum load capacity for the seat is 120 kg. Do not exceed this weight limit.
Using the Book Shelves:
- The two shelves located behind the backrest are ideal for storing children's books, keeping them easily accessible and organized.
- Qassam il-piż indaqs fuq l-ixkafef.
Figure 4: Books stored on the integrated shelves.
Using the Toy Storage Boxes:
- The two pull-out storage boxes with wheels are perfect for organizing toys such as blocks, cars, and other small items.
- The wheels allow for easy access and movement of the boxes for cleaning or play.
Figure 5: One storage box pulled out for access.
Figure 6: Storage box filled with toys.
Manutenzjoni
Proper care and maintenance will extend the life of your SoBuy KMB66-W bench.
Tindif:
- Uċuħ tal-injam: Imsaħ b'artab, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the lacquer finish. Dry immediately with a clean cloth.
- Kuxxin: The gray cushion can be spot cleaned with a mild detergent and water. Allow to air dry completely. Do not machine wash or tumble dry.
Kura Ġenerali:
- Regularly check all screws and fasteners to ensure they are tight. Re-tighten if necessary to maintain stability.
- Avoid exposing the furniture to direct sunlight or extreme temperature changes, which can cause warping or discoloration.
- Keep the bench away from excessive moisture.
Issolvi l-problemi
If you encounter any issues with your SoBuy KMB66-W bench, please refer to the following common solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-bank iħossu instabbli jew jitriegħed. | Qafliet maħlula jew assemblaġġ irregolari. | Check all screws and bolts and tighten them securely. Ensure the bench is on a flat, level surface. |
| Il-kaxxi tal-ħażna ma jiżżerżqux bla xkiel. | Wheels are not properly installed or obstructed. | Verify that the wheels are correctly attached and free from debris. Ensure the boxes are not overloaded. |
| Partijiet neqsin waqt l-assemblaġġ. | Żball fl-ippakkjar. | Contact SoBuy customer support with your purchase details and the specific missing parts. |
Speċifikazzjonijiet tal-Prodott

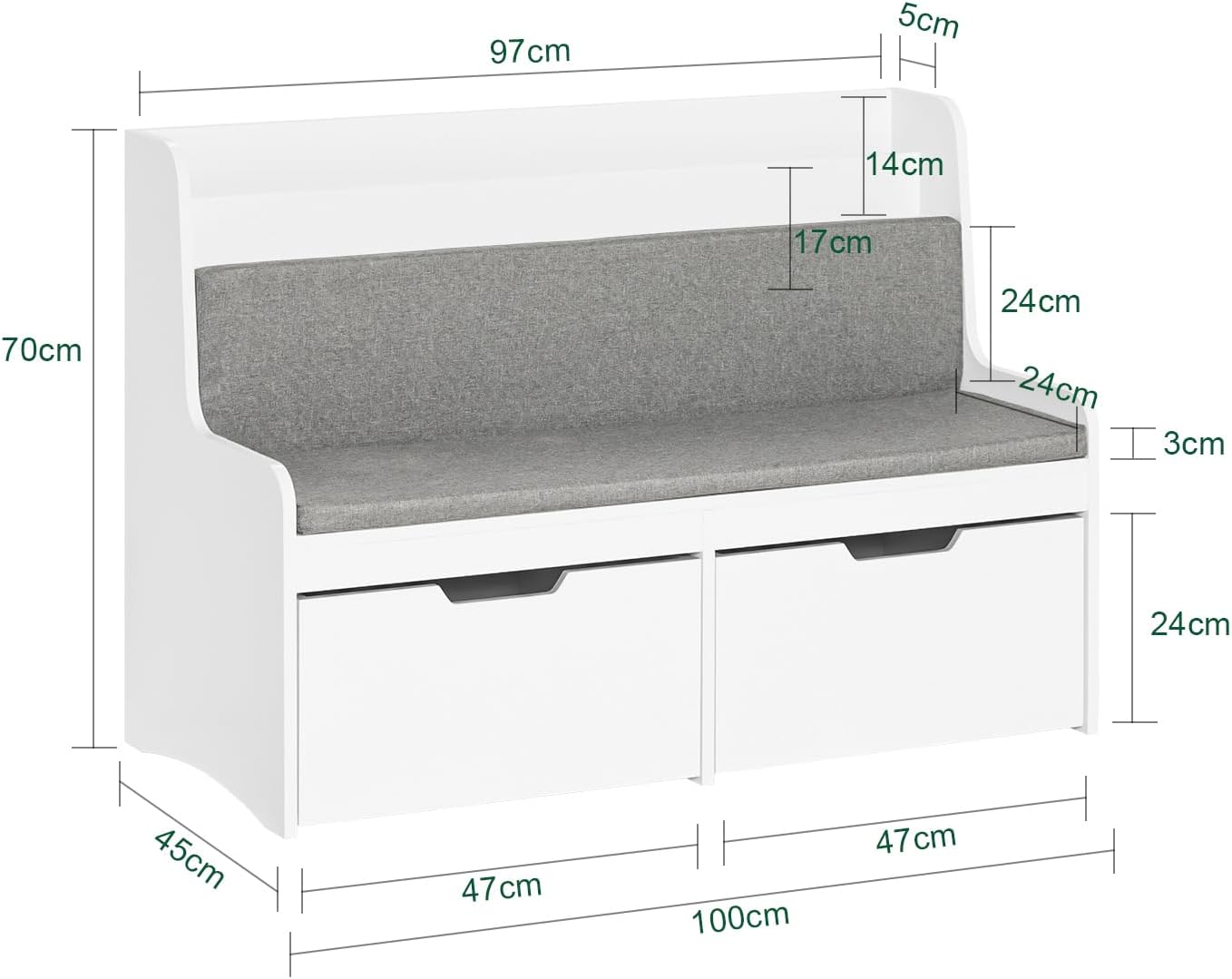

Figura 7: Dijagramma tad-dimensjonijiet tal-prodott.
| Karatteristika | Dettall |
|---|---|
| Mudell | KMB66-W |
| Brand | SoBuy |
| Kulur | Abjad |
| Materjal | Engineered Wood (MDF E1) |
| Dimensjonijiet ġenerali (W x D x H) | 100 ċm x 45 ċm x 70 ċm |
| Piż tal-Prodott | Appross. 24.3 kg |
| Seat Load Capacity | Sa 120 kg |
| Seat Height (from floor to top of cushion) | Approx. 27 cm (24cm base + 3cm cushion) |
| Għoli tad-Dahar (mis-sedil) | Appross. 17 ċm |
| Storage Box Dimensions (Internal) | Approx. 47 cm (width) x 45 cm (depth) x 24 cm (height) |
| Għamara Finish | Laker |
| Stil tar-riġel | Straight legs |
Informazzjoni dwar Garanzija
Specific warranty details for the SoBuy KMB66-W product are typically provided with your purchase documentation. Please refer to the warranty card or information included in your product packaging for terms and conditions. In general, SoBuy products are manufactured to high-quality standards. For any concerns regarding defects or issues covered under warranty, please retain your proof of purchase and contact customer support.
Appoġġ għall-Klijent
Should you require assistance with assembly, missing parts, or have any questions regarding your SoBuy KMB66-W Children's Storage Bench and Bookcase, please do not hesitate to contact our customer support team.
- Metodu ta' Kuntatt: Please refer to the contact information provided in your purchase documentation or on the SoBuy official websit.
- Istruzzjonijiet għall-immuntar: If you need a digital copy of the assembly instructions, you can often scan the QR code on the packaging or contact customer support directly.
- Ritorni: If you are not satisfied with the product or if there is an issue, you may contact us for return information.
When contacting support, please have your model number (KMB66-W) and proof of purchase readily available to expedite the process.
