Cradlepoint W1855 Outdoor Adapter User Manual

1. Introduzzjoni

This manual provides essential information for the proper installation, operation, and maintenance of your Cradlepoint W1855 Outdoor Adapter. The W1855 is a high-performance 5G outdoor adapter designed to provide robust cellular connectivity for branch offices and other demanding environments. This product includes a 1-Year NETCLOUD Branch 5G Adapter Essentials Plan, which provides cloud management and support services.

1.1 Kontenut tal-Pakkett

• Cradlepoint W1855 Outdoor Adapter
• Attached Antennas (4 units)
• Unità tal-Provvista tal-Enerġija
• Mounting Hardware (specific components may vary, refer to packaging)
• Gwida ta' Bidu Mgħaġġel (dan id-dokument iservi bħala gwida komprensiva)

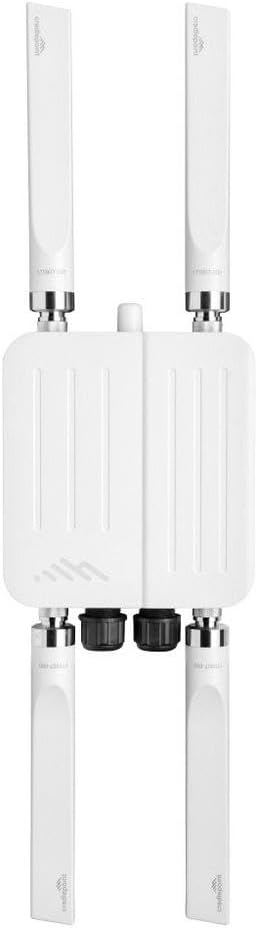

Figure 1: Cradlepoint W1855 Outdoor Adapter with four attached antennas, showing its vertical orientation and connection points.

2. Informazzjoni dwar is-Sigurtà

Please read all safety warnings and instructions carefully before installing or operating this device. Failure to follow these instructions may result in injury, damage to the device, or voiding of the warranty.

• Installazzjoni: Installation should be performed by qualified personnel only. Ensure all local and national electrical codes are followed.
• Sors tal-Enerġija: Use only the power supply provided with the device. Do not expose the power supply to water or extreme temperatures.
• Użu fuq barra: The W1855 is designed for outdoor use. Ensure all cable glands and seals are properly secured to maintain its weather resistance.
• Antenni: Do not operate the device without its antennas properly connected. Ensure antennas are securely fastened.
• Espożizzjoni RF: Maintain a safe distance from the device during operation to comply with RF exposure guidelines. Refer to local regulations for specific requirements.
• Protezzjoni mis-sajjetti: Consider installing appropriate lightning protection for outdoor installations.

3. Setup u Installazzjoni

Proper installation is crucial for optimal performance and device longevity. This section outlines the general steps for setting up your W1855 Outdoor Adapter.

3.1 Għażla tas-Sit

• Choose a location with clear line-of-sight to the cellular tower for best signal strength.
• Avoid obstructions such as buildings, trees, or metal structures.
• Ensure the mounting surface is sturdy enough to support the device and withstand environmental conditions.
• Consider accessibility for future maintenance.

3.2 Installazzjoni Fiżika

1. Immuntar: Securely mount the W1855 adapter to a pole or wall using the provided mounting hardware. Ensure it is level and stable.
2. Konnessjoni tal-antenna: Ensure the four external antennas are securely attached to their respective ports on the adapter. Hand-tighten only.
3. Cable Gland Installation: For outdoor cabling (e.g., Ethernet, power), use the provided cable glands to ensure a watertight seal. Feed the cables through the glands before connecting them to the device ports. Tighten the glands firmly once cables are connected.
4. Konnessjoni tal-Enerġija: Connect the power supply unit to the designated power input port on the W1855. Ensure the connection is secure and protected by a cable gland if applicable.
5. Konnessjoni Ethernet: Connect an Ethernet cable from the W1855's LAN port to your indoor network equipment (e.g., router, switch).

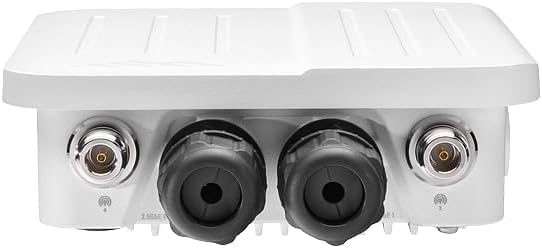

Figura 2: Close-up view of the bottom of the Cradlepoint W1855 Outdoor Adapter, highlighting the two coaxial antenna ports and the two robust, sealed cable glands designed for secure Ethernet and power connections.

3.3 L-Inizjali Tixgħel u l-Konfigurazzjoni

1. Applika l-Enerġija: Once all physical connections are secure, connect the power supply to an appropriate electrical outlet. The device will begin its boot-up sequence.
2. Indikaturi LED: Observe the LED indicators on the device. Refer to the Quick Start Guide or online documentation for specific LED status meanings (e.g., power, signal strength, network activity).
3. NetCloud Activation: The W1855 is managed via Cradlepoint NetCloud. Access the NetCloud Manager portal using your credentials to activate and configure the device. Follow the on-screen instructions within NetCloud Manager for initial setup, including SIM card activation (if not pre-activated) and network settings.
4. Ottimizzazzjoni tas-Sinjali: Use the signal strength indicators in NetCloud Manager to fine-tune the adapter's orientation for optimal cellular signal reception.

4. Istruzzjonijiet Operattivi

The Cradlepoint W1855 operates primarily as a 5G cellular modem/router, providing internet connectivity to your network. Its operation is largely managed through the Cradlepoint NetCloud platform.

4.1 NetCloud Management

• All major configurations, firmware updates, and monitoring are performed through the NetCloud Manager portal.
• Log in to your NetCloud account to access device dashboards, view real-time status, manage network policies, and troubleshoot issues remotely.
• Ensure your NetCloud subscription is active to maintain full functionality and support.

4.2 Konnettività tan-Netwerk

• The W1855 provides a cellular WAN connection. This connection is then typically routed through an indoor Cradlepoint router or other network equipment connected via the Ethernet port.
• Verify internet connectivity by checking the status in NetCloud Manager and by testing network access from devices connected to your internal network.

5. Manutenzjoni

The Cradlepoint W1855 is designed for minimal maintenance. However, periodic checks can help ensure optimal performance and longevity.

• Spezzjoni Fiżika: Periodically inspect the device, antennas, and cables for any signs of damage, corrosion, or loose connections. Ensure cable glands remain tightly sealed.
• Tindif: If necessary, gently clean the exterior of the device with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the device is powered off before cleaning.
• Aġġornamenti tal-Firmware: Keep the device firmware updated through NetCloud Manager. Firmware updates often include performance improvements, security patches, and new features.
• Kundizzjonijiet Ambjentali: Ensure the device remains within its specified operating temperature and humidity ranges.

6 Issolvi l-problemi

This section provides solutions to common issues you might encounter with your W1855 Outdoor Adapter.

• Ebda Qawwa:
  • Verify the power supply is securely connected to both the device and the electrical outlet.
  • Iċċekkja s-sokit tal-enerġija b'apparat ieħor biex tiżgura li jaħdem.
  • Spezzjona l-kejbil tad-dawl għal kwalunkwe ħsara.
• Ebda Konnettività tal-Internet:
  • Check the cellular signal strength indicators in NetCloud Manager. If signal is weak, adjust the device's orientation or consider a different mounting location.
  • Kun żgur li l-SIM card tkun imdaħħla u attivata kif suppost.
  • Verify that your NetCloud subscription is active and not expired.
  • Check the Ethernet cable connection between the W1855 and your internal network equipment.
  • Restart the W1855 by disconnecting and reconnecting power.
• Prestazzjoni bil-mod:
  • Check cellular signal strength; weak signal can lead to slow speeds.
  • Ensure the device firmware is up to date.
  • Monitor network usage through NetCloud Manager to identify potential bandwidth bottlenecks.
• Device Not Appearing in NetCloud Manager:
  • Ensure the device has power and an active internet connection.
  • Verify the device has been properly registered to your NetCloud account.
  • Allow a few minutes for the device to connect and report its status after initial power-up or reboot.

7. Speċifikazzjonijiet

Key technical specifications for the Cradlepoint W1855 Outdoor Adapter.

8. Garanzija u Appoġġ

Your Cradlepoint W1855 Outdoor Adapter is covered by a limited hardware warranty. The specific terms and duration of the warranty are typically outlined in the product documentation included with your purchase or available on the Cradlepoint websit.

8.1 NetCloud Essentials Plan

This product includes a 1-Year NETCLOUD Branch 5G Adapter Essentials Plan. This plan provides access to the Cradlepoint NetCloud Manager for device management, firmware updates, and technical support during the subscription period. Ensure your plan is active to receive ongoing support and services.

8.2 Appoġġ Tekniku

For technical assistance, please refer to the following resources:

• Appoġġ tal-Cradlepoint Websit: Visit the official Cradlepoint support website for knowledge base articles, FAQs, and documentation.
• NetCloud Manager: Utilize the support features available within the NetCloud Manager portal.
• Ikkuntattja l-Appoġġ: If further assistance is required, contact Cradlepoint technical support directly. Contact information can be found on the Cradlepoint websit.
