KINGSMITH MC21 Folding Treadmill User Manual

1. Introduzzjoni

Thank you for choosing the KINGSMITH MC21 Folding Treadmill. This manual provides essential information for the safe and effective use of your new exercise equipment. Please read it thoroughly before initial use and retain it for future reference.

The KINGSMITH MC21 is designed for both running and walking, featuring an innovative double-folding mechanism for compact storage. It incorporates intelligent speed adjustment technology to enhance your workout experience.

Image 1.1: The Kingsmith MC21 Folding Treadmill in its fully unfolded, ready-to-use configuration.

2. Informazzjoni Importanti dwar is-Sigurtà

Before using the treadmill, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the product.

• Ikkonsulta tabib qabel tibda xi programm ġdid ta' eżerċizzju.
• Kun żgur li t-treadmill jitqiegħed fuq wiċċ ċatt u stabbli b'distanza adegwata madwaru.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mit-treadmill waqt it-tħaddim.
• Ilbes żraben u ħwejjeġ atletiċi xierqa.
• Tħaddimx it-treadmill jekk ikun bil-ħsara jew ma jaħdimx sew.
• Always use the safety key/clip during operation.
• Skonnettja t-treadmill mis-sors tal-enerġija meta ma tkunx qed tużah jew qabel it-tindif/manutenzjoni.
• Tippruvax tagħmel manutenzjoni fuq it-treadmill int stess. Ikkuntattja persunal kwalifikat għat-tiswijiet.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:

• KINGSMITH MC21 Folding Treadmill Unit
• Korda tal-Enerġija
• Kontrollur mill-bogħod
• Manwal għall-Utent (dan id-dokument)
• Lubrikant (jekk inkluż)
• Tools for assembly (if required)

4. Twaqqif u Żvolġiment

The KINGSMITH MC21 features an innovative double-folding design for easy setup and storage. Follow these steps to unfold and prepare your treadmill for use:

1. Pożizzjonament: Place the folded treadmill on a flat, stable surface. Ensure there is sufficient space around the unit for safe operation (at least 2 meters behind and 0.5 meters on each side).
2. Unfolding the Running Deck: Gently step on the pedal located near the base of the handrail. This will release the running deck. Carefully unfold the running deck until it lies flat on the floor.
3. Raising the Handrail: Lift the handrail upwards until it locks securely into place. Ensure both sides of the handrail are fully extended and locked.
4. Konnessjoni tal-Enerġija: Connect the power cord to the treadmill's power input and then plug it into a grounded electrical outlet.
5. Kontroll Inizjali: Before starting, ensure all parts are securely in place and there are no loose components.

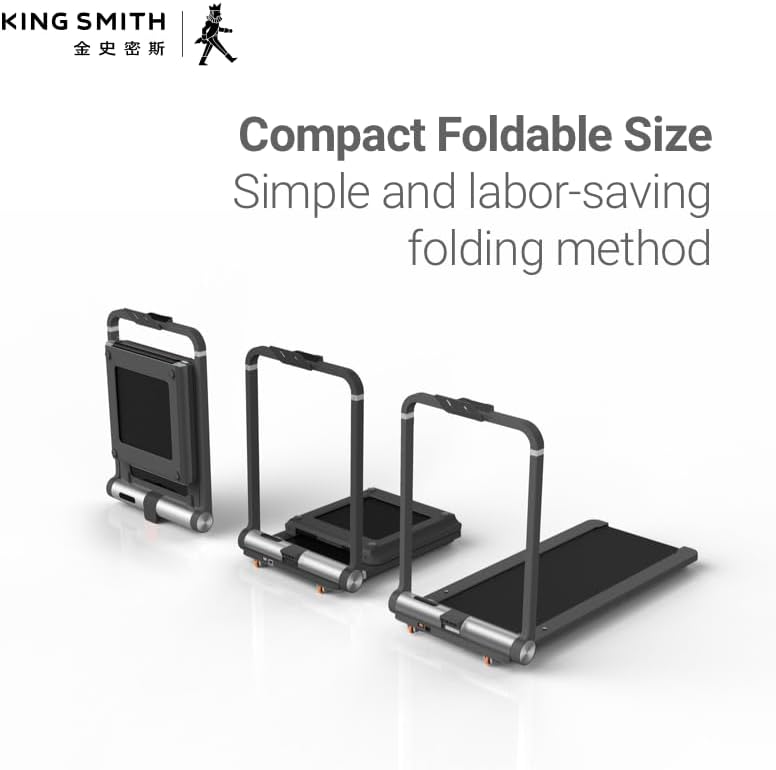

Image 4.1: Illustration of the Kingsmith MC21 treadmill in its fully folded, partially folded, and fully unfolded states, demonstrating its compact design.

Immaġni 4.2: Stampa dettaljata view of the Kingsmith MC21 treadmill's folding mechanism, highlighting the compact storage capability.

5. Istruzzjonijiet Operattivi

The KINGSMITH MC21 offers two primary operating modes: Manual (M Mode) and Automatic (A Mode), along with multiple control options.

5.1. Metodi ta' Kontroll

• Data Touchpad: The integrated display on the handrail provides real-time data and allows for basic control.
• Kontrollur mill-bogħod: Use the provided remote to start, stop, accelerate, decelerate, and switch between modes.
• KS Fit APP: For advanced control, tracking, and personalized workouts, download and connect to the KS Fit application on your smartphone.

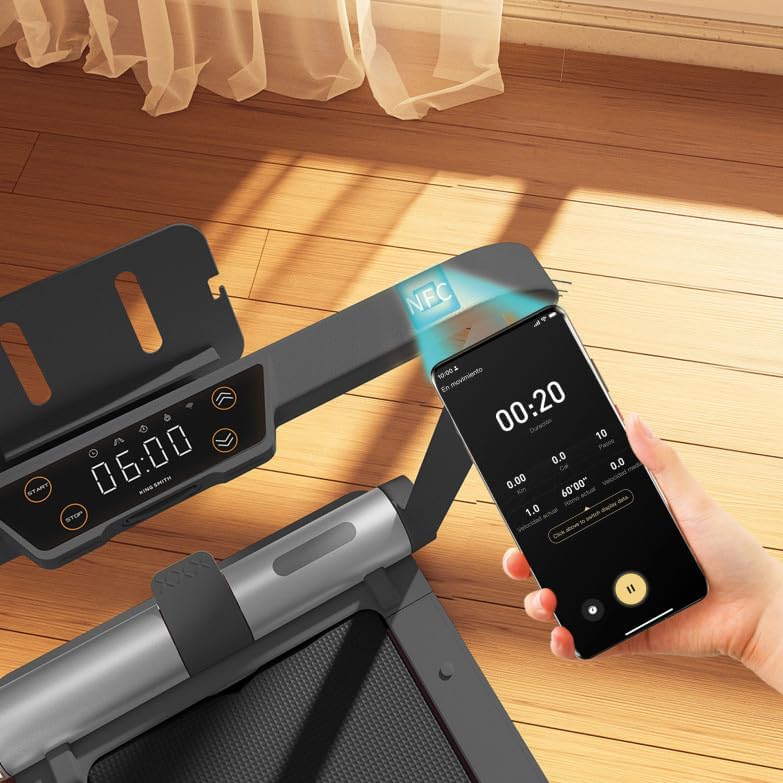

Image 5.1: The control panel on the Kingsmith MC21 handrail and a smartphone displaying the KS Fit app interface for treadmill control.

5.2. M Mode (Manual Mode)

In M Mode, you have full manual control over the treadmill's speed using the remote controller or the data touchpad.

• Ibda: Press the "Start" button on the remote or touchpad. The treadmill will begin at a low speed.
• Aċċelera: Use the "+" button on the remote or touchpad to increase speed.
• Deċelerazzjoni: Use the "-" button on the remote or touchpad to decrease speed.
• Waqqaf: Press the "Stop" button on the remote or touchpad to halt the treadmill.

5.3. A Mode (Automatic Mode)

A Mode utilizes pressure sensors embedded under the running deck to automatically adjust speed based on your foot placement and frequency. This provides a more intuitive and comfortable running experience.

• Attivazzjoni: Switch to A Mode using the remote controller or the touchpad.
• Aġġustament tal-veloċità:
  • To increase speed, move towards the front of the running belt.
  • To decrease speed, move towards the rear of the running belt.
  • To maintain speed, stay in the middle section of the running belt.
• Sigurtà: Always be aware of your position on the belt in A Mode.

Image 5.2: A user demonstrating proper posture and foot placement while exercising on the Kingsmith MC21 treadmill.

5.4. Tiwi għall-Ħażna

To fold the treadmill for compact storage:

1. Waqqaf l-Operazzjoni: Ensure the treadmill is completely stopped and unplugged.
2. Lower Handrail: Release the handrail lock mechanism and carefully lower the handrail until it rests flat.
3. Fold Running Deck: Lift the running deck from the rear and fold it upwards towards the handrail until it locks into its vertical storage position.
4. Ċaqlaq: Use the integrated wheels to move the folded treadmill to its storage location. The double-folding design allows it to occupy less than 0.15 square meters.

6. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tat-treadmill tiegħek.

• Tindif: Imsaħ l-uċuħ tat-treadmill b'reklamiamp drapp wara kull użu. Evita prodotti tat-tindif li joborxu.
• Lubrikazzjoni taċ-Ċinturin: Periodically lubricate the running belt according to the instructions provided with your lubricant. This typically involves applying silicone oil under the belt. (Frequency depends on usage, refer to lubricant instructions).
• Tensjoni u Allinjament taċ-Ċinturin: Check the running belt tension and alignment regularly. Adjust if necessary using the provided tools (refer to specific instructions for adjustment screws).
• Kompartiment tal-Mutur: Keep the motor compartment clean and free of dust. Do not open the motor cover unless instructed by a qualified technician.
• Ħażna: Store the treadmill in a dry, cool place away from direct sunlight and moisture.

Immaġni 6.1: Sploda view illustrating the internal components of the Kingsmith MC21 treadmill, including the brushless motor and running deck layers, relevant for understanding maintenance points.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bit-treadmill tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

8. Speċifikazzjonijiet

Note: Product dimensions are approximate and may vary slightly.

9. Garanzija u Appoġġ

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. KINGSMITH products typically come with a manufacturer's warranty covering defects in materials and workmanship.

If you require technical assistance, have questions about operation, or need to report a problem, please contact KINGSMITH customer support or your authorized dealer. Please have your model number (FTRMBKEU2110259) and purchase date ready when contacting support.

Riżorsi onlajn: For additional support, FAQs, and product updates, visit the official KINGSMITH websit: www.kingsmith.com
