maXpeedingrods 5000 lbs Air Suspension Bags Kit & On Board Air Compressor Kit

1. Informazzjoni dwar is-Sigurtà

Read all instructions carefully before installation and operation. Failure to follow these instructions may result in personal injury or damage to the product or vehicle.

• Dejjem ilbes tagħmir protettiv personali xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà, waqt l-installazzjoni.
• Kun żgur li l-vettura hija appoġġjata sew fuq l-istands tal-ġakk qabel ma taħdem taħtha. Qatt ma tiddependi biss fuq ġakk.
• Skonnettja l-batterija tal-vettura qabel ma tagħmel xi xogħol elettriku.
• Do not exceed the maximum recommended air pressure of 100 PSI for the air springs. The recommended working pressure is 5-70 PSI.
• This kit is designed for Ford F-150 PICKUP 4WD 2004-2014 models. It is le suitable for Raptor models.
• All modifications must be installed by qualified personnel and in accordance with local modification regulations.

2. Prodott Aktarview

The maXpeedingrods Air Suspension Bags Kit and On Board Air Compressor Kit provides enhanced stability and improved handling for vehicles hauling heavy loads or towing trailers. This system eliminates the need for manual inflation, offering convenient air pressure control from within the vehicle.

Il-benefiċċji ewlenin jinkludu:

• Stability and Comfort: Reduces wear and tear, eliminates squat, minimizes trailer sway, and prevents bottoming out.
• Durabilità Mtejba: Air springs are crafted from multi-ply natural rubber with a thickness of 4-4.5mm, ensuring superior sealing and resistance to wear and tear.
• Internal Jounce Bumper: Provides extra protection against abrupt bottoming-out of the suspension at full compression.
• Easy to Air Up: The universal air spring controller kit features a durable on-board compressor capable of a maximum air pressure of 100 PSI, allowing quick inflation of air springs.
• Kontroll konvenjenti: Adjust air pressure from the driver's seat using the included gauge panel.
• Single Path System: Designed to raise the pressure in both air springs evenly for balanced load distribution.

Image: Convenient control of air pressure from the driver's seat, shown with a truck towing a trailer.

Image: Illustration of the single path system, ensuring even pressure distribution to both air springs.

Immaġni: Close-up view of an air spring highlighting the internal jounce bumper, designed to prevent harsh bottoming-out.

3. Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha elenkati hawn taħt huma preżenti fil-kit tiegħek qabel tibda l-installazzjoni:

• 1 x 12V MXR Air Compressor (Black)
• 1 x Gauge panel (with push buttons for up and down)
• 1 x Air Line φ6*1 (6M)
• 1 x Wire harness (2.5 M) black
• 1 x Wire harness (8.5 M) red
• 1 x Relay harness (1 M)
• 3 x T Connectors
• 1 x Mounting Hardware kit (includes bolts, nuts, washers, zip ties, tubing cutter, in-line fuse)
• Upper and lower mounting brackets
• Roll plates
• Air bags (2 units)

Image: Visual representation of the complete package contents, including air bags, mounting hardware, air lines, and control unit.

4. Installazzjoni

Professional installation is highly recommended for this air suspension and compressor kit. Refer to the detailed installation guide provided with your product for specific steps and diagrams. The following provides a general overview and highlights key features:

1. Ipprepara Vettura: Safely lift and support the rear of the vehicle. Disconnect the battery.
2. Mount Air Springs: Install the air springs using the provided upper and lower mounting brackets. Ensure proper alignment and secure fastening.
3. Install Compressor: Select a suitable, protected location for the 12V MXR Air Compressor. It is designed to be compact and lightweight for flexible mounting.
4. Route Air Lines: Connect the air lines from the air springs to the compressor and the gauge panel. The single path system ensures even pressure. Utilize the provided tubing cutter for clean cuts.
5. Wire Electrical Components: Connect the compressor and gauge panel to the vehicle's electrical system using the provided wire harnesses and relay harness. Ensure all connections are secure and protected. Dacromet-plated bolts offer exceptional corrosion resistance and heat durability for secure connections.
6. Panel tal-Kontroll tal-Immuntar: Install the gauge panel in a convenient location within the vehicle's cabin, allowing easy access for air pressure adjustments.
7. Sistema tat-Test: After installation, perform a thorough air-tightness inspection to ensure no leaks. Inflate the air springs to the recommended pressure and check for proper operation.

Image: Installation diagram illustrating the connection of the air compressor, gauge, and air springs, along with reference inflation times.

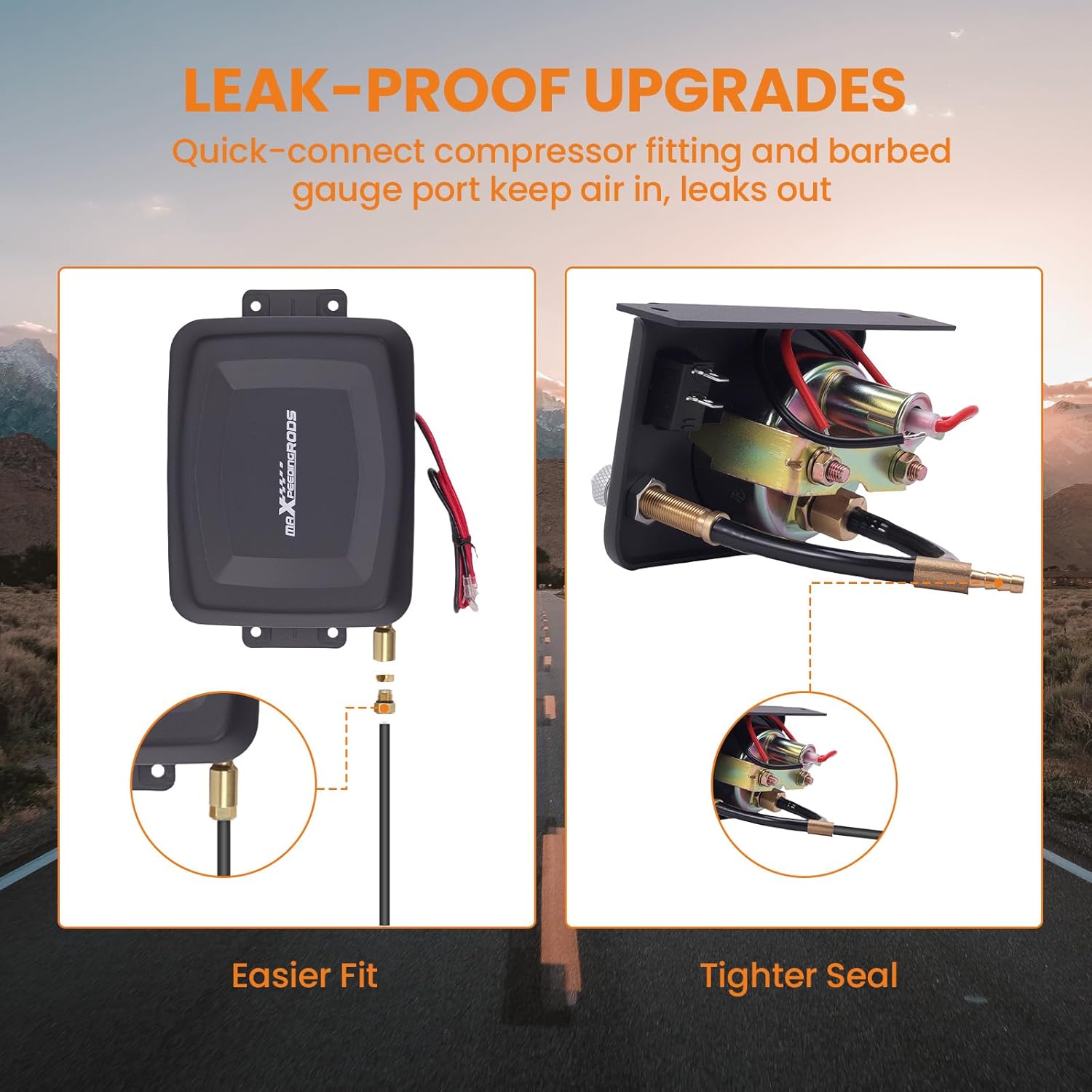

Image: Detail of leak-proof upgrades, including quick-connect compressor fittings and barbed gauge ports for a secure air seal.

5. Istruzzjonijiet Operattivi

The on-board air compressor and control panel allow for convenient adjustment of your air suspension system:

• Inflazzjoni: To increase air pressure, activate the compressor using the switch on the gauge panel. Monitor the pressure gauge to reach the desired PSI.
• Deflazzjoni: To decrease air pressure, use the release button on the gauge panel.
• Pressjoni Rakkomandata: Maintain air pressure between 5 PSI (minimum) and 70 PSI (recommended maximum for regular use). Do not exceed 100 PSI.
• Monitoraġġ: Regularly check the air pressure, especially before and during towing or hauling heavy loads, to ensure optimal vehicle leveling and stability.

Image: Visual comparison demonstrating the load-leveling effect of the air suspension kit, showing a truck and trailer before and after proper loading.

6. Manutenzjoni

Regular maintenance helps ensure the longevity and optimal performance of your air suspension system:

• Inspect Air Lines and Connections: Periodically check all air lines and fittings for signs of wear, kinks, or leaks. Repair or replace as necessary.
• Check Air Springs: Inspect the air bags for any visible damage, cracks, or abrasions. Ensure they are free from debris.
• Compressor Inspection: Ensure the compressor is clean and free from obstructions. Check electrical connections for corrosion or looseness.
• Maintain Proper Pressure: Always operate the air springs within the recommended pressure range (5-70 PSI) to prevent damage.

7 Issolvi l-problemi

If you encounter issues with your air suspension system, consider the following common problems and solutions:

• System Not Inflating:
  • Check power supply to the compressor and control panel. Ensure all electrical connections are secure and the in-line fuse is intact.
  • Verify air lines are properly connected and free from kinks or blockages.
  • Inspect the compressor for any signs of malfunction.
• Tnixxija tal-Arja:
  • Spray soapy water on all air line connections, air springs, and valve stems. Bubbles indicate a leak.
  • Tighten loose connections or replace damaged components.
• Uneven Inflation:
  • Ensure the single path system is correctly installed and free from obstructions.
  • Check for individual air spring or air line damage that might affect one side more than the other.

If problems persist, contact maXpeedingrods customer support or consult a qualified automotive technician.

8. Speċifikazzjonijiet

Image: An air spring highlighting its load-leveling capacity of up to 5000 lbs.

9. Garanzija u Appoġġ

For warranty information, product support, or to purchase replacement parts, please refer to the documentation included with your product or visit the official maXpeedingrods websit. Żomm l-irċevuta tax-xiri tiegħek għal pretensjonijiet ta' garanzija.
