Nitecore NWL20 COB Mechanics Work Light User Manual

1. Prodott Aktarview

The Nitecore NWL20 is a versatile COB mechanics work light designed for various applications including job sites, car repair, and outdoor activities. It features multiple lighting modes, a durable construction, and convenient charging options.

Figure 1.1: Nitecore NWL20 Work Light, showing the main unit, USB-C charging cable, and a Nitecore sticker.

2. Kontenut tal-Pakkett

• Nitecore NWL20 Work Light (with battery preinstalled)
• Cable tal-Iċċarġjar tal-USB-C
• Stiker tan-Nitecore

3. Karatteristiċi ewlenin

• Bright COB Work Light: Max output of 600 lumens floodlight, 280 lumens spotlight, and 30 lumens red light.
• Modi Diversi biex Tuża: Magnetic backing for hands-free use, 180-degree adjustable base, and integrated hanging hook.
• USB-C Rechargeable: Up to 78 hours runtime, with battery status indicator and ability to recharge while in use.
• Kostruzzjoni Durabbli: Made with durable ABS material, 1-meter impact resistance, and IPX5 water resistance.

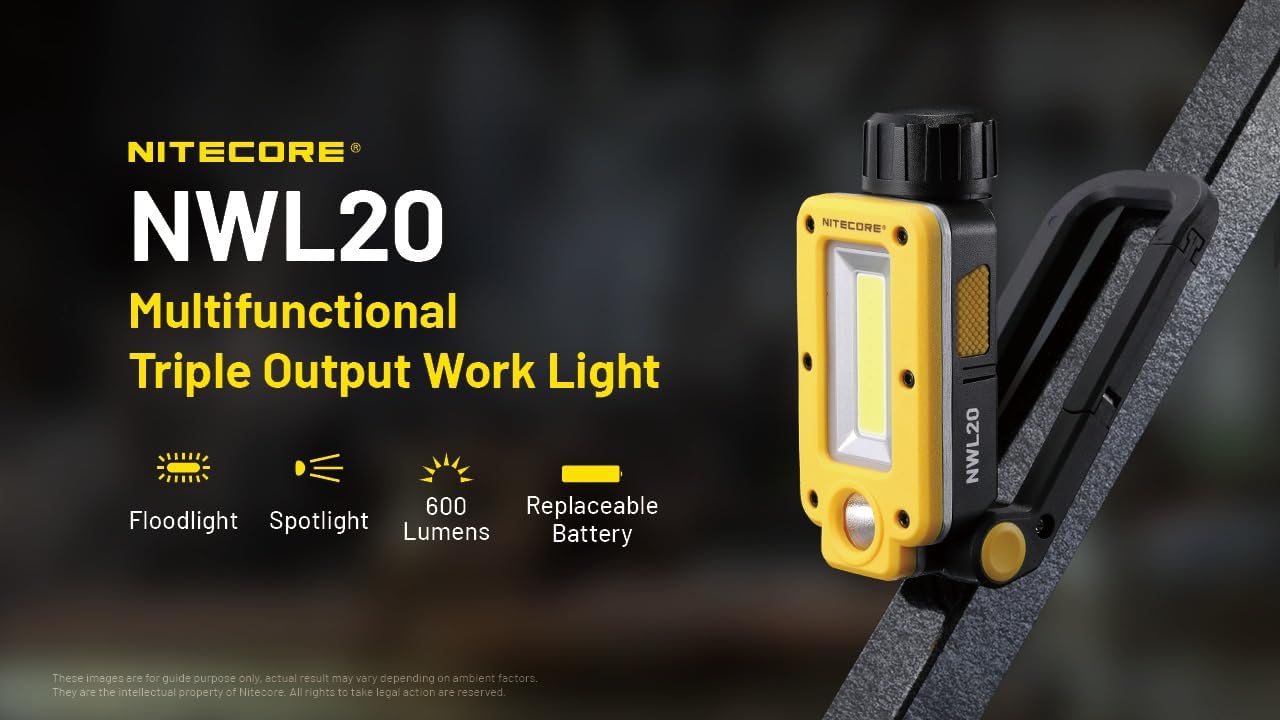

Figura 3.1: Aktarview of Nitecore NWL20's key features, including its triple output and replaceable battery.

4. Setup

4.1 Iċċarġjar inizjali

Before first use, fully charge the Nitecore NWL20. The device comes with a preinstalled Lithium-Ion battery.

1. Locate the USB-C charging port on the side of the work light.
2. Qabbad il-kejbil tal-iċċarġjar USB-C ipprovdut mal-port.
3. Qabbad it-tarf l-ieħor tal-kejbil USB-C ma' sors ta' enerġija USB kompatibbli (eż., adapter tal-ħajt, port USB tal-kompjuter).
4. The battery status indicator will show charging progress. Once fully charged, the indicator will change to a steady light.

Figure 4.1: The Nitecore NWL20 connected to a USB-C charging cable.

5. Istruzzjonijiet Operattivi

5.1 Mixgħul/Mitfi u Tibdil tal-Modalità

The NWL20 features a single button for controlling power and switching between various lighting modes.

• Biex Tixgħel: Press and hold the power button for approximately 1 second. The light will turn on in the last used mode.
• Biex taqleb il-Modi: Once the light is on, short press the power button to cycle through the available modes:
  • Spotlight (High)
  • Spotlight (Low)
  • Floodlight (High)
  • Floodlight (Mid)
  • Floodlight (Low)
  • Red Light (Constant-On)
  • Dawl Aħmar (Jteptep)
• Biex Tintefa: Agħfas u żomm il-buttuna tal-qawwa għal madwar sekonda.

5.2 Light Modes Overview

The NWL20 offers three distinct light sources for various illumination needs:

• Floodlight COB: Provides wide-range illumination, ideal for lighting up large areas like job sites or camping spazji.
• Spotlight LED: Offers focused illumination, suitable for viewing objects at a distance or inspecting specific points.
• Dawl aħmar: Useful for preserving night vision, signaling, or as a warning light.

Figure 5.1: Visual comparison of the wide-angle COB Floodlight and focused LED Spotlight.

Figura 5.2: Eżamples of Red Light usage, including flashing for warnings and constant-on for night vision preservation.

5.3 Għażliet ta 'Immuntar

The NWL20 is designed with a versatile base to provide multiple mounting and positioning options:

• Bażi aġġustabbli: The base can be adjusted up to 180 degrees, allowing you to direct the light precisely where needed.
• Sostenn manjetiku: A strong magnetic backing allows the light to be securely attached to any ferrous metal surface for hands-free operation.
• Ganċ tad-dendil: An integrated metal hanging hook provides an option to suspend the light, illuminating larger areas from above.

Figure 5.3: Demonstrating the NWL20's adjustable base, magnetic attachment, and hanging capability.

6. Manutenzjoni

Proper maintenance ensures the longevity and optimal performance of your Nitecore NWL20.

• Tindif: Imsaħ id-dawl b'artab, damp drapp biex tneħħi l-ħmieġ u l-fdalijiet. Tużax prodotti tat-tindif jew solventi li joborxu.
• Ħażna: Store the light in a cool, dry place when not in use. For long-term storage, it is recommended to charge the battery every 3-6 months to maintain battery health.
• Reżistenza għall-Ilma: The NWL20 has an IPX5 rating, meaning it is resistant to splashes of water. Do not submerge the light in water. Ensure the USB-C port cover is securely closed when not charging to maintain water resistance.
• Reżistenza għall-Impatt: The light is designed to withstand impacts up to 1 meter. Avoid dropping the light from greater heights.

Figure 6.1: The NWL20's durability features, including IPX5 water resistance and 1-meter impact resistance.

7 Issolvi l-problemi

If you encounter issues with your Nitecore NWL20, refer to the following common problems and solutions:

8. Speċifikazzjonijiet

Detailed specifications for the Nitecore NWL20 Work Light:

8.1 Data tal-Prestazzjoni

The following data is measured using 1x Li-ion battery (5,000mAh) under laboratory conditions. Data may vary in real-world use.

Figure 8.1: Detailed performance specifications including brightness, runtime, and beam distance for all light modes.

9. Garanzija u Appoġġ

Nitecore products are covered by a warranty. For detailed warranty information, please refer to the official Nitecore webis-sit jew ikkuntattja lid-distributur lokali tiegħek.

For technical support, troubleshooting assistance, or warranty claims, please contact Nitecore Customer Service:

• Uffiċjali Websit: www.nitecore.com
• Informazzjoni ta' Kuntatt: Irreferi għas-sezzjoni "Appoġġ" jew "Ikkuntattjana" fuq il-paġna uffiċjali websit għad-dettalji ta' kuntatt reġjonali.
