Introduzzjoni
This manual provides detailed instructions for the proper setup, operation, and maintenance of your Daakro E580 Stereo Audio Receiver Amplifier. The E580 is a compact 2.1 channel amplifier designed to deliver high-fidelity audio with Bluetooth 5.0 connectivity, offering versatile input options and precise control over bass and treble for an enhanced listening experience with your home or outdoor speakers and subwoofers.
Karatteristiċi tal-Prodott
- TPA3116 Stereo AmpĊipep tal-Lifer: Utilizes Texas Instruments TPA3116 chips for high-performance audio output and robust protection against short-circuits, thermal issues, overvoltage, undervoltage, and DC protection.
- Konnettività Bluetooth 5.0: Features a professional Bluetooth 5.0 core for wireless audio streaming up to 33 feet (10 meters), ensuring low signal delay and compatibility with modern devices like smartphones, iPods, iPhones, and computers.
- Comprehensive Audio Control: Equipped with separate control knobs for master volume, subwoofer volume, bass frequency, bass, and treble, allowing precise sound customization without audible noise during connection.
- Ħruġ ta' Enerġija Għolja: Rated at 100W with a maximum peak power of 100W, this HiFi stereo amplifier is designed for high-quality sound reproduction.
- Inputs Awdjo versatili: Supports AUX and Bluetooth audio input, ensuring compatibility with various sound equipment such as computers, DVDs, PCs, laptops, TVs, and subwoofers.
- Safe and Reliable Design: Includes an 18V large power supply, capable of driving 2-8 ohm passive speakers or passive subwoofers. The all-aluminum chassis with a brushed texture design provides efficient cooling and a durable, aesthetically pleasing barra.
Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- Daakro E580 Stereo Audio Receiver Ampaktar ħaj
- Provvista tal-Enerġija (18V)
- BT Antenna
- Kejbil tal-Awdjo AUX
- Kontroll mill-bogħod
Image: Contents included in the Daakro E580 package, showing the amplifier, power supply, BT antenna, AUX cable, and remote control.
Kontrolli u Interfaces
Kontrolli tal-Panew ta' Quddiem
Image: Front panel of the Daakro E580 amplifier, highlighting the power switch, bass frequency control (SW-LPF), subwoofer volume (SW-VOL), master volume (VOL), treble control, bass control, power indicator, and IR receiver.
- Swiċċ tal-Enerġija: Jaqleb il- amplifier mixgħul jew mitfi.
- SW-LPF (Bass Frequency Control): Adjusts the low-pass filter frequency for the subwoofer output.
- SW-VOL (Subwoofer Volume Control): Jaġġusta l-livell tal-volum tas-subwoofer konness.
- VOL (Master Volume Control): Jaġġusta l-volum ġenerali tal-ħruġ.
- Kontroll tat-Triple: Jaġġusta r-rispons ta' frekwenza għolja.
- Kontroll tal-bass: Adjusts the low-frequency response for main speakers.
- Indikatur tal-Enerġija: Jdawwal meta l- amplifier huwa mixgħul.
- IR: Riċevitur infrared għall-kontroll mill-bogħod.
Interfaces tal-Panew ta' wara
Image: Rear panel of the Daakro E580 amplifier, showing the BT antenna connector, input switch, USB input, OPT input, AUX-IN, speaker outputs (+FR, -FR, +FL, -FL), subwoofer output (+SW, -SW), and DC power input.
- BT ANT (Bluetooth Antenna): Konnettur għall-antenna Bluetooth inkluża.
- Swiċċ tad-dħul: Selects between USB, OPT (Optical), and AUX-IN audio sources.
- Input USB: For connecting devices like cell phones or tablets.
- OPT Input: Optical input for connecting devices such as TVs.
- AUX-IN: RCA stereo input for connecting devices like PCs or laptops.
- Audio Output (Speaker): Connects to passive speakers (Front Right +FR/-FR, Front Left +FL/-FL).
- Output tas-Subwoofer: Connects to a passive subwoofer (+SW/-SW).
- DC Input (DC12-24V): Power input for the included 18V power supply.
Setup Istruzzjonijiet
- Qabbad l-Ispeakers: Connect your passive speakers to the "Audio Output" terminals on the rear panel. Ensure correct polarity (+ to + and - to -).
- Qabbad is-Subwoofer (Mhux obbligatorju): If using a passive subwoofer, connect it to the "Subwoofer Output" terminals, observing polarity.
- Waħħal l-Antenna Bluetooth: Screw the provided Bluetooth antenna into the "BT ANT" connector on the rear panel.
- Qabbad is-Sors tal-Awdjo:
- For Bluetooth: Ensure the antenna is connected.
- For USB: Connect your device to the USB input.
- For Optical: Connect an optical cable from your TV or source to the OPT input.
- For AUX: Use the provided AUX audio cable to connect your PC, laptop, or other device to the AUX-IN RCA ports.
- Qabbad l-Enerġija: Connect the included 18V power supply to the "DC Input" on the rear panel, then plug the power supply into a wall outlet.
- Qawwa Mixgħul: Flip the "Power Switch" on the front panel to the ON position. The power indicator light will illuminate.

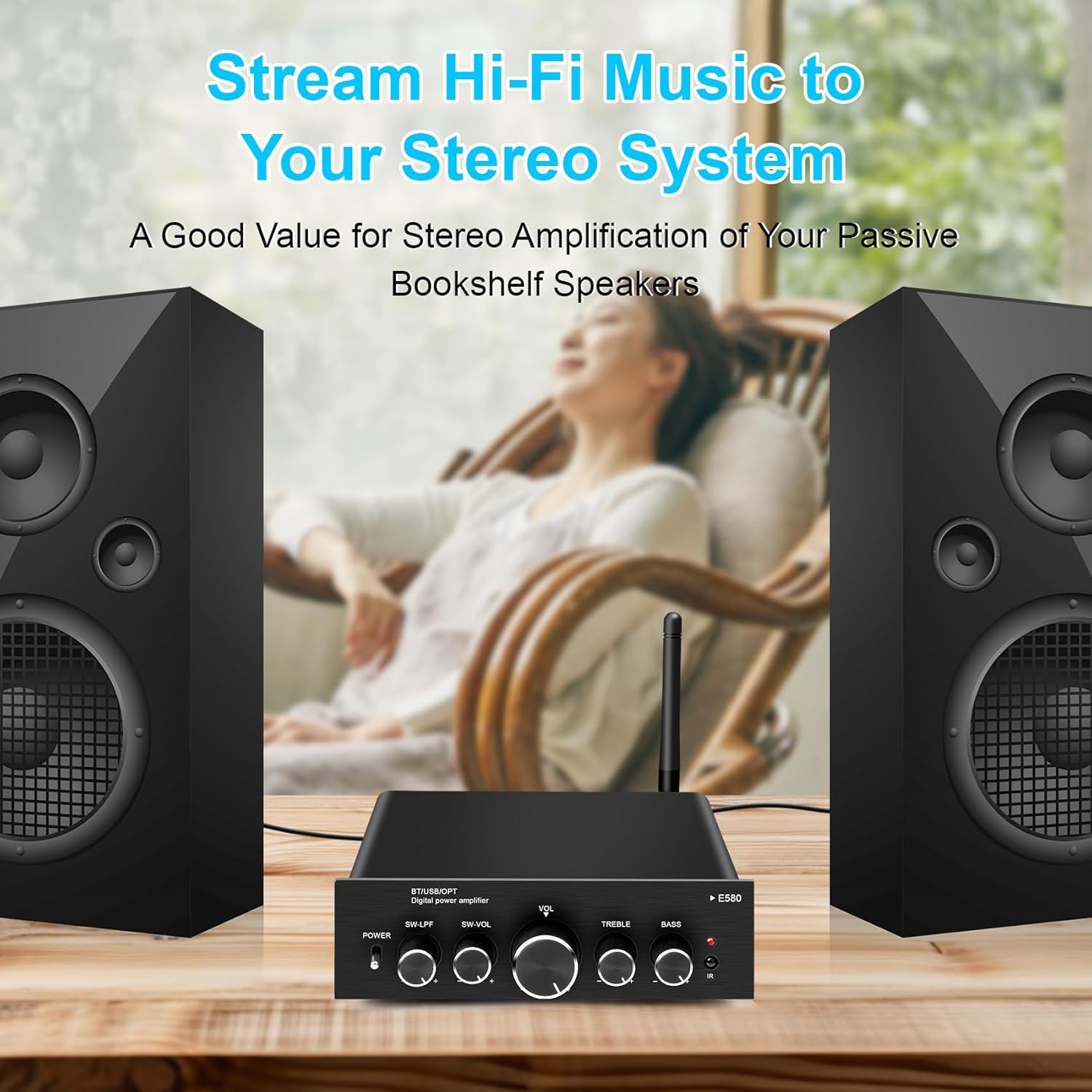

Image: The Daakro E580 amplifier set up between two passive speakers, demonstrating a typical home audio configuration.
Istruzzjonijiet Operattivi
- Agħżel Sors tad-Dħul: Use the "Input Switch" on the rear panel or the remote control to select your desired audio source (USB, OPT, AUX, or BT). The amplifier will announce the selected input.
- Tqabbil Bluetooth:
- Switch the input to "BT". The amplifier will enter pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for "Daakro E580".
- Select "Daakro E580" to pair. Once connected, the amplifier will confirm.
Image: A smartphone screen showing a successful Bluetooth connection to the Daakro E580 amplifier, which is placed on a desk.
- Aġġusta Volum: Rotate the "VOL" knob on the front panel to increase or decrease the overall sound volume.
- Aġġusta l-Bass u t-Treble: Use the "Bass" and "Treble" knobs to fine-tune the low and high frequencies of your main speakers to your preference.
- Kontroll tas-subwoofer:
- SW-VOL: Adjusts the output volume of the connected subwoofer.
- SW-LPF: Adjusts the crossover frequency for the subwoofer, allowing you to blend it seamlessly with your main speakers.
Image: A hand adjusting the bass control knob on the Daakro E580 amplifier, with a speaker visible in the background, illustrating the subwoofer frequency adjustment feature.
Manutenzjoni
- Tindif: Uża drapp ratba u niexfa biex tnaddaf il- amplifier's exterior. Avoid using liquid cleaners or solvents.
- Ventilazzjoni: Tiżgura l- amplifier has adequate ventilation. Do not block any ventilation openings.
- Pjazzament: Poġġi l- amplifier on a stable, flat surface away from direct sunlight, heat sources, and moisture.
- Qawwa Mitfi meta ma tkunx qed tintuża: For extended periods of inactivity, power off the amplifier u aqlah mill-iżbokk tad-dawl.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda qawwa | Kejbil tal-enerġija mhux imqabbad; Sokit tal-enerġija mhux attiv; Swiċċ tal-enerġija mitfi. | Ensure power cable is securely connected. Check power outlet. Turn power switch on. |
| Ebda output tal-ħoss | Incorrect input selected; Speaker cables loose; Volume too low; Source device not playing. | Select correct input. Check speaker connections. Increase volume. Verify source device is playing audio. |
| Il-Bluetooth mhux qed jgħaqqad | Amplifier not in Bluetooth mode; Device too far; Interference; Already connected to another device. | Tiżgura amplifier input is set to BT. Move device closer. Reduce interference. Disconnect from other devices. |
| Ħoss distort | Volume too high; Source audio quality poor; Speaker impedance mismatch. | Reduce volume. Check source audio. Ensure speakers are 2-8 ohms. |
| Il-kontroll mill-bogħod ma jaħdimx | Batteries dead; Obstruction between remote and IR receiver; Remote too far. | Replace batteries. Remove obstructions. Move closer to the ampir-riċevitur IR tal-lifer. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Daakro |
| Numru tal-Mudell | E580 |
| Teknoloġija tal-Konnettività | Awżiljarju, Bluetooth |
| Verżjoni Bluetooth | 5.0 |
| Modalità tal-Ħruġ tal-Awdjo | Stereo |
| Surround Sound Channel Konfigurazzjoni | 2.1 Kanal |
| Output Power (Rated) | 100 Watts |
| Compatible Speaker Impedance | 2-8 Ohms |
| Provvista tal-Enerġija | 18V (inkluż) |
| Metodu ta' Kontroll | Buttuna tal-Imbottatura, Remot |
| Kulur | Iswed |
Garanzija u Appoġġ
Daakro is committed to providing high-quality audio-visual systems. Your Daakro E580 amplifier comes with the following support:
- Garanzija: 30 Days Warranty.
- Servizz tal-Klijent: 24 Hours Online Customer Service.
- Sodisfazzjon: 100% Customer Satisfaction.
For further assistance or inquiries, please refer to the contact information provided with your purchase or visit the official Daakro websit.
