Manwal tal-Utent tal-Forn Diġitali tal-Gass NARDI FMX064 XN2 bi Grill Elettriku

1. Informazzjoni dwar is-Sigurtà

Please read all safety instructions carefully before installing, operating, or performing maintenance on your NARDI FMX064 XN2 oven. Retain this manual for future reference.

Prekawzjonijiet Ġenerali tas-Sigurtà:

• Ensure the oven is installed by a qualified technician in accordance with local regulations and standards.
• Do not store flammable materials near the oven.
• Keep children and pets away from the appliance during operation, as surfaces can become hot.
• Always use oven mitts when handling hot items or surfaces.
• Do not use abrasive cleaners or sharp objects that could damage the oven's surfaces.

Sigurtà tal-Gass:

• This oven is equipped with an automatic gas cut-off safety feature that activates if the flame extinguishes or if abnormal operating conditions are detected.
• In case of a gas leak, immediately shut off the gas supply, ventilate the area, and do not operate any electrical switches or appliances. Contact a qualified technician.

Sigurtà Elettrika:

• Ensure the electrical supply matches the requirements specified on the appliance rating plate.
• Do not operate the oven with a damaged power cord or plug.

2. Prodott Aktarview

The NARDI FMX064 XN2 is a freestanding gas oven with an electric grill, designed for efficient and safe cooking. It features a spacious 67-liter capacity and a sleek stainless steel finish.

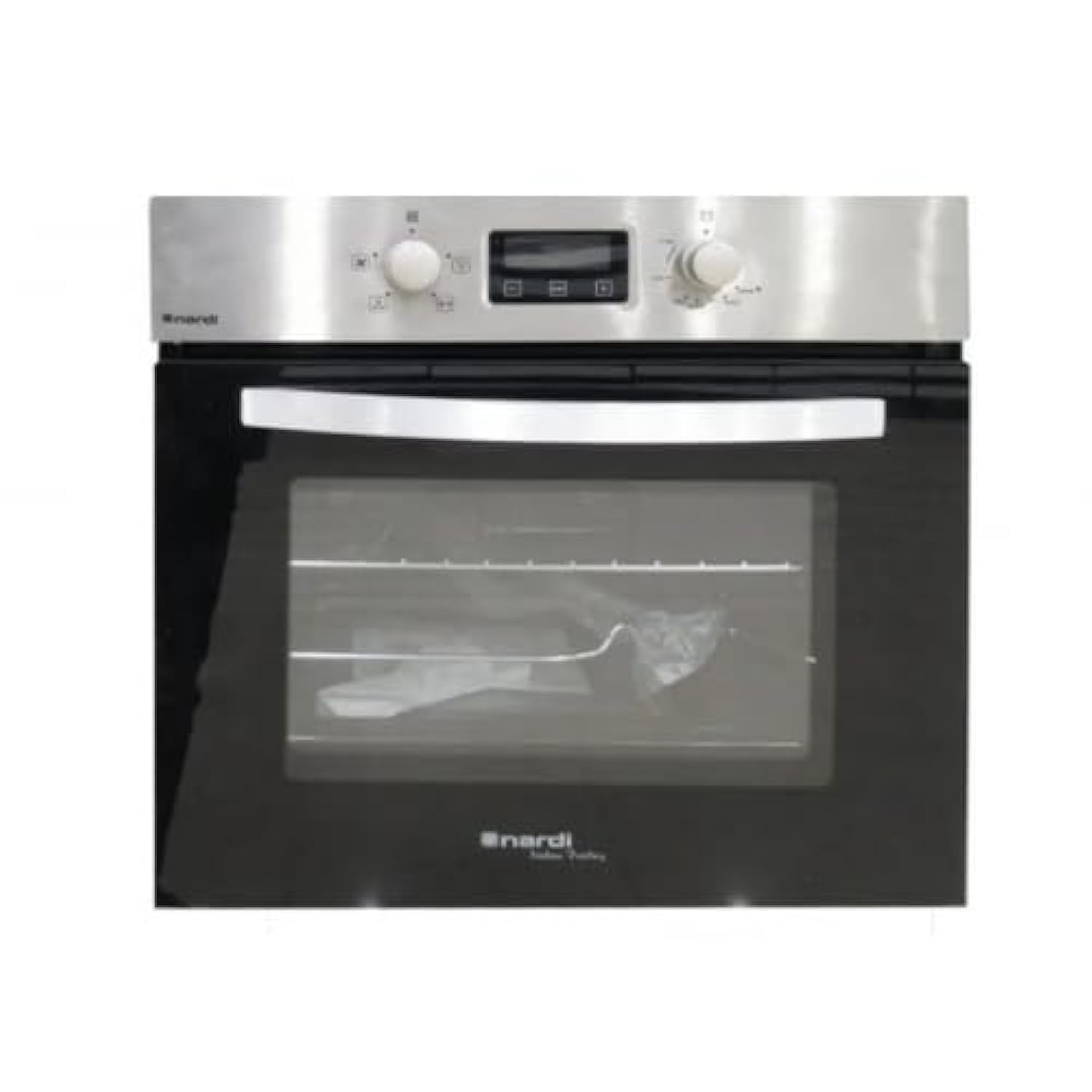

Stampa 1: Quddiem view of the NARDI FMX064 XN2 Digital Gas Oven with Electric Grill. The image shows the stainless steel control panel at the top with two rotary knobs and a digital display in the center. Below the control panel is the black oven door with a horizontal handle, revealing the interior with oven racks.

Karatteristiċi ewlenin:

• Kapaċità: 67 Litri
• Tip ta' Fjuwil: Gas Oven, Electric Grill
• Dimensjonijiet: 60 x 60 cm (approximate external dimensions)
• Timer diġitali: For precise cooking control.
• Heat Distribution Fan: Ensures even cooking results.
• Fann li jkessaħ: With turbo sensor for high-temperature operation, protecting external components.
• Cool-Touch Door: Triple-layer glass door for enhanced insulation and safety.
• Easy-to-Remove Door: Tissimplifika t-tindif u l-manutenzjoni.
• Shelf Levels: Five adjustable levels for versatile cooking.
• Dawl Intern: For clear visibility of cooking progress.
• Rotisserie Grill: For roasting poultry.
• Materjal: High-quality 304 Stainless Steel, corrosion-resistant.
• Sigurtà: Automatic gas cut-off for flame failure and abnormal operation.
• Internal Piping: Durable copper pipes.
• Gas Flue: Right-side exhaust.

3. Setup u Installazzjoni

The NARDI FMX064 XN2 is a freestanding appliance. Proper installation is crucial for safe and efficient operation.

Spakkjar:

• Carefully remove all packaging materials from the oven and its accessories.
• Inspect the oven for any signs of damage during transit. If damage is found, do not proceed with installation and contact your retailer.

Pożizzjonament:

• Poġġi l-forn fuq wiċċ stabbli u livell.
• Ensure adequate ventilation around the appliance as per installation guidelines.

Konnessjonijiet tal-Gass u tal-Elettriku:

• Konnessjoni tal-gass: The gas supply must be connected by a certified gas technician. Ensure all connections are leak-free.
• Konnessjoni Elettrika: The oven requires a dedicated electrical circuit. The electrical connection must be performed by a qualified electrician.

Tindif Inizjali:

• Qabel l-ewwel użu, imsaħ l-intern tal-forn b'adamp drapp biex tneħħi kwalunkwe residwu tal-manifattura.
• Run the oven at maximum temperature for approximately 30 minutes to burn off any remaining odors. Ensure the kitchen is well-ventilated during this process.

4. Istruzzjonijiet Operattivi

Familiarize yourself with the control panel and functions before operating the oven.

Control Panel Matulview:

• Left Rotary Knob: Typically controls oven functions (e.g., gas oven, electric grill, convection fan).
• Wirja Diġitali: Shows time, timer settings, and possibly temperature.
• Right Rotary Knob: Typically controls temperature for the gas oven or grill intensity.

Operating the Gas Oven:

1. Open the oven door slightly.
2. Turn the left rotary knob to the gas oven symbol.
3. Push and hold the right rotary knob (temperature control) inwards while simultaneously turning it to the desired temperature. This activates the automatic ignition.
4. Hold the knob for a few seconds after the flame ignites to allow the safety device to engage. Release the knob. If the flame goes out, repeat the process.
5. Close the oven door and allow the oven to preheat to the set temperature.

Operating the Electric Grill:

1. Turn the left rotary knob to the electric grill symbol.
2. Adjust the right rotary knob to select the desired grill intensity (if applicable).
3. Place food on the appropriate shelf level. Keep the oven door slightly ajar during grilling, as recommended for electric grills.

L-użu tat-Tajmer Diġitali:

• The digital display allows you to set the current time, a cooking duration, or a delayed start time. Refer to the specific icons on the control panel for timer functions.
• Typically, pressing a timer button and using the adjustment buttons (often located near the display) will allow you to set the desired time.
• An audible alarm will sound when the set time has elapsed.

Fann tal-konvezzjoni:

• To activate the heat distribution fan for more even cooking, select the convection fan symbol on the left rotary knob. This can often be used in conjunction with the gas oven function.

Dawl Intern:

• The interior light can be switched on to monitor cooking progress without opening the oven door. Look for a dedicated light symbol on the control panel or a specific position on the function knob.

5. Manutenzjoni u Tindif

Tindif u manutenzjoni regolari jiżguraw il-lonġevità u l-prestazzjoni ottimali tal-forn tiegħek.

Tindif Ġenerali:

• Dejjem kun żgur li l-forn ikun berred u skonnettjat mill-provvista tal-enerġija qabel ma tnaddaf.
• Use a soft cloth and mild detergent for cleaning external stainless steel surfaces. Avoid abrasive cleaners or scouring pads.
• For the oven interior, use specialized oven cleaners according to the product instructions. Wipe thoroughly with a damp drapp wara.

Cleaning the Oven Door:

• The oven door is designed for easy removal to facilitate thorough cleaning. Consult the specific instructions for your model on how to safely unhinge and reattach the door.
• Clean the glass panels with a glass cleaner or a solution of warm water and vinegar.

Replacing the Oven Light:

• Ensure the oven is cool and unplugged.
• Unscrew the protective cover of the oven light.
• Carefully remove the old bulb and replace it with a new, heat-resistant oven bulb of the same specifications.
• Ibdel l-għatu protettiv.

6 Issolvi l-problemi

Qabel ma tikkuntattja lis-servizz tal-konsumatur, jekk jogħġbok irreferi għall-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet potenzjali tagħhom.

Il-forn mhux qed jisħon:

• Iċċekkja l-Provvista tal-Enerġija: Ensure the oven is properly plugged in and the circuit breaker has not tripped.
• Iċċekkja l-Provvista tal-Gass: Verify that the main gas valve is open.
• Ignition Issue: If the gas flame does not ignite, ensure you are holding the control knob long enough for the safety device to engage after ignition.
• Incorrect Setting: Confirm that the function knob is set to the correct cooking mode and temperature.

Grill Not Working:

• Iċċekkja l-Provvista tal-Enerġija: The electric grill requires electrical power.
• Għażla tal-Funzjoni: Ensure the function knob is set to the electric grill setting.

Digital Timer Not Functioning:

• Ċiklu tal-Enerġija: Try resetting the oven by unplugging it for a few minutes and then plugging it back in.
• Operazzjoni korretta: Review the manual section on timer operation to ensure correct setting procedure.

Tisjir irregolari:

• Fann tal-konvezzjoni: Ensure the convection fan is activated for even heat distribution.
• Tisħin minn qabel: Always allow the oven to fully preheat before placing food inside.
• Pożizzjoni tar-rack: Use appropriate shelf levels for the type of food being cooked.

If the problem persists after attempting these solutions, please contact NARDI customer support or a qualified service technician.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Għal informazzjoni dwar il-garanzija, jekk jogħġbok irreferi għall-karta tal-garanzija inkluża max-xiri tiegħek jew ikkuntattja lill-bejjiegħ tiegħek. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.

For technical support, spare parts, or service requests, please contact NARDI customer service through their official webis-sit jew id-dettalji ta' kuntatt ipprovduti fid-dokumentazzjoni tax-xiri tiegħek.
