Introduzzjoni
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Surfans F22 Portable HiFi MP3 Player. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your listening experience.

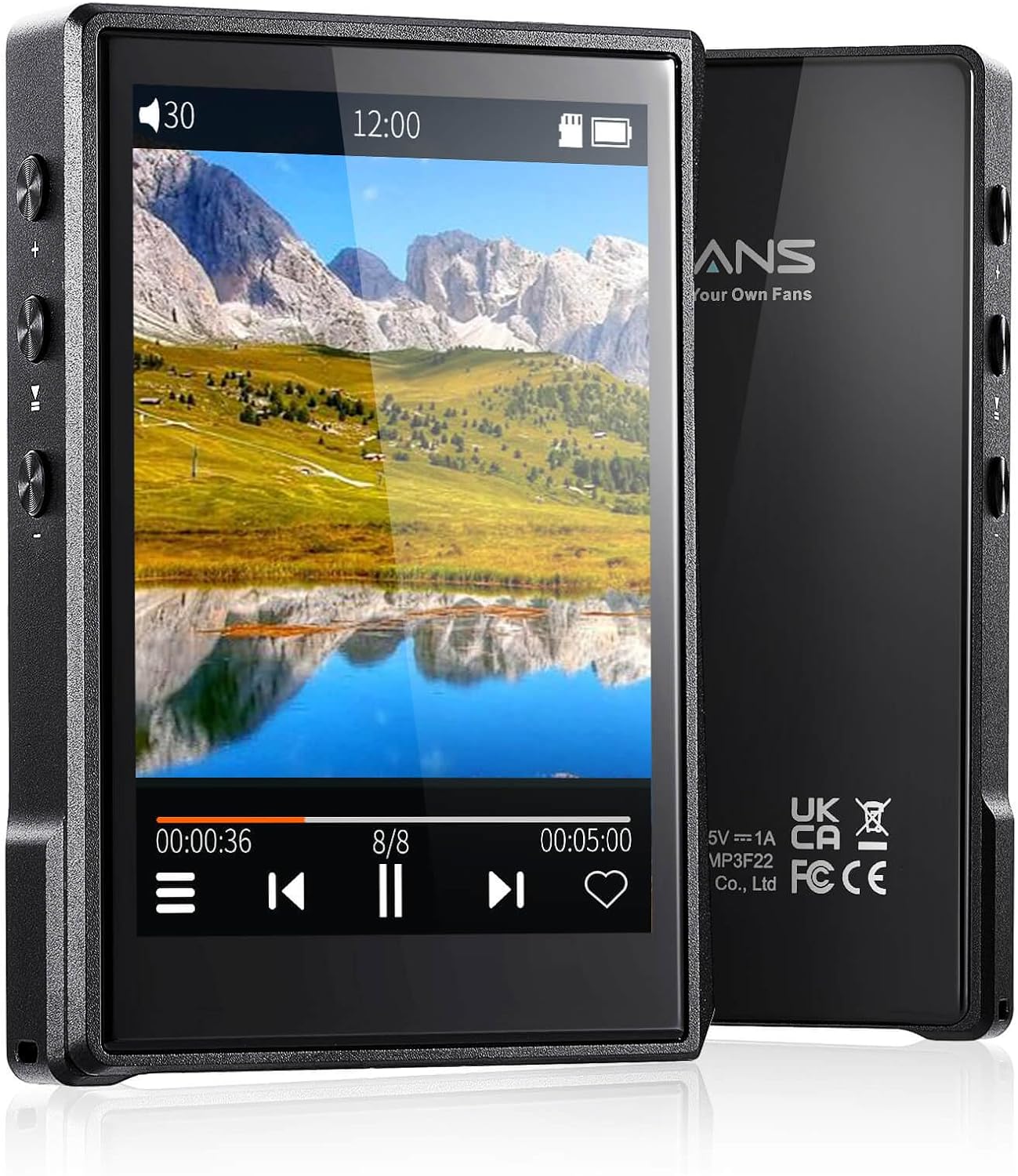

Immaġni: Quddiem u wara view of the Surfans F22 Portable HiFi MP3 Player, showcasing its 2.8-inch touchscreen and sleek design.
Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- Surfans F22 HiFi Music Player
- Manwal għall-Utent (dan id-dokument)
- USB-C Cable
- 32GB Memory Card (pre-installed or included separately)
Apparat Matulview
Familiarize yourself with the physical components of your F22 player.
Image: Diagram illustrating the various ports and buttons on the Surfans F22 MP3 Player, including the power button, volume controls, headphone jack, and USB-C port.
- 2.8-inch IPS TFT Full Touchscreen: Main interface for navigation and control.
- Buttuna tal-Qawwa: Jixgħel/jitfi l-apparat u jissakkar/jiftaħ l-iskrin.
- Buttuni tal-Volum: Jaġġusta l-livell tal-ħruġ tal-awdjo.
- Jack tal-headphone (3.5mm): Connect wired headphones.
- Port USB-C: Għall-iċċarġjar u t-trasferiment tad-dejta.
- Slott tal-Karta Mikro SD: Għal ħażna espansibbli sa 1TB.
Setup
1. Iċċarġjar tal-Apparat
Before first use, fully charge the F22 player. Connect the provided USB-C cable to the device's USB-C port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will show progress. A full charge typically takes approximately 2 hours and provides up to 10 hours of playback.
2. Daħħal Karta Mikro SD
The F22 comes with a 32GB memory card. For additional storage, you can insert a Micro SD card (up to 1TB) into the designated slot. Ensure the card is inserted correctly until it clicks into place.
Image: A Surfans F22 MP3 Player shown with a Micro SD card being inserted into its slot, illustrating the expandable storage capability.
3. Trasferiment tal-Mużika Files
Connect the F22 player to your computer using the USB-C cable. The device will appear as a removable storage drive. Drag and drop your music files (FLAC, WMA, WAV, DSF, DSD, MP3, etc.) into the appropriate folders on the player's internal storage or the Micro SD card.
Image: A Surfans F22 MP3 Player displaying music playback, with a person wearing headphones in the background, symbolizing the high-fidelity audio experience.
Istruzzjonijiet Operattivi
1. Power On/Off and Screen Lock
- To power on, press and hold the Power button until the screen illuminates.
- To power off, press and hold the Power button, then select "Power Off" on the screen.
- To lock/unlock the screen, briefly press the Power button.
2. Navigazzjoni fl-Interface
The F22 features a 2.8-inch touchscreen for navigation. Swipe left/right or up/down to browse menus and lists. Tap icons to select options or open applications.
3. Daqq tal-mużika
- From the main menu, select "Music" to access your library.
- Browse by Artist, Album, Song, Genre, or Folder.
- Tap a song to begin playback.
- During playback, use the on-screen controls for play/pause, skip track, and volume adjustment. Physical volume buttons also control volume.
Image: The Surfans F22 MP3 Player screen showing options for music playback modes: List play, Single play, List loop, and Random, indicating flexible listening options.
4. Konnettività Bluetooth
The F22 supports Bluetooth 4.2 for wireless audio output.
- Go to "Settings" and select "Bluetooth".
- Turn Bluetooth on. The player will scan for available devices.
- Select your desired Bluetooth headphones or speaker from the list to pair.
- Once paired, audio will stream wirelessly to the connected device.
Image: A visual representation of the Surfans F22 MP3 Player's Bluetooth 4.2 capabilities, showing connections to Bluetooth headphones, a Bluetooth speaker, and a car stereo system.
5. E-Book Functionality
The F22 also supports E-book reading.
- Transfer compatible E-book files għall-apparat.
- From the main menu, select "E-book".
- Browse and select a book to open and read.
Manutenzjoni
- Tindif: Uża drapp artab u niexef biex tnaddaf l-apparat. Evita prodotti tat-tindif likwidi jew materjali li joborxu.
- Ħażna: Aħżen il-plejer f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
- Kura tal-batterija: Biex ittawwal il-ħajja tal-batterija, evita li tiċċarġja kompletament il-batterija ta' spiss. Iċċarġja l-apparat regolarment, anke jekk ma jkunx qed jintuża għal perjodi twal.
- Aġġornamenti tas-Software: Iċċekkja l-manifattur webżur is-sit perjodikament għal aġġornamenti tal-firmware biex tiżgura prestazzjoni ottimali u karatteristiċi ġodda.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-apparat ma jixgħelx. | Batterija baxxa. | Iċċarġja l-apparat għal mill-inqas 30 minuta. |
| L-ebda ħoss. | Volume too low; headphones not connected properly; incorrect audio output. | Increase volume; ensure headphones are fully plugged in; check Bluetooth connection if using wireless. |
| Ma jistax jittrasferixxi files. | USB cable issue; device not recognized by computer. | Try a different USB port or cable; ensure the device is in data transfer mode if prompted. |
| Il-konnessjoni Bluetooth mhix stabbli. | Interference; device too far from player. | Reduce distance between devices; avoid obstacles; try re-pairing. |
| L-iskrin ma jirrispondix. | Problema temporanju tas-softwer. | Perform a soft reset by holding the Power button until the device restarts. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | Surfans F22 Hi Res Music Player |
| Proċessur | RK3308G 64-bit Quad-core ARM Cortex-A35 |
| Wiri | 2.8-inch IPS TFT Full Touchscreen (240*320 resolution) |
| Formati tal-Awdjo Appoġġjati | FLAC, WMA, WAV, DSF, DSD (Native DSD 128/256), PCM (up to 384kHz/32bit), DFF, DTS, APE, OGG, M4A, AIFF, AAC, MP3, Apple Lossless |
| Bluetooth | Verżjoni 4.2 |
| Ħażna Interna | 32GB (included) |
| Ħażna espansibbli | Micro SD card up to 1TB |
| Batterija | Polimer tal-Litju 1500mAh |
| Ħajja tal-batterija | Sa 10-il siegħa ta' daqq |
| Ħin tal-Iċċarġjar | Approximately 2 hours (fast charge) |
| Dimensjonijiet | 4.72 x 3.15 x 1.77 pulzieri |
| Piż | 7.4 uqija |
| Konnettività | USB-C |
| Karatteristiċi Speċjali | Equalizer, Hi-Res Audio, E-book function |
Garanzija u Appoġġ
The Surfans F22 Portable HiFi MP3 Player comes with a one-year return and exchange guarantee from the date of purchase. This warranty covers manufacturing defects under normal use.
For technical support, warranty claims, or further assistance, please contact Surfans customer service through their official website or the retailer where the product was purchased. Please have your purchase receipt and product model number (F22) available when contacting support.
Manifattur: Surfani
Websit: Surfans Official Store
