Tristar Princess Dynamic Storm Cordless Vacuum Cleaner

1. Prodott Aktarview

The Tristar Princess Dynamic Storm is a versatile cordless vacuum cleaner designed for efficient home cleaning. It features a powerful 220W brushless DC motor, providing strong suction for various surfaces. The unit can easily convert from a stick vacuum to a handheld vacuum for targeted cleaning. Its motorized brush head includes LED lights to illuminate dust and debris, ensuring thorough cleaning. The 0.6-liter dustbin offers hygienic emptying with a simple button press, minimizing contact with dirt. With a battery life of up to 30 minutes and three speed settings, this vacuum is suitable for daily cleaning tasks.

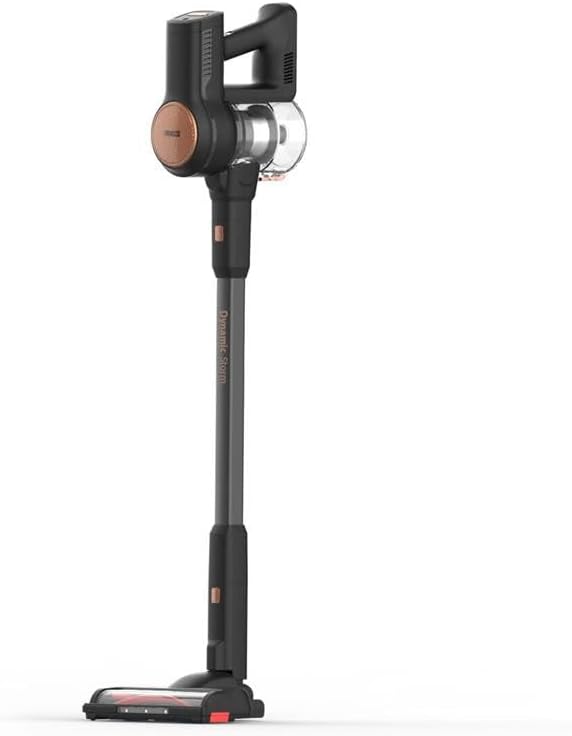

Figura 1: Sħiħa view of the Princess Dynamic Storm Cordless Vacuum Cleaner.

2. Istruzzjonijiet tas-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha tas-sigurtà bir-reqqa qabel ma tuża l-apparat. Żomm dan il-manwal għal referenza futura.

• Kun żgur li l-adapter tal-enerġija huwa kompatibbli mal-provvista tal-enerġija lokali tiegħek.
• Tużax il-vacuum cleaner fuq uċuħ imxarrbin jew biex tiġbor likwidi.
• Żomm ix-xagħar, il-ħwejjeġ maħlula, is-swaba’, u l-partijiet kollha tal-ġisem 'il bogħod mill-fetħiet u mill-partijiet li jiċċaqilqu.
• Tiġborx materjali li jaqbdu jew li jpejpu, bħal sigaretti, sulfarini, jew irmied jaħraq.
• Do not use without the dustbin and filters properly in place.
• Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
• It-tfal għandhom ikunu sorveljati biex jiżguraw li ma jilagħbux bl-apparat.
• Uża biss aċċessorji rakkomandati mill-manifattur.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:

• Main Vacuum Unit (motor and dustbin assembly)
• Tubu ta' Estensjoni
• Motorized Brush Head with LED Lights
• Għodda tal-Xquq
• Pinzell tal-għamara
• Adapter tal-Iċċarġjar
• Wall Mount (if included, check packaging)
• Manwal għall-Utent

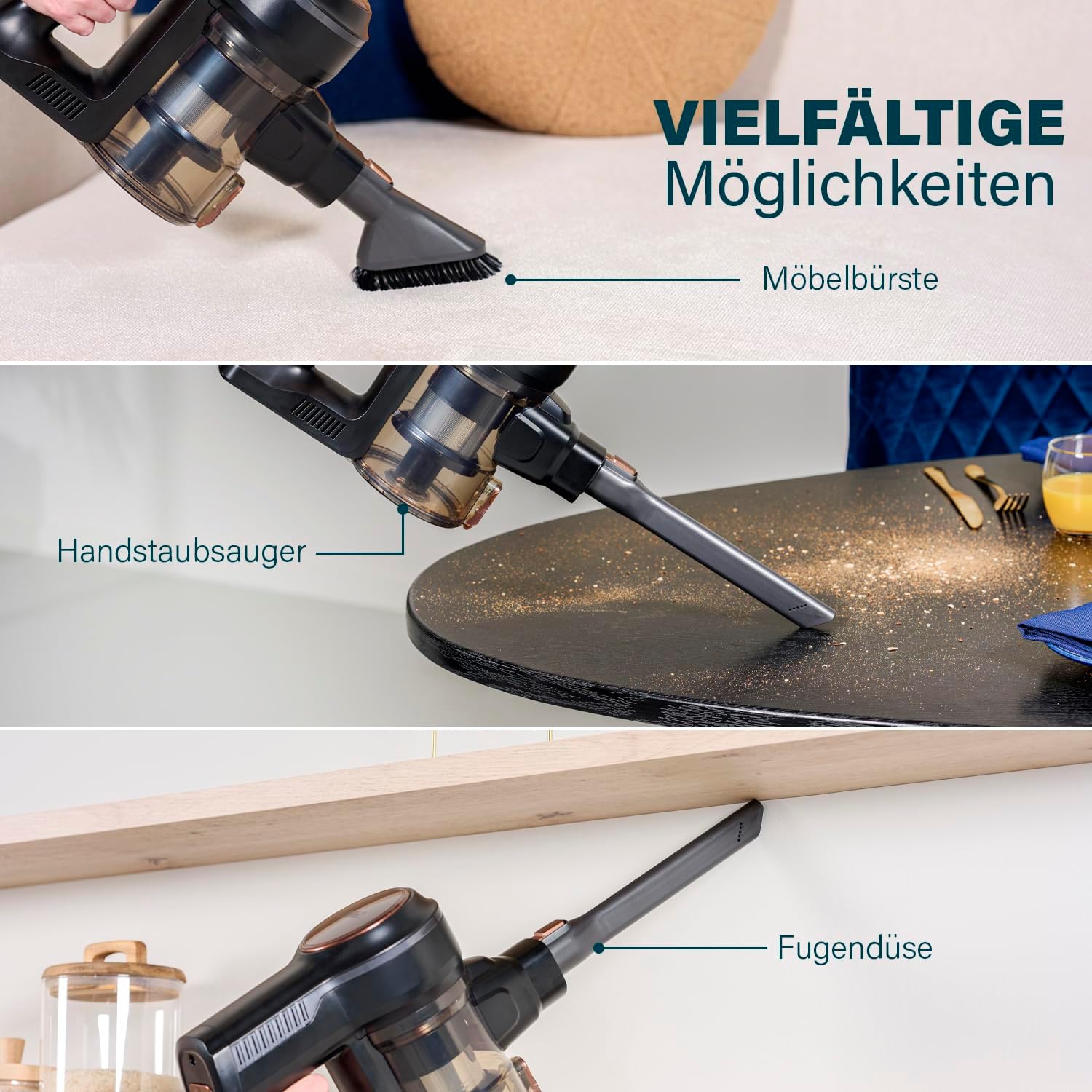

Figure 2: The vacuum cleaner shown with its versatile attachments, including the furniture brush, handheld vacuum configuration, and crevice tool.

4. Assemblaġġ u Twaqqif

4.1 L-Immuntar tal-Vakwu

1. Waħħal it-Tubu tal-Estensjoni: Daħħal it-tubu tal-estensjoni fl-unità prinċipali tal-vakwu sakemm tikklikkja sew f'postu.
2. Waħħal ir-Ras tax-Xkupilja Motorizzata: Connect the motorized brush head to the other end of the extension tube, ensuring it clicks firmly.
3. Modalità li jinżamm fl-idejn: For handheld use, detach the extension tube and connect accessories like the crevice tool or furniture brush directly to the main vacuum unit.

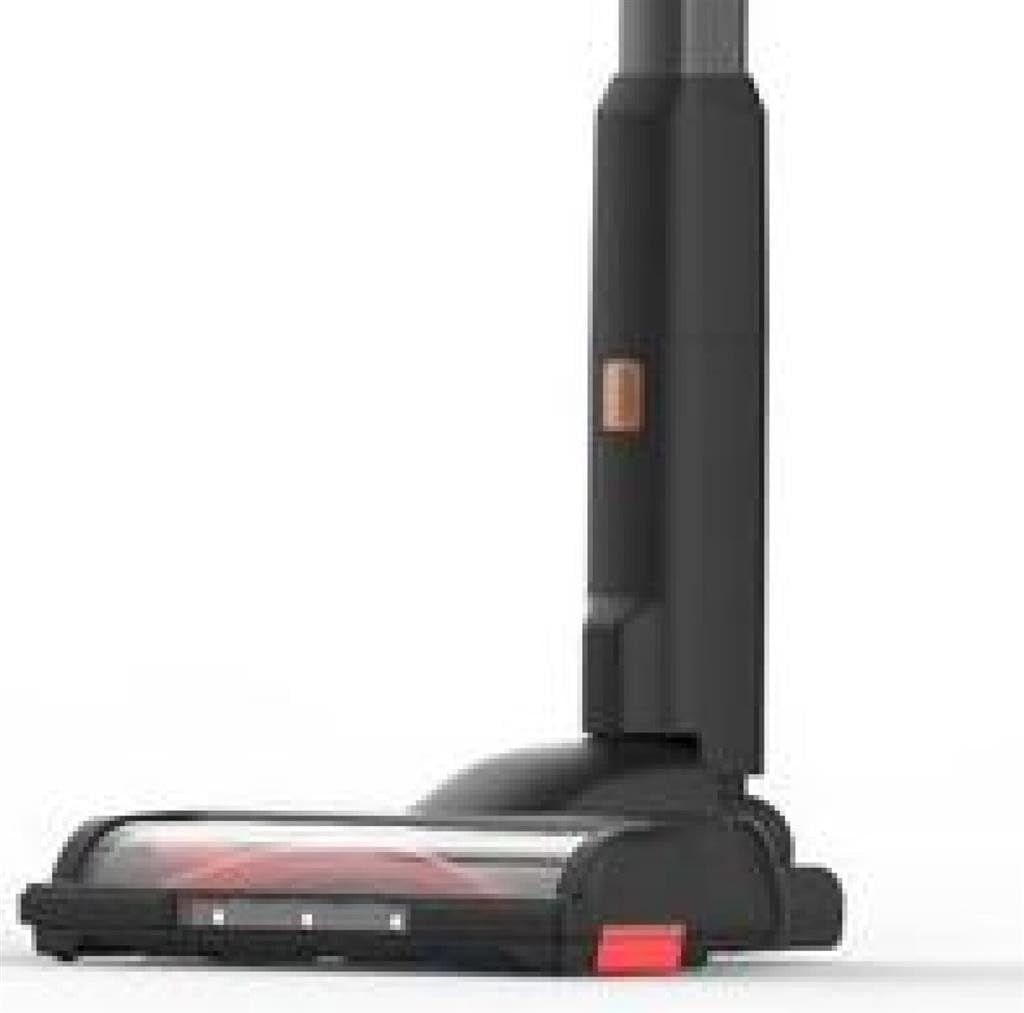

Figura 3: Close-up view of the motorized brush head, showing its design and LED lights.

4.2 Iċċarġjar tal-batterija

Before first use, fully charge the vacuum cleaner. A full charge takes approximately 105 minutes.

1. Connect the charging adapter to the charging port on the main vacuum unit.
2. Ipplaggja l-adapter ma 'plagg tal-ħajt.
3. The charging indicator light will show the charging status. Refer to the indicator light section in the manual for specific light patterns.
4. Ladarba jkun iċċarġjat kompletament, skonnettja l-adapter.

5. Istruzzjonijiet Operattivi

5.1 Powering On/Off and Speed Selection

1. Qawwa Mixgħul: Press the power button located on the main unit to turn on the vacuum cleaner. It will start in the lowest speed setting.
2. Bidla Veloċità: Press the speed selection button (if separate) or press the power button again to cycle through the 3 available speed settings (Low, Medium, High).
3. Itfi: Press the power button until the unit turns off.

5.2 Using the Motorized Brush Head with LED Lights

The motorized brush head is ideal for cleaning various floor types, including hard floors and carpets. The integrated LED lights illuminate dust and debris, making it easier to spot and clean hidden dirt.

Figure 4: The motorized brush head with its LED lights activated, highlighting dust and debris on the floor.

5.3 L-Użu tal-Aċċessorji

The included accessories enhance the vacuum's versatility:

• Għodda tal-qsim: Use for narrow gaps, corners, and hard-to-reach areas.
• Xkupilja tal-Għamara: Ideal for cleaning upholstery, curtains, and delicate surfaces.

These accessories can be attached directly to the main vacuum unit for handheld use or to the extension tube for extended reach.

5.4 Stable Parking Mode

The vacuum cleaner is designed with a stable parking mode, allowing it to stand upright on its own without needing to be leaned against a wall or placed in a dock. This provides convenient temporary storage during cleaning breaks.

Figure 5: The Princess Dynamic Storm vacuum cleaner standing upright independently, demonstrating its stable parking mode.

6. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-vacuum cleaner tiegħek.

6.1 Tbattil tal-landa taż-żibel

Empty the 0.6-liter dustbin regularly, especially when the MAX line is reached, to maintain suction power.

1. Hold the main vacuum unit over a trash can.
2. Press the dustbin release button to open the bottom flap of the dustbin.
3. Allow the contents to fall into the trash. Close the flap securely.

Figure 6: Illustration of the hygienic dustbin emptying process, showing the dustbin detached and being emptied with a button press.

6.2 Tindif tal-Filtri

The filters should be cleaned regularly to prevent clogging and maintain suction. It is recommended to clean them after every few uses.

1. Dawwar u iġbed biex tneħħi l-kontenitur tat-trab mill-unità prinċipali.
2. Neħħi l-assemblaġġ tal-filtru mill-kontenitur tat-trab.
3. Tektek il-filtri bil-mod fuq landa taż-żibel biex tneħħi t-trab maħlul.
4. If necessary, rinse the filters under cold running water. Ensure they are completely dry before reassembling.
5. Erġa’ arma l-filtri u l-kontenitur tat-trab, imbagħad erġa’ waħħalhom mal-unità prinċipali.

6.3 Tindif tar-Romblu tal-Pinzell

Periodically check the brush roll for tangled hair or debris. To clean:

1. Itfi u aqla l-vacuum cleaner.
2. Locate the brush roll access cover on the bottom of the motorized brush head.
3. Open the cover (refer to diagrams in the full manual if available) and remove the brush roll.
4. Aqta’ u neħħi bir-reqqa kwalunkwe xagħar jew fibri mħabbla bl-użu ta’ imqass.
5. Erġa’ daħħal ir-romblu tal-pinzell u agħlaq l-għatu tal-aċċess sew.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil-vacuum cleaner tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

8. Speċifikazzjonijiet

• Numru tal-Mudell: 01.339390.01.001
• Ditta: Tristar (Manufacturer: Princess)
• Qawwa: 220 Watts (Brushless DC Motor)
• Voltage: 21.6 Volts
• Tip ta 'batterija: 1 Lithium-ion (inkluża)
• Run Time: Sa 30 minuta
• Ħin tal-Iċċarġjar: Madwar 105 minuta
• Numru ta' Veloċitajiet: 3
• Kapaċità tat-Trin: 0.6 Litri
• Dimensjonijiet (L x W x H): 23 x 21 x 112 ċm
• Piż tal-oġġett: 1 Kilogramma
• Livell ta' Storbju: 1 Decibel (as per product specifications)
• Tip ta' filtru: Filtru tad-diska
• Karatteristiċi Speċjali: Portable, Cordless, Motorized brush with LEDs, Stable parking
• Uċuħ Rakkomandati: L-artijiet kollha
• International Article Code (UPC): 08712836981461

9. Garanzija u Appoġġ

This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official Tristar/Princess website. For technical support, spare parts, or service inquiries, please contact the customer service department using the contact information provided in your warranty documentation.
