DEPSTECH Endoscope Camera User Manual

1. Introduzzjoni

This user manual provides comprehensive instructions for the safe and effective operation of your DEPSTECH Endoscope Camera. Designed for detailed visual inspection in hard-to-reach areas, this device offers high-definition imaging and robust connectivity for various applications, including automotive, plumbing, and home inspections.

Figure 1.1: DEPSTECH Endoscope Camera Overview

This image displays the DEPSTECH Endoscope Camera, featuring its flexible cable, the camera probe with LED lights, and the control unit connected to an iPhone. The iPhone screen shows an inspection view, highlighting the product's primary function.

2. Informazzjoni dwar is-Sigurtà

• Do not use the endoscope in environments with flammable or explosive gases.
• Ensure the device is disconnected from your phone before cleaning.
• The camera probe is IP67 waterproof, but the main control unit and USB connector are not. Avoid submerging these parts in liquid.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Tippruvax tiżżarma jew timmodifika l-apparat. Dan jannulla l-garanzija.
• Use only with compatible iOS devices (iOS 12.0+).

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• DEPSTECH Endoscope Camera (Model NTC55-US)
• Manwal għall-Utent
• It-twaħħil tal-ganċ
• It-twaħħil tal-kalamita

Figure 3.1: Included Accessories and Packaging

This image shows the DEPSTECH Endoscope Camera, its packaging box, the user manual, and the included hook and magnet accessories, laid out on a dark surface.

4. Prodott Aktarview

Familiarize yourself with the components of your endoscope camera:

1. Port tas-Sajjetti: Connects to your iOS device.
2. Soft Cable: The initial flexible section of the cable.
3. Aġġustament tal-luminożità: Control unit with LED+ and LED- buttons to adjust camera light intensity.
4. Kejbil semi-riġidu: The main 16.4ft (5m) cable that retains its shape for easier navigation.
5. Dia 7mm Probe: The camera head with integrated LED lights.

Figure 4.1: Endoscope Component Diagram

This diagram illustrates the various parts of the DEPSTECH endoscope, including the Lightning connector, soft cable, brightness adjustment unit, semi-rigid cable, and the 7mm diameter camera probe, each clearly numbered for identification.

5. Setup

5.1. Kompatibilità

This endoscope camera is designed exclusively for iOS devices running iOS 12.0 or higher, including iPhones and iPads. It is not compatible with Android phones, even with adapters, and specifically not compatible with the iPhone 15 series.

Figure 5.1: iOS Device Compatibility

This image visually confirms the endoscope's compatibility with iPhone and iPad devices running iOS 12.0 or later, explicitly stating its incompatibility with Android phones and the iPhone 15 series.

5.2. Installazzjoni tal-App

To use the endoscope, you must download and install the "DEPSTECHCAM" application from the Apple App Store.

1. Step 1: Download "DEPSTECHCAM" APP. Scan the QR code provided in the product packaging or search for "DEPSTECHCAM" directly in the Apple App Store.
2. Step 2: Connect to your iOS 12.0+ iPhone/iPad. Plug the endoscope's Lightning connector into your device.
3. Step 3: Allow access to all photos, get started. Grant the app necessary permissions when prompted to enable full functionality.

Figura 5.2: Gwida ta' Setup Mgħaġġel

This image illustrates the three essential steps for setting up the endoscope: downloading the "DEPSTECHCAM" app from the App Store (with a QR code), connecting the endoscope to an iOS device, and granting the app access to photos for operation.

Għal tniżżil dirett tal-app, żur: DEPSTECHCAM App Download

6. Istruzzjonijiet Operattivi

6.1. App User Interface

The DEPSTECHCAM app features a clear and intuitive interface for easy operation:

• Status tal-Konnessjoni: Indicates if the endoscope is properly connected.
• Allow access to all photos: Prompt for necessary permissions.
• View ritratti/videos: Access your captured media.
• Noir/Color: Toggle between black & white and color modes.
• L-issettjar: Access app settings.
• Screen rotation 90°: Rotate the live view.
• File: Immaniġġja files.
• Zoom 1X / 1.5X / 2X: Adjust digital zoom.
• Take photos/record videos: Aqbad immaġnijiet jew ibda/waqqaf ir-reġistrazzjoni tal-vidjow.
• Agħżel: Agħżel multipli files.
• Ritratti / Vidjows files: Browse captured media.
• Files information: View details about selected files.
• Aqsam files: Share captured media.
• Ħassar files: Remove unwanted media.

Figure 6.1: DEPSTECHCAM App Interface

This image displays three screenshots of the DEPSTECHCAM application, highlighting key features such as connection status, photo/video viewing, ħaj view controls (zoom, photo/video capture, color mode, screen rotation), and file għażliet ta' ġestjoni.

6.2. Adjusting Illumination (Bluart 3.0 Tech)

The endoscope features six adjustable LED lights with Bluart 3.0 technology for optimal visibility. Use the "LED+" and "LED-" buttons on the control unit to increase or decrease brightness. The optimal focus range is 0.79-3.93 inches (2-10cm).

Figure 6.2: Adjustable LED Brightness

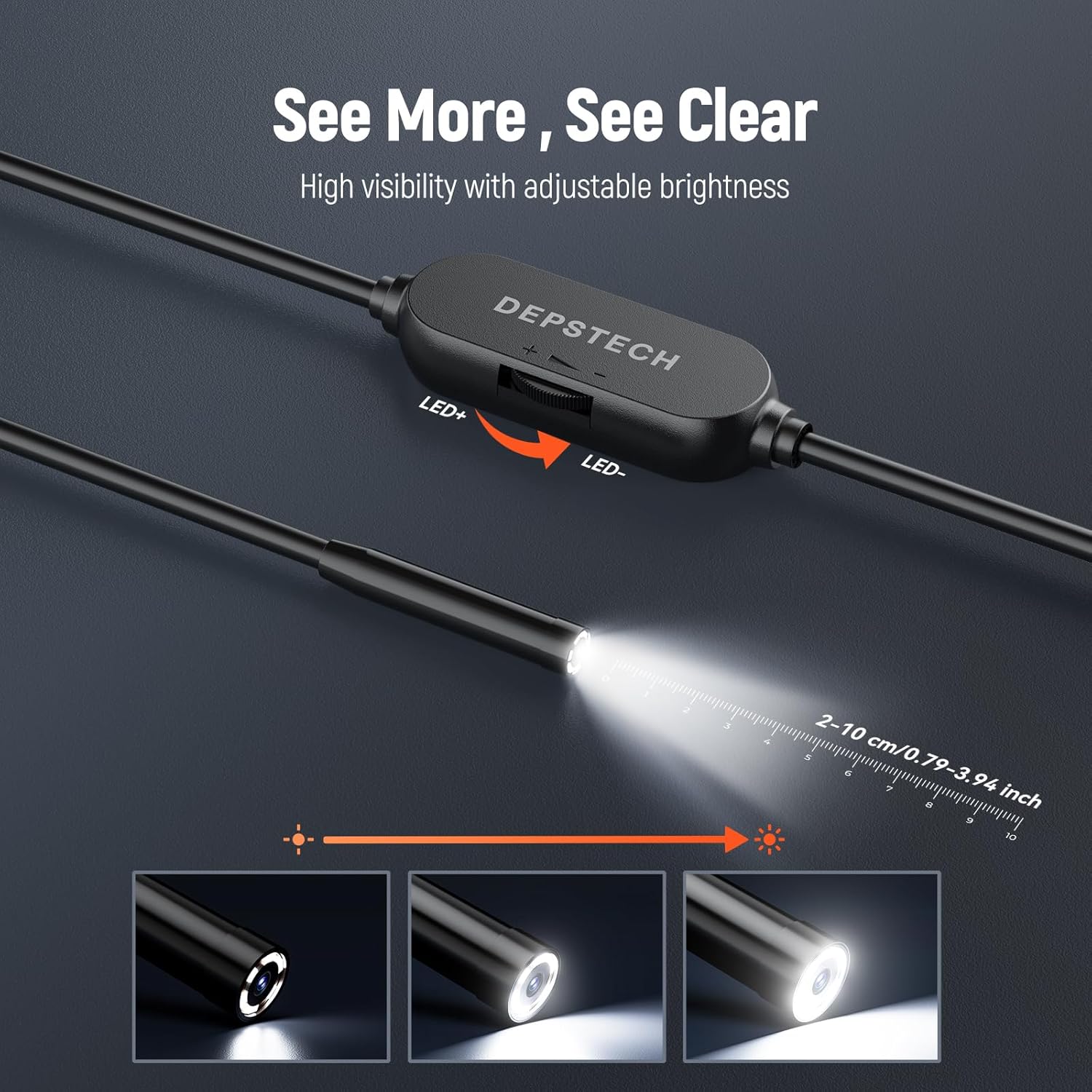

This image shows the control unit of the DEPSTECH endoscope with "LED+" and "LED-" buttons, illustrating how to adjust the brightness of the camera's integrated LED lights for improved visibility during inspections.

Figure 6.3: Bluart 3.0 Technology

This diagram highlights DEPSTECH's Bluart 3.0 technology, which enhances image clarity and true-to-reality video quality through the camera's blue LED system, showing different illumination patterns.

6.3. Applikazzjonijiet Prattiċi

The DEPSTECH Endoscope Camera is versatile for various inspection needs:

• Automotive Inspection: Examine engine components, spark plug holes, or other confined spaces in vehicles.
• Spezzjoni tal-plaming: Inspect pipes, drains, and sewer lines for clogs, leaks, or damage.
• Spezzjoni tad-Dar: Look inside walls, behind appliances, or in ventilation systems to identify issues.
• Industrial Use: Ideal for machinery inspection, HVAC systems, and construction.

Figure 6.4: Engine Inspection

This image shows a user holding the DEPSTECH endoscope cable while viewing the live feed on an iPhone, inspecting the internal components of a car engine.

Figure 6.5: Wall Cavity Inspection

A user is shown inserting the endoscope camera into an opening in a wall, with the iPhone displaying the live view of electrical wiring and internal structures.

Figure 6.6: Sink Drain Inspection

This image depicts the endoscope probe being inserted into a kitchen sink drain, with the user observing the internal view on a connected iPhone, demonstrating its use for plumbing inspections.

Figure 6.7: Appliance Inspection

A user is shown inspecting the interior of an appliance, possibly a washing machine or dryer, by inserting the endoscope and viewing the live feed on their iPhone.

Figure 6.8: Floor Drain Inspection

This image shows the endoscope being used to inspect a floor drain, with the camera's view displayed on the connected iPhone, demonstrating its utility for examining plumbing systems.

7. Manutenzjoni

• Tindif tal-Lenti: Gently wipe the camera lens with a soft, dry cloth. For stubborn dirt, use a lens cleaning solution on the cloth, not directly on the lens.
• Kura tal-Cable: Avoid sharp bends or kinks in the cable to prevent internal damage. Coil the cable loosely for storage.
• Ħażna: Aħżen l-endoskopju f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Espożizzjoni għall-Ilma: While the probe is waterproof (IP67), ensure the USB connector and control unit remain dry. If they get wet, dry them thoroughly before use.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

DEPSTECH products are designed for durability and performance. For warranty information, technical support, or customer service inquiries, please refer to the contact details provided on the official DEPSTECH website or your purchase documentation. Our support team is available to assist with any questions or issues you may encounter.

Visit the official DEPSTECH Store: DEPSTECH Store on Amazon.ca
