Commax CMV-70S 7-inch LED Intercom System User Manual

1. Introduzzjoni

Thank you for choosing the Commax CMV-70S 7-inch LED Intercom System. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new intercom system. Please read this manual thoroughly before use and keep it for future reference.

2. Informazzjoni dwar is-Sigurtà

• Ensure all electrical connections are made by a qualified professional to prevent electric shock or fire.
• Tesponix l-unità għall-ilma, umdità, jew temperaturi estremi.
• Do not attempt to open or repair the unit yourself. Refer all servicing to authorized personnel.
• Use only the specified power supply (AC 100V - 240V).
• Żomm l-unità 'l bogħod mix-xemx diretta u sorsi tas-sħana.

3. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek. Jekk xi oġġetti huma neqsin jew bil-ħsara, jekk jogħġbok ikkuntattja lill-bejjiegħ tiegħek.

• Commax CMV-70S Monitor Unit
• Bracket tal-Immuntar
• Manwal għall-Utent
• Screws (T)4 x 18mm (4 pcs)
• Screw (M)3 x 6mm (1 pc)
• Connection Cables (2P(1EA), 4P(3EA))
• Door Camera (if included in your specific kit)

Figura 3.1: Kontenut tal-Pakkett

4. Prodott Aktarview

The Commax CMV-70S features a 7-inch LED screen and intuitive touch controls for visitor communication and door access. Familiarize yourself with the components of the monitor unit:

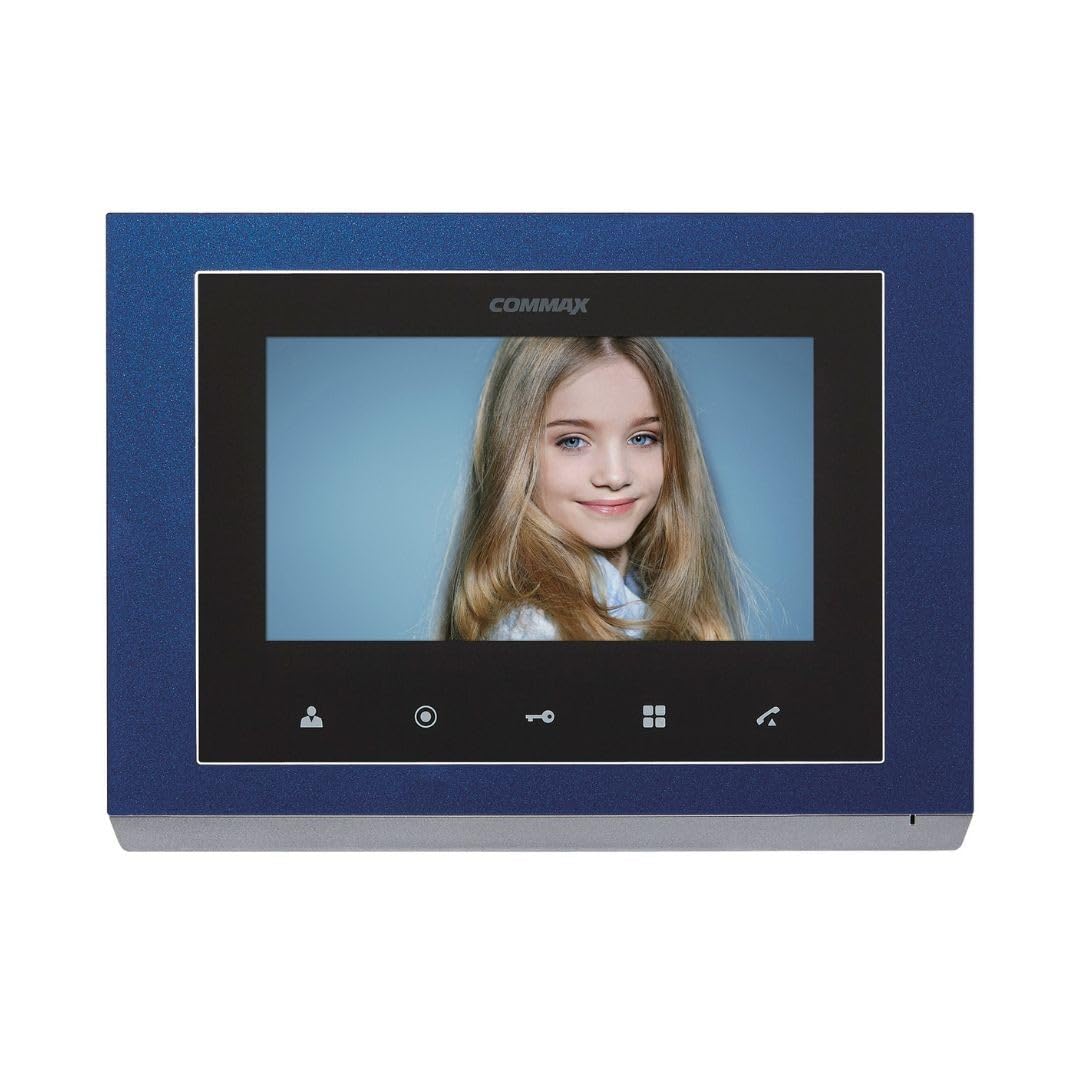

Figura 4.1: Komponenti tal-Panel ta' Quddiem

Komponenti tal-Panew ta 'Quddiem

5. Setup

5.1 Immuntar tal-Monitor

1. Choose a suitable location for the monitor, typically near the main entrance or a central area.
2. Waħħal il-bracket tal-immuntar mal-ħajt billi tuża l-viti pprovduti. Kun żgur li jkun livellat u mwaħħal sew.
3. Connect all necessary wiring to the monitor's connecting terminals (refer to Section 5.2).
4. Carefully attach the monitor unit to the mounting bracket.

5.2 Konnessjonijiet tal-Wiring

The CMV-70S system requires professional hardwire installation. Refer to the diagram below for terminal connections. Ensure power is disconnected before making any wiring connections.

Figure 5.1: Connecting Terminals (Rear View)

• Konnessjoni tal-Enerġija: Connect the AC 100V - 240V power supply to the designated power terminals.
• Door Camera Connection: Connect the door camera to the 'CAM' terminals. The system supports up to two door cameras.
• Intercom Connection: For multi-unit setups or additional indoor phones, connect them to the 'INTER' terminals.
• Door Lock Release: Connect the electronic door lock to the appropriate terminals for remote release functionality.

This system is expandable up to two screens, two door cameras, and two indoor phones, especially when utilizing Fine View technology for single-house applications.

6. Istruzzjonijiet Operattivi

The Commax CMV-70S is designed for ease of use with its touch-sensitive buttons.

6.1 Funzjonijiet Bażiċi

• Tweġiba għal Sejħa: When a visitor presses the call button on the door camera, the monitor will ring and display the visitor's image. Press the Talk button (7) to communicate.
• Monitoraġġ: Agħfas il- Monitoring button (3) biex view the outside area through the door camera at any time.
• Rilaxx tal-Bieb: During a call or while monitoring, press the Door release button (5) biex jinfetaħ il-bieb.
• Intercom/Guard Call: Agħfas il- Guard and interphone button (4) to initiate a call to another indoor unit or the guard station (if configured).

6.2 Navigazzjoni tal-Menu

The CMV-70S features both touch and side menu buttons for system settings.

• Agħfas il- Menu button (touch) (6) or Menu button (side) (9) biex taċċessa s-settings tas-sistema.
• Uża l- △ button (11) u ▽ button (12) biex tinnaviga fl-għażliet tal-menù.
• Agħfas il- Enter button (10) biex tagħżel għażla jew tikkonferma setting.
• Il- Power ON/OFF button (13) controls the unit's power.

7. Manutenzjoni

• Tindif: Wipe the monitor screen and body with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ċiklu tal-Enerġija: If the unit is unresponsive, try turning it off using the Power ON/OFF button (13), waiting a few seconds, and then turning it back on.
• Kontrolli regolari: Iċċekkja l-konnessjonijiet tal-wajers kollha perjodikament biex tiżgura li huma sikuri.

8 Issolvi l-problemi

If you encounter issues with your Commax CMV-70S, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Commax customer support or a qualified technician.

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

Commax products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Commax websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
