Manwal tal-Utent tal-Heater tal-Ilma Tankless tal-Gass Naturali Ranein

1. Prodott Aktarview

The Ranein RH10K-NG is a natural gas tankless water heater designed for indoor installation, providing instant hot water with a capacity of 4.3 GPM and 100,000 BTU. This manual provides essential information for safe and efficient operation, installation, and maintenance of your unit.

Ranein RH10K-NG Natural Gas Tankless Water Heater with Vent Pipe

Figure 1: Ranein RH10K-NG Natural Gas Tankless Water Heater with included vent pipe.

This image displays the main unit of the Ranein tankless water heater, a compact gray rectangular device with a digital display on the front. To its right is the metallic, flexible vent pipe, indicating its indoor installation design.

2. Informazzjoni Importanti dwar is-Sigurtà

Please read and understand all safety warnings and instructions before installing, operating, or performing maintenance on this appliance. Failure to follow these instructions could result in property damage, personal injury, or death.

Sigurtà tal-Gass: Ensure proper ventilation and check for gas leaks after installation. Only use natural gas as specified.
Konnessjonijiet tal-Ilma: Ensure all water connections are secure and leak-free. Do not operate the unit without proper water flow.
Sigurtà Elettrika: Ensure the unit is properly grounded and connected to the correct power supply.
Installazzjoni: L-installazzjoni għandha titwettaq minn professjonist kwalifikat skont il-kodiċijiet u r-regolamenti lokali.
Tfal u Pets: Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-apparat waqt it-tħaddim.

3. Setup u Installazzjoni

Proper installation is crucial for the safe and efficient operation of your Ranein tankless water heater. It is highly recommended that installation be performed by a licensed professional.

3.1. Iddetermina Post ta 'Installazzjoni

The unit is designed for indoor installation. Choose a location that is:

Protetti mit-temperaturi tal-friża.
Close to the main gas and water lines.
Adequately ventilated for combustion air and exhaust.
On a solid wall capable of supporting the unit's weight.

3.2. Immuntar tal-Unità

Use the provided mounting template to mark drill holes on the wall. Ensure the marked points are level and correctly spaced. Drill holes and insert appropriate anchors before securely fastening the unit to the wall.

Video 1: Installation Guide for Ranein Tankless Water Heater.

This video demonstrates the step-by-step process of installing the Ranein 100,000 BTU Tankless Water Heater, including mounting, connecting gas and water lines, and attaching the vent pipe. It provides a visual guide for the physical setup of the appliance.

3.3. Connecting Gas, Water, and Vent Pipe

Follow the detailed instructions in the installation video and the included quick installation guide for connecting the natural gas line, cold water inlet, hot water outlet, and the exhaust vent pipe. Use appropriate sealants and ensure all connections are tight to prevent leaks.

Daħla tal-Gass: Connect the natural gas supply line to the gas inlet. Ensure a gas shut-off valve is installed.
Dħul tal-Ilma Kesaħ: Connect the cold water supply line to the designated inlet.
Żbokk tal-Ilma sħun: Connect the hot water line to the outlet.
Pajp tal-Vent: Securely attach the provided vent pipe to the top of the unit and route it according to local codes for proper exhaust.

Intern view of Ranein Tankless Water Heater showing flame-stabilized chamber

Figure 2: Negative-pressure hermetically sealed flame-stabilized chamber.

Din l-immaġni tipprovdi interna view of the water heater, highlighting the negative-pressure hermetically sealed flame-stabilized chamber. Arrows indicate the flow of air and exhaust gases, demonstrating the efficient combustion system.

3.4. Leak Checks and Initial Startup

After all connections are made, slowly open the water supply valves and check for any leaks. Then, slowly open the gas supply valve. Follow the startup procedure outlined in the quick installation guide to ensure the unit ignites and operates correctly.

4. Istruzzjonijiet Operattivi

Your Ranein tankless water heater features a user-friendly digital display for easy temperature control and monitoring.

4.1. Control Panel Overview

The front panel features a high-definition liquid crystal display and touch controls for adjusting settings.

High Definition Liquid Crystal Display on Ranein Water Heater

Figure 3: High Definition Liquid Crystal Display.

This image shows a close-up of the water heater's digital display, which is a high-definition liquid crystal screen. It displays temperature and various operational icons, indicating its user-friendly interface for setting adjustments.

Power On/Off: Agħfas il-buttuna tal-enerġija biex tixgħel jew titfi l-unità.
Aġġustament tat-temperatura: Use the up and down arrows to set your desired hot water temperature. The display shows the current temperature.
Għażla tal-Modalità: The unit may feature different modes (e.g., seasonal temperature, kitchen use, bathtub mode) which can be selected via the function button.
Dejta f'ħin reali: The display provides real-time information such as water flow rate and airflow rate.

Woman showering with steady water flow from Ranein water heater

Figure 4: Steady Water, No Waiting.

This image illustrates the benefit of steady water temperature provided by the Ranein water heater. A woman is shown enjoying a shower, with a graph overlay demonstrating minimal temperature fluctuations compared to other products, ensuring consistent hot water without waiting.

AI precision control algorithm for constant temperature

Figure 5: ADRC2.0 Adaptive Constant Temperature Algorithm.

This image depicts the advanced AI precision control multi-point water system, featuring the ADRC2.0 adaptive constant temperature algorithm. This technology ensures a consistent water temperature, eliminating cold spots during use.

5. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-water heater tankless tiegħek.

Spezzjoni Annwali: Have a qualified technician inspect the unit annually, including checking gas connections, water lines, and the vent system.
Tneħħija tal-Ġebla: Depending on your water hardness, the unit may require periodic descaling to remove mineral buildup. Consult a professional for this service.
Tindif: Keep the exterior of the unit clean and free from dust and debris. Ensure the air intake and exhaust vents are unobstructed.
Winterization: If the unit is installed in an area prone to freezing and will not be used for an extended period, follow proper winterization procedures to drain water from the system and prevent freeze damage.

6 Issolvi l-problemi

If you encounter issues with your Ranein tankless water heater, refer to the following common troubleshooting steps. For complex problems, contact customer support or a qualified technician.

Gwida Komuni ta' Soluzzjoni ta' Problemi
Problema	Kawża Possibbli	Soluzzjoni
L-ebda ilma sħun	No gas supply, no water flow, power issue, or error code.	Check gas valve, water valves, power connection. Refer to display for error codes.
Ilma mhux sħun biżżejjed	Temperature setting too low, high flow rate, or mineral buildup.	Increase temperature setting. Reduce water flow. Consider descaling.
L-unità tixgħel/titfi ta' spiss	Insufficient water flow, air in lines, or vent obstruction.	Ensure adequate water flow. Bleed air from lines. Check vent pipe for blockages.
Kodiċi Żball murija	Kwistjoni interna speċifika.	Note the error code and consult the detailed manual or Ranein customer support.

7. Speċifikazzjonijiet

Key technical specifications for the Ranein RH10K-NG Natural Gas Tankless Water Heater:

Ditta: Ranein
Numru tal-Mudell: RH10K-NG
Tip ta' Fjuwil: Gass Naturali
Rata tal-fluss: 4.3 GPM (gallun kull minuta)
Kapaċità tat-tisħin: 100,000 BTU
Tip ta' Installazzjoni: Installazzjoni fuq ġewwa
Piż tal-oġġett: 25.9 liri
Dimensjonijiet tal-Prodott: 27.83 x 20.08 x 9.76 pulzieri
Manifattur: RANEIN

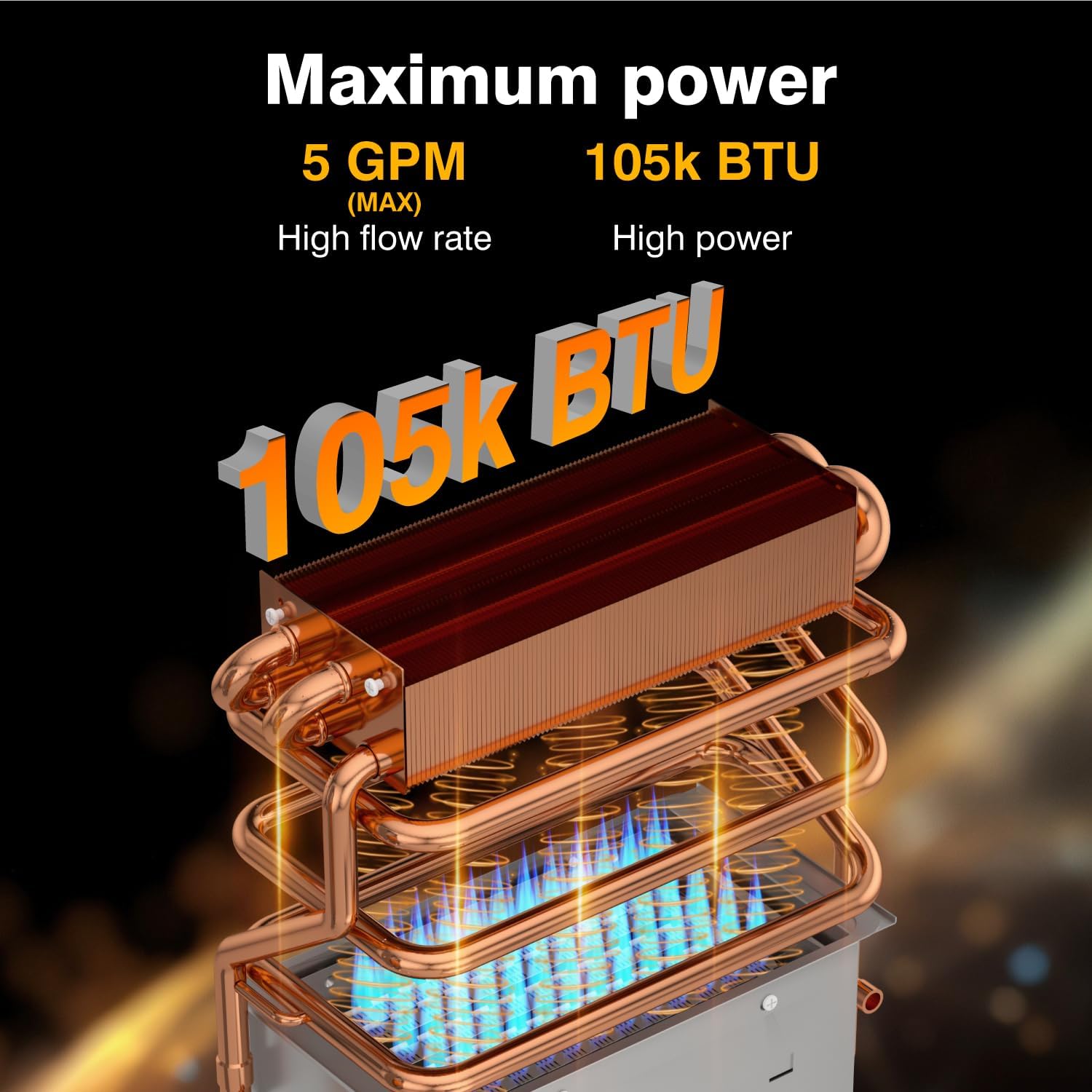

Intern view of Ranein Tankless Water Heater showing heat exchanger and burner

Figure 6: Maximum Power Output.

This image highlights the water heater's maximum power capabilities, indicating a 5 GPM (MAX) high flow rate and 105k BTU high power. The visual shows the internal heat exchanger and burner, illustrating the components responsible for its heating efficiency.

8. Garanzija u Appoġġ

Ranein stands behind the quality of its products. Your RH10K-NG Tankless Water Heater comes with a garanzija ta 'sena.

For technical assistance, troubleshooting, or warranty claims, please contact Ranein customer support. You can find contact information on the product packaging or the official Ranein websit.

Għal aktar riżorsi, tista' tirreferi għall-uffiċjal Gwida għall-Utent (PDF) u Istruzzjonijiet għall-Użu (IFU) (PDF).
