Wilprep Commercial Refrigerator User Manual

1. Introduzzjoni

Thank you for choosing the Wilprep Commercial Refrigerator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

This commercial display refrigerator is designed for storing and showcasing various beverages and packaged foods in commercial environments such as convenience stores, cafes, and restaurants. It features a 37 cu. ft. capacity with two sliding glass doors and LED lighting.

2. Istruzzjonijiet tas-Sigurtà

TWISSIJA: Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, segwi dawn il-prekawzjonijiet bażiċi:

• Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
• Dan l-apparat għandu jkun installat u lokalizzat kif suppost skont l-Istruzzjonijiet tal-Installazzjoni qabel ma jintuża.
• Do not allow children to climb, stand, or hang on the shelves of the refrigerator. They could damage the refrigerator and seriously injure themselves.
• Taħżinx jew tużax gażolina jew fwar u likwidi oħra li jaqbdu fil-viċinanza ta' dan jew kwalunkwe apparat ieħor.
• Żomm il-fetħiet tal-ventilazzjoni, fl-egħluq tal-apparat jew fl-istruttura inkorporata, mingħajr xkiel.
• Tużax apparat mekkaniku jew mezzi oħra biex taċċellera l-proċess tad-defrosting, minbarra dawk rakkomandati mill-manifattur.
• Tagħmel ħsara liċ-ċirkwit tar-refriġerant.
• Tużax apparat elettriku ġewwa l-kompartimenti tal-ħażna tal-ikel tal-apparat, sakemm ma jkunux tat-tip rakkomandat mill-manifattur.

Sigurtà Elettrika

• This appliance must be plugged into a grounded 110V, 60Hz electrical outlet.
• Tużax korda ta' estensjoni.
• Tħaddimx il-friġġ b'korda tal-enerġija jew plagg bil-ħsara.
• Ensure the power cord is not pinched or damaged during installation.
• Dejjem aqla’ l-apparat qabel ma tnaddaf jew tagħmel xi manutenzjoni.

3. Setup

3.1 Disimballaġġ

Carefully remove all packaging materials. Inspect the refrigerator for any shipping damage. Report any damage immediately to the carrier and your dealer. Do not discard packaging materials until the unit has been inspected.

3.2 Tqegħid

• Poġġi l-friġġ fuq wiċċ b'saħħtu u livellat li kapaċi jsostni l-piż tiegħu meta jkun mgħobbi għalkollox.
• Ensure adequate ventilation around the unit. Maintain a minimum of 4 inches (10 cm) clearance from walls or other objects on all sides to allow for proper airflow and heat dissipation.
• Avoid placing the refrigerator in direct sunlight or near heat sources such as ovens, radiators, or heating vents.
• It-temperatura ambjentali għandha tkun bejn 60°F (16°C) u 90°F (32°C) għal prestazzjoni ottimali.

3.3 Invellar

The refrigerator is equipped with casters for mobility. Ensure the unit is level to prevent door misalignment and ensure proper operation. Use the adjustable feet on the casters to level the unit if necessary.

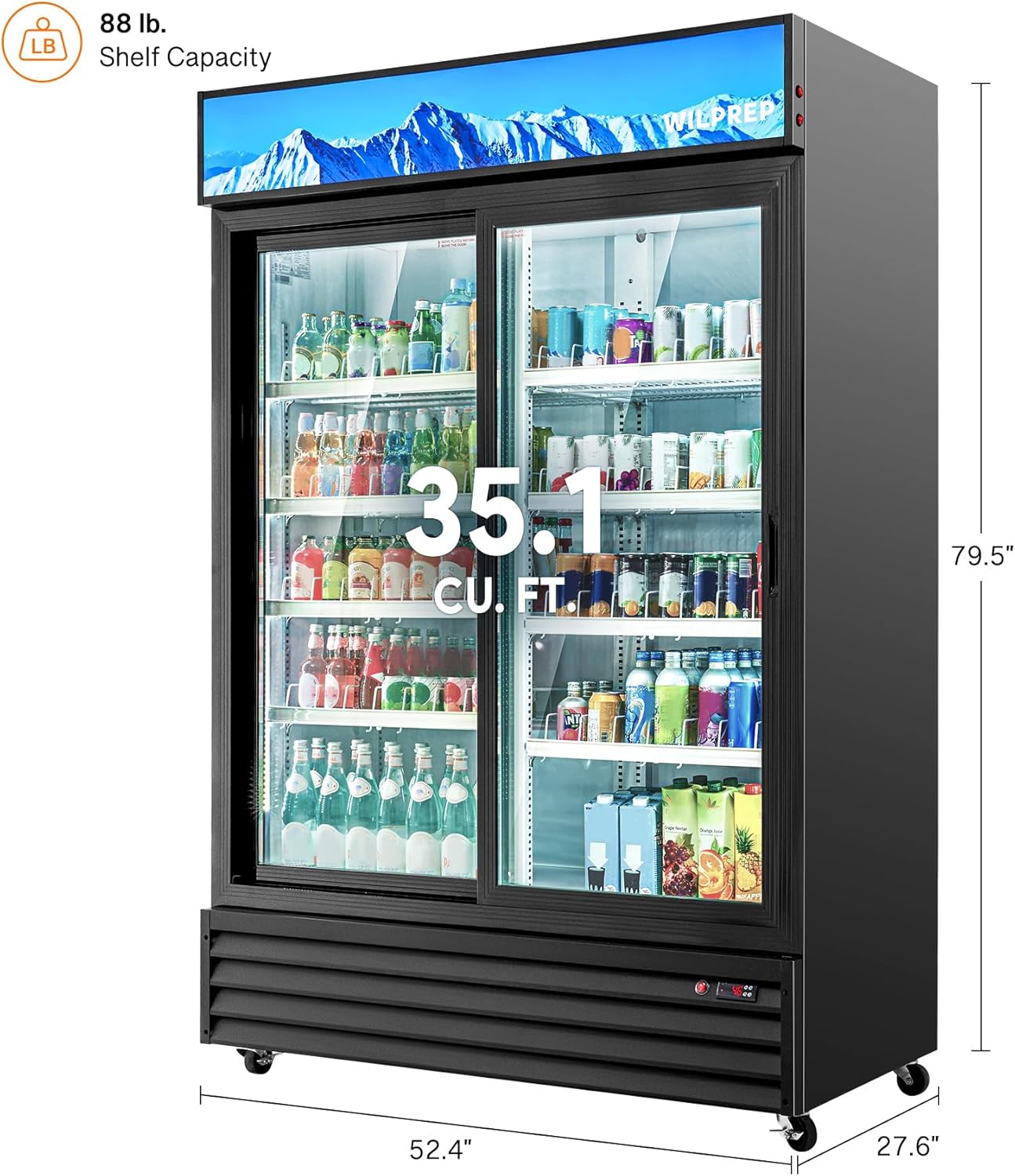

Immaġni: Angolata view of the Wilprep Commercial Refrigerator, highlighting its dimensions (52.4 inches width, 27.6 inches depth, 79.5 inches height) and 35.1 cubic feet capacity. The image also indicates an 88 lb. shelf capacity.

3.4 Konnessjoni Elettrika

Plug the refrigerator into a dedicated 110V, 60Hz, grounded electrical outlet. Do not use a multi-outlet adapter or extension cord. Ensure the circuit is protected by a fuse or circuit breaker of appropriate amperage.

3.5 Tindif Inizjali

Before first use, clean the interior and exterior of the refrigerator with a mild detergent and warm water. Rinse thoroughly and dry with a soft cloth. This removes any manufacturing residues.

3.6 Installazzjoni fuq l-ixkaffa

The refrigerator comes with 8 adjustable and removable shelves. Install the shelves by inserting the shelf clips into the desired slots on the interior side walls, then placing the shelves onto the clips. Ensure shelves are level and securely in place before loading products.

Immaġni: Quddiem view of the empty Wilprep Commercial Refrigerator interior, showing the installed shelves and the ETL and ETL Sanitation Listed certifications on the right side.

3.7 Installazzjoni ta 'Caster

The refrigerator includes 4 casters for mobility. Attach the casters to the bottom of the unit using the provided hardware. Ensure all casters are securely fastened and locked once the unit is in its final position.

4. Istruzzjonijiet Operattivi

4.1 Start-Up Inizjali

After installation, allow the refrigerator to stand upright for at least 2 hours before plugging it in. Once plugged in, allow the unit to run empty for 2-4 hours to reach the desired temperature before loading products.

4.2 Il-Panel tal-Kontroll u s-Settings tat-Temperatura

The refrigerator features a convenient digital temperature control panel. The adjustable temperature range is 32°F to 50°F (0°C to 10°C). Use the control buttons to set the desired temperature. Refer to the control panel diagram for specific button functions (usually up/down arrows for temperature adjustment, and a set button).

Image: A diagram illustrating user-friendly features including a convenient temperature control panel, flexible storage solutions with adjustable shelves, secure fridge locks, and lockable swivel casters.

4.3 Tagħbija tal-Prodotti

• Arrange products to allow for proper air circulation. Do not block the air vents inside the refrigerator.
• Avoid overloading shelves. The maximum shelf capacity is 88 lbs.
• Ensure bottles and cans are stable to prevent tipping.

Image: The Wilprep Commercial Refrigerator in a commercial setting, showcasing its 35.1 cubic feet large capacity, capable of storing various items like bottled water, soft drinks, beers, energy drinks, fruit cups, and desserts.

4.4 Dawl LED

The refrigerator is equipped with built-in LED lights to illuminate the interior. These lights enhance product visibility. The lighting can typically be controlled via a switch on the control panel or near the top of the unit.

Image: A diagram highlighting the customizable lightbox, built-in LED lights for illumination, and fog-free glass doors for clear visibility, all contributing to an attractive beverage display.

5. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-friġġ tiegħek.

5.1 Tindif tal-Intern u tal-Estern

• Frekwenza: Monthly or as needed.
• Proċedura: Unplug the unit. Remove all products and shelves. Wash interior surfaces with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Clean exterior surfaces with a soft cloth and mild detergent.
• Bibien tal-ħġieġ: Use a glass cleaner for the sliding glass doors. Avoid abrasive cleaners that may scratch the surface.

5.2 Defrosting

This refrigerator features an automatic defrost system, eliminating the need for manual defrosting. Water from the defrost cycle is evaporated automatically.

5.3 Gasket Care

• Frekwenza: Quarterly or as needed.
• Proċedura: Inspect door gaskets for cracks or tears. Clean gaskets with a mild detergent and warm water. Ensure they are flexible and seal properly to maintain cooling efficiency.

5.4 Tindif tal-Kojl tal-Kondensatur

• Frekwenza: Every 3-6 months, depending on the environment.
• Proċedura: Unplug the unit. Locate the condenser coil (usually at the bottom rear or front behind a grille). Use a brush or vacuum cleaner to remove dust and debris from the coils. Clean coils improve cooling efficiency and reduce energy consumption.

6 Issolvi l-problemi

Qabel ma tikkuntattja lis-servizz tal-konsumatur, jekk jogħġbok review il-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet tagħhom.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Wilprep products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please contact Wilprep customer service. Keep your purchase receipt and model number handy when contacting support.

For further assistance, please visit the official Wilprep webis-sit jew ikkuntattja lin-negozjant awtorizzat tiegħek.
