1. Introduzzjoni
Grazzi tax-xiriasing the IPASON G-SLIM Desktop PC. This compact and powerful system is designed for both business and personal use, offering stable performance and a space-saving design. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new computer.
2. Informazzjoni dwar is-Sigurtà
Please read the following safety guidelines carefully before using your IPASON G-SLIM Desktop PC to ensure safe operation and prevent damage.
- Provvista tal-Enerġija: Use only the provided power cable and connect to a grounded outlet. Do not overload power strips.
- Ventilazzjoni: Ensure proper airflow around the PC. Do not block ventilation openings. Maintain at least 10cm clearance on all sides.
- Ambjent: Operate the PC in a dry, stable environment away from direct sunlight, heat sources, and excessive dust or moisture.
- Immaniġġjar: Avoid dropping or subjecting the PC to strong impacts.
- Servizzi: Do not attempt to open or repair the PC yourself. Refer all servicing to qualified personnel.
Figure 2.1: The IPASON G-SLIM Desktop PC undergoes rigorous testing to ensure reliability and stability, including 3C certification, drop tests, and temperature/noise control tests.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- IPASON G-SLIM Desktop PC
- Kejbil tal-Enerġija
- Manwal għall-Utent (dan id-dokument)
- WPS Office License Key (if applicable)
4. Prodott Aktarview
The IPASON G-SLIM is a compact tower PC designed for efficiency and performance. Its slim profile allows it to fit into various workspaces.
Figura 4.1: Quddiem view of the IPASON G-SLIM Desktop PC, highlighting its sleek design and accessible front ports.
4.1 Panel ta 'Quddiem
- Buttuna tal-Qawwa: Biex tixgħel jew titfi l-PC.
- Portijiet USB: Convenient access for connecting USB devices.
- Ġakki tal-Awdjo: For headphones and microphone.
4.2 Panel ta 'wara
The rear panel contains various ports for connecting your monitor, network, and other peripherals.
Figure 4.2: Dimensions and various views of the IPASON G-SLIM Desktop PC, including the rear panel with its array of connectivity ports.
- Video Output Ports: (e.g., HDMI, DisplayPort, VGA) for connecting monitors.
- Portijiet USB: Additional USB 2.0 and USB 3.0 ports for peripherals.
- Port tal-LAN: Għal konnessjoni ta' netwerk bil-fili.
- Portijiet tal-awdjo: Line-in, line-out, and microphone jacks.
- Input ta' Enerġija: Għall-konnessjoni tal-kejbil tad-dawl.
5. Setup
5.1 Konnessjoni tal-Periferali
- Monitor: Connect your monitor to one of the video output ports on the rear panel (e.g., HDMI, DisplayPort).
- Tastiera u maws: Qabbad it-tastiera u l-maws tiegħek ma' kwalunkwe port USB disponibbli.
- Netwerk: For a wired connection, connect an Ethernet cable from your router/modem to the LAN port on the rear panel.
- Awdjo: Qabbad l-ispikers jew il-headphones mal-jacks tal-awdjo xierqa.
5.2 Konnessjoni tal-Enerġija
- Insert the provided power cable into the power input port on the rear of the PC.
- Ipplaggja t-tarf l-ieħor tal-kejbil tal-enerġija f'sokit elettriku ertjat.
5.3 L-Ewwel Bidu
- Press the power button on the front panel of the PC.
- The system will boot up and guide you through the initial Windows 11 setup process. Follow the on-screen instructions to configure your language, region, network, and user account.
6. Operating System (Windows 11)
Your IPASON G-SLIM Desktop PC comes pre-installed with Windows 11, offering a modern and intuitive user experience.

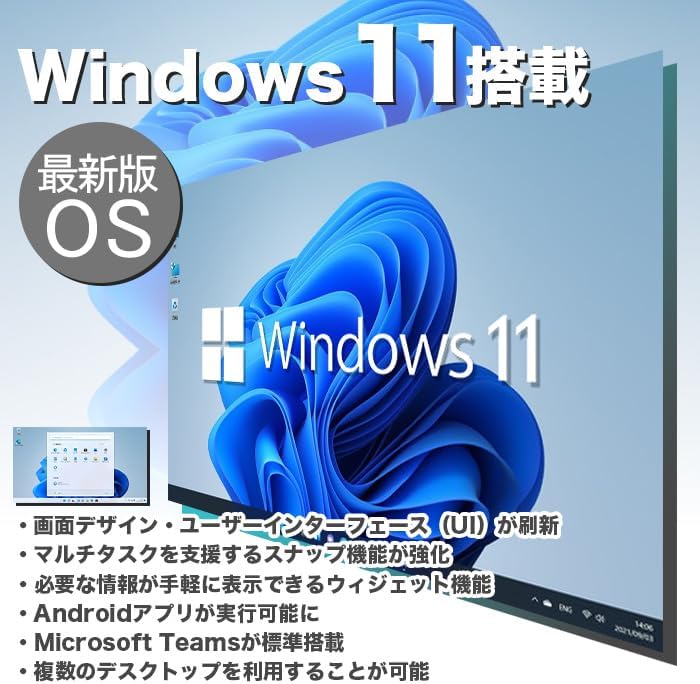

Figure 6.1: Windows 11 interface, showcasing its new design and features.
6.1 Key Features of Windows 11
- Redesigned User Interface (UI): A fresh, clean design with a centered Start menu and taskbar.
- Multitasking Imtejjeb: Snap Layouts and Snap Groups make organizing windows easier.
- widgets: A personalized feed for quick access to information.
- Android App Support: Run Android applications directly on your PC (requires Amazon Appstore).
- Integrazzjoni tat-Timijiet tal-Microsoft: Built-in chat and video conferencing.
- Multiple Desktops: Organize your workspace with virtual desktops.
6.2 WPS Office
Your PC includes WPS Office, a Microsoft-certified office suite with high compatibility with Microsoft Office documents. You can use it for word processing, spreadsheets, and presentations.
7. Karatteristiċi tal-Prestazzjoni
The IPASON G-SLIM is equipped with components chosen for a balance of performance and cost-effectiveness, making it suitable for various tasks, including business applications and light gaming.
7.1 Processor (CPU)
Features a 12th Generation Intel Core i3 processor, offering improved performance over previous generations for everyday computing and multitasking.

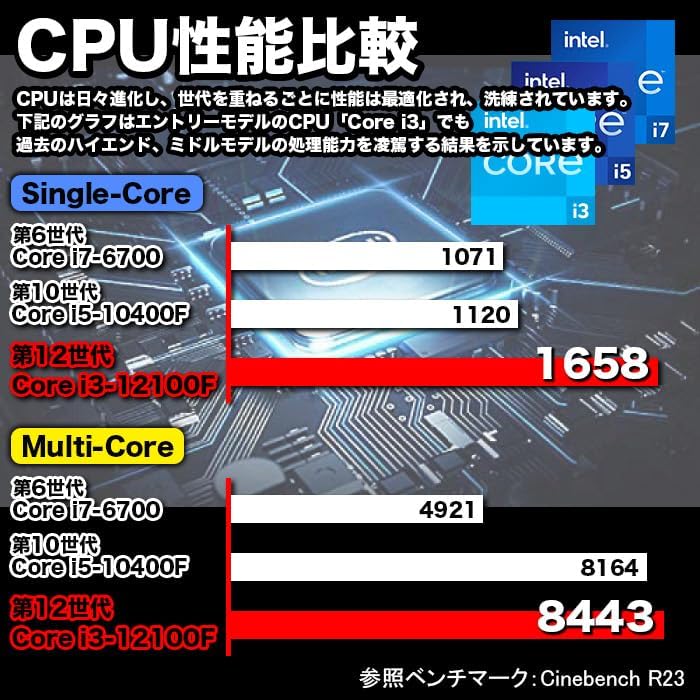

Figure 7.1: CPU Performance Comparison, demonstrating the significant performance improvements of the 12th Gen Intel Core i3.
7.2 Memorja (RAM)
Equipped with 8GB of DDR4-3200 RAM, enabling smooth multitasking and efficient handling of multiple applications simultaneously.
7.3 Ħażna (SSD)
Utilizes a 256GB NVMe M.2 SSD, providing significantly faster data transfer speeds compared to traditional SATA SSDs (approximately 7 times faster), resulting in quicker boot times and application loading.
Figure 7.2: The IPASON G-SLIM Desktop PC is designed for stable high performance, suitable for various business scenarios.
8. Manutenzjoni
8.1 Tindif
- Barra: Uża artab, damp cloth to wipe the exterior of the PC. Avoid abrasive cleaners or solvents.
- Ventilazzjoni: Periodically use compressed air to clear dust from the ventilation openings to ensure optimal cooling.
8.2 Aġġornamenti tas-Software
- Regularly check for and install Windows updates to ensure system stability, security, and performance.
- Keep your drivers updated for optimal hardware performance. You can usually find driver updates on the IPASON support website or through Windows Update.
9 Issolvi l-problemi
This section addresses common issues you might encounter with your IPASON G-SLIM Desktop PC.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-PC ma jixgħelx. | Power cable not connected properly; Power outlet issue. | Ensure power cable is securely connected to both PC and outlet. Try a different outlet. |
| L-ebda wiri fuq il-monitor. | Monitor cable loose; Incorrect input source on monitor. | Check monitor cable connections. Select correct input source on your monitor. |
| Prestazzjoni bil-mod. | Too many programs running; System not updated. | Close unnecessary applications. Check for and install Windows updates. |
| Ebda konnessjoni tal-internet. | Ethernet cable loose; Router/modem issue. | Check Ethernet cable connection. Restart your router/modem. |
Jekk tiltaqa' ma' problemi li mhumiex elenkati hawn jew jekk is-soluzzjonijiet issuġġeriti ma jsolvux il-problema, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
10. Speċifikazzjonijiet
Detailed technical specifications for the IPASON G-SLIM Desktop PC (Model: G-SLIM, ASIN: B0CDKLF6X6).
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | IPAS |
| Numru tal-Mudell | G-SLIM |
| Fattur tal-Formola | Small Form Factor Tower |
| Dimensjonijiet (W×D×H) | 100mm × 336mm × 350mm |
| Piż | 3 kg |
| Sistema Operattiva | Windows 11 |
| Brand CPU | Intel |
| Tip ta' CPU | 12-il Ġen Intel Core i3 |
| Veloċità tas-CPU | 3.3 GHz |
| Socket tal-Proċessur | LGA 1700 |
| Kapaċità RAM | 8 GB |
| Tip ta' Memorja | DDR4-3200 SDRAM |
| Kapaċità Massima tal-Memorja | 16 GB |
| Kapaċità tal-Ħżin | 256 GB |
| Tip ta' Ħażna | NVMe M.2 SSD |
| Aċċeleratur tal-Grafika | Grafika Intel UHD 620 (Integrata) |
| VRAM Capacity | 4 GB (Shared) |
| Portijiet USB 2.0 | 3 |
| Portijiet USB 3.0 | 5 |
| Provvista tal-Enerġija | 300W SFX |
| Drive ottiku | Mhux inkluż |
| Port tal-LAN bil-fili | Iva |
| Software installat minn qabel | Uffiċċju WPS |
11. Garanzija u Appoġġ
IPASON is committed to providing high-quality products and reliable customer support.
11.1 Garanzija tal-Prodott
Your IPASON G-SLIM Desktop PC comes with a garanzija ta 'sena against manufacturing defects. This warranty covers hardware malfunctions under normal use conditions. Please retain your proof of purchase for warranty claims.
11.2 Appoġġ għall-Klijent
For technical assistance, troubleshooting, or warranty inquiries, please contact the seller, Pasoul Store, through the Amazon platform. They are the authorized reseller and can provide direct support.
You can also visit the official IPASON brand store on Amazon for more information and product updates: IPASON Brand Store
