Retoo Air Mouse Remote Control with Keyboard (Model E803) - User Manual

1. Introduzzjoni

Thank you for choosing the Retoo Air Mouse Remote Control with Keyboard, Model E803. This device combines the functionality of an air mouse, a full QWERTY keyboard, and a universal infrared remote control into a single, compact unit. It is designed to enhance your interaction with various smart devices, offering intuitive control and broad compatibility.

This manual provides detailed instructions to help you set up, operate, and maintain your remote control, ensuring optimal performance and a seamless user experience.

Image 1.1: The Retoo Air Mouse Remote Control, displaying its front control panel, side profile, full QWERTY keyboard on the reverse, and the included USB receiver.

2. Kontenut tal-Pakkett

• Retoo Air Mouse Remote Control (Model E803)
• USB 2.4 GHz Receiver Dongle
• Manwal għall-Utent (dan id-dokument)

Nota: Il-batteriji AAA mhumiex inklużi u jridu jinxtraw separatament.

3. Istruzzjonijiet ta' Setup

3.1. Installazzjoni tal-batterija

1. Sib l-għatu tal-kompartiment tal-batterija fuq wara tal-kontroll remot.
2. Żerżaq l-għatu miftuħ.
3. Daħħal żewġ (2) batteriji AAA, waqt li tiżgura l-polarità korretta (+/-).
4. Agħlaq l-għatu tal-kompartiment tal-batterija sew.

Image 3.1: The remote control with its battery compartment open, illustrating where to insert the AAA batteries.

3.2. Konnessjoni tar-Riċevitur USB

1. Locate an available USB port on your device (Smart TV, Android TV Box, PC, Laptop, etc.).
2. Insert the provided USB 2.4 GHz receiver dongle into the USB port.
3. The device should automatically detect and install the necessary drivers. This may take a few moments.
4. Once connected, the remote control is ready for use.

Image 3.2: The Retoo Air Mouse Remote Control positioned next to its USB receiver dongle, ready for connection.

4. Istruzzjonijiet Operattivi

4.1. 2.4 GHz Wireless Mode

The remote control operates using 2.4 GHz wireless technology, providing a stable connection with a range of 8 to 10 meters. This allows for control from a comfortable distance without direct line-of-sight.

4.2. Funzjoni tal-Maws tal-Ajru

The integrated 6-axis gyroscope allows for precise air mouse control. To activate the air mouse:

• Press the mouse cursor button (often indicated by a mouse icon) on the remote.
• Move the remote in the air to control the cursor on your screen.
• The advanced anti-shake algorithm ensures stable and accurate cursor movement.
• Press the mouse cursor button again to disable the air mouse function and use the remote as a traditional controller.

4.3. Keyboard Functionality

The reverse side of the remote features a full QWERTY keyboard for easy text input. Simply flip the remote to access the keyboard. The device automatically switches between remote and keyboard modes based on which side is facing up.

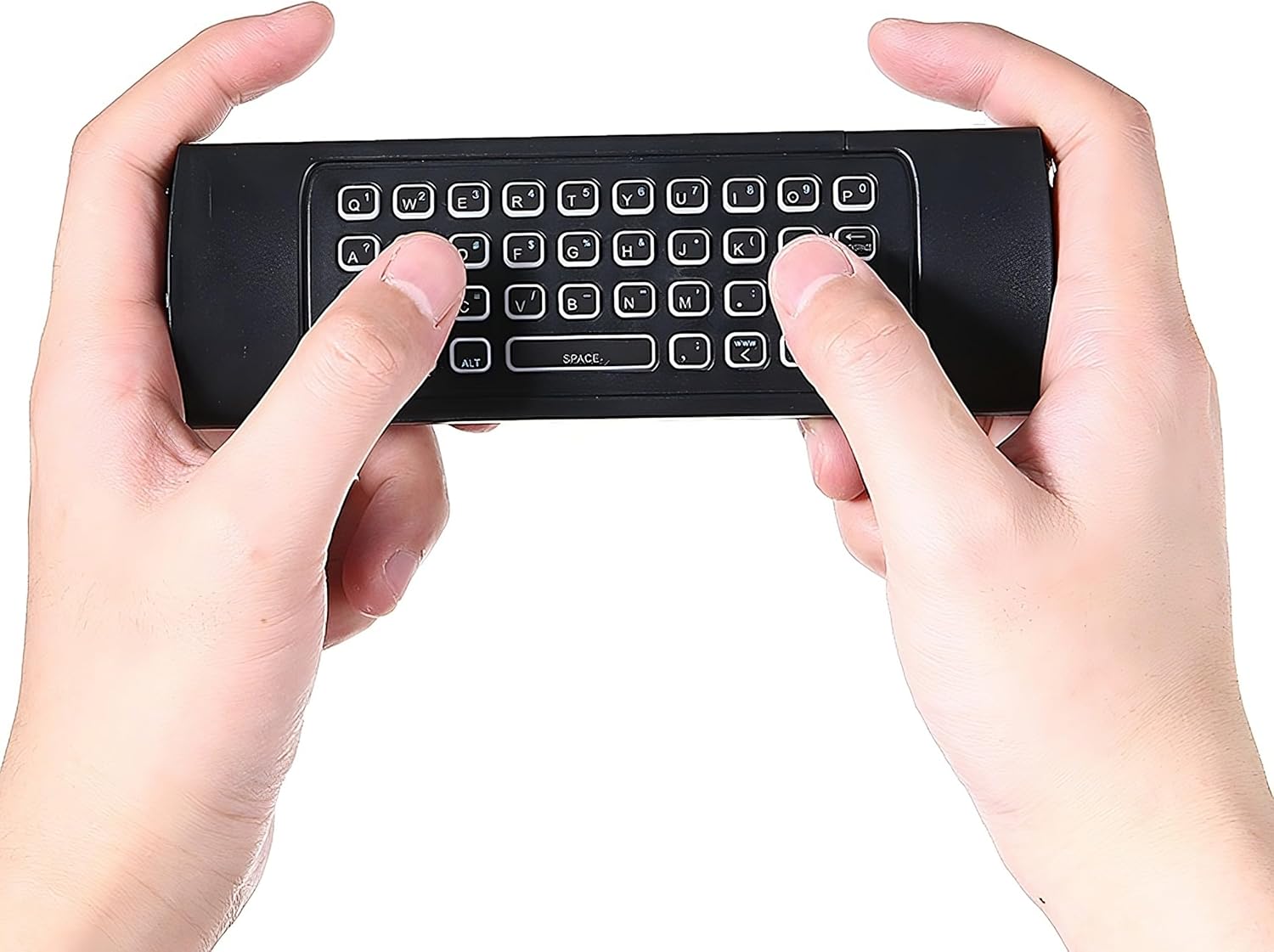

Image 4.1: A user holding the remote control, demonstrating the use of the integrated QWERTY keyboard for text input.

4.4. Universal Infrared (IR) Remote Function

This remote includes five programmable infrared learning keys, allowing it to learn functions from your existing TV remote. This enables control of common TV functions directly from the Air Mouse remote.

Passi ta' Tagħlim IR:

1. Ensure the Air Mouse remote and your original TV remote are close to each other, facing their IR emitters.
2. Press and hold the designated IR learning key on the Air Mouse remote (refer to the remote's button layout for specific keys, usually marked for IR learning). The LED indicator will typically blink slowly.
3. While holding the learning key, press the button on your original TV remote that you wish to copy. The LED on the Air Mouse remote should blink rapidly, indicating successful learning.
4. Repeat for other programmable keys.
5. Press the learning key again to exit IR learning mode.

4.5. Indikaturi LED

The remote control features LED indicators that provide feedback on its status, such as connection status and battery level. Refer to the specific LED behavior for detailed information.

5. Kompatibilità

The Retoo Air Mouse Remote Control is compatible with a wide range of devices and operating systems, including:

• Sistemi Operattivi: Windows, Android, Mac OS, Linux
• Apparati: Smart TV (check specific TV model compatibility before purchase, especially for Sony, Samsung, LG, Fire TV Stick, Panasonic TV), Android TV Box, Laptops, PCs, Nvidia Box, Nvidia Shield TV, Formuler Box.

6. Manutenzjoni

To ensure the longevity and proper functioning of your Retoo Air Mouse Remote Control, follow these maintenance guidelines:

• Tindif: Use a soft, dry cloth to clean the surface of the remote. Avoid using abrasive cleaners or solvents.
• Ħażna: Aħżen il-kontroll remot f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Batteriji: Jekk il-kontroll remot ma jkunx se jintuża għal perjodu twil ta' żmien, neħħi l-batteriji biex tevita t-tnixxija.
• Evita Qtar: Protect the device from physical shocks and drops, which can damage internal components.

7 Issolvi l-problemi

If you encounter issues with your Retoo Air Mouse Remote Control, please refer to the following common solutions:

• Remote Mhux Jirrispondi:
  • Iċċekkja jekk il-batteriji humiex imdaħħla sew u għandhomx biżżejjed ċarġ. Ibdelhom jekk meħtieġ.
  • Ensure the USB receiver dongle is securely plugged into your device's USB port.
  • Ipprova waħħal ir-riċevitur USB f'port USB differenti.
  • Ensure the remote is within the 8-10 meter operating range of the USB receiver.
• Air Mouse Cursor is Unstable/Inaccurate:
  • Recalibrate the gyroscope by placing the remote on a flat surface for a few seconds.
  • Kun żgur li m'hemm l-ebda interferenzi elettromanjetiċi qawwija fil-qrib.
• It-Tastiera Mhux Taħdem:
  • Ensure the remote is flipped to the keyboard side.
  • Iċċekkja l-livell tal-batterija.
• IR Learning Not Working:
  • Ensure the IR emitters of both remotes are facing each other and are very close.
  • Make sure the original remote has fresh batteries.
  • Some TV remotes use different IR protocols that may not be compatible with the learning function.
• Compatibility Issues with Smart TV:
  • While broadly compatible, some Smart TV models (e.g., certain Sony, Samsung, LG, Fire TV Stick, Panasonic TVs) may have specific limitations. Verify compatibility with your TV model if issues persist.

8. Speċifikazzjonijiet

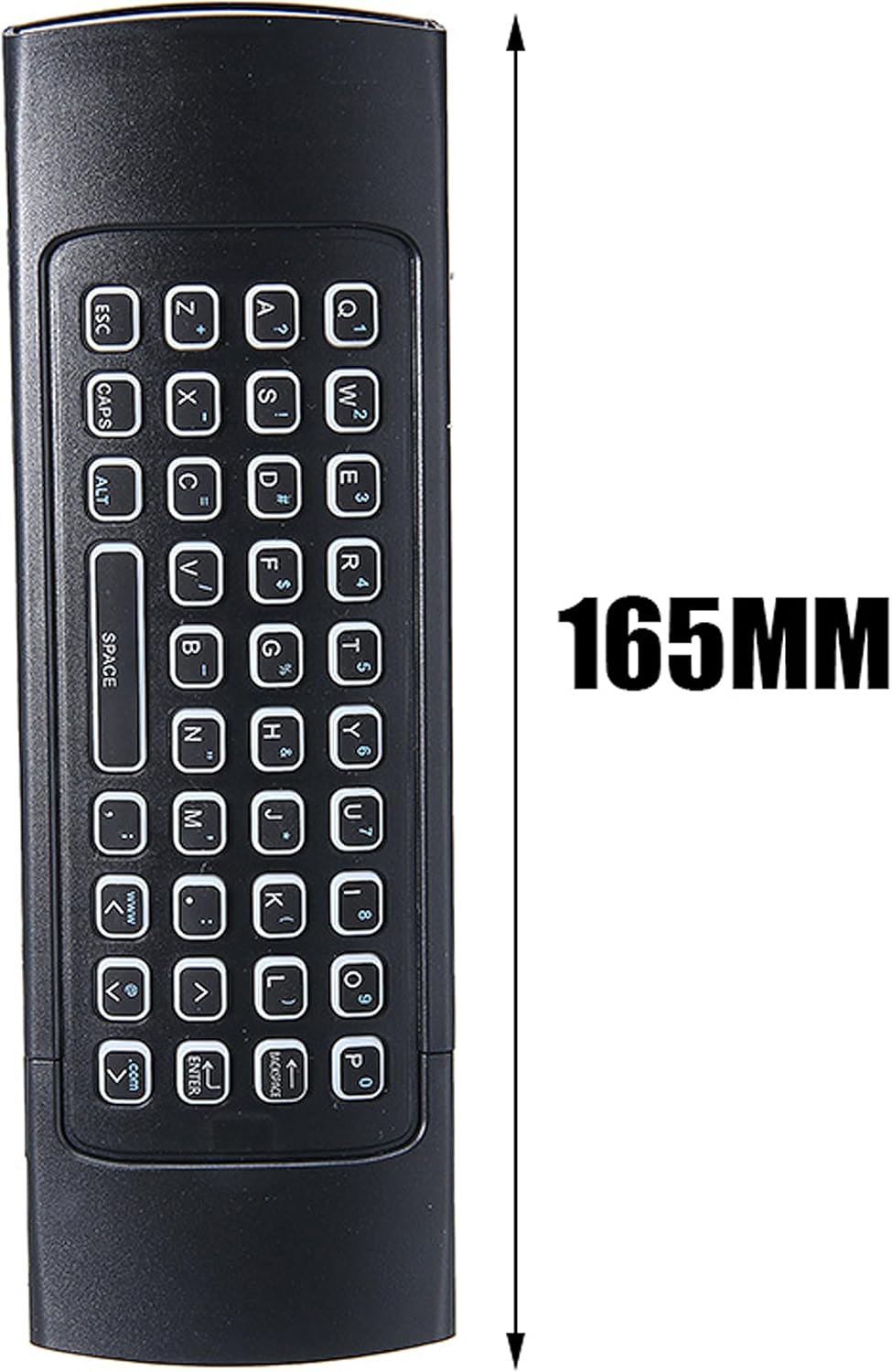

Image 8.1: The remote control with its approximate length of 165mm indicated.

9. Garanzija u Appoġġ

Information regarding product warranty and customer support is not available in the provided product data. Please refer to the product packaging or the retailer's website for details on warranty coverage and how to contact customer support for your Retoo Air Mouse Remote Control (Model E803).
