ACEFAST PD65W 3-Port USB Charger (Model A47) Instruction Manual

1. Introduzzjoni

Thank you for choosing the ACEFAST PD65W 3-Port USB Charger, Model A47. This device is designed to provide efficient and fast charging for a wide range of electronic devices, including laptops, tablets, and smartphones. Featuring advanced GaN (Gallium Nitride) technology and multiple protection mechanisms, it ensures safe and reliable power delivery. This manual provides essential information for the proper setup, operation, and maintenance of your charger.

2. Informazzjoni Importanti dwar is-Sigurtà

Please read and follow all safety instructions carefully to prevent fire, electric shock, damage to the product, or property damage.

• Tesponix il-ċarġer għal likwidi, umdità, jew temperaturi estremi.
• Do not disassemble, modify, or attempt to repair the charger. This will void the warranty and may cause damage.
• Żomm iċ-ċarġer 'il bogħod mit-tfal u l-annimali domestiċi.
• Ensure the charger is plugged into a compatible power outlet with the correct voltage.
• Evita li tuża kejbils jew adapters bil-ħsara mal-ċarġer.
• Skonnettja l-ċarġer waqt maltempati bis-sajjetti jew meta ma jintużax għal perjodi twal.
• Tħaddimx il-ċarġer jekk ikun ġie bil-ħsara b'xi mod.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• 1 x ACEFAST PD65W 3-Port USB Charger (Model A47)
• 1 x Kejbil tal-Iċċarġjar USB-C għal USB-C
• 1 x Manwal għall-Utent

4. Prodott Aktarview

The ACEFAST PD65W charger is a compact and powerful charging solution. It features a foldable AC plug for portability and multiple ports to charge various devices simultaneously.

Karatteristiċi ewlenin:

• Kunsinna tal-Enerġija 65W: Delivers strong power for fast charging of phones, tablets, and laptops.
• GaN Chipset: Utilizes advanced Gallium Nitride technology for faster and more efficient charging.
• 3-in-1 Multiport Design: Equipped with two USB-C ports and one USB-A port for simultaneous charging of up to three devices.
• Kompatibilità Wiesgħa: Supports a broad range of devices including MacBook Pro/Air, iPad Pro/Air/Mini, XPS, ThinkPad, MateBook, iPhone series (11/12/13/14/15/16/17/X), Samsung Galaxy series (S22/S23/S24/S25/Note 20), Pixel phones, AirPods, Nintendo Switch, and more.
• Ħruġ Intelliġenti u Protezzjoni Multipla: Features Over Temperature, Overcurrent, Overvoltage, Over Power, and Short-Circuit Protection for safe charging. FCC certified.
• Disinn portabbli: Foldable AC plug and compact size make it ideal for travel.

Figure 1: The ACEFAST PD65W 3-Port USB Charger, Model A47, in green. This image shows the compact design and the three charging ports (two USB-C and one USB-A) on the front face of the charger.

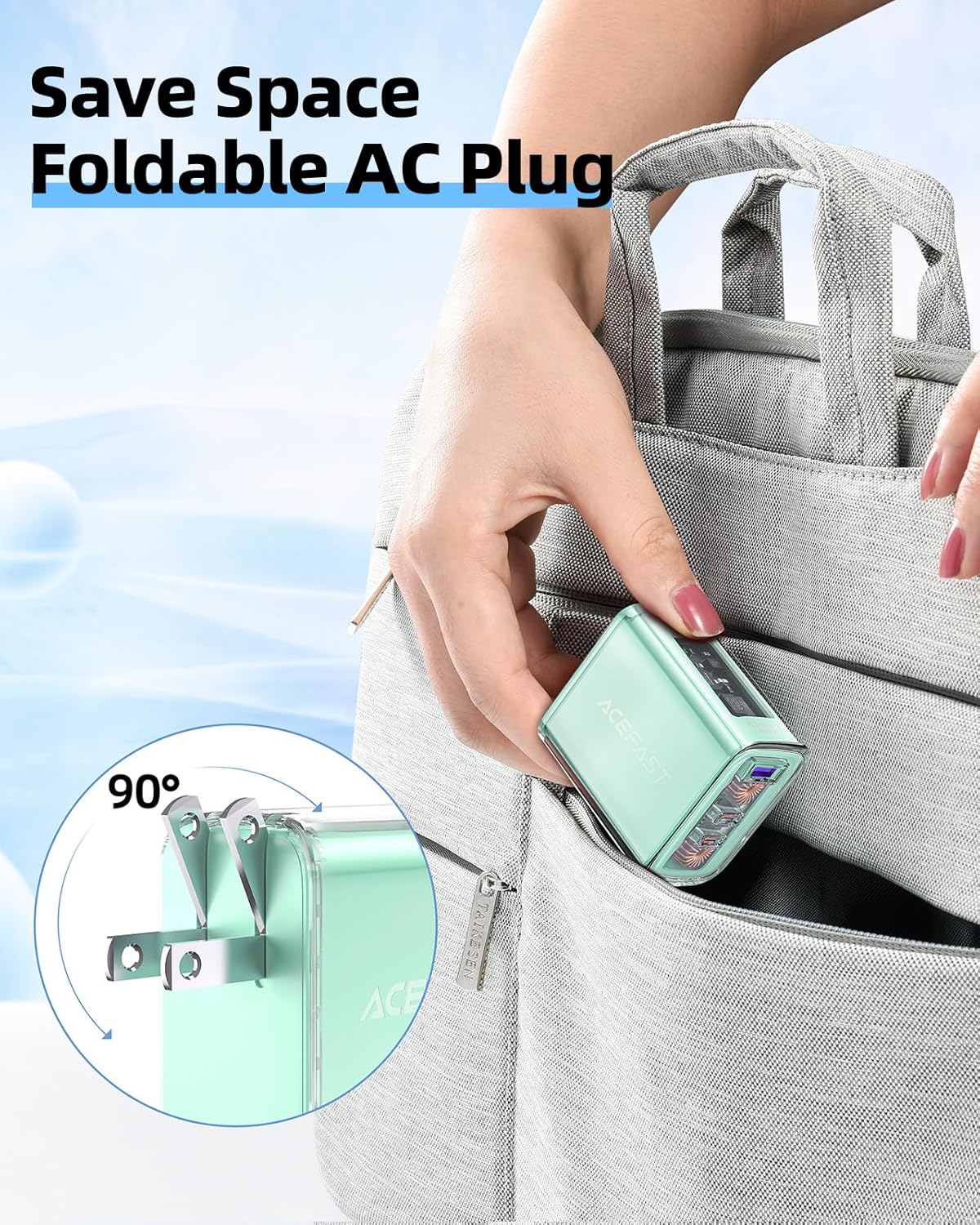

Figure 2: The ACEFAST PD65W charger demonstrating its foldable AC plug. The plug can be folded into the charger body for easy storage and portability, as shown being placed into a bag.

5. Istruzzjonijiet ta' Setup

1. Unfold the AC Plug: Iġbed bil-mod il-ponot tal-AC li jintrew mill-qafas tal-ċarġer sakemm jissakkru f'posthom.
2. Qabbad mal-Power Outlet: Insert the charger's AC plug into a standard wall outlet.
3. Qabbad il-Cable tal-Iċċarġjar: Use a compatible USB-C to USB-C cable (included) or another appropriate charging cable for your device.
4. Plug into Device: Connect the other end of the charging cable to your electronic device (laptop, tablet, smartphone, etc.).

Figure 3: The ACEFAST PD65W charger plugged into a wall outlet, simultaneously charging a laptop, a smartphone, and wireless earbuds. This illustrates its multi-device charging capability.

6. Istruzzjonijiet Operattivi

The ACEFAST PD65W charger intelligently distributes power based on the connected devices. Understanding the power distribution modes is crucial for optimal charging.

Modi ta' Iċċarġjar:

• Single Port Mode:
  • USB-C1: Up to 65W
  • USB-C2: Up to 65W
  • USB-A: Up to 20W

  For fastest charging of a single device, connect it to either USB-C1 or USB-C2 port.

• Two-Port Mode:
  • USB-C1 + USB-C2: 45W + 20W
  • USB-C1 + USB-A: 45W + 18W
  • USB-C2 + USB-A: 5V === 3.6A (shared)

  When two devices are connected, the charger intelligently allocates power. For example, a laptop connected to USB-C1 will receive 45W, while a phone on USB-C2 receives 20W.

• Three-Port Mode:
  • USB-C1 + USB-C2 + USB-A: 45W + 5V === 3.6A (shared between C2 and A)

  When all three ports are in use, the power is distributed to ensure all devices receive a charge, though individual port output may be reduced compared to single-device charging.

Figure 4: A detailed diagram illustrating the power output for the ACEFAST PD65W charger in single-port, two-port, and three-port charging configurations. This helps users understand optimal power distribution.

7. Manutenzjoni u Kura

• Naddaf il-ċarġer b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif likwidi jew aerosols.
• Aħżen il-ċarġer f'post frisk u niexef meta ma tkunx qed tuża.
• Evita li twaqqa' l-ċarġer jew li tissottomettih għal impatti qawwija.
• Regularly inspect cables for any signs of wear or damage. Replace damaged cables immediately.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

The ACEFAST PD65W 3-Port USB Charger comes with a 12-il xahar garanzija. For any product inquiries, technical support, or warranty claims, please contact ACEFAST customer service. You can find contact information on the official ACEFAST websit jew permezz tal-bejjiegħ bl-imnut tiegħek.

Għal aktar informazzjoni, żur l-uffiċjal ACEFAST Store.
