HOCO S53 Breeze Portable Smart Air Pump User Manual

1. Prodott Aktarview

The HOCO S53 Breeze is a versatile and compact portable smart air pump designed for inflating tires on various vehicles and sports equipment. Its intelligent design ensures efficient and convenient inflation, making it an essential tool for on-the-go tire maintenance.

Stampa 1.1: Quddiem view of the HOCO S53 Breeze Portable Smart Air Pump with inflation hose connected and digital display showing pressure readings.

Karatteristiċi ewlenin:

• Materjal: Constructed from durable ABS, silicone, inner braided inflatable tube, and aluminum alloy.
• Disinn kompatt: Size: 105*150*50mm; Weight: 600g.
• Ħajja twila tal-batterija: Equipped with a 2500mAh battery, capable of inflating two 215/55/R18 car tires on a full charge.
• Iċċarġjar tat-Tip C: Convenient Type-C interface for charging, approximately 4 hours for a full charge.
• Modi multipli: Supports four inflation modes: Car, Motorcycle, Bicycle, and Basketball. (Not applicable to large trucks).

2. Setup u Iċċarġjar

2.1 Iċċarġjar inizjali

Before first use, fully charge the air pump. Connect the provided Type-C charging cable to the pump's input port and a suitable USB power adapter (not included). The charging process takes approximately 4 hours.

Immaġni 2.1: Minn fuq għal isfel view highlighting the Type-C input port and integrated LED light.

2.2 Attaching the Inflation Hose and Nozzles

1. Screw the inflation hose securely into the designated port on the air pump.
2. Select the appropriate nozzle for your item (e.g., Presta valve adapter for bicycles, needle for basketballs) and attach it to the end of the inflation hose.

Image 2.2: The air pump shown with its inflation hose and a selection of included nozzles for different applications.

3. Istruzzjonijiet Operattivi

3.1 Tixgħel/Jitfi

• Agħfas u żomm il-buttuna tal-qawwa (⏻) to turn the pump on. The digital display will illuminate.
• To turn off, press and hold the power button again. The pump will also automatically shut off after a period of inactivity.

3.2 L-Għażla tal-Modalità ta' Inflazzjoni

Agħfas il-buttuna tal-mod (Q) to cycle through the available inflation modes: Car, Motorcycle, Bicycle, and Basketball. Each mode has a default pressure setting, which can be adjusted.

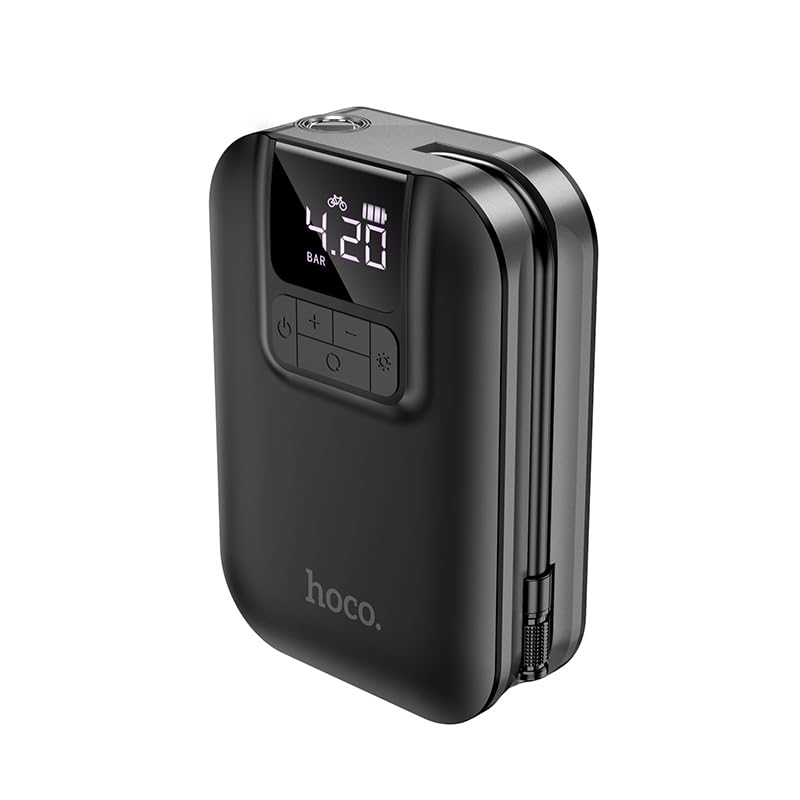

Image 3.1: The display showing the bicycle mode with pressure indicated in BAR.

3.3 Issettjar tal-Pressjoni Mira

• After selecting a mode, use the '+' and '-' buttons to increase or decrease the target pressure.
• The display will show the current pressure unit (PSI, BAR, KPA, Kg/cm²). Press the mode button (Q) briefly to switch between pressure units if needed.

Image 3.2: The digital display showing pressure in Kg/cm².

3.4 Il-Bidu u t-Twaqqif tal-Inflazzjoni

• Connect the inflation hose with the correct nozzle to the tire valve.
• Agħfas il-buttuna tal-enerġija (⏻) once to start inflation. The pump will automatically stop when the target pressure is reached.
• To manually stop inflation, press the power button (⏻) għal darb'oħra.

Image 3.3: The HOCO S53 Breeze actively inflating a car tire.

3.5 L-użu tad-Dawl LED

Agħfas il-buttuna tad-dawl (☀) to turn on the integrated LED light for illumination in low-light conditions. Press again to turn it off.

Image 3.4: The air pump's LED light illuminating a dark area, demonstrating its utility as a flashlight.

4. Manutenzjoni

• Tindif: Imsaħ il-barra tal-pompa b'ċarruta ratba u damp drapp. Tużax kimiċi ħarxa jew tgħaddasx l-apparat fl-ilma.
• Ħażna: Store the air pump in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the inflation hose and nozzles are clean and properly stored.
• Kura tal-batterija: To prolong battery life, charge the pump regularly, even if not in frequent use. Avoid fully discharging the battery for extended periods.
• Spezzjoni taż-żennuna: Periodically check the inflation nozzles and hose for any blockages or damage. Ensure there is no foreign matter in the air nozzle before use.

5 Issolvi l-problemi

• Il-pompa ma tixgħelx: Ensure the battery is charged. Connect to a Type-C charger and allow it to charge for at least 30 minutes before attempting to power on again.
• Il-pompa mhux qed tintefaħ: Check if the inflation hose is securely connected to both the pump and the tire valve. Ensure the correct mode and target pressure are set. Verify that the battery has sufficient charge.
• Qari mhux preċiż tal-pressjoni: Ensure the hose is properly connected and there are no leaks. Calibrate the pump if a calibration option is available (refer to the display for indicators).
• Inflazzjoni bil-mod: Check for any blockages in the hose or nozzle. Ensure the battery is adequately charged.

Twissijiet Importanti dwar is-Sigurtà:

• Always refer to your vehicle's manual for the correct tire pressure.
• Incorrect tire pressure can lead to unsafe driving conditions, tire damage, or accidents.
• Do not over-inflate tires.
• Żomm dan l-apparat 'il bogħod mit-tfal.
• Read all safety information before using this device.

6. Speċifikazzjonijiet

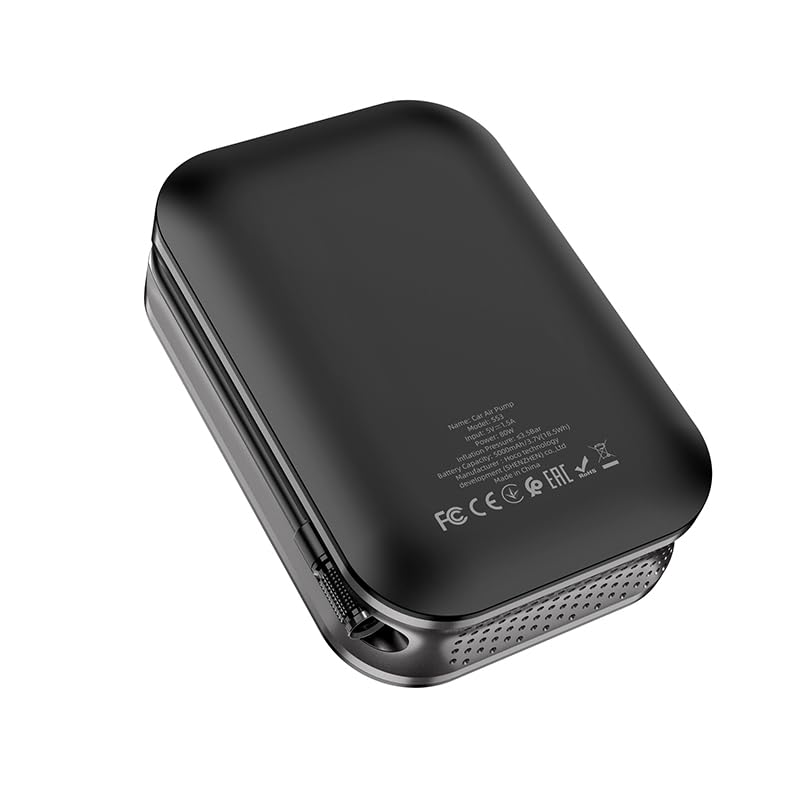

Stampa 6.1: Wara view of the air pump displaying model information and regulatory certifications.
