Manwal tal-Utent tal-Kit ta' Konverżjoni tar-Rota Elettrika PEXMOR

Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your PEXMOR Electric Bike Conversion Kit. Please read this manual thoroughly before beginning the installation process to ensure proper setup and safe operation. Retain this manual for future reference.

Kontenut tal-Pakkett

Carefully unpack all components and verify that all items listed below are included and undamaged. If any items are missing or damaged, please contact customer support.

• Hub Motor Wheel
• Display LCD
• Sensor ta' Assistenza għall-Pedali (PAS)
• Twist Throttle
• Kaxxa tat-Terminal
• Borża tal-batterija (Batterija mhux inkluża)
• Kontrollur
• Irbit tal-kejbil
• Lievi tal-brejkijiet
• Qoxra tal-Cable
• Korda tal-Enerġija tat-Trasferiment
• Arm tat-torque
• Borża tal-Kontrollur
• Manwal għall-Utent

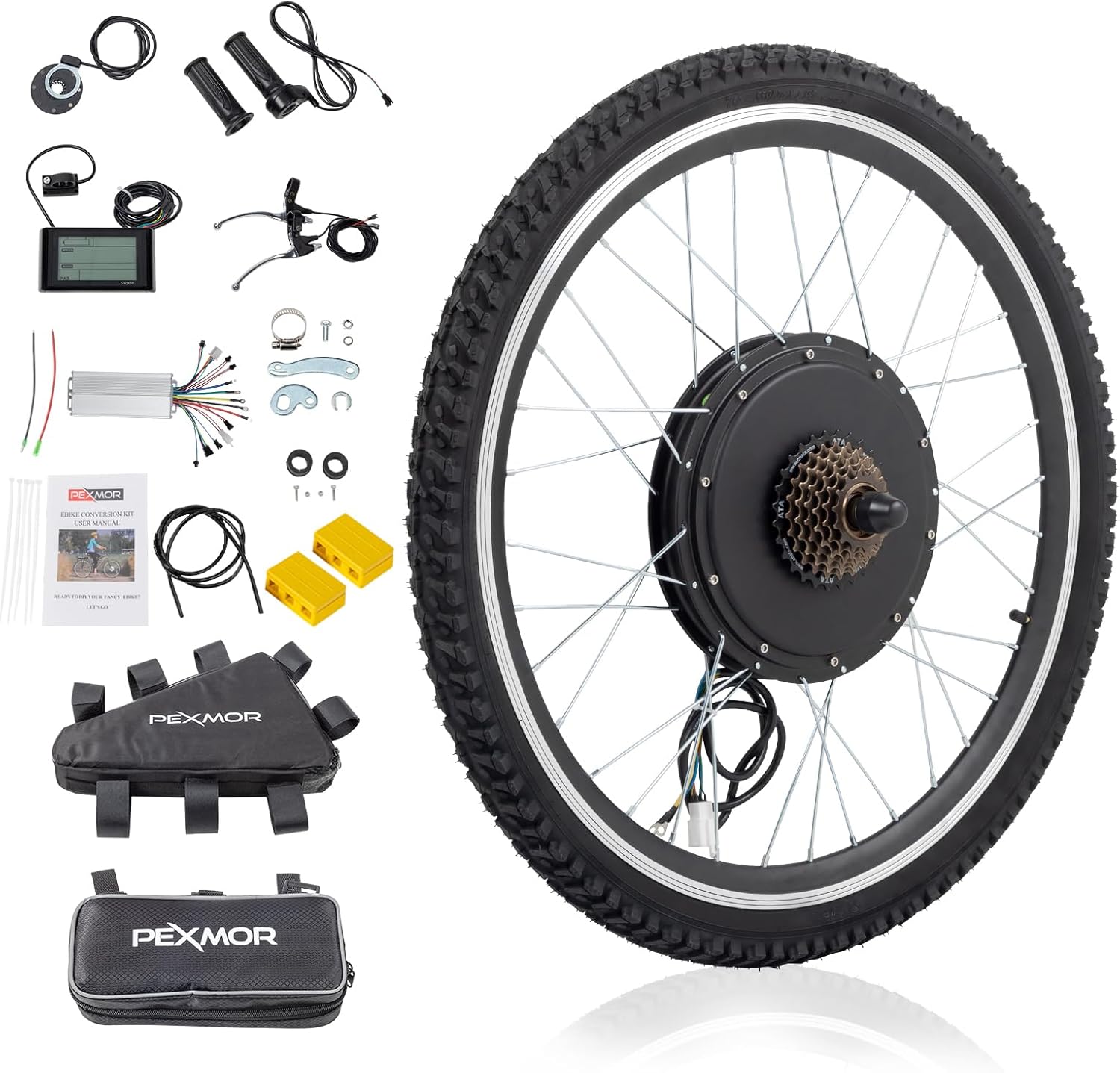

This image displays all the parts included in the PEXMOR Electric Bike Conversion Kit, such as the motor wheel, LCD display, controller, throttle, brake levers, and various cables and accessories.

Setup u Installazzjoni

Follow these steps carefully to install your electric bike conversion kit.

1. Verifiki ta' qabel l-installazzjoni

Before starting the installation, ensure you have all necessary tools and components. It is recommended to lay out all parts for easy access.

2. Rear Wheel Removal & Motor Wheel Installation

This section details the process of removing your bicycle's original rear wheel and installing the new motor wheel.

1. Upside down your bicycle for easier access to the rear wheel.
2. Loosen the screws of the central shaft on both sides of the rear wheel.
3. Loosen the screws of the derailleur to allow for wheel removal.
4. Carefully remove the original rear wheel from the bicycle frame.
5. Remove the disc-brake and the 7-speed freewheel from your original wheel.
6. Install the 7-speed freewheel onto the new motor wheel.
7. Install the lining belt around the rim of the motor wheel.
8. Install the tire onto the motor wheel.
9. Nefħu t-tajer sal-pressjoni rakkomandata.
10. Install the motor wheel onto the bicycle frame, ensuring the central shaft is properly seated in the groove.
11. Screw on the nuts to secure the motor wheel.
12. Install the derailleur back onto the frame and adjust as needed.
13. Check the chain for proper tension and alignment.
14. Install the disc-brake onto the motor wheel and tighten the screws. Ensure there is no rubbing.
15. Put on the nut covers.

This image highlights the powerful 48V 1500W brushless hub motor integrated into the rear wheel, showing its internal components and specifications like torque and RPM.

This diagram provides precise measurements for the motor wheel, including tire width (1.95"/4.95CM), motor hub diameter (250mm/9.84"), axial length (21cm/8.25"), rim diameter (572mm/22.5"), and total tire diameter (26").

This image illustrates the compatible fork dropout sizes for the conversion kit: Front Fork Dropout 3.93" (100mm) with a 3/8" (10mm) notch width, and Rear Fork Dropout 5.12" (135mm). It's crucial to measure your bike's dropout size before installation.

3. PAS Installation

The Pedal Assist System (PAS) enhances your riding experience by providing motor assistance as you pedal.

1. Take off the bottom bracket from your bicycle.
2. Install the PAS sensor onto the bottom bracket, ensuring it is correctly oriented for forward pedaling.
3. Install the crank and pedals back onto the bottom bracket.
4. Check if the PAS works correctly by rotating the pedals.
5. Make sure there is a proper gap between the PAS and the disc for optimal function.

4. Electrical Control System Connection

Proper electrical connections are crucial for the kit's functionality. Follow the wiring diagram carefully.

1. Connect the controller and all accessories according to the color-coded wires.
2. Connect the red, black, and green cables from the controller to the throttle.
3. Connect the red, white, and black cables from the controller to the PAS.
4. Connect the two sets of red and black cables from the controller to the two brake levers. Ensure the brake levers remain closed when connected.
5. Connect the yellow, green, black, blue, and red cable from the controller to the display.
6. Connect the cable with the green round head to its corresponding color on the controller. (Notice: Tighten the blue sleeve after inserted).
7. Plug the white square plug tightly.
8. Connect the black and red round cable to the battery. (Battery with switch is recommended).
9. Open the switch on the battery.
10. Long press the "M" button to open the display.
11. Test the PAS: The PAS will work in Gear "1" and will not work in Gear "0".
12. Turn the throttle and check if the motor operates correctly.
13. Check the brake levers to ensure they cut power to the motor when engaged.
14. Turn off the battery after testing the electric control system.
15. Unplug all plugs for final cable management.

5. Installazzjoni tal-Komponent tal-Manubriju

Install the throttle and display onto the handlebar.

1. Replace the original throttle with the new twist throttle.
2. Tighten the screw on the throttle to secure it.
3. Install the LCD display on the handle.
4. Tighten the display by using the screw.
5. Connect the controller and accessories, then install and fix the controller and cables according to your preference (e.g., using cable ties or a controller bag).

Istruzzjonijiet Operattivi

Your PEXMOR Electric Bike Conversion Kit offers multiple riding modes for versatile use.

Modi ta' Riding

• Modalità Throttle: Provides power on demand, similar to a motorcycle.
• Modalità PAS (Sistema ta' Assistenza bil-Pedali): The motor assists your pedaling effort, reducing fatigue.
• Modalità Manwali: Ride the bike like a traditional bicycle without motor assistance.
• Modalità tal-Presets: Utilize pre-set power levels for consistent assistance.

This image visually represents the four distinct riding modes available with the PEXMOR Electric Bike Conversion Kit, allowing riders to choose their preferred level of assistance.

Funzjonijiet tal-Wiri LCD

The LCD display provides essential riding information at a glance:

• Livell tal-batterija
• Veloċità
• Distanza
• Output ta 'Qawwa
• Livell PAS

Din l-immaġni tipprovdi ċara view of the smart LCD display, detailing the various metrics it shows, such as battery level, current speed, trip distance, power output, and the selected PAS level.

Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your electric bike conversion kit.

• Iċċekkja regolarment il-boltijiet u l-konnessjonijiet kollha għall-issikkar.
• Keep the motor and electrical components clean and free from dust and moisture.
• Inspect tires for wear and maintain proper inflation pressure.
• Lubricate the chain and other moving parts as needed.
• Store the bike in a dry, cool place when not in use.

Issolvi l-problemi

If you encounter any issues with your conversion kit, refer to the following common troubleshooting tips:

• Ebda Qawwa: Check battery connection, ensure battery is charged, and verify all electrical connections to the controller and display are secure.
• Motor Not Engaging: Ensure PAS sensor is correctly installed and aligned. Check throttle connection. Verify brake levers are not engaged.
• Wiri Mhux Taħdem: Check display cable connection to the controller. Ensure battery is on.
• Ħsejjes mhux tas-soltu: Inspect the motor wheel for any obstructions or loose spokes. Check disc brake alignment.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact PEXMOR customer support.

Speċifikazzjonijiet

Garanzija u Appoġġ

PEXMOR products come with a standard manufacturer's warranty. For detailed warranty information, product support, or to inquire about replacement parts, please visit the official PEXMOR webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
