Introduzzjoni
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your VASAGLE LCT209K02 Lift-Top Coffee Table. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.
The VASAGLE LCT209K02 is a versatile coffee table featuring a lift-top mechanism, ample storage with hidden compartments and drawers, and an open shelf, designed to enhance your living space with both functionality and style.
Informazzjoni dwar is-Sigurtà
Istruzzjonijiet Importanti dwar is-Sigurtà:
- Do not exceed the total static load capacity of 136 kg (299 lbs).
- Do not exceed the static load capacity of the lifted tabletop, which is 20 kg (44 lbs).
- Kun żgur li l-viti u l-qafliet kollha huma ssikkati sew qabel l-użu.
- Żomm partijiet żgħar 'il bogħod mit-tfal waqt l-assemblaġġ.
- Assemble the product on a soft, clean surface to prevent scratches.
- Always lift the tabletop with both hands to ensure even movement and prevent pinching.
Kontenut tal-Pakkett
Qabel tibda l-assemblaġġ, ivverifika li l-komponenti kollha elenkati fl-imballaġġ huma preżenti u mhux imħassra. Jekk xi partijiet huma nieqsa jew imħassra, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
Typically includes:
- Tabletop panels
- Side panels and shelves
- Drawer components
- Metal frame and legs
- Lift mechanism hardware (hinges, springs)
- Ħardwer tal-assemblaġġ (viti, kavilji, serraturi tal-cam, eċċ.)
- Għodda tal-assemblaġġ (eż., Allen wrench)
- Manwal ta' struzzjonijiet
Setup u Assemblea
Assembly typically requires two adults and approximately 1-2 hours. Follow the numbered/lettered instructions provided in the included assembly guide precisely. Do not overtighten screws during initial assembly; tighten all fasteners fully once the unit is assembled.
Passi tal-Assemblea Ġenerali:
- Iftaħ u Identifika l-Partijiet: Lay out all components on a soft, clean surface. Match each part to the corresponding label in the assembly guide.
- Arma l-Qafas tal-Bażi: Attach the metal legs and frame components according to the instructions. Ensure stability.
- Install Shelves and Side Panels: Secure the fixed shelves and side panels to the base frame.
- Arma l-Kxaxen: Construct the drawers following the specific steps for drawer slides and panels.
- Integrate Drawers: Insert the assembled drawers into their designated slots.
- Waħħal il-Mekkaniżmu tal-Irfigħ: Secure the metal lift mechanism to the main table body. Pay close attention to the orientation.
- Waħħal il-wiċċ tal-mejda: Carefully attach the lift-top panel to the lift mechanism. Ensure it operates smoothly.
- Final Tightening and Adjustment: Once fully assembled, gently tighten all screws. Adjust the leveling feet if necessary to ensure the table is stable on uneven floors.
Image: The VASAGLE LCT209K02 coffee table with its lift-top extended, showing a laptop and various items stored in the hidden compartments and drawers. This illustrates the table's functionality and storage capabilities.

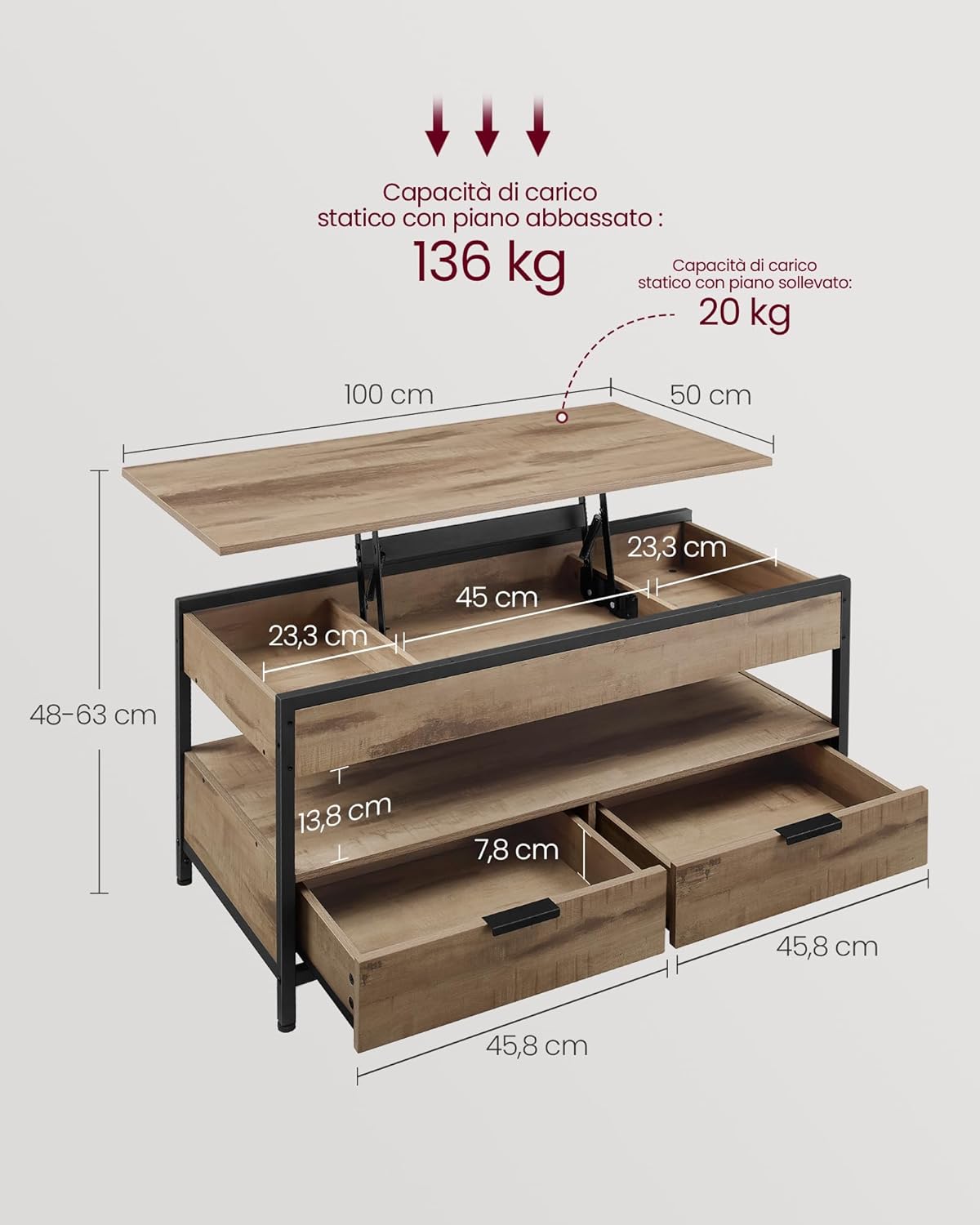

Image: A diagram illustrating the dimensions of the VASAGLE LCT209K02 coffee table (100 cm length, 50 cm width, 48-63 cm height) and its load capacities: 136 kg when the top is lowered, and 20 kg when the top is lifted.
Istruzzjonijiet Operattivi
Mekkaniżmu ta' Lift-Top:
The coffee table features a smooth lift-top mechanism, allowing the tabletop to be raised from 48 cm to 63 cm. This provides an ergonomic surface for working, dining, or other activities while seated on a sofa.
- Biex Tgħolli: Gently pull the front edge of the tabletop upwards. The integrated metal hinges and springs will assist in the lifting motion. Ensure hands are clear of the mechanism during operation.
- Biex Tbaxxi: Gently push the tabletop downwards from the front edge. Guide it smoothly until it rests in the closed position. Avoid dropping the top suddenly.
- Stabbiltà: The lift mechanism is designed for stability, supporting up to 20 kg when raised. Avoid placing excessive weight on the lifted top.
Immaġni: Tnejn views of the VASAGLE LCT209K02 coffee table. The top image shows it in the standard coffee table position, while the bottom image shows the top lifted, transforming it into a dining or work surface, revealing hidden storage.
Immaġni: Dettaljata view of the metal lift mechanism, highlighting the quality hinges and reinforced crossbars that ensure stable and smooth operation of the tabletop.
Karatteristiċi tal-Ħażna:
The table offers multiple storage options to keep your living area organized.
- Kompartimenti Moħbija: Beneath the lift-top, there are three divided compartments for discreet storage of items like remote controls, tablets, or small blankets.
- Kxaxen: Two smooth-gliding drawers provide additional enclosed storage for magazines, notebooks, or other personal items.
- Xkaffa Miftuħa: A lower open shelf offers easy access storage for books, decorative items, or baskets.
Image: An overhead perspective of the coffee table with the lift-top raised, showcasing the three hidden compartments and the two pull-out drawers, filled with various household items.
Manutenzjoni
- Tindif: Imsaħ l-uċuħ b'artab, damp drapp. Evita kimiċi ħarxa jew prodotti tat-tindif li joborxu, li jistgħu jagħmlu ħsara lill-finitura.
- Tixrid: Naddaf it-tixrid immedjatament biex jipprevjeni t-tbajja.
- Ħardwer: Periodically check all screws and fasteners to ensure they remain tight. Retighten as needed to maintain structural integrity.
- Mekkaniżmu tal-Lift: Keep the lift mechanism free of dust and debris. Lubricate moving parts with a silicone-based spray if operation becomes stiff.
- Evita dawl tax-xemx dirett: Prolonged exposure to direct sunlight can cause fading or warping of the wood panels.
- Protezzjoni tas-Sħana: Use coasters or placemats to protect the tabletop from hot items.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-mejda qed titħarrek. | Qafliet maħlula jew art irregolari. | Check and tighten all screws. Adjust the leveling feet on the bottom of the legs. |
| Lift-top mechanism is stiff or noisy. | Lack of lubrication or debris in mechanism. | Clean any debris from the hinges. Apply a small amount of silicone lubricant to the moving parts. |
| Il-kxaxen ma jiżżerżqux bla xkiel. | Misaligned drawer slides or debris. | Ensure drawer slides are correctly installed and aligned. Clear any obstructions from the tracks. |
| Partijiet neqsin waqt l-assemblaġġ. | Żball fl-ippakkjar. | Refer to the package contents list and contact customer support for replacement parts. |
Image: A close-up of the adjustable feet at the base of the table legs, indicating how they can be rotated to level the table on uneven surfaces.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | VASAGLE |
| Mudell | LCT209K02 |
| Kulur | Camel Brown + Ink Black |
| Dimensjonijiet tal-Prodott (L x W x H) | 100 cm x 50 cm x 48-63 cm (lifted) |
| Materjal | Steel, Particleboard |
| Piż tal-oġġett | 23.3 kg (51.3 lbs) |
| Maximum Recommended Weight (Static Load) | 136 kg (299 lbs) |
| Maximum Lift-Top Weight Capacity | 20 kg (44 lbs) |
| Karatteristiċi Speċjali | Storage, Liftable Shelf |
Garanzija u Appoġġ
Politika ta' Ritorn:
This product is returnable within 30 days of receipt. Please refer to the retailer's specific return policy for detailed terms and conditions.
Appoġġ għall-Klijent:
For any questions, missing parts, or assistance with assembly or operation, please contact VASAGLE customer support. You can often find support information on the brand's official webis-sit jew permezz tal-bejjiegħ bl-imnut minn fejn inxtara l-prodott.
