XINLEI Rolling TV Stand with Wheels Instruction Manual

Introduzzjoni

This manual provides essential instructions for the safe and efficient assembly, operation, and maintenance of your XINLEI Rolling TV Stand with Wheels. Please read this manual thoroughly before installation and retain it for future reference. This stand is designed to accommodate most 32-75 inch flat or curved screens with VESA patterns from 100x100mm to 600x400mm and a maximum weight of 220 lbs (100 kg).

Informazzjoni dwar is-Sigurtà

• Kun żgur li l-komponenti kollha huma preżenti u mhux imħassra qabel l-assemblaġġ. Tużax jekk xi partijiet huma neqsin jew difettużi.
• Do not exceed the maximum weight capacity of 220 lbs (100 kg) for the TV and 22 lbs (10 kg) for the tray.
• Always ensure the TV stand is on a stable, level surface.
• Lock the wheels when the stand is in a stationary position to prevent accidental movement.
• Assembly should be performed by at least two people to prevent injury or damage.
• Żomm lit-tfal u l-annimali domestiċi 'l bogħod waqt l-assemblaġġ.

Setup u Assemblea

Carefully unpack all components and verify against the parts list (not provided in this document, refer to your product packaging). Follow these steps for assembly:

1. Assemblaġġ tal-Bażi: Attach the vertical support rods to the large base. Ensure all screws are tightened securely.
2. Installazzjoni tar-rota: Install the lockable wheels onto the base. Ensure they are fully threaded and secure.
3. Mid-Shelf Attachment: Secure the mid-level AV shelf to the vertical support rods at your desired height.
4. TV Bracket Installation: Attach the TV mounting brackets to the back of your television using the appropriate screws and spacers for your TV's VESA pattern. Ensure the brackets are centered and level.
5. Immuntar tat-TV: With assistance, carefully lift the TV and hook the brackets onto the main support frame of the stand. Secure the TV to the stand using the provided safety locks to prevent accidental dislodging.
6. Top Camera Shelf (Optional): If desired, attach the removable top camera shelf to the upper part of the stand.

Image: Stand Dimensions and Capacities. This diagram illustrates the overall measurements of the TV stand, including height adjustment range (46.1"-57.1"), base dimensions, and shelf dimensions. It also highlights the maximum TV weight capacity of 220 lbs and VESA compatibility (Min 100x100mm, Max 600x400mm).

Image: Compatibility Check. This graphic helps determine if your TV is compatible with the stand, showing VESA range (Min 100x100mm, Max 600x400mm), supported screen sizes (32"-75"), and maximum TV weight (220 lbs).

Image: Key Features. This image details the safety lock mechanism, the anti-drop design of the TV brackets, the lockable wheels for stability, and the robust dual columns that support the TV.

Istruzzjonijiet Operattivi

Aġġusta l-Għoli

The TV stand offers 5 levels of height adjustment, ranging from 46.1 inches to 57.1 inches (from floor to the center of the TV). To adjust the height, loosen the securing bolts on the vertical support rods, carefully raise or lower the TV to the desired position, and then re-tighten the bolts firmly. Always ensure the TV is level after adjustment.

Image: Optimize Viewing Height. This image shows the TV stand in use, highlighting its adjustable height feature to suit different viewing preferences and environments.

Nimxu l-Istand

The stand is equipped with lockable wheels for easy mobility. To move the stand, unlock all four wheels. Gently push the stand to its new location. Once positioned, engage the locks on all wheels to secure the stand and prevent unintended movement.

Image: Easy Mobility. This image demonstrates the ease with which the TV stand can be moved, thanks to its integrated wheels.

Uża l-ixkafef

The stand includes a detachable top camera shelf and an extra-large mid AV shelf. These shelves are designed to hold various devices such as laptops, DVD players, cable boxes, gaming consoles, sound systems, or cameras. Ensure that items placed on the shelves do not exceed the 22 lbs (10 kg) weight limit for the tray.

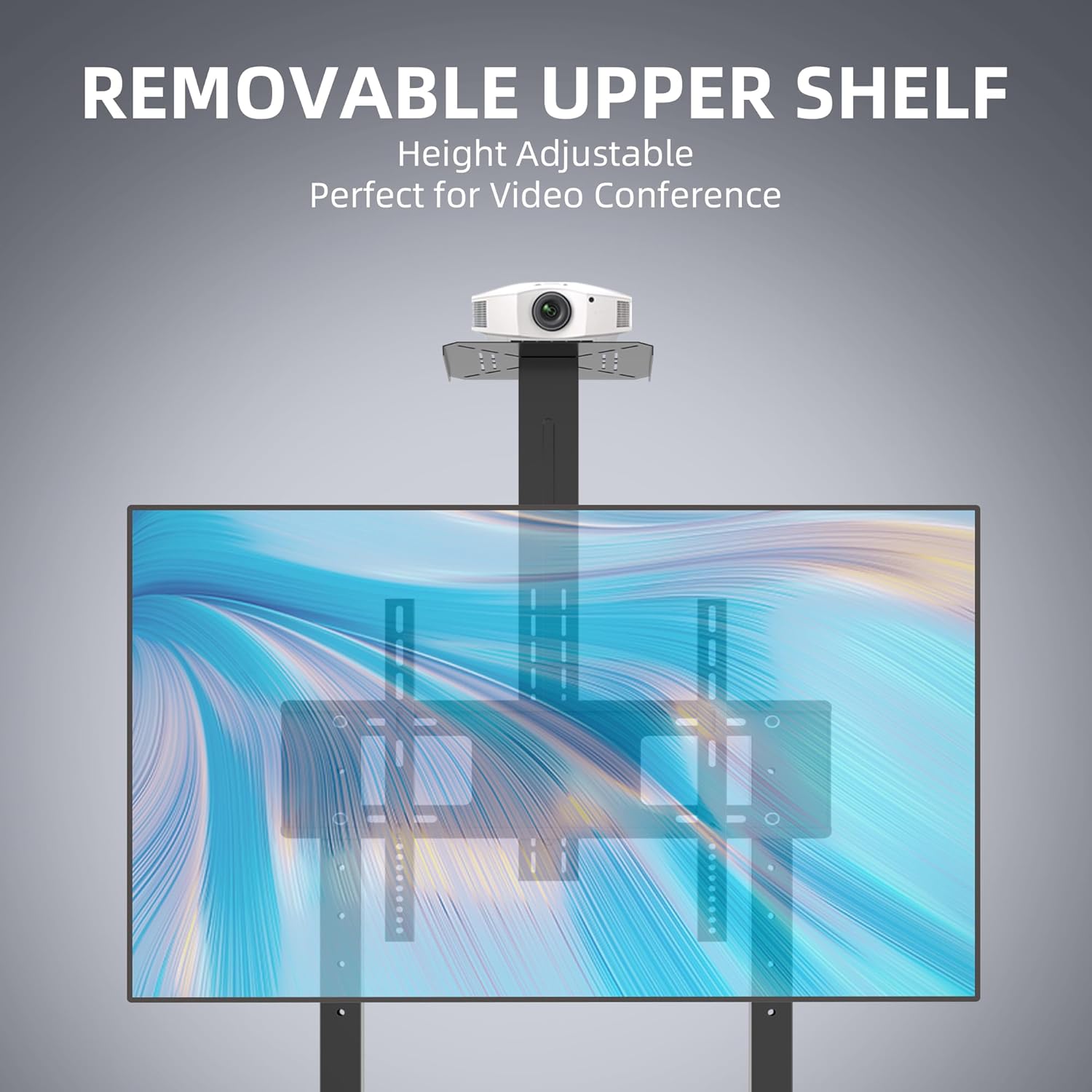

Image: Removable Upper Shelf. This image shows the stand with a projector on the adjustable and removable upper shelf, suitable for video conferencing or presentations.

Image: Large Stable Base. This close-up highlights the robust, one-piece support rod and large base design, providing stability and space for additional items like a speaker.

Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u t-tħaddim sikur tal-istand tat-TV tiegħek.

• Tindif: Imsaħ l-istand b'ċarruta ratba, damp drapp. Evita prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-finitura.
• Verifiki tal-Qfieli: Iċċekkja l-boltijiet u l-viti kollha perjodikament biex tiżgura li jibqgħu ssikkati. Erġa' ssikkahom jekk meħtieġ.
• Spezzjoni tar-rota: Ensure the wheels are free of debris and roll smoothly. Lubricate if needed.
• Distribuzzjoni tal-piż: Always ensure the weight on the stand and shelves is evenly distributed and within the specified limits.

Issolvi l-problemi

Speċifikazzjonijiet

• Mudell: B0CB9VKM67
• Ditta: XINLEI
• Daqsijiet tat-TV Kompatibbli: 32 sa 75 pulzier
• Kompatibbiltà VESA: 100x100mm sa 600x400mm
• Maximum TV Weight Capacity: 220 lbs (100 kg)
• Maximum Shelf Weight Capacity: 22 lbs (10 kg)
• Medda ta' Aġġustament Għoli: 46.1 pulzier sa 57.1 pulzier
• Tip ta' Moviment: Rolling (with lockable wheels)
• Materjal: Metall
• Kulur: Iswed
• Piż tal-oġġett: Madwar 32.1 liri
• Dimensjonijiet tal-pakkett: 58.8 x 21.5 x 2.8 pulzieri

Garanzija u Appoġġ

XINLEI products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your product or contact XINLEI customer support directly. If you encounter any issues or have questions regarding your XINLEI Rolling TV Stand, please contact our customer service team for assistance. Contact information can typically be found on the product packaging or the official XINLEI websit.
