1. Introduzzjoni

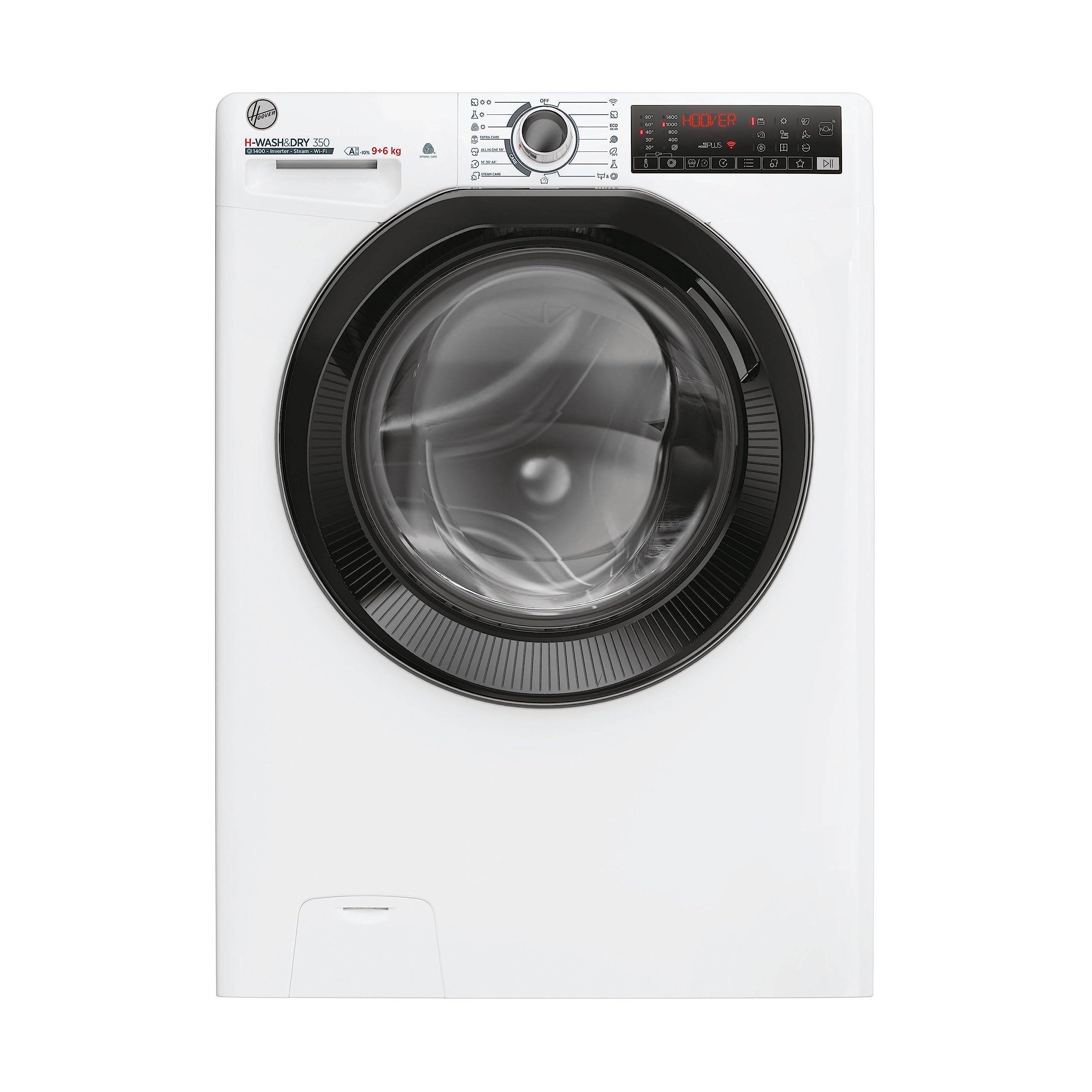

Welcome to the instruction manual for your new Hoover H-WASH&DRY 350 H3DPS4966TAMB6-S washer dryer. This appliance is designed to provide efficient and versatile solutions for your washing and drying needs. With a washing capacity of 9 kg and a drying capacity of 6 kg, it can handle large laundry loads. Key features include the Active Steam function for refreshing clothes and simplifying ironing, a BPM Inverter ECO-Power motor for quiet and efficient operation, the Mix-Power System, and smart functionality via WiFi and Bluetooth through the hOn app.
Please read this manual carefully before using the appliance to ensure safe and optimal performance. Keep it for future reference.
2. Informazzjoni dwar is-Sigurtà
For your safety and to ensure proper operation, always adhere to the following guidelines:
- Kun żgur li l-apparat ikun ertjat kif suppost.
- Tħallix lit-tfal jilagħbu bl-apparat jew iħaddmuh.
- Żomm il-materjali tal-ippakkjar fejn ma jintlaħaqx mit-tfal.
- Tinstallax l-apparat f'żoni esposti għal temperaturi jew umdità estremi.
- Qatt m'għandek tisforza l-bieb biex tiftaħ waqt l-operazzjoni.
- Aqla 'l-apparat qabel it-tindif jew il-manutenzjoni.
- Tużax likwidi li jaqbdu ħdejn l-apparat.
- In case of malfunction, switch off the appliance and consult a qualified technician.
3. Setup u Installazzjoni
Proper installation is crucial for the performance and longevity of your washer dryer. Follow these steps:
- Spakkjar: Carefully remove all packaging materials. Inspect the appliance for any damage.
- It-tneħħija tal-boltijiet tat-transitu: Before use, remove all transit bolts located at the rear of the machine. Keep them for future transport.
- Pożizzjonament: Place the washer dryer on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and access.
- Invellar: Adjust the feet of the appliance to ensure it is perfectly level. This prevents vibrations and noise during operation.
- Konnessjoni tal-Ilma: Qabbad il-pajp tad-dħul tal-ilma ma' vit tal-ilma kiesaħ. Kun żgur li l-konnessjonijiet kollha huma ssikkati biex tevita t-tnixxijiet.
- Drenaġġ: Poġġi l-pajp tad-drenaġġ f'pajp tad-drenaġġ jew sink adattat, filwaqt li tiżgura li jkun imwaħħal sew u mhux mgħawweġ.
- Konnessjoni tal-Enerġija: Plug the appliance into a grounded electrical outlet. Do not use extension cords.
4. Istruzzjonijiet Operattivi
Your Hoover H-WASH&DRY 350 offers a variety of programs and features for optimal laundry care.
4.1 Control Panel Overview
The appliance features a large digital touch display and a program selector dial. Use the dial to choose your desired program and the touch display for additional options and settings.
4.2 Tagħbija tal-Ħwejjeġ tal-Ħasil
Open the door and load your laundry into the drum. Do not overload the machine. For optimal results, ensure there is enough space for clothes to tumble freely. The maximum wash capacity is 9 kg, and the maximum dry capacity is 6 kg.
4.3 Żieda ta' Deterġent u Addittivi
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and any fabric softener or pre-wash additives to their respective compartments. The appliance features a dual-compartment dispenser.
4.4 Għażla tal-Programm
The Hoover H-WASH&DRY 350 offers 15 different programs, including:
- All in One (59 minutes): A quick and efficient program for mixed loads.
- Short Wash Programs: Three dedicated programs for quick washes.
- Wool & Hand Wash: Gentle care for delicate items.
- ECO 40-60: Programm effiċjenti fl-enerġija għal oġġetti tal-qoton, tal-għażel, jew tal-fibra mħallta li huma normalment maħmuġin.
- Active Steam: Use this function to refresh clothes and reduce wrinkles, simplifying ironing.
Turn the program selector dial to choose your desired program. The display will show the estimated duration and default settings.
4.5 Smart Features (WiFi & Bluetooth)
Connect your appliance to the hOn app via WiFi and Bluetooth for enhanced control and additional programs. The app allows you to:
- Access a wider range of washing and drying programs.
- Start, pause, or stop cycles remotely.
- Irċievi notifiki meta ċiklu jkun komplut.
- Immonitorja l-konsum tal-enerġija.
Refer to the hOn app instructions for detailed setup and usage of smart features.
5. Manutenzjoni
Regular maintenance ensures your washer dryer operates efficiently and extends its lifespan.
- Tindif ta' barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif li joborxu.
- Tindif tad-Dispenser tad-Deterġent: Neħħi u naddaf il-kexxun tad-dispenser tad-deterġent minn żmien għal żmien taħt ilma ġieri biex tevita l-akkumulazzjoni ta' residwi.
- Tindif tad-Drum: Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) regularly to keep the drum clean.
- Cleaning the Filter (for drying function): For the drying function, regularly clean the lint filter located inside the door opening. Remove lint after every drying cycle to maintain drying efficiency.
- Emptying the Water Container (for drying function): The appliance features a water collection drawer directly in the porthole. Empty this container after each drying cycle. It is designed for easy extraction and transport.
6 Issolvi l-problemi
If you encounter issues with your appliance, consult this section before contacting service.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-apparat ma jibdax | Bla dawl, bieb mhux magħluq, programm mhux magħżul. | Check power supply, ensure door is securely closed, select a program and press start. |
| L-ilma ma jixxottax | Drain hose kinked or blocked, pump filter clogged. | Check and straighten drain hose, clean the pump filter. |
| Vibrazzjoni / storbju eċċessiv | Appliance not level, transit bolts not removed, uneven load. | Adjust leveling feet, ensure transit bolts are removed, redistribute laundry in the drum. |
| Il-ħwejjeġ mhux qed jinxfu sew | Lint filter clogged, water container full, overloaded. | Clean lint filter, empty water container, reduce load size. |
7. Speċifikazzjonijiet
Detailed technical specifications for the Hoover H-WASH&DRY 350 H3DPS4966TAMB6-S:
- Numru tal-Mudell: H3DPS4966TAMB6-S
- Ditta: Hoover
- Kapaċità tal-Ħasil: 9 kg
- Kapaċità tat-tnixxif: 6 kg
- Veloċità Massima ta' Spin: 1400 RPM
- Energy Efficiency Class (Wash/Dry Cycle): D
- Energy Consumption (Wash & Spin): 45 kWh/100 ċiklu
- Energy Consumption (Wash & Dry): 308 kWh/100 ċiklu
- Water Consumption (Wash & Spin): 49 liters/cycle
- Water Consumption (Wash & Dry): 86 liters/cycle
- Livell tal-Istorbju (Spin): 76 dB(A) re 1pW (Class B)
- Dimensjonijiet (H x W x D): 85 x 60 x 58 ċm
- Piż Nett: 64 kg
- Materjal tad-Drum: Stainless Steel
- Tip ta' Kontroll: Touch, Fully Automatic
- Karatteristiċi Speċjali: Active Steam, BPM Inverter ECO-Power Motor, Mix-Power System, WiFi & Bluetooth (hOn app compatible)
8. Garanzija u Appoġġ
Your Hoover H-WASH&DRY 350 H3DPS4966TAMB6-S appliance is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the duration and coverage details.
For technical assistance, spare parts, or to schedule a service appointment, please contact Hoover customer support. You can typically find contact information on the Hoover official webis-sit jew fid-dokumentazzjoni pprovduta mat-tagħmir tiegħek.
Żomm il-prova tax-xiri tiegħek (irċevuta jew fattura) għax tkun meħtieġa għal kwalunkwe talba ta' garanzija.
