1. Introduzzjoni
This manual provides detailed instructions for the safe and effective operation of your Landtek MILA37900 Bluetooth Decibel Meter. This device is designed to measure sound pressure levels (SPL) accurately and reliably, offering a range of 30dB to 130dB. It features Bluetooth connectivity for data logging and analysis via a mobile application, making it suitable for various environments including home, school, and factory settings.
Figure 1: Landtek Bluetooth Decibel Meter and its companion mobile application.
Figure 2: Diverse applications of the decibel meter in various environments.
2. Karatteristiċi tal-prodott
- Accurate and Reliable Measurements: Measures sound levels from 30dB to 130dB with an accuracy of ±1.5dB.
- Easy-to-Read Backlit Screen: Features a 4-digit LCD display with 0.1dB resolution and a large backlight for visibility in low-light conditions. Includes a low voltage indikatur.
- Modi ta' Kejl Multipli: Includes MAX/MIN function to record peak and lowest values, and a HOLD feature to freeze current readings.
- Konnettività Bluetooth: Seamlessly connects to Android or iOS devices via Bluetooth for data transfer and management using the dB Tester APP. Supports up to 20,000 data measurements.
- Disinn ħafif u kompatt: Ergonomic design for comfortable handling and extended use. Equipped with a 1/4" mount thread for tripod attachment.
Figura 3: Aktarview of the decibel meter's key functionalities.
3. Kontenut tal-Pakkett
Meta tiftaħ il-pakkett, jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma preżenti u mhux imħassra:
- Landtek MILA37900 Bluetooth Decibel Meter
- Wind-resistant Ball (Microphone Foam Cover)
- Manwal ta' Istruzzjoni għall-Utent
Figure 4: Typical package contents.
4. It-Tqassim u l-Komponenti tal-Apparat
Familiarize yourself with the various parts of your decibel meter:
- Mikrofonu: High precision noise sensor, typically covered by a wind-resistant ball.
- Display LCD: Digital screen showing sound level, battery status, and mode indicators.
- Buttuna MIN/MAX: Toggles between minimum and maximum recorded values.
- Buttuna tal-Enerġija (⑂): Ixgħel jew jitfi l-apparat.
- Buttuna ŻOMM: Jiffriża l-qari attwali fuq id-displej.
- Kompartiment tal-batterija: Located at the rear for battery installation.
- Muntatura tat-tripod: 1/4 inch threaded hole at the bottom for mounting on a tripod.

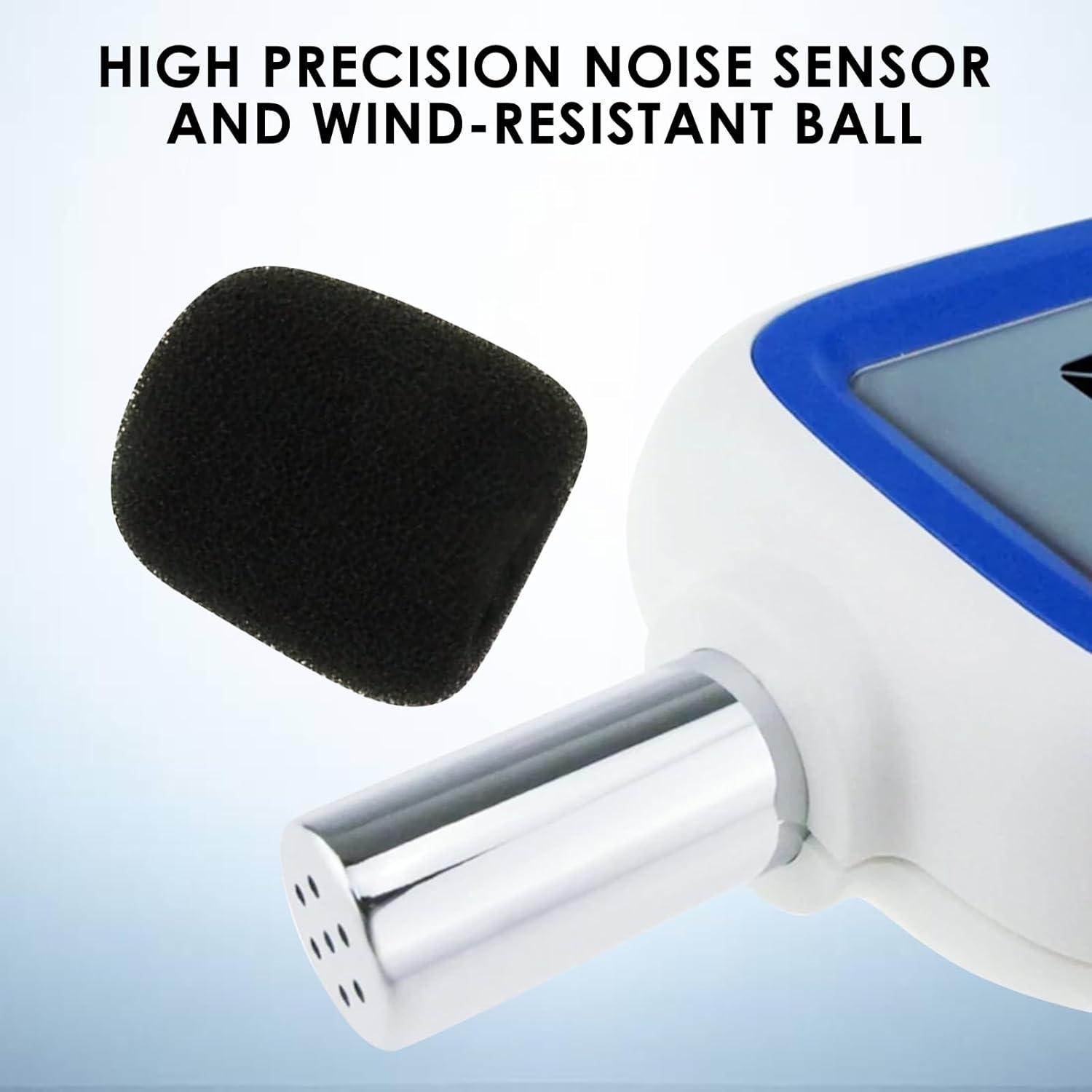

Figure 5: High precision noise sensor with wind-resistant ball.
Figure 6: LCD display indicators.

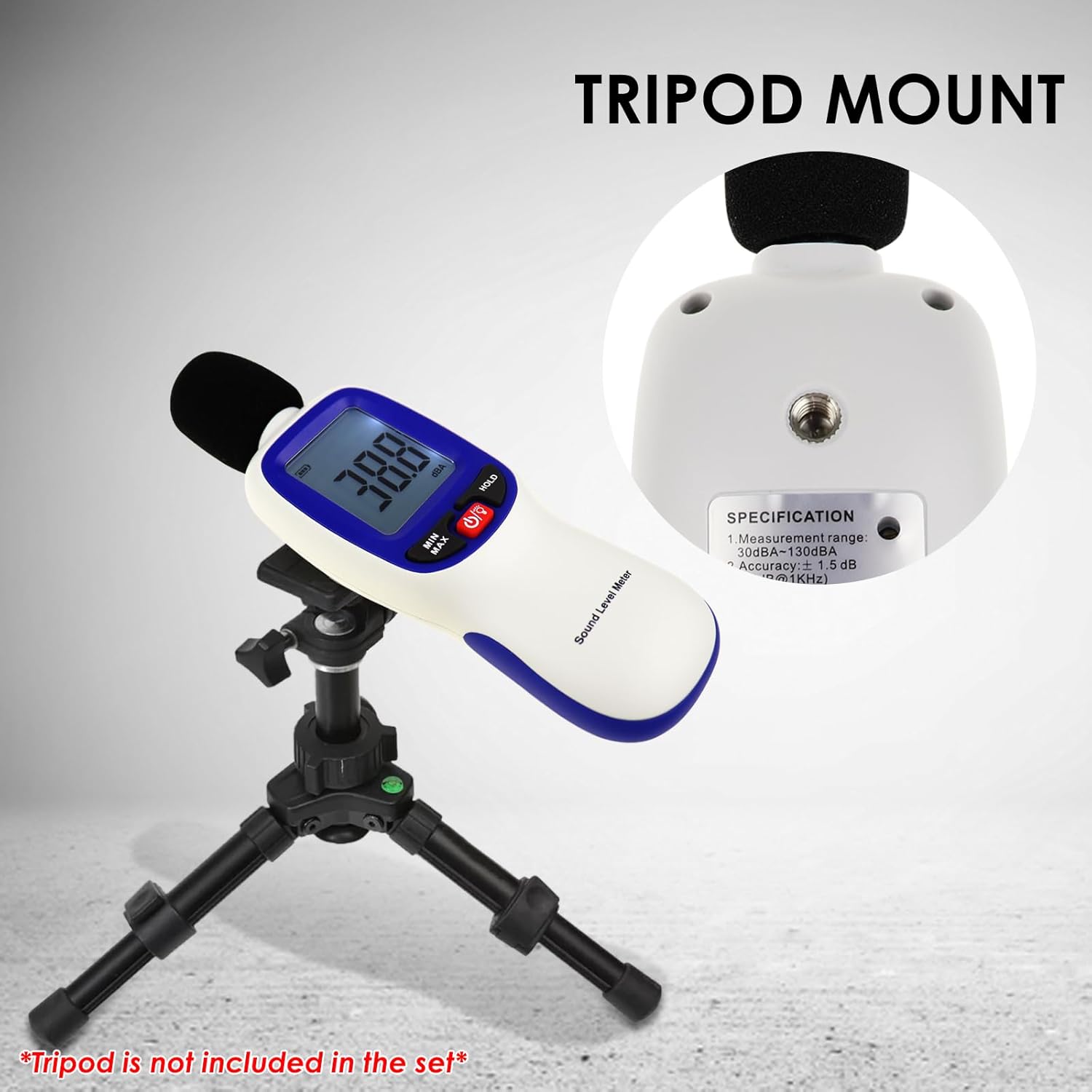

Figure 7: Tripod mount feature (tripod not included).
5. Setup
5.1 Installazzjoni tal-batterija
- Sib l-għatu tal-kompartiment tal-batterija fuq wara tal-apparat.
- Żerżaq jew neħħi l-għatu biex tiftaħ.
- Insert the required batteries (e.g., 3x AAA batteries, not typically included) according to the polarity indicators (+/-).
- Ibdel l-għatu tal-kompartiment tal-batterija b'mod sikur.
5.2 Tniżżil tal-App u Konnessjoni Bluetooth
To utilize the Bluetooth data logging features, download the 'dB Tester' application on your mobile device.
- Scan the QR code provided in the manual or on the product packaging, or search for 'dB Tester' in your device's app store (Android or iOS).
Download dB Tester App - Installa l-applikazzjoni fuq l-ismartphone jew it-tablet tiegħek.
- Kun żgur li l-Bluetooth huwa attivat fuq it-tagħmir mobbli tiegħek.
- Power on the Landtek Decibel Meter.
- Open the 'dB Tester' app. The app should automatically detect and connect to the decibel meter. A Bluetooth icon on the meter's LCD will indicate a successful connection.
Figure 8: dB Tester app interface for data management.
6. Istruzzjonijiet Operattivi
6.1 Power On/Off
Agħfas il- ⑂ button to turn the meter on. Press and hold the ⑂ agħfas il-buttuna għal ftit sekondi biex titfiha.
6.2 Kejl Bażiku
Once powered on, the meter will immediately begin displaying real-time sound pressure levels in dBA. Position the microphone towards the sound source for accurate readings.
6.3 Funzjoni MAX/MIN
Agħfas il- MIN / MAX buttuna biex tiċċirkola bejn il-modi ta' wiri li ġejjin:
- Qari kurrenti: Real-time sound level.
- MAX: Displays the maximum sound level recorded since the meter was powered on or the MAX/MIN function was reset.
- MIN: Displays the minimum sound level recorded since the meter was powered on or the MAX/MIN function was reset.
To reset the MAX/MIN values, turn the meter off and then on again.
6.4 Funzjoni HOLD
Agħfas il- ŻOMM button to freeze the current reading on the display. The 'HOLD' indicator will appear on the LCD. Press the ŻOMM button again to release the reading and return to real-time measurement.
6.5 Dawl ta 'wara
The backlight typically activates automatically in low light or can be toggled by a short press of the power button (if available on your model, refer to specific device markings).
6.6 Datalogging via App
With the meter connected to the 'dB Tester' app:
- Navigate to the recording section within the app.
- Set desired recording intervals and duration.
- Initiate data logging. The meter can store up to 20,000 data points internally, which can then be uploaded to the app for review, analysis, and export.
7. Nifhmu l-Qari
Sound pressure levels are typically measured in decibels (dB). The Landtek MILA37900 measures in dBA, which is a weighted scale that approximates the human ear's response to sound. Refer to the chart below for common noise ranges and their implications.
Figure 9: Noise level chart.
| dB Range | Deskrizzjoni |
|---|---|
| 15dB | Skiet |
| 15 sa 20dB | Kwiet |
| 20 sa 40dB | Whispering |
| 40 sa 60dB | Konversazzjoni normali |
| 60 sa 70dB | Noise (e.g., busy office) |
| 70 sa 80dB | Very Noisy (e.g., vacuum cleaner) |
| Aktar minn 100dB | Damage to Hearing (prolonged exposure) |
8. Manutenzjoni
- Tindif: Imsaħ l-apparat b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Ħażna: Store the meter in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if the device will not be used for an extended period.
- Kura tal-Mikrofonu: Keep the microphone clean and free from dust or debris. Use the wind-resistant ball to protect it during use.
9 Issolvi l-problemi
9.1 L-Apparat Ma Jixgħelx
- Iċċekkja l-installazzjoni tal-batterija u kun żgur li l-polarità hija korretta.
- Ibdel b'batteriji friski.
9.2 Qari Mhux Preċiż
- Kun żgur li l-mikrofonu mhux ostakolat.
- Avoid measuring in strong winds without the wind-resistant ball.
- Ensure the device is not exposed to extreme temperatures or humidity.
9.3 Kwistjonijiet ta' Konnessjoni Bluetooth
- Kun żgur li l-Bluetooth huwa attivat kemm fuq il-miter kif ukoll fuq l-apparat mobbli tiegħek.
- Restart both the meter and the mobile application.
- Ensure the mobile device is within range of the meter.
- Check if the 'dB Tester' app has necessary permissions on your mobile device.
10. Speċifikazzjonijiet
| Parametru | Valur |
|---|---|
| Medda ta' Kejl | 30dB sa 130dB |
| Eżattezza | ± 1.5dB |
| Riżoluzzjoni | 0.1dB |
| Piż tal-Frekwenza | A-Ippeżar |
| Kapaċità tar-Reġistrazzjoni tad-Data | Sa 20,000 punt tad-dejta |
| Wiri | 4-digit LCD with Backlight |
| Konnettività | Bluetooth (Android/iOS App) |
| Tripod Mount | Ħajt ta '1/4 pulzier |
| Numru tal-Mudell | MILA37900 |
| Manifattur | Landtek |
11. Informazzjoni dwar is-Sigurtà
- Tippruvax tiftaħ jew timmodifika l-apparat.
- Żomm l-apparat 'il bogħod mill-ilma u likwidi oħra.
- Evita li twaqqa 'l-apparat jew suġġett għal impatti qawwija.
- Armi l-batteriji skont ir-regolamenti lokali.
- Do not use the device in environments with explosive gases or vapors.
12. Garanzija u Appoġġ
Landtek products are manufactured to high-quality standards. This product typically comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact Landtek customer support for specific warranty terms and conditions.
For technical assistance, troubleshooting, or service inquiries, please contact Landtek customer support through their official websit jew l-informazzjoni ta’ kuntatt ipprovduta max-xiri tiegħek.
