FLAMMA FX150B Multi Effects Processor Instruction Manual

Introduzzjoni

The FLAMMA FX150B is a versatile multi-effects processor designed for electric guitarists, offering a wide range of features including amp modeling, cabinet simulation, and various effects. This battery-powered unit provides flexibility for practice, recording, and live performance. It features a touchscreen interface for intuitive control and extensive customization options.

The FX150B supports 1024-point impulse response files for detailed amp emulations and includes 30 high-quality preinstalled cabinet simulations. With 160 unique preloaded effects and 180 editable user effects slots, guitarists have extensive control over their sound. Additional features include a looper with up to 52 seconds of recording time, 80 drum machine variations, and 10 metronome options.

X'hemm fil-Kaxxa

• Adapter tal-Enerġija
• Cable USB
• Gwida Quick

Karatteristiċi Ewlenin

• Amp Simulations: Supports 1024-point impulse response files for flexible and detailed amp emulazzjonijiet.
• 30 High-Quality Cabinet Simulations: Preinstalled cab emulations, replaceable with edited versions or 3rd-party IR files via FX150 editing software and touchscreen.
• Drum & Looper: Features 80 drum machine and 10 metronome variations. Looping functionality up to 52 seconds.
• Li jaħdem bil-batterija: Built-in 3000mA battery provides approximately 5.5 hours of use on a full charge.
• 160 Unique Preloaded Effects: A wide range of effects including modulation, delay, tonal presets, preamps, u amp simulation models.
• 180 Editable User Effects Slots: Full control over effects and amp simulators, allowing modification and overwriting of presets using the FX150 editor software.
• Touchscreen: High-quality touchscreen for easy navigation and control of features.

Setup u Konnessjonijiet

Before powering on your FLAMMA FX150B, ensure all connections are made correctly. The unit can be powered via the included power adapter or its internal battery.

Konnessjonijiet tal-Panew ta' wara

The rear panel of the FX150B provides various input and output options for versatile integration into your setup.

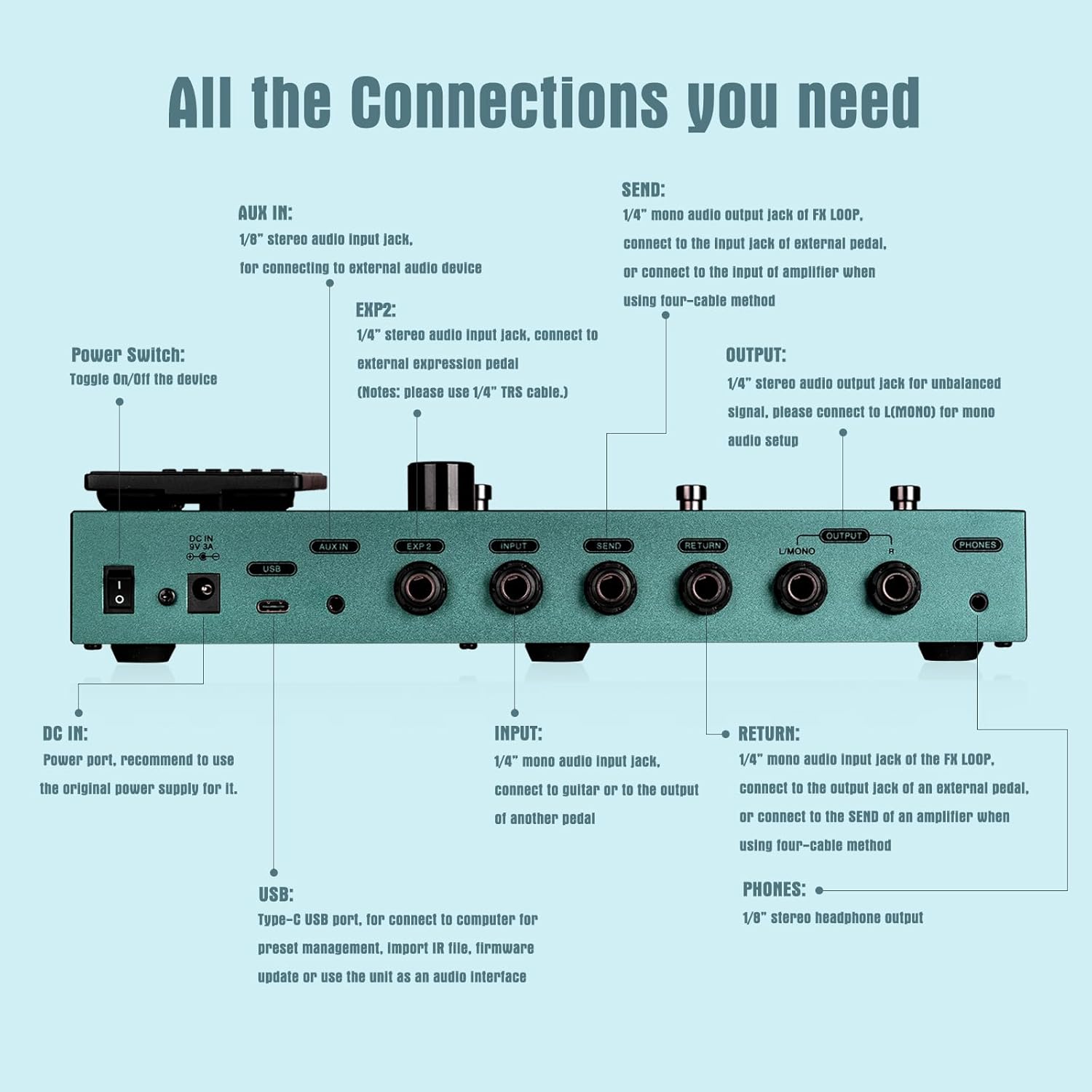

Image: Rear panel of the FLAMMA FX150B showing all input and output jacks.

• Swiċċ tal-Enerġija: Jixgħel/jitfi l-apparat.
• DC IN: Power port (9V 500mA). Use the original power supply for optimal performance.
• USB: Type-C USB port for computer connection, preset management, IR file import, firmware updates, and using the unit as an audio interface.
• AUX IN: 1/8" stereo audio input jack for connecting external audio devices like phones or music players.
• EXP2: 1/4" stereo audio input jack for connecting an external expression pedal (use 1/4" TRS cable).
• DĦUL: 1/4" mono audio input jack for connecting your guitar.
• IBGĦAT/IRRITORN: 1/4" mono audio input/output jacks for the FX Loop. Connect to an external pedal or use the four-cable method with an amplifier's effects loop.
• ĦRUĠ (X/MONO, R): 1/4" stereo audio output jacks for unbalanced signal. Connect to L(MONO) for mono audio setups.
• IT-TELEFONiċi: 1/8" stereo headphone output.

Konnessjoni ma ' Amplifiers and PA Systems

When connecting the FX150B, consider the destination device:

• To the front of a guitar ampaktar ħaj: It is almost always recommended to turn off cabinet emulations on the FX150B to avoid double-coloring the sound.
• To a full-range device (headphones, interface, PA system): It is almost always recommended to keep cabinet emulations turned on for optimal sound.

Operating the FX150B

Main Screen and Navigation

Upon powering on, the main screen displays the preset name, preset location (e.g., Bank 04, Preset A), input/output meters, DSP usage, and expression pedal indicators. The effect chain is shown at the bottom, indicating the order of effects and which are active.

Image: The main display screen of the FLAMMA FX150B showing preset information and effect chain.

• Pum Master: Controls the overall master volume of the pedal.
• Buttuna tal-Valur: Used to scroll through presets in standard bank mode or adjust parameters when editing effects.
• Swiċċijiet tas-saqajn (A, B, Ċ): Navigate through presets A, B, and C within a bank.
• Bank Navigation: Hold footswitches A and B together to go down a bank, and B and C together to go up a bank.
• Modalità ta' Kontroll: Pressing the currently selected preset footswitch again engages control mode, allowing you to bypass or engage effect blocks in the chain, effectively creating a second preset.
• Tektek Tempo: Hold down the current preset footswitch to access tap tempo.

Built-in Tuner and Looper/Drum Machine

• Tuner: Hold footswitches A and B together to access the onboard tuner.
• Looper & Drum Machine: Hold footswitches B and C together to access both the looper and drum machine functions. The looper offers up to 52 seconds of recording, and the drum machine has 80 drum grooves and 10 rhythm types.

Pedala ta ’Espressjoni

The integrated expression pedal can be used for volume control or to manipulate effect parameters. An LED indicator next to the pedal shows its current mode:

• LED Mitfi: Volume control mode.
• LED Lit: Expression parameter control mode (e.g., wah, delay mix).

Image: The FLAMMA FX150B supports both its internal expression pedal and an external pedal via the EXP2 input.

Editing Presets

To customize your sound, you can edit existing presets or create new ones.

Image: The touchscreen interface showing the editable effects chain for a preset.

• Access Edit Menu: Tap anywhere on the main screen to enter the editing menu. This displays your effects chain and individual effect blocks.
• Rearrange Effect Blocks: Effect blocks can be freely moved around the signal path to create custom routing.
• Modify a Block: Click on an effect block to bring up its parameters. You can adjust parameters using the touchscreen sliders or by selecting a parameter and using the Value knob for finer control.
• Ħlief issettjat minn qabel: After editing, click the save button (usually an icon in the top right). You can rename the preset using the on-screen keyboard. Press OK to save. Unsaved changes will be lost.

Settings Quick

The Quick Settings menu provides access to global parameters that affect the entire unit.

• Livell ta' Input: Adjusts the overall input level for the pedal. This is useful for matching different guitar pickup outputs (e.g., attenuating active pickups or boosting low-output pickups).
• Cab Sync: When enabled, the cabinet simulation will automatically change to correspond with the selected amplifier type. When disabled, cabs can be controlled independently.
• Global Cab On/Off: Allows you to globally enable or disable cabinet simulations for both left and right outputs. This is crucial when connecting to a guitar cabinet (turn off) versus a full-range system (turn on).
• Agħżel il-Lingwa: Agħżel il-lingwa preferuta tiegħek għall-interface.

Expression & Footswitch Editing

Customize the behavior of the footswitches and expression pedal to suit your playing style.

• Menu Aċċess: Tap the menu icon (usually in the top right) to access settings for footswitches and system parameters.
• Footswitch Control Mode: Select which effect blocks are bypassed or engaged when entering control mode (by pressing the current preset footswitch). You can also set footswitches to 'Off' if you don't want them to activate any extended functions.
• Expression Pedal Settings: Access the pedal menu to configure both the internal (Pedal 1) and external (Pedal 2) expression pedals.
• Volume Parameters: Adjust the minimum and maximum volume values when the expression pedal is in volume control mode.
• Expression Parameters: Select any number of effect parameters (e.g., delay mix, wah position) to be controlled by the expression pedal when it's engaged. You can set the minimum and maximum values for these parameters.

Menu tas-Sistema

The System menu provides access to global settings for the FX150B.

• Luminożità: Aġġusta l-luminożità tal-iskrin.
• EQ Globali: Access a global equalizer with controls for low frequency, middle frequency, high frequency, and corresponding gain levels. This also includes global high-cut and low-cut filters.
• Delay/Reverb Spill-Over: Configure whether delay and reverb trails continue after switching presets.
• Looper Position: Set the looper to pre or post effects chain.
• Awdjo USB: Configure USB audio settings.
• Left/Right Output: Adjust output settings for left and right channels (e.g., dry/effects mix).
• Record/Play Volume: Adjust recording and playback volumes for the looper.

Speċifikazzjonijiet

• Piż tal-oġġett: 4.8 libbra (2.18 Kilogrammi)
• Dimensjonijiet tal-Prodott: 10.7 x 5.9 x 2.2 pulzieri
• Numru tal-Mudell tal-Oġġett: FX150
• Batteriji: 1 Lithium Polymer battery required (3000mA, approx. 5.5 hours battery life)
• Materjal tal-ġisem: Metall
• Kulur: FX150 Battery (Green/Teal)
• Tip ta' Konnettur: USB TYPE-C, 1/4" unbalanced mono, 1/8" unbalanced stereo, 1/8" stereo
• Interface tal-ħardwer: USB
• Format tas-Sinjal: Diġitali
• Software appoġġjat: FX150 Software
• Livell ta' Profiċjenza: Kollha
• Sors tal-Enerġija: Mħaddma bil-batterija
• Voltage: 9 Volts
• Stil: Delay, Looper, Modulation, Multi Effects
