PalliPartners G3040 Metal Detector Instruction Manual

1. Introduzzjoni

Thank you for choosing the PalliPartners G3040 Metal Detector. This device is designed for efficient and accurate metal detection across various terrains. Featuring an advanced DSP chip, a 12-inch waterproof search coil, and multiple operating modes, it is suitable for both beginners and experienced users. Please read this manual thoroughly before operating the device to ensure proper usage and to maximize your treasure hunting experience.

2. Informazzjoni dwar is-Sigurtà

• Always obtain permission before searching on private property.
• Avoid searching in areas where underground cables or pipes may be present.
• Exercise caution when digging to prevent injury or damage to property.
• Il-kaxxa tal-kontroll hija mhux reżistenti għall-ilma. Protect it from moisture and submersion.
• Żomm l-apparat 'il bogħod minn temperaturi estremi u dawl tax-xemx dirett.
• Armi l-batteriji b'mod responsabbli skont ir-regolamenti lokali.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett tiegħek:

• PalliPartners G3040 Metal Detector Main Unit (Control Box and Stem)
• 12-inch Waterproof Search Coil
• Armrest with Thick Sponge Pad
• Manwal għall-Utent
• Shovel (may be included as an accessory)

4. Assemblaġġ u Twaqqif

Segwi dawn il-passi biex tiġbor id-ditekter tal-metall tiegħek:

1. Waħħal il-Kojl tat-Tiftix: Secure the 12-inch search coil to the lower stem using the provided bolt and nut. Ensure it is firmly attached but can still be adjusted for angle.
2. Connect the Stems: Connect the lower stem to the middle stem, and then connect the middle stem to the upper stem (which includes the control box and armrest). The adjustable stem allows for lengths between 43.3 inches and 60.2 inches.
3. Wrap the Cable: Carefully wrap the search coil cable around the stem, ensuring it is not too tight or loose, and plug the connector into the control box.
4. Aġġusta l-Armrest: Position the armrest for comfortable use. The thick sponge pad and arc upgraded handle provide ergonomic support.
5. Installa Batteriji: Open the battery compartment on the control box and insert the required batteries (not included).

The 10-inch wide IP68 waterproof search coil is shown in use for underwater treasure hunting. Inset images highlight the thick sponge pad and arc upgraded handle for comfort, and the coil's ultrasonic heatfusion sealing for water resistance.

This diagram illustrates the comprehensive functionality and components of the metal detector, including the 12-inch waterproof search coil, anti-interference nylon material, LCD backlight display, adjustable stem (36.2" to 47.2"), ergonomically designed hand rest, and EVA foam handshake.

5. Istruzzjonijiet Operattivi

5.1. LCD Display Overview

This diagram illustrates the main control panel and LED display of the G3040 metal detector. Key indicators and buttons are numbered for easy reference: 1. Sens Level Indicator, 2. Power/Light Control Button, 3. Coin Depth Indicator, 4. Volume Indicator, 5. Sens/Volume Control Button, 6. Increase Control Button, 7. Pinpoint Control Button, 8. Decrease Control Button, 9. Target ID, 10. Mode Indicator, 11. Low Battery Indicator.

5.2. Mixgħul/Mitfi u Kontroll tal-Volum

• To power on, rotate the VOLUM knob clockwise. To power off, rotate it counter-clockwise until it clicks.
• Aġġusta l-volum billi ddawwar il- VOLUM pum.
• Il- Power/Light Control Button (2) can be used to turn on/off the backlight for the LCD display.

5.3. Modi Operattivi

The G3040 offers 5 distinct modes for various detection scenarios:

This image details the five distinct search modes available on the metal detector: DISC Mode, PP (Pinpointer) Mode, Memory Mode, Jewelry Mode, and All Metal Mode. Each mode is designed for specific detection needs.

• MODALITÀ TAL-METALL KOLLHA: Detects all types of metal without discrimination. Ideal for general searching when you want to find any metallic object.
• DISC MODE (Discrimination Mode): Allows you to eliminate certain types of metals from detection. This is useful for ignoring junk metals like iron and focusing on more valuable targets. Use the Increase Control Button (6) u Decrease Control Button (8) to adjust the discrimination level.
• MOD TA 'MEMORJA: This mode allows the detector to remember a specific target metal and only respond to that type of metal, ignoring others.
• JEWELRY MODE: Specifically designed to eliminate iron signals and primarily respond to other metals commonly found in jewelry.
• PINPOINTER (PP) MODE: Used to precisely locate the exact position of a detected target. Once a target is found in another mode, switch to PP mode to narrow down its location before digging.

5.4. Discrimination and Target ID

The detector provides visual and auditory cues to help identify targets:

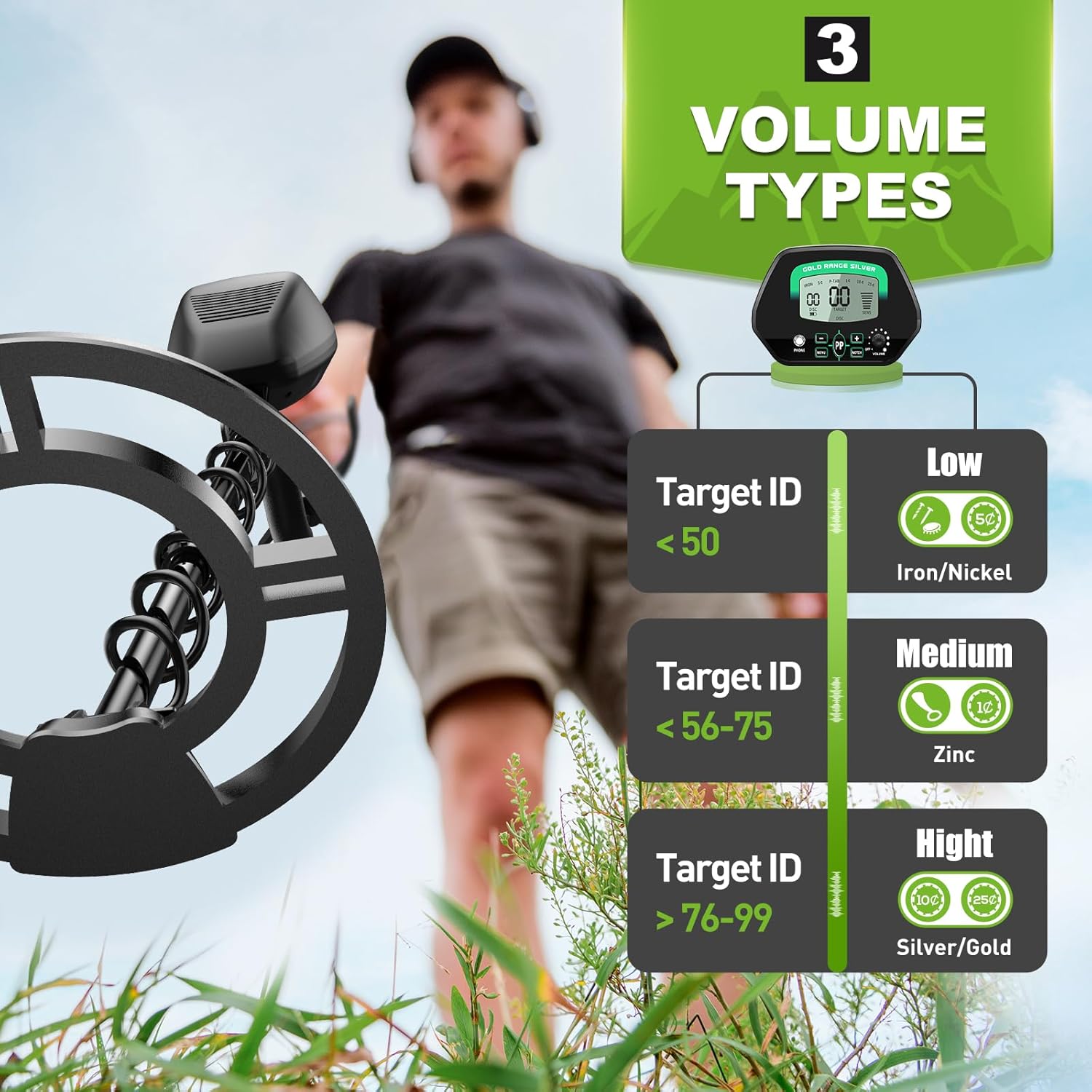

The metal detector provides three distinct audio tones to help identify target metals: Low tone for Target ID < 50 (e.g., Iron/Nickel), Medium tone for Target ID 56-75 (e.g., Zinc), and High tone for Target ID > 76-99 (e.g., Silver/Gold).

• Target ID (9): The LCD display shows a numeric Target ID, which helps categorize the detected metal.
• Toni tal-Awdjo: Different metals produce different tones:
  • Low Tone (Target ID 1-40): Typically indicates iron or nickel.
  • Medium Tone (Target ID 41-75): Often indicates zinc, copper, or smaller silver items.
  • High Tone (Target ID 76-99): Usually indicates larger silver items or gold.

5.5. Aġġustament tas-Sensittività

Adjust the sensitivity using the Sens/Volume Control Button (5) u l- Increase Control Button (6) or Decrease Control Button (8). Higher sensitivity increases detection depth but can also increase false signals in mineralized ground or areas with electromagnetic interference. Lower sensitivity reduces false signals but may decrease detection depth.

5.6. Għajnuniet għall-Użu Ġenerali

• Sweep the search coil slowly and steadily, keeping it parallel to the ground.
• Overlap your sweeps to ensure complete coverage of the search area.
• When a target is detected, use the Pinpointer mode to narrow down its exact location.
• The 12-inch search coil is IP68 waterproof, allowing for detection in shallow water. Remember, the control box is not waterproof.

6. Manutenzjoni

• Clean the search coil with fresh water after use, especially after detecting in saltwater environments.
• Imsaħ il-kaxxa tal-kontroll u z-zokk b'adamp drapp. Tużax tindif li joborxu.
• Store the metal detector in a dry, cool place when not in use.
• Neħħi l-batteriji jekk l-apparat ma jkunx se jintuża għal perjodu estiż biex tevita t-tnixxija.
• Regularly check all connections and bolts for tightness.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official PalliPartners websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
