1. Introduzzjoni
This manual provides detailed instructions for the safe installation, correct operation, and proper maintenance of the DINUY PT Sup EL4 3-Wire Tactile Push-Button Timer. Please read this manual thoroughly before attempting any installation or operation to ensure optimal performance and safety. Keep this manual for future reference.
2. Informazzjoni dwar is-Sigurtà
TWISSIJA: Electrical installation should only be performed by a qualified and licensed electrician.
- Always disconnect power at the main circuit breaker before performing any installation, maintenance, or troubleshooting.
- Ivverifika li l-provvista voltage matches the specifications of the device (230 V AC, 50 Hz).
- Tinstallax fl-imxarrab jew damp locations. The device has an IP20 protection rating, suitable for indoor dry environments.
- Ensure all wiring connections are secure and correctly insulated to prevent short circuits or electric shock.
- Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
3. Prodott Aktarview u Karatteristiċi
The DINUY PT Sup EL4 is a sophisticated 3-wire tactile push-button timer designed for controlling various types of lighting fixtures. Its modern design and advanced features make it suitable for a wide range of residential and commercial applications.
Figura 1: Quddiem view of the DINUY PT Sup EL4 Tactile Push-Button Timer. This image shows the white square-shaped device with a central power symbol, a small blue LED indicator, and two visible mounting screws.
Karatteristiċi ewlenin:
- Installazzjoni 3-Wire: Requires Phase (L), Neutral (N), and Lamp Return (L') for connection.
- Kompatibilità Universali: Suitable for all types of luminaires, including LED lamps, incandescent, halogen (230V and 12V with electronic/ferromagnetic transformers), and fluorescent lamps.
- Tactile Operation: Easy and intuitive control with a gentle touch.
- Timer aġġustabbli: Configurable timing from 30 seconds to 12 minutes.
- Rearmable Function: The timer can be reset at any point during its cycle by another touch.
- Permanent Luminous LED: An integrated LED remains illuminated, indicating the device's status and aiding visibility in the dark.
- Immuntar tal-wiċċ: Designed for easy surface wall installation.
- Viti tas-Sigurtà: Includes screws designed to deter unauthorized removal.
- Zero-Crossing Detection: Enhances relay life and reduces electrical noise.
- Contactor Support: Can be used in conjunction with a contactor for higher load applications.
4. Istruzzjonijiet ta 'installazzjoni
Before beginning installation, ensure the main power supply to the circuit is turned OFF at the circuit breaker. This device is designed for surface mounting in a universal box.
4.1 Dijagramma tal-Wiring
The DINUY PT Sup EL4 requires a 3-wire connection. Refer to the diagram below for correct wiring.

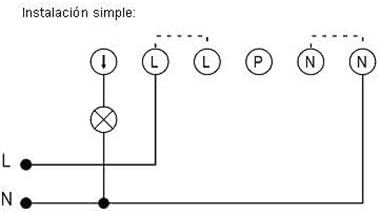

Figure 2: Wiring diagram for the DINUY PT Sup EL4. The diagram illustrates a 3-wire connection: 'L' for Phase, 'N' for Neutral, and a connection to the lamp. The dashed lines indicate optional connections for additional push-buttons (L) or neutral (N) connections.
- Qabbad il- Fażi (L) wire from the electrical supply to the terminal marked 'L' on the device.
- Qabbad il- Newtrali (N) wire from the electrical supply to the terminal marked 'N' on the device.
- Qabbad il- Lamp Return (L') wire (the wire going to the light fixture) to the terminal indicated by the lamp symbol (often labeled with an arrow pointing down to a circle with an 'X').
- Kun żgur li l-konnessjonijiet kollha huma stretti u sikuri.
4.2 Immuntar
- After wiring, carefully place the device into the universal wall box.
- Secure the device to the wall box using the provided security screws. Do not overtighten.
- Once mounted, restore power at the main circuit breaker.
5. Istruzzjonijiet Operattivi
5.1 Operazzjoni Bażika
- To turn on the connected light, gently touch the tactile surface of the push-button. The light will illuminate, and the timer will begin its cycle.
- The integrated blue LED will remain permanently illuminated, indicating the device is powered and ready for operation.
5.2 Funzjoni Timer
- Once activated, the light will remain on for the preset duration (adjustable between 30 seconds and 12 minutes).
- To extend the lighting duration, simply touch the tactile surface again at any point during the active timer cycle. This will rearm the timer, restarting the countdown from its full preset duration.
- The light will automatically turn off once the timer cycle completes without being rearmed.
6. Manutenzjoni
The DINUY PT Sup EL4 is designed for long-term, maintenance-free operation. However, periodic cleaning and inspection can help ensure its longevity and proper function.
- Tindif: To clean the surface of the device, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.
- Spezzjoni: Periodically check the device for any visible damage or loose connections. If any issues are found, disconnect power immediately and consult a qualified electrician.
- L-ebda Partijiet li jistgħu jservu mill-utent: There are no user-serviceable parts inside the device. Do not attempt to open or repair the unit yourself.
7 Issolvi l-problemi
If you experience issues with your DINUY PT Sup EL4, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx. | Ebda enerġija għall-apparat. Wajers mhux korretti. Difettuż lamp. | Check the circuit breaker. Ensure power is restored. Verify wiring against the diagram (Section 4.1). Ittestja l-lamp with another switch or replace it. |
| Light stays on permanently or turns off too quickly. | Timer setting issue. Ħsara fl-apparat. | The timer duration is factory set or adjusted internally. If the behavior is inconsistent with expected operation, consult a qualified electrician. If the issue persists after checking power and wiring, the device may require professional inspection. |
| Blue LED indicator is off. | Ebda enerġija għall-apparat. | Check the circuit breaker and ensure power is supplied to the device. |
If these steps do not resolve the issue, contact a qualified electrician or the manufacturer's support for assistance. Do not attempt to repair the device yourself.
8. Detailed Specifications
| Parametru | Valur |
|---|---|
| Provvista Voltage | 230 V AC |
| Frekwenza | 50 Hz |
| Awto-konsum | 0.7 W |
| Relay Cut-off Power | 16 A |
| Max. Load (LED Lamps) | 400 W |
| Max. Load (Incandescent & Halogen 230V) | 3000 W |
| Max. Load (Halogen 12V with Electronic Transformer) | 3000 W |
| Max. Load (Halogen 12V with Ferromagnetic Transformer) | 2400 W |
| Max. Load (Fluorescent Lamps) | 1300 W (1300 VA) |
| Contactor Support | Iva |
| Żero-Crossing Sejbien | Iva |
| Tip ta' Installazzjoni | 3 wires (Phase, Neutral, Lamp Return) |
| Permanent Lighting Function | Nru |
| Stop Warning Function | Nru |
| Minimum Timer Duration | 30 sekonda |
| Tul ta' Timer Massimu | minuti 12 |
| Swiċċ Timed | Nru |
| Luminous Push-buttons Support | Nru |
| Temperatura operattiva | 0°C sa 40°C |
| Permanent Luminous LED | Iva |
| Immuntar | Universal box, Surface, Security screws |
| Protezzjoni Ambjentali | IP20 (according to UNE20324) |
| Standards ta' Konformità | UNE-EN60669-2-1 and UNE-EN60669-2-3 |
9. Garanzija u Appoġġ
Specific warranty information for the DINUY PT Sup EL4 is typically provided at the point of purchase or within the product packaging. Please refer to your purchase documentation for details regarding warranty coverage and duration.
For technical support, troubleshooting assistance beyond what is provided in this manual, or warranty claims, please contact your retailer or the official DINUY customer service. Contact information can usually be found on the manufacturer's webis-sit jew l-imballaġġ tal-prodott.
