1. Introduzzjoni
Thank you for choosing the Hauck Alpha+ Grow Along Wooden High Chair. This versatile high chair is designed to grow with your child, offering a safe and comfortable seating solution from 6 months onwards. Made from durable beech wood, it features adjustable components and includes a removable tray table and a deluxe padded seat cushion for enhanced comfort and convenience. Please read this manual carefully before assembly and use to ensure proper function and safety.

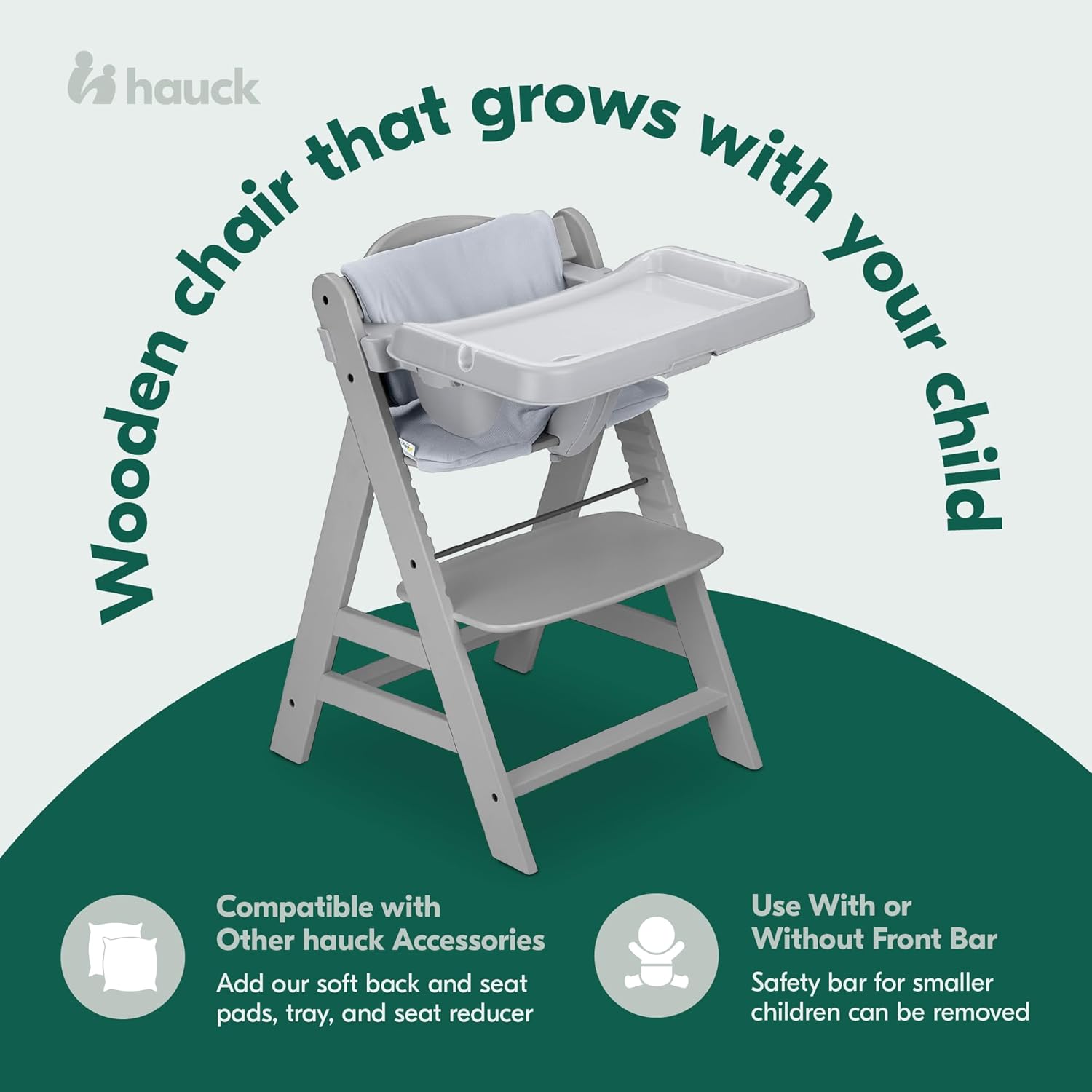

Figure 1.1: The Hauck Alpha+ Grow Along Wooden High Chair with included accessories.
2. Informazzjoni dwar is-Sigurtà
TWISSIJA: Nuqqas li ssegwi dawn l-istruzzjonijiet ta’ sigurtà jista’ jirriżulta fi korriment serju jew mewt.
- Always use the 5-point harness and safety strap to secure your child in the high chair.
- Qatt m'għandek tħalli lit-tifel/tifla tiegħek waħdu/waħedha fis-siġġu għoli/għolja.
- Kun żgur li l-partijiet kollha huma mmuntati sew u mwaħħlin sew qabel kull użu.
- Tużax is-siġġu għoli jekk xi partijiet ikunu miksura, imqattgħin, jew neqsin.
- Keep the high chair away from open flames, heaters, and other heat sources.
- The high chair features a tilt-proof and anti-slide construction. However, always ensure it is placed on a flat, stable surface.
- The maximum load capacity for this high chair is 198 pounds (90 kg). Do not exceed this weight.
- The safety bar is essential for smaller children. It can be removed for older children to allow them to sit comfortably at a dining table or desk.
Figure 2.1: The high chair includes a 5-point harness and safety strap for elevated safety.
3. Lista tal-Komponenti
Before beginning assembly, please ensure all components are present and undamaged. Refer to the diagram below for identification.
- Wooden Frame (Left and Right Sides)
- Pjanċa tas-Sedil
- Pjanċa tas-Sieq
- Metal Rods (for seat and foot plate adjustment)
- Safety Bar (removable)
- 5-Point Harness System
- Tray Table (removable, 3-position adjustable)
- Deluxe Padded Seat Cushion (back and seat parts)
- Assembly Hardware (screws, nuts, Allen key)
Figure 3.1: Key components including the tray table and padded seat cushion.
Figura 3.2: Close-up view of the removable tray table.
4. Setup u Assemblea
Follow these steps to assemble your Hauck Alpha+ high chair. It is recommended to have two people for easier assembly.
- Ħoll il-Komponenti: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all components listed in Section 3 are present.
- Arma l-Qafas: Connect the two wooden side frames using the provided crossbars and screws. Ensure they are securely tightened.
- Insert Seat and Foot Plates: Slide the seat plate and foot plate into the desired grooves on the side frames. The plates can be adjusted to various heights to accommodate your child's growth. Secure them with the metal rods.
- Attach Safety Bar: For younger children, attach the safety bar to the front of the high chair. Ensure it clicks securely into place.
- Install Harness: Thread the 5-point harness through the designated slots in the seat and backrest. Adjust the straps to fit your child snugly and securely.
- Add Padded Cushion: Place the deluxe padded seat cushion onto the seat and backrest, securing it as per the cushion's instructions (usually with ties or elastic loops).
- Attach Tray Table: Slide the tray table onto the safety bar or directly onto the chair's front attachment points. It can be adjusted to three positions.
- Kontroll Finali: Before first use, double-check all screws and connections to ensure they are tight and secure.
Vidjo 4.1: Overview of the Hauck Alpha+ high chair assembly and feature demonstration.
Figure 4.1: The high chair can be used with or without the front safety bar, adapting to your child's age.
5. Istruzzjonijiet Operattivi
5.1 Adjusting Seat and Foot Plate
The Hauck Alpha+ high chair is designed to grow with your child. The seat and foot plates can be easily adjusted to different heights to ensure an ergonomic and comfortable position for your child at any age.
- To adjust, loosen the screws securing the metal rods on both sides of the chair.
- Slide the seat or foot plate to the desired groove. Ensure both sides are at the same height.
- Tighten the screws firmly to secure the plates in place.
Figure 5.1: The adjustable seat and footboard allow the chair to adapt to your child's height.
5.2 Using the Tray Table
The removable tray table provides a convenient surface for meals and play. It features three adjustable positions.
- To attach, align the tray table with the attachment points on the safety bar or chair frame and slide it into place until it locks.
- To adjust the position, locate the release mechanisms on the sides of the tray (if applicable) and slide the tray forward or backward.
- To remove, press the release mechanisms and pull the tray table away from the chair.
5.3 Is-Sigurtà tat-Tifel/Tifla Tiegħek
Always use the 5-point harness and safety strap to ensure your child is securely seated.
- Place your child in the high chair.
- Fasten the shoulder straps, waist straps, and crotch strap, ensuring they are snug but not too tight.
- Adjust the strap length as your child grows to maintain a secure fit.
Figure 5.2: The stable construction and integrated floor gliders provide extra tilt resistance.
6. Manutenzjoni u Kura
Regular cleaning and maintenance will prolong the life of your high chair.
- Partijiet tal-injam: Imsaħ il-qafas tal-injam b'reklamaramp cloth and mild soap. Dry immediately with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Tray Table: The tray table is removable and washable. It can be hand-washed with warm soapy water or wiped clean after each use.
- Padded Cushion: The padded cushion is removable and washable. Refer to the care label on the cushion for specific washing instructions. Typically, machine wash cold on a gentle cycle and air dry.
- Ħardwer: Iċċekkja l-viti u l-qafliet kollha perjodikament biex tiżgura li huma ssikkati. Erġa' ssikkahom jekk meħtieġ.
- Ħażna: Store the high chair in a dry place, away from direct sunlight and extreme temperatures.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| High chair feels wobbly. | Viti maħlula jew wiċċ irregolari. | Ensure all screws are tightened. Place the high chair on a flat, level surface. |
| Seat/foot plate difficult to adjust. | Screws not sufficiently loosened or debris in grooves. | Loosen screws completely. Check grooves for any obstructions and clear them. |
| Tray table does not attach securely. | Allinjament mhux korrett jew ostruzzjoni. | Ensure the tray is correctly aligned with the attachment points. Check for any food debris or obstructions. |
| Iċ-ċinturin iħossu wisq issikkat jew maħlul wisq. | Aġġustament mhux korrett taċ-ċinga. | Adjust the harness straps to fit your child snugly but comfortably. Refer to the harness instructions. |
8. Speċifikazzjonijiet
- Numru tal-Mudell tal-Oġġett: 66117 + 66199 + 66759
- Rakkomandazzjoni tal-Piż Massimu: 198 Lira (90 kg)
- Tip ta' Materjal: Injam tal-fagu
- Kulur: Grey (for this specific model variant)
- Huwa portabbli: Iva
Figure 8.1: The high chair's design allows it to fit under most standard tables.
Figure 8.2: Made from sustainable and FSC-certified European beechwood.
9. Garanzija u Appoġġ għall-Klijent
Hauck is committed to providing high-quality child products. For warranty information, product registration, or any questions regarding your high chair, please visit the official Hauck webis-sit jew ikkuntattja direttament lis-servizz tal-klijenti tagħhom.
