Scubapro Classic Scuba Diving BCD with AIR2 User Manual

1. Prodott Aktarview

The Scubapro Classic BCD with AIR2 is a robust and reliable buoyancy control device designed for scuba diving. It combines traditional design principles with modern construction techniques to offer durability and performance. This BCD is constructed from puncture-resistant 420 denier nylon with RF welded seams for maximum integrity.

Il-karatteristiċi ewlenin jinkludu:

• Puncture-resistant polyurethane-coated 420 denier nylon construction.
• RF welded seams for maximum durability and leak prevention.
• Stainless steel Super-Cinch tank band buckle system for secure tank attachment.
• Kwalità għolja web waist belt and stainless steel cam buckle.
• Large pre-bent stainless steel D-rings for accessory attachment.
• Integrated quick-release weight system for safety and convenience.
• Available with a balanced power inflator or AIR2 alternate air source.
• Fully adjustable cummerbund for a snug fit and suit compression compensation.
• Two large Velcro pockets with knife attachment grommets and two zippered pockets for gear storage.
• Rear trim pouches for achieving a balanced swimming position.
• Four large pre-bent stainless steel D-rings and two small stainless steel D-rings for additional clip-on points.

Figura 1: Quddiem view of the Scubapro Classic BCD with AIR2. This image shows the overall design, including the integrated AIR2 system, pockets, and D-rings.

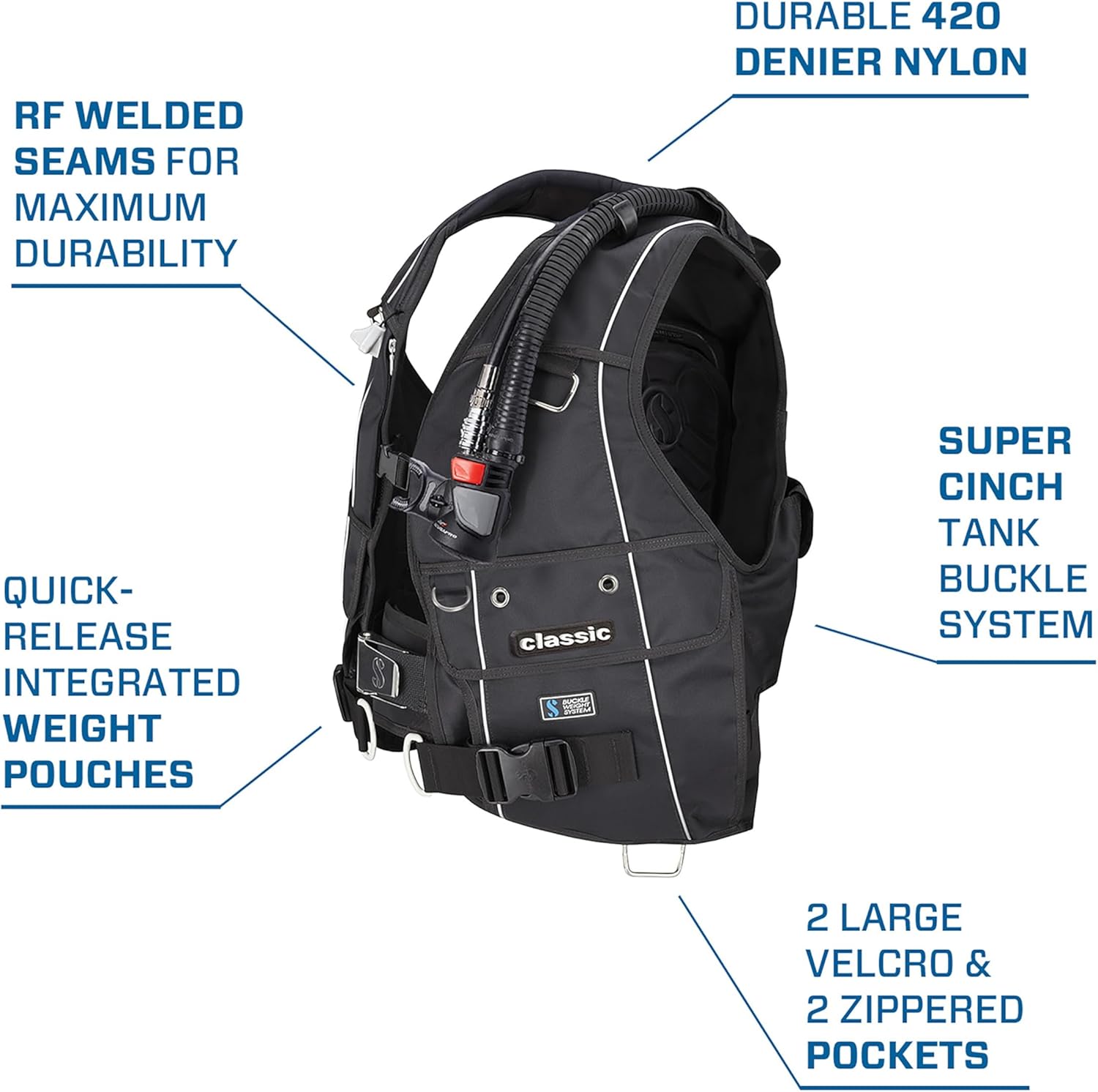

Figura 2: Dettaljat view highlighting key features of the Scubapro Classic BCD, including durable nylon, RF welded seams, Super Cinch tank buckle system, quick-release integrated weight pouches, and multiple pockets.

2. Istruzzjonijiet ta' Setup

Before your first dive, ensure the BCD is correctly assembled and fitted.

1. Attach to Scuba Tank:
   • Position the BCD on the tank so the tank valve aligns with the BCD's tank band.
   • Secure the stainless steel Super-Cinch tank band buckle system firmly around the tank. Ensure the tank is centered and stable.
2. Connect Inflator Hose:
   • Connect the low-pressure inflator hose from your first stage regulator to the BCD's inflator mechanism (either balanced power inflator or AIR2).
   • Ensure a secure connection by pushing the hose connector onto the BCD's inflator post until it clicks into place.
3. Aġġusta Ċineg:
   • Don the BCD and adjust the shoulder straps, cummerbund, and chest strap for a snug, comfortable fit. The BCD should not shift excessively when moving.
   • The fully adjustable cummerbund helps maintain fit at various depths and compensates for suit compression.
4. Load Integrated Weight System:
   • Insert appropriate weights into the quick-release integrated weight pouches.
   • Securely insert the pouches into their designated slots on the BCD. Ensure the quick-release mechanisms are easily accessible and functional.
   • If using rear trim pouches, distribute additional weight as needed for optimal balance.

3. Istruzzjonijiet Operattivi

Proper operation of your BCD is crucial for safety and comfort during dives.

1. Inflazzjoni:
   • To inflate the BCD, press the inflation button on the power inflator (or AIR2). Use short bursts to control buoyancy.
   • For oral inflation, remove the inflator mouthpiece and blow into it.
2. Deflazzjoni:
   • To deflate, press the deflation button on the power inflator (or AIR2).
   • Alternatively, use the BCD's dump valves (shoulder, lower rear) by pulling the respective toggles.
   • When ascending, hold the inflator hose above your head and press the deflate button to vent air.
3. Weight Release:
   • In an emergency, pull the quick-release handles on the integrated weight pouches firmly to jettison weights. Practice this procedure in a controlled environment.
4. Aċċessorju Aċċessorju:
   • Utilize the large pre-bent stainless steel D-rings and smaller D-rings for attaching accessories such as gauges, lights, or cameras.
   • The two large Velcro pockets with knife attachment grommets and two zippered pockets provide secure storage for dive essentials.

4. Kura u Manutenzjoni

Regular maintenance extends the life of your BCD and ensures its reliability.

• Tlaħliħ: After each dive, thoroughly rinse the BCD with fresh water, both inside and out. Inflate the BCD partially, fill with fresh water through the inflator, shake, and drain through the dump valves.
• Tnixxif: Dendel il-BCD f'post dellija u ventilat sew biex jinxef kompletament. Evita d-dawl tax-xemx dirett, li jista' jiddegrada l-materjali.
• Ħażna: Store the BCD partially inflated in a cool, dry place away from chemicals, heat sources, and direct sunlight. Do not store folded tightly.
• Spezzjoni: Periodically inspect all straps, buckles, hoses, and seams for signs of wear, damage, or corrosion. Check the inflator and dump valves for proper function.
• Servizzi Professjonali: Have your BCD professionally serviced annually by an authorized Scubapro technician.

5 Issolvi l-problemi

This section addresses common issues you might encounter with your BCD.

6. Speċifikazzjonijiet tal-Prodott

Figure 3: Scubapro Classic BCD size chart, providing dimensions for height, weight, cummerbund circumference, lift capacity, and jacket weight across various sizes.

7. Garanzija u Appoġġ

For warranty information, please refer to the official Scubapro website or contact your authorized Scubapro dealer. Keep your proof of purchase for any warranty claims.

For technical support, service, or spare parts, please contact an authorized Scubapro service center. Regular professional servicing is recommended to maintain product performance and validate warranty.

You can find more information and contact details on the official Scubapro websit: www.scubapro.com
