1. Introduzzjoni
The TRENDnet TEG-S25D is a 24-Port Gigabit Desktop Switch designed to provide high bandwidth performance, ease of use, and reliability for your network. This unmanaged switch is ideal for boosting office network efficiency and eliminating network congestion with its gigabit speeds and a total switching capacity of 48Gbps in full-duplex mode.
Il-karatteristiċi ewlenin jinkludu:
- 24 Portijiet Gigabit RJ-45: Provides high-speed wired connections for multiple devices.
- Kapaċità ta' Swiċċjar ta' 48Gbps: Ensures smooth data flow and reduces bottlenecks.
- Disinn bla fann: Offers silent operation, suitable for quiet environments.
- Sturdy Metal Enclosure: Kostruzzjoni durabbli għal affidabbiltà fit-tul.
- Provvista ta' Enerġija Interna: Reduces cable clutter and simplifies installation.
- LEDs dijanjostiċi: Aids in quick network troubleshooting.
Stampa 1.1: Quddiem view of the TRENDnet TEG-S25D 24-Port Gigabit Desktop Switch, showcasing its 24 RJ-45 ports and LED indicators.
2. Kontenut tal-Pakkett
Jekk jogħġbok ivverifika li l-pakkett tiegħek fih l-oġġetti li ġejjin:
- TRENDnet TEG-S25D 24-Port Gigabit Desktop Switch
- Gwida ta 'Installazzjoni Mgħaġġla
- Kit għall-Immuntar fuq ix-Xtillieri
- Kurdun tal-Enerġija (1.5m / 4.9 ft.)
3. Setup
The TRENDnet TEG-S25D switch is designed for plug-and-play installation, requiring no software for setup. Follow these steps to integrate the switch into your network:
- Pjazzament: Place the switch on a stable, flat surface or mount it in a 1U rack using the included rackmount brackets. Ensure adequate ventilation around the device.
- Qabbad l-Enerġija: Connect the included power cord to the AC LINE port on the rear of the switch and then to a standard electrical outlet.

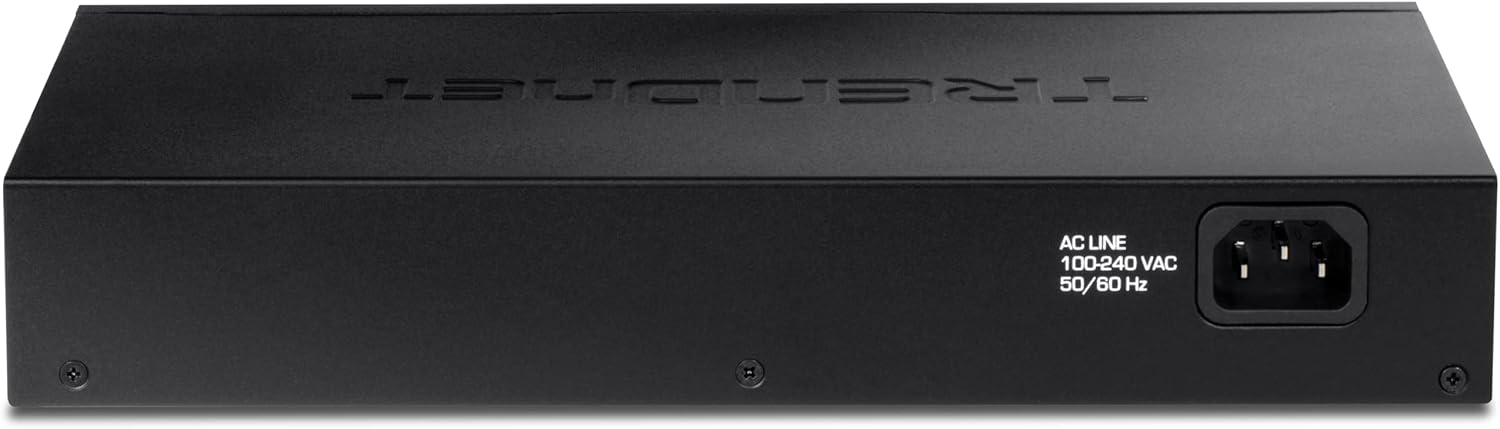

Stampa 3.1: Wara view of the TRENDnet TEG-S25D switch, highlighting the internal power supply connection point.
- Qabbad l-Apparati tan-Netwerk: Connect your network devices (computers, servers, network-attached storage, etc.) to any of the 24 Gigabit RJ-45 ports on the front panel using standard Ethernet cables. The switch automatically detects the speed and duplex mode of the connected devices.
Image 3.2: The TRENDnet TEG-S25D switch shown with rackmount brackets, illustrating its suitability for rack installations.
3.1. Energy Efficiency (GREENnet Technology)
TRENDnet's GREENnet technology is an embedded energy-saving feature that reduces power consumption without affecting performance. This technology helps lower electricity bills and contributes to environmental conservation.
4. Tħaddim tas-Swiċċ
Once powered on and connected, the TRENDnet TEG-S25D switch operates automatically. It is an unmanaged switch, meaning it requires no configuration. Data transfer begins immediately upon connecting devices.
4.1. Indikaturi LED
The front panel of the switch features LED indicators that provide real-time status information for each port and the device itself. These LEDs are crucial for monitoring network activity and troubleshooting.
- LED PWR (Qawwa): Jindika l-istatus tal-qawwa tas-swiċċ.
- LINK/ACT (Link/Activity) LEDs: For each port, a solid light indicates a successful network link, and a blinking light indicates data activity.
- 10/100/1000 (Speed) LEDs: For each port, indicates the connection speed (e.g., green for Gigabit, amber for Fast Ethernet).
Immaġni 4.1: Dettaljata view of the front panel, showing the LED indicators for power, link/activity, and speed for each of the 24 Gigabit RJ-45 ports.
5. Speċifikazzjonijiet
| Karatteristika | Deskrizzjoni |
|---|---|
| Mudell | TEG-S25D |
| Portijiet | 24 x Gigabit RJ-45 |
| Kapaċità tal-Qlib | 48Gbps |
| Rata ta ’Trasmissjoni | 35.71Mpps (daqs tal-pakkett ta' 64 byte) |
| Rata ta' Trasferiment tad-Data | Ethernet: 10/20 Mbps (half/full duplex) Fast Ethernet: 100/200 Mbps (half/full duplex) Gigabit: 2000 Mbps (full duplex) |
| Materjal tal-Każ | Metall |
| Dimensjonijiet (L x W x H) | 10.51 x 6.38 x 1.65 pulzieri |
| Piż tal-oġġett | 2.93 liri |
| Provvista tal-Enerġija | Internal, 100-240 VAC, 50/60 Hz |
| Disinn | Fanless, Desktop/Rackmount |
6. Manutenzjoni
To ensure optimal performance and longevity of your TRENDnet TEG-S25D switch, consider the following maintenance tips:
- Ventilazzjoni: Kun żgur li s-swiċċ ikun f'żona ventilata sew. Timblokkax it-toqob tal-ventilazzjoni fuq il-ġnub tal-apparat.
- Tindif: Naddaf regolarment il-barra tas-swiċċ b'ċarruta ratba u niexfa. Evita li tuża prodotti tat-tindif likwidi jew aerosol.
- Ġestjoni tal-Kejbil: Keep network cables organized to prevent accidental disconnections and improve airflow.
- Protezzjoni tal-Enerġija: Connect the switch to a surge protector or an Uninterruptible Power Supply (UPS) to protect against power fluctuations.
7 Issolvi l-problemi
If you encounter issues with your TRENDnet TEG-S25D switch, try the following basic troubleshooting steps:
- Ebda Qawwa: Check if the power cord is securely connected to both the switch and the electrical outlet. Verify the power outlet is functional.
- L-ebda Dawl tal-Konnessjoni: Ensure the Ethernet cable is securely connected to both the switch port and the network device. Try a different cable or port. Verify the connected device is powered on and functioning correctly.
- Konnessjoni bil-mod: Check the speed LED for the connected port to confirm it's operating at the expected speed (e.g., 1000Mbps for Gigabit). Ensure your Ethernet cables are rated for Gigabit speeds (Cat5e or higher).
- Konġestjoni tan-Netwerk: If multiple devices are experiencing slow speeds, ensure your internet service provider (ISP) connection is adequate for your usage. Consider upgrading network infrastructure if consistently experiencing high traffic.
8. Garanzija u Appoġġ
This TRENDnet TEG-S25D switch is a renewed item and comes with a 90-day TRENDnet Renewed Guarantee. This guarantee covers inspection and approval by TRENDnet for a period of 90 days from the date of purchase.
For new TRENDnet Switches, lifetime protection is typically offered. Please refer to the official TRENDnet website or contact their customer support for detailed warranty terms and conditions for renewed products.
For technical support, product registration, and additional resources, please visit the official TRENDnet website or consult the Quick Installation Guide included in your package.
