Introduzzjoni
Thank you for choosing the Superay Full 14 Inch Metal Platform Bed Frame. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Informazzjoni Importanti dwar is-Sigurtà
- Kapaċità tal-piż: Teċċedix il-kapaċità massima tal-piż ta' 2000 liriJekk jinqabeż dan il-limitu jista' jirriżulta fi ħsara strutturali u korriment.
- Assemblea: Ensure proper and complete assembly of all components before use. Verify all bolts and screws are securely tightened.
- Moviment: Exercise caution when moving the assembled bed frame due to its weight. It is recommended to have two people move the frame to prevent injury or damage.
- Tfal: Żomm il-partijiet żgħar 'il bogħod mit-tfal waqt l-assemblaġġ biex tevita perikli ta' fgar.
- Għodod: Use appropriate tools as specified in the assembly instructions.
Kontenut tal-Pakkett
Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact Superay customer support.
- Bed Frame Sections (Main frame, support legs)
- Paletti tal-Azzar
- Mattress Slide Stoppers (Gaskets)
- Silicone Anti-slip Foot Caps
- Assembly Hardware (Bolts, Allen wrench)
- Manwal ta' Istruzzjoni
Setup u Assemblea
The Superay Full 14 Inch Metal Platform Bed Frame is designed for easy assembly, typically achievable by one person within 15 minutes. Follow these steps carefully:
- Ħoll il-Komponenti: Carefully remove all parts from the packaging and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches.
- Arma s-Sezzjonijiet tal-Qafas: Connect the main frame sections. The design features folding slats and leg supports for simplified setup. Ensure all connections are aligned correctly.
- Konnessjonijiet sikuri: Use the provided hardware (bolts and Allen wrench) to securely fasten all frame connections. Do not overtighten initially; tighten fully once all parts are loosely connected.
- Waħħal is-Saqajn ta' Appoġġ: Ensure all support legs are properly extended and locked into place. Each leg is equipped with a silicone anti-slip foot cap.
- Installa t-Tappijiet tas-Slajds tas-Saqqijiet: Attach the mattress slide stoppers (gaskets) to the designated points on the frame. Ensure they are mounted outwards to effectively prevent mattress movement. Refer to the image below for correct orientation.
- Issikkar finali: Once the entire frame is assembled, go back and fully tighten all bolts and screws to ensure maximum stability and noise elimination.
Image: Step-by-step visual of the bed frame assembly process, from individual components to the fully constructed frame.

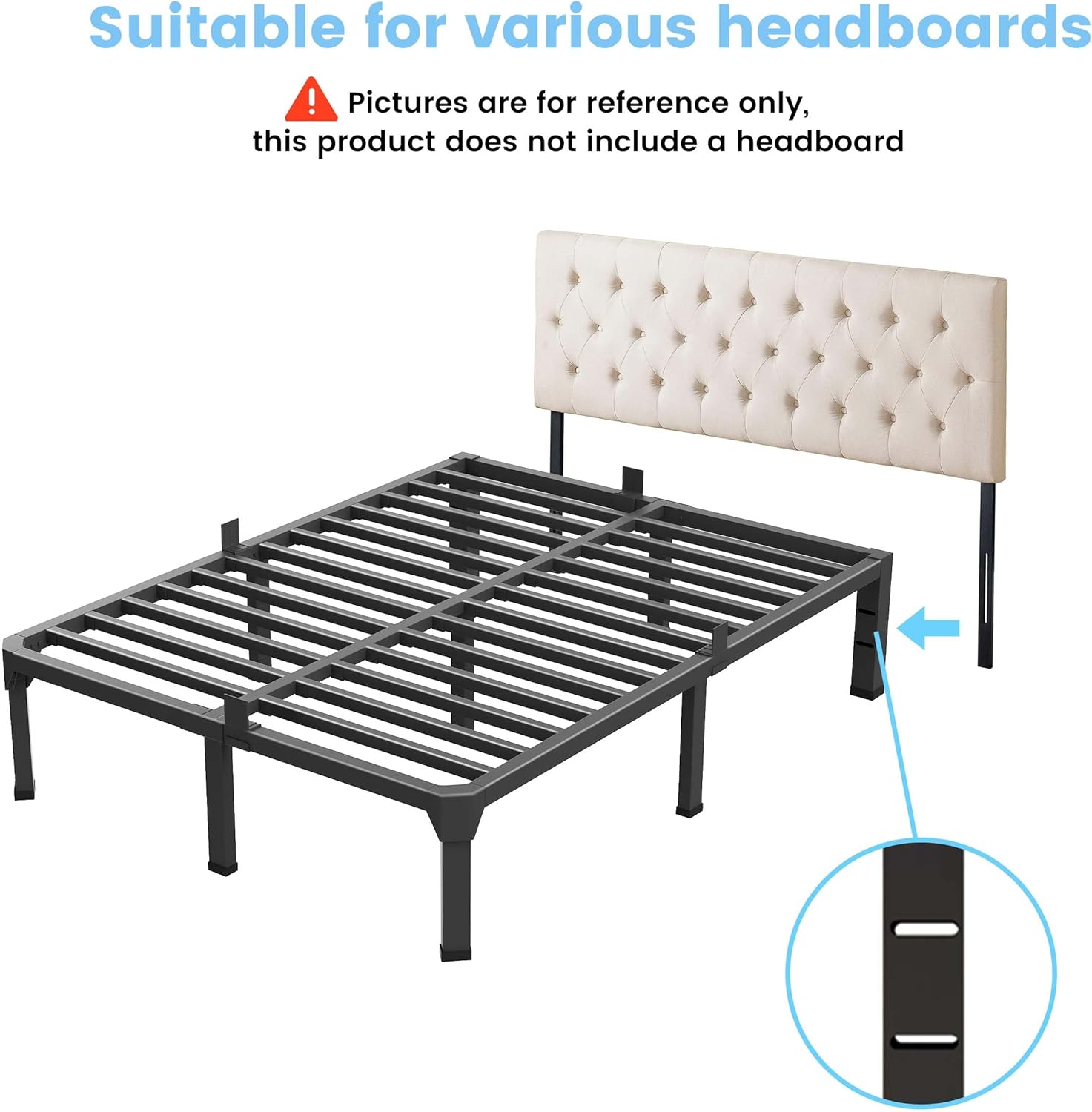

Image: Detail showing the pre-drilled holes on the bed frame legs, designed for attaching a headboard.
Image: Illustration demonstrating the correct outward mounting of the mattress stopper for stability, contrasted with an incorrect inward mounting that allows the mattress to slide.
Operazzjoni u Karatteristiċi
Your Superay bed frame is designed for optimal support and convenience.
Tqegħid tas-Saqqijiet
Place your full-size mattress directly onto the steel slats. No box spring is required. The integrated mattress slide stoppers will help keep your mattress securely in place, preventing unwanted movement.
Eliminazzjoni tal-Ħoss
The frame incorporates a U-shaped groove design and silicone anti-slip foot caps on each support leg. These features work together to minimize noise and prevent the frame from sliding, ensuring a quiet and stable sleep environment.
Kompatibilità tal-Headboard
The bed frame includes reserved holes on the legs, allowing for easy attachment of most standard headboards. This provides flexibility to customize your bedroom's aesthetic.
Ħażna taħt is-sodda
With 12.6 inches of clearance from the ground to the frame, this bed frame offers ample space for under-bed storage, helping you keep your bedroom organized.
Image: The Superay bed frame with a mattress and bedding, showcasing its appearance in a typical bedroom.
Image: A visual representation of the 12.6-inch clearance beneath the bed frame, demonstrating its capacity for storage with various items.
Manutenzjoni
To ensure the longevity and optimal performance of your Superay bed frame, follow these simple maintenance guidelines:
- Tindif: Wipe the metal frame with a dry or slightly damp drapp biex tneħħi t-trab u l-ħmieġ. Evita li tuża kimiċi ħarxa jew prodotti tat-tindif li joborxu, għax dawn jistgħu jagħmlu ħsara lill-finitura.
- Spezzjoni regolari: Iċċekkja l-boltijiet u l-konnessjonijiet kollha perjodikament biex tiżgura li jibqgħu ssikkati. Issikkahom mill-ġdid jekk meħtieġ biex iżżomm l-istabbiltà u tevita l-ħoss ta' ħsejjes.
- Tappijiet tas-saqajn: Inspect the silicone foot caps for wear and tear. Replace if damaged to continue protecting your floors and maintaining noise reduction.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-istruttura tas-sodda qed tgħajjat jew mhix stabbli. | Boltijiet jew konnessjonijiet maħlula. | Check and tighten all bolts and screws on the frame. Ensure all frame sections are properly interlocked. |
| Is-saqqu jiżżerżaq fuq il-qafas. | Mattress slide stoppers are not installed or incorrectly oriented. | Ensure all mattress slide stoppers are installed and correctly mounted outwards. Refer to the assembly section for proper installation. |
| Floor is getting scratched. | Missing or damaged silicone foot caps. | Verify that all support legs have their silicone anti-slip foot caps securely in place. Replace any damaged caps. |
| Difficulty attaching a headboard. | Headboard not compatible or alignment issues. | Ensure your headboard is compatible with standard attachment points. Adjust the headboard's brackets to align with the pre-drilled holes on the bed frame legs. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | MT19-14F |
| Daqs | Sħiħ |
| Dimensjonijiet tal-Prodott (L x W x H) | 74.5" x 53.4" x 14" |
| Daqs tas-Saqqu Kompatibbli | 75"L x 54"W (Full) |
| Kapaċità tal-piż | 2000 lbs |
| Distanza mill-Art għall-Oġġett (Spazju taħt is-Sodda) | 12.6 Pulzier |
| Materjal | Azzar Heavy Duty |
| Karatteristiċi Speċjali | Anti-Collision Corner Design, Heavy Duty Steel Slats, Headboard Compatible, Squeak Resistant, Mattress Slide Stoppers |
| Assemblea Meħtieġa | Iva |
| Piż tal-oġġett | 37.8 liri |
Image: Detailed dimensions of the Full size bed frame, including length, width, height, and under-bed clearance, along with its 2000 lbs weight capacity.
Image: A comprehensive diagram illustrating the dimensions for all available bed frame sizes, including Twin, Twin XL, Full, Queen, King, and California King.
Garanzija u Appoġġ għall-Klijent
For any questions, concerns, or assistance with your Superay Full 14 Inch Metal Platform Bed Frame, please contact Superay customer support. Refer to your purchase documentation or the Superay official webis-sit għal dettalji speċifiċi tal-garanzija u informazzjoni ta' kuntatt.
We are committed to providing high-quality products and support to ensure your satisfaction.
