1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your Nakamichi NAM 5510 A9Z 9-inch Car Android Stereo. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage. Keep this manual for future reference.
2. Informazzjoni dwar is-Sigurtà
Observe the following safety guidelines to ensure safe operation and prevent injury or damage:
- Installazzjoni Professjonali Rakkomandata: Due to the complexity of car audio systems, professional installation is highly recommended. Incorrect wiring can cause damage to the unit or your vehicle.
- Provvista tal-Enerġija: Qabbad l-unità biss ma' batterija tal-karozza ta' 12V DC b'art negattiva.
- Evita l-ilma u l-umdità: Tesponix l-unità għall-ilma jew għal umdità eċċessiva.
- Temperatura: Operate the unit within recommended temperature ranges.
- Sigurtà tas-Sewqan: Tħaddimx l-unità b'mod li jtelliflek mis-sewqan. Dejjem agħti prijorità lis-sigurtà fit-triq.
- Ventilazzjoni: Kun żgur li jkun hemm ventilazzjoni adegwata madwar l-unità biex tevita li tissaħħan iżżejjed.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- 1 x Nakamichi NAM 5510 A9Z Car Android Stereo Unit
- Ħardwer tal-Installazzjoni
- Manwal għall-Utent (dan id-dokument)
4. Prodott Aktarview
The Nakamichi NAM 5510 A9Z is a 9-inch Car Android Stereo designed to enhance your in-car entertainment and connectivity. It features a capacitive touch screen and runs on an Android operating system, offering a wide range of functionalities.
Karatteristiċi ewlenin:
- Touch Screen ta '9 pulzieri capacitive
- Sistema Operattiva Android
- 4GB RAM + 64GB Ħażna Interna
- Wireless Apple CarPlay and Android Auto via ZLINK App
- 4G SIM Card Compatibility
- Built-in Digital Sound Processor (DSP)
- Bluetooth 5.0 for wireless communication
- Support for 360-degree Camera Systems
- High Power Audio Chipset for superior sound quality
Unit Components:

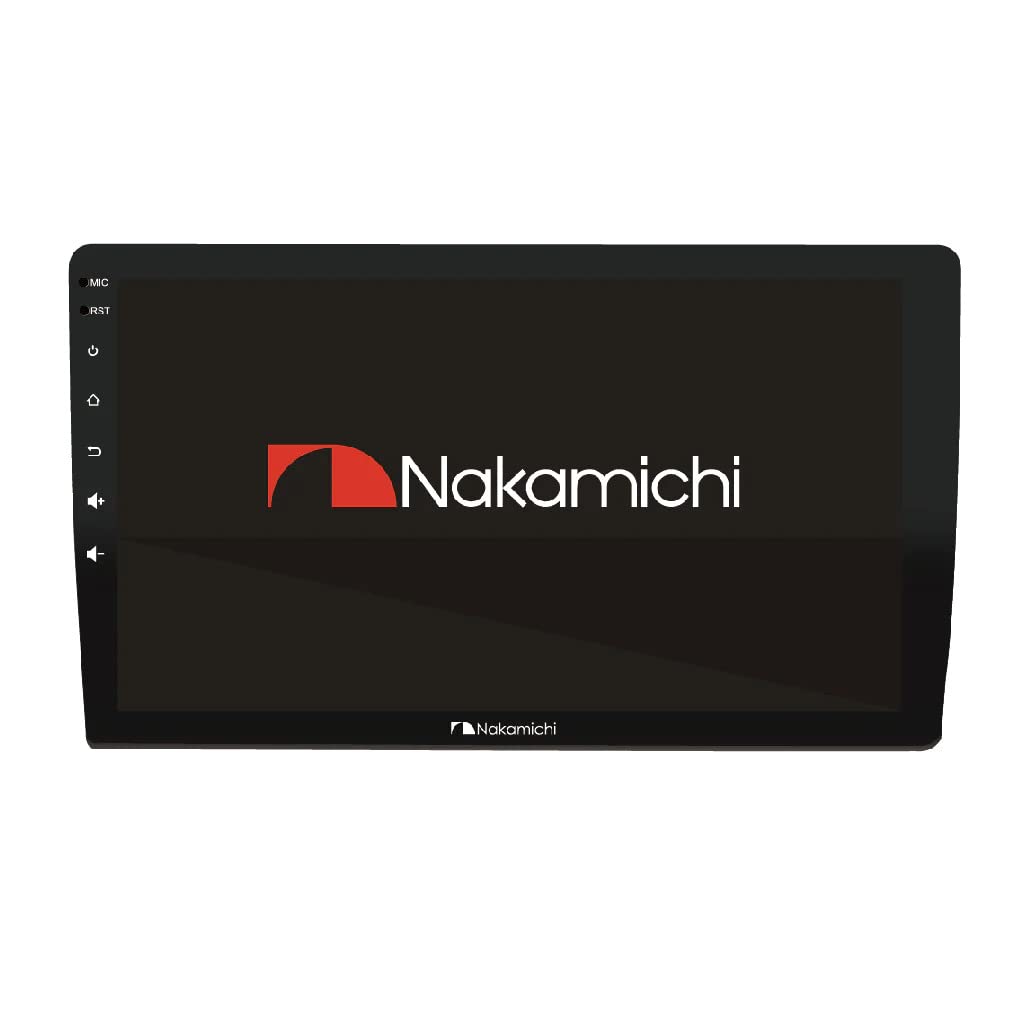

Figura 4.1: Quddiem view of the Nakamichi NAM 5510 A9Z Car Android Stereo. This image shows the main display unit with the Nakamichi logo and side control buttons for microphone, reset, power, home, back, and volume.
Figura 4.2: The home screen interface of the Nakamichi NAM 5510 A9Z, showing icons for Chrome, Radio, Music, Video, Bluetooth, Play Store, Maps, BT Music, Settings, and File Maniġer.
5. Setup
5.1 Installazzjoni
It is strongly recommended that the Nakamichi NAM 5510 A9Z be installed by a qualified professional. Incorrect installation can lead to damage to the unit, vehicle electrical systems, or personal injury. Refer to the included installation hardware and wiring diagrams for specific connections.
5.2 Tixgħel Inizjali
After successful installation, turn on your vehicle's ignition. The unit should power on automatically. Follow any on-screen prompts for initial setup.
Password tal-fabbrika: If prompted for a factory password during advanced settings or system configuration, use 1948.
6. Istruzzjonijiet Operattivi
6.1 Operazzjoni Bażika
- Touch Screen: The 9-inch capacitive touch screen responds to finger gestures similar to a smartphone.
- Buttuna tad-dar: Jirritorna għall-iskrin prinċipali tad-dar.
- Buttuna Lura: Navigates to the previous screen or menu.
- Kontroll tal-Volum: Aġġusta l-livell tal-ħruġ tal-awdjo.

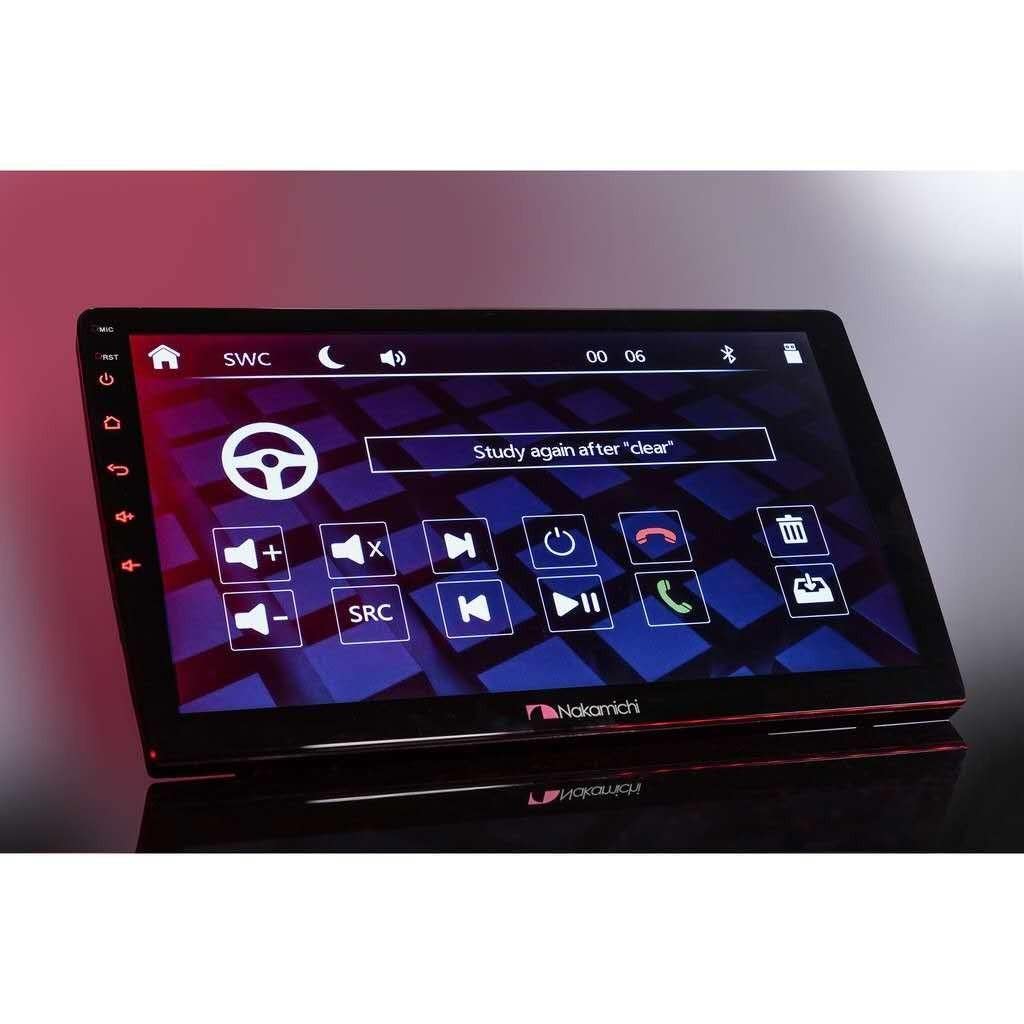

Figura 6.1: The steering wheel control learning interface, allowing users to program physical steering wheel buttons to control the stereo functions.
6.2 Bluetooth Connectivity (BT 5.0)
The unit features Bluetooth 5.0 for hands-free calling and audio streaming.
- Navigate to the 'Bluetooth' application on the home screen.
- Ippermetti Bluetooth fuq it-tagħmir mobbli tiegħek u fittex tagħmir disponibbli.
- Select 'NAM 5510 A9Z' from the list on your mobile device to pair.
- Ikkonferma l-kodiċi tat-tqabbil jekk tintalab.
- Ladarba tkun imqabbad, tista' tagħmel/tirċievi telefonati u tixxandar l-awdjo mingħajr fili.
6.3 Wireless Apple CarPlay / Android Auto (ZLINK App)
Connect your smartphone wirelessly for an integrated experience using the pre-installed ZLINK app.
- Kun żgur li l-Wi-Fi u l-Bluetooth tat-telefon tiegħek huma attivati.
- Open the 'ZLINK' application on the stereo.
- Follow the on-screen instructions to connect your Apple or Android device.
- Once connected, your phone's compatible apps will appear on the stereo display.
6.4 4G SIM Compatibility
The unit supports a 4G SIM card for direct internet access, allowing you to use online navigation, streaming services, and other internet-dependent applications without tethering to a phone.
- Locate the SIM card slot (refer to installation guide for exact location).
- Insert a compatible 4G SIM card.
- Configure network settings if necessary via the 'Settings' menu.
6.5 Proċessur tal-Ħoss Diġitali (DSP)
The inbuilt DSP allows for advanced audio customization. Access the DSP settings through the 'Settings' or a dedicated 'DSP' app to adjust equalization, time alignment, and other audio parameters for an optimized listening experience.
6.6 360 Degree Camera Support
The NAM 5510 A9Z is compatible with 360-degree camera systems, providing a comprehensive view around your vehicle for enhanced safety during parking and maneuvering. Connect compatible cameras according to the installation guide.
Figura 6.2: The stereo displaying a YouTube video, demonstrating its multimedia playback capabilities and internet connectivity.
7. Manutenzjoni
- Tindif tal-Iskrin: Uża drapp artab u mingħajr suf biex timsaħ l-iskrin bil-mod. Għal tbajja' persistenti, nixxef ftit.ampLaħlaħ id-drapp bl-ilma jew b'soluzzjoni għat-tindif tal-iskrin. Evita kimiċi ħarxa.
- Tindif Ġenerali: Keep the unit free from dust and debris. Use a soft, dry cloth for the exterior.
- Aġġornamenti tas-Software: Iċċekkja perjodikament għal aġġornamenti tas-softwer permezz tas-settings tas-sistema biex tiżgura prestazzjoni ottimali u aċċess għal karatteristiċi ġodda.
8 Issolvi l-problemi
If you encounter issues with your Nakamichi NAM 5510 A9Z, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda Qawwa | Wajers mhux korretti, fjus maħruq, problema bil-batterija tal-vettura. | Check power connections and fuses. Consult a professional installer. |
| Ebda Ħoss | Volume too low, mute activated, speaker wiring issues, incorrect audio output settings. | Increase volume, check mute status, verify speaker connections, adjust audio settings. |
| Bluetooth/CarPlay/Android Auto not connecting | Bluetooth/Wi-Fi off on phone/unit, incorrect pairing, app issues. | Ensure Bluetooth/Wi-Fi is on. Re-pair devices. Restart phone and unit. Update ZLINK app. |
| Touch screen ma jirrispondix | Is-sistema ffriżata, problema temporanja tas-softwer. | Perform a soft reset using the 'RST' button (refer to unit diagram). If issue persists, consult support. |
| 4G SIM not detected/no internet | SIM card incorrectly inserted, network configuration issues, SIM card not active. | Reinsert SIM card. Check network settings in the system menu. Verify SIM card activation with your provider. |
For issues not covered here, please contact Nakamichi customer support.
9. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Nakamichi |
| Mudell | NAM 5510 A9Z |
| Daqs tal-Iskrin | 9 Pulzier |
| Sistema Operattiva | Android |
| RAM | 4 GB |
| Ħażna Interna | 64 GB |
| Bluetooth | BT 5.0 (Max Communication Range: About 5m, Frequency Band: 2.4GHz) |
| Teknoloġija tal-Konnettività | USB, Coupler, 4G SIM |
| Karatteristiċi Speċjali | Android Auto, Built-In Bluetooth, DSP, Wireless Apple CarPlay, 4G SIM Compatible, 360 Degree Camera Support |
| Modalità tal-Ħruġ tal-Awdjo | Stereo |
| Konfigurazzjoni tal-Kanal tal-Ħoss Surround tal-Ispeaker | 2.1 |
| Wattage | 5E+1 (50W) |
| Dimensjonijiet tal-Prodott (LxWxH) | 25.4 x 25.4 x 25.4 ċm |
| Piż tal-oġġett | 200 g |
10. Garanzija u Appoġġ
Your Nakamichi NAM 5510 A9Z Car Android Stereo comes with a 1 Snin Garanzija mid-data tax-xiri. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
For technical support, warranty inquiries, or further assistance, please visit the official Nakamichi webis-sit jew ikkuntattja lin-negozjant awtorizzat tiegħek.
You can also visit the Nakamichi store on Amazon for more product information: Nakamichi Amazon Store
