Modern Flames Redstone 54-Inch Built-in Electric Fireplace (RS-5435) User Manual

1. Introduzzjoni

This manual provides essential information for the safe installation, operation, and maintenance of your Modern Flames Redstone 54-Inch Built-in Electric Fireplace (Model RS-5435). Please read all instructions carefully before installation and use to ensure proper function and safety. Keep this manual for future reference.

Figura 1: The Modern Flames Redstone 54-Inch Built-in Electric Fireplace, showcasing its realistic flame effects and log set within a sleek black frame.

2. Informazzjoni Importanti dwar is-Sigurtà

WARNING: Read and understand all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• This electric fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the fireplace.
• Attenzjoni kbira hija meħtieġa meta xi heater jintuża minn jew ħdejn tfal jew persuni invalidi u kull meta n-nar jitħalla jaħdem u ma jkunx hemm attenzjoni.
• Tħaddemx fuklar b'korda jew plagg bil-ħsara jew wara li l-fuklar ma jkunx qed jaħdem sew, ikun waqa', jew ikun bil-ħsara b'xi mod.
• Tmexxix korda taħt it-twapet. Tgħattix il-korda b'twapet tat-twapet, runners, jew kisi simili. Irranġa l-korda 'l bogħod miż-żona tat-traffiku u fejn ma titfixkelx.
• Qabbad ma' ħwienet ertjati sew biss.
• Daħħalx jew tħallix oġġetti barranin jidħlu fi kwalunkwe fetħa tal-ventilazzjoni jew tal-egżost għax dan jista' jikkawża xokk elettriku jew nar, jew jagħmel ħsara lill-fuklar.
• Biex tipprevjeni nar possibbli, m'għandekx timblokka d-dħul tal-arja jew l-egżost bl-ebda mod. Tużax fuq uċuħ rotob, bħal sodda, fejn il-fetħiet jistgħu jiġu mblukkati.
• Dan in-nar għandu partijiet sħan u li jagħmlu ark jew xrar ġewwa. Tużahx f'żoni fejn jintużaw jew jinħażnu gażolina, żebgħa, jew fwar jew likwidi fjammabbli.

3. Setup u Installazzjoni

The Modern Flames Redstone RS-5435 is designed for built-in installation. Proper planning and adherence to dimensions are crucial for a successful setup.

3.1 Disimballaġġ

Carefully remove the fireplace from its packaging. Retain all packaging materials for future transport or if the unit needs to be returned. Inspect the unit for any damage incurred during shipping. Contact your retailer immediately if any damage is found.

3.2 Rekwiżiti tal-Post

Ensure the chosen location for installation is structurally sound and can support the weight of the fireplace (approximately 196 pounds). Maintain proper clearances from combustible materials as outlined in the safety section.

3.3 Konnessjoni Elettrika

This unit operates on a standard corded electric power source. Ensure the electrical outlet is properly grounded and meets local electrical codes. Do not use extension cords or power strips with this appliance.

3.4 Dimensjonijiet u Qafas

Accurate framing is essential for a flush built-in installation. Refer to the detailed dimension diagram below for precise measurements.

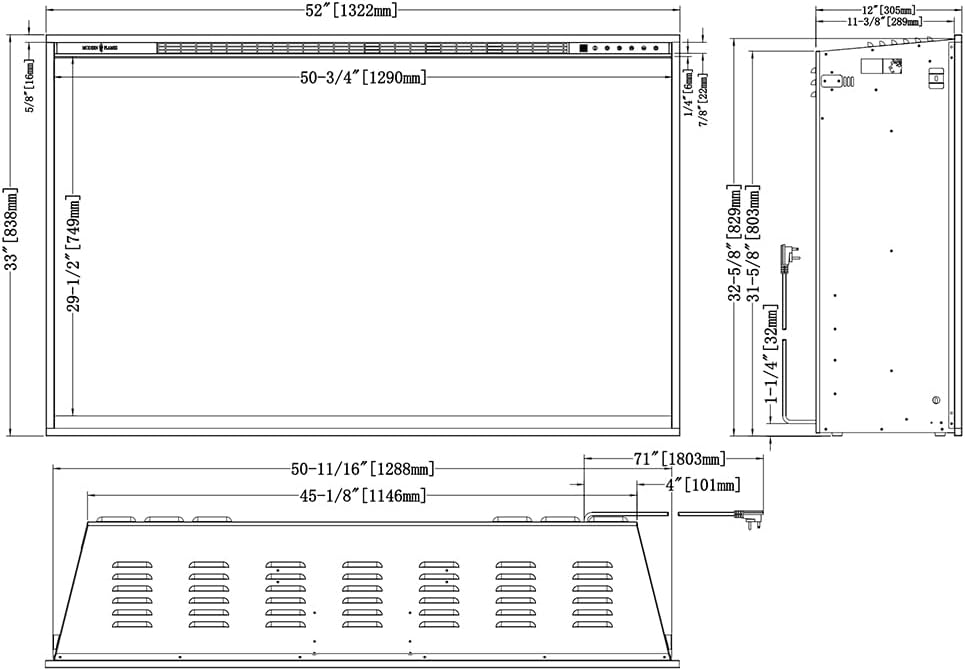

Figura 2: Technical drawing illustrating the precise dimensions (in inches and millimeters) for the Modern Flames Redstone RS-5435, crucial for built-in installation.

The overall product dimensions are approximately 12"D x 52"W x 33"H. The chamber width is 54 inches. Consult the diagram for specific cutout and clearance requirements.

4. Istruzzjonijiet Operattivi

The Redstone RS-5435 offers advanced flame technology and heating capabilities, controllable via the included remote or the integrated control panel.

4.1 Tixgħel/Jitfi

Press the power button on the remote control or the control panel to turn the fireplace on or off. The unit will retain the last flame and heat settings when powered off and on again.

4.2 Effetti tal-Fjamma

This fireplace features Hybrid-FX Flame Technology with high-intensity RGB up-lighting, down-lighting, and 10 unique flame colors. Use the flame color button on the remote or control panel to cycle through the available options. The flame effects can operate independently of the heating function.

Figura 3: Visual representation of the various flame color options (Blue, Orange, Red, with and without logs), the included remote control, and the integrated control buttons on the fireplace unit.

4.3 Funzjoni tat-Tisħin

The integrated 5,000 BTU heater provides supplemental heat for areas up to 400 sq. ft. Use the heat button on the remote or control panel to activate the heater. The heat output is variable and thermostatically controlled. Adjust the temperature setting to your desired comfort level. The heating function can be operated independently of the flame effects.

4.4 Kontroll mill-Bogħod

The included remote control provides convenient access to all fireplace functions, including power, flame color, flame intensity, heat settings, and timer. Ensure the remote has working batteries and is pointed towards the fireplace's receiver.

4.5 Buttuni tal-Kontroll

In addition to the remote, the fireplace features an integrated control panel, typically located discreetly on the unit, allowing manual operation of all primary functions.

5. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your electric fireplace. Always disconnect power before performing any maintenance.

5.1 Tindif

• Barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax prodotti tat-tindif jew sprejs li joborxu.
• Panel tal-ħġieġ: Naddaf il-pannell tal-ħġieġ b'ċarruta ratba u prodott tat-tindif tal-ħġieġ li ma jobrox.
• Vents tal-arja: Periodically vacuum the air intake and exhaust vents to prevent dust buildup, which can impede airflow and heating efficiency.

5.2 Log Set and Ember Bed

The decorative log set and ember bed can be gently dusted with a soft brush or cloth. Do not use water or cleaning solutions directly on these components.

6 Issolvi l-problemi

If you experience issues with your fireplace, consult the following common troubleshooting steps. If the problem persists, contact customer support.

• Ebda Qawwa: Ensure the fireplace is properly plugged into a grounded outlet. Check the circuit breaker for the outlet.
• Ebda Sħana: Verify that the heating function is activated and the temperature setting is above the ambient room temperature. Ensure air vents are not blocked.
• Flame Effects Not Working: Check if the flame effect is turned on. If using the remote, ensure batteries are functional and correctly inserted.
• Il-Kontroll mill-bogħod ma Jirrispondix: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's receiver.
• Ħsejjes mhux tas-soltu: A slight fan noise is normal during heating operation. If you hear loud or unusual noises, turn off the unit and contact support.

7. Speċifikazzjonijiet

8. Informazzjoni dwar Garanzija

The Modern Flames Redstone RS-5435 Electric Fireplace comes with a Garanzija Limitata. For specific details regarding the terms, conditions, and duration of your warranty, please refer to the warranty card included with your product or visit the official Modern Flames websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

9. Appoġġ għall-Klijent

For technical assistance, replacement parts, or any questions not covered in this manual, please contact Modern Flames customer service:

• Websit: www.modernflames.com
• Informazzjoni ta' Kuntatt: Refer to the 'Contact Us' section on the official websit għal numri tat-telefon u appoġġ bl-email.

When contacting support, please have your model number (RS-5435) and proof of purchase readily available.
