Endeavour Fires Rosedale 3D Wall-Mounted Electric Fireplace

1. Introduzzjoni

Grazzi tax-xiriasing the Endeavour Fires Rosedale 3D Wall-Mounted Electric Fireplace. This manual provides essential information for the safe installation, operation, and maintenance of your new electric fireplace. Please read all instructions carefully before installation and use, and retain this manual for future reference.

Image 1.1: The Endeavour Fires Rosedale 3D Wall-Mounted Electric Fireplace, showcasing its modern design and vibrant flame effects.

2. Informazzjoni Importanti dwar is-Sigurtà

Dejjem osserva l-prekawzjonijiet ta’ sigurtà li ġejjin biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment:

• Aqra l-istruzzjonijiet kollha qabel tuża dan l-apparat.
• This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 1 meter (3 feet) from the front of the heater.
• Attenzjoni kbira hija meħtieġa meta xi heater jintuża minn jew ħdejn tfal jew persuni invalidi u kull meta l-heater jitħalla jaħdem u ma jkunx hemm attenzjoni.
• M'għandekx tħaddem xi heater b'kurdun jew plagg bil-ħsara jew wara li l-heater ma jaħdimx sewwa, ikun twaqqa 'jew ikun sarlu ħsara b'xi mod.
• Tużax barra.
• Qatt issib il-heater fejn jista' jaqa' ġo bathtub jew kontenitur ieħor tal-ilma.
• Tmexxix korda taħt it-twapet. Tgħattix il-korda b'twapet tat-twapet, runners, jew kisi simili. Irranġa l-korda 'l bogħod miż-żona tat-traffiku u fejn ma titfixkelx.
• Biex skonnettja l-heater, itfi l-kontrolli, imbagħad neħħi l-plagg mill-iżbokk.
• Daħħalx jew tħallix oġġetti barranin jidħlu f'xi ftuħ ta' ventilazzjoni jew exhaust peress li dan jista' jikkawża xokk elettriku jew nar, jew jagħmel ħsara lill-heater.
• Biex tipprevjeni nar possibbli, m'għandekx timblokka d-dħul tal-arja jew l-egżost bl-ebda mod. Tużax fuq uċuħ rotob, bħal sodda, fejn il-fetħiet jistgħu jiġu mblukkati.
• Dan l-apparat huwa għall-użu fuq ġewwa biss.

3. Kontenut tal-Pakkett

Iftaħ il-komponenti kollha mill-pakkett bir-reqqa u ċċekkja mal-lista t'hawn taħt. Kun żgur li l-oġġetti kollha huma preżenti u mhux imħassra qabel ma tipproċedi bl-installazzjoni.

• Electric Fireplace Unit (Model E151R)
• Multi-function LCD Remote Control (requires 2 AA batteries, included)
• Realistic Log Set
• Crystal Media Set
• Ħardwer tal-Installazzjoni (viti, parentesi, eċċ.)
• Glass Panels for 1, 2, or 3-sided configuration
• Manwal ta' Istruzzjoni

4. Installazzjoni

4.1 Għażliet ta 'Immuntar

The Rosedale electric fireplace offers versatile installation options to suit your design preferences. It can be configured as a 1-sided (front aspect), 2-sided (corner aspect), or 3-sided (panoramic aspect) unit.

• Front Aspect (Default): The fireplace is installed with only the front glass panel visible.
• Corner Aspect: One side panel is removed to expose a side view, ideal for corner installations.
• Panoramic Aspect: Both side panels are removed for a full three-sided view, offering maximum visual impact.

Image 4.1: Visual representation of the three available installation aspects: Front, Corner, and Panoramic.

4.2 Dimensjonijiet u Pożizzjonament

Ensure the chosen installation location can accommodate the fireplace dimensions and provides adequate clearance for ventilation. The unit is designed for integration into a wall structure.

Image 4.2: Detailed dimensions diagram for the electric fireplace unit.

The fireplace is designed to be integrated into a media wall or similar structure. Ensure the wall opening is precisely measured to fit the unit. Maintain proper clearance around the unit for air circulation, especially for the heat outlet.

Immaġni 4.3: Eż.ample of the fireplace installed in a wall unit, demonstrating a corner aspect.

5. Setup Inizjali

5.1 Fuel Bed Installation

The Rosedale fireplace comes with both realistic log and crystal media sets. You can choose to use either or combine them to create your desired aesthetic.

1. Carefully remove the front glass panel if necessary, following the instructions in the installation guide.
2. Place the chosen fuel bed media (logs, crystals, or both) onto the designated fuel bed area within the fireplace unit. Arrange them to achieve a natural and appealing look.
3. Re-secure the front glass panel if it was removed.

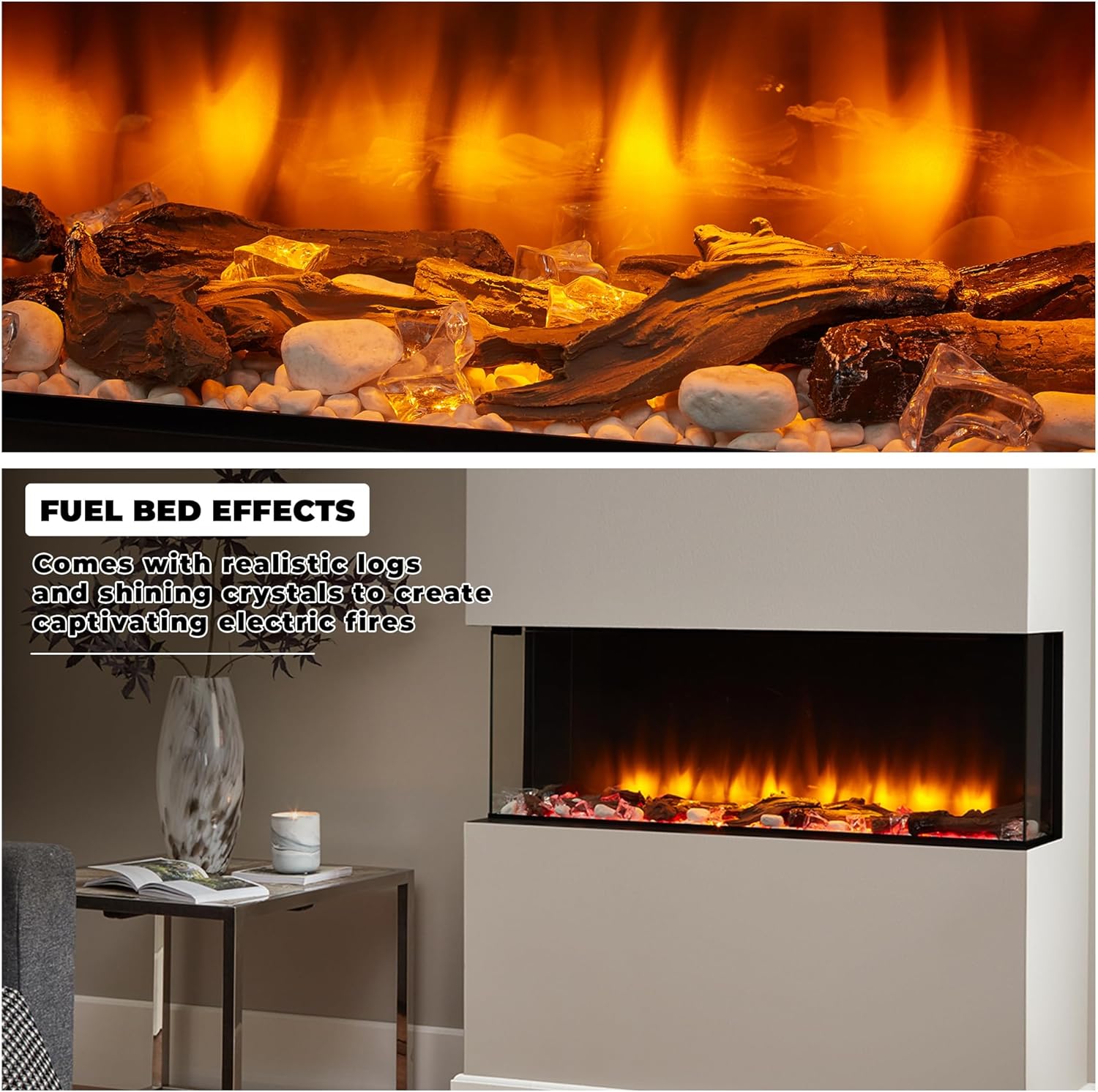

Immaġni 5.1: Mill-qrib view of the fuel bed with realistic logs and shining crystals, enhancing the flame effect.

5.2 Konnessjoni tal-Enerġija

Once the unit is securely installed in its desired location and the fuel bed is arranged, connect the power cord.

1. Ensure the main power switch on the fireplace unit is in the 'OFF' position.
2. Plug the power cord into a standard 220-240V AC grounded electrical outlet. Do not use extension cords or power strips.
3. Ensure the power cord is not pinched or routed in a way that could cause damage.

Stampa 5.2: Wara view of the fireplace unit, illustrating the power cord connection.

6. Operazzjoni

The Rosedale fireplace can be operated using either the manual control panel on the unit or the included multi-function remote control.

6.1 Manual Control Panel

The manual control panel is located on the unit, typically behind a discreet cover. It provides basic control over the fireplace functions.

Immaġni 6.1: Fuqview of the manual control panel and the remote control.

• Main Power ON/OFF Switch: Jixgħel jew jitfi l-unità kollha.
• Buttuna ON/OFF tad-Dawl: Activates or deactivates the flame effect and fuel bed lighting.
• Flame Setting Button: Cycles through different flame brightness or color options.
• Fuel Bed Setting Button: Cycles through different fuel bed lighting colors.
• Heater Running Indicator: Illuminates when the heating function is active.
• Reset Button for Remote Control: Used to re-pair the remote control if needed.

6.2 Kontroll mill-Bogħod

The multi-function LCD remote control provides comprehensive control over all features, including a programmable 7-day timer and thermostat.

• Buttuna tal-Qawwa: Turns the fireplace on or off.
• Buttuna tal-Modalità: Cycles through different operating modes (e.g., timer, manual).
• Heating/Advance Buttons: Adjusts heat settings (1000W/2000W) and advances timer settings.
• Flame Effect Button: Changes flame intensity and color.
• Buttuna tas-Sodda tal-Fjuwil: Cycles through 13 different fuel bed colors.
• Buttuna tad-Dawl tal-burdata: Controls ambient mood lighting (if applicable).
• Temperature Sensor Convection: Built-in thermostat for maintaining desired room temperature.
• Funzjoni Timer: Allows programming of heating schedules for up to 7 days.

6.3 Effetti tal-Fjamma

The Rosedale fireplace features realistic 3D flame effects with adjustable intensity and multiple color options. Use the 'Flame Effect' button on the remote or manual panel to cycle through available settings.

Immaġni 6.2: Eż.amples of various flame and fuel bed color combinations, including Amber, Blue, and Amber with Blue.

6.4 Fuel Bed Lighting

The luminous fuel bed offers 13 different colors to complement the flame effect or your room's ambiance. Use the 'Fuel Bed' button on the remote or manual panel to select your preferred color.

6.5 Funzjoni tat-Tisħin

The fireplace provides efficient heating with two power modes: 1000W and 2000W. The heating function can be operated independently of the flame effect, allowing you to enjoy the visual ambiance without heat, or vice-versa.

Image 6.3: Diagram showing the air inlet and front air outlet for the heating system. Hot air is released from the front, keeping the wall behind cool.

Use the 'Heating/Advance' buttons on the remote to select the desired heat output. The integrated thermostat allows you to set and maintain a comfortable room temperature.

7. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tan-nar elettriku tiegħek.

• Tindif: Dejjem skonnettja l-provvista tal-enerġija qabel it-tindif. Uża drapp artab u damp cloth to clean the exterior surfaces. Do not use abrasive cleaners or sprays. For glass panels, use a glass cleaner and a soft cloth.
• Ftuħ tal-ventilazzjoni: Keep the air inlet and outlet openings clear of dust and debris to ensure proper heat dissipation and prevent overheating.
• Sors tad-Dawl: The flame and fuel bed effects use LED technology, which typically does not require replacement. If an issue occurs, contact customer support.
• Ħażna: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe location away from moisture and extreme temperatures.

8 Issolvi l-problemi

Irreferi għat-tabella t'hawn taħt għal kwistjonijiet komuni u s-soluzzjonijiet potenzjali tagħhom.

9. Speċifikazzjonijiet Tekniċi

10. Garanzija u Appoġġ

For warranty information, technical support, or replacement parts, please contact Endeavour Fires customer service. Keep your purchase receipt as proof of purchase.
