Manwal tal-Utent tal-Ispeaker Bluetooth Bushnell Wingman Mini GPS

Introduzzjoni

The Bushnell Wingman Mini is a compact GPS Bluetooth speaker designed for golf enthusiasts. It provides audible GPS distances, premium audio quality for music, and the ability to handle calls. Its integrated BITE magnetic cart mount allows for convenient attachment to a golf cart or bag. The device is built with a waterproof IPX7 construction, ensuring durability in various outdoor conditions.

X'hemm fil-Kaxxa

1x Wingman Mini Black/Silver GPS Speaker
1x Carabiner Clip
1x USB-C Cable
1x Wearable4U Black EarBuds with Charging E-Bank Case
1x Ċarġer tal-Ħajt
1x Ċarġer tal-Karozza

Image: The complete bundle including the Wingman Mini speaker, earbuds, USB-C cable, wall charger, and car charger.

Prodott Overview

Immaġni: Quddiem view of the Bushnell Wingman Mini GPS Bluetooth Speaker, showcasing its hexagonal design and central 'B' logo.

Immaġni: Multipla views of the Wingman Mini, highlighting the control buttons for volume, power, and GPS functions, as well as the carabiner clip and USB-C port.

Image: The Wingman Mini speaker in use alongside a smartphone displaying the Bushnell Golf app, showing GPS distances and settings.

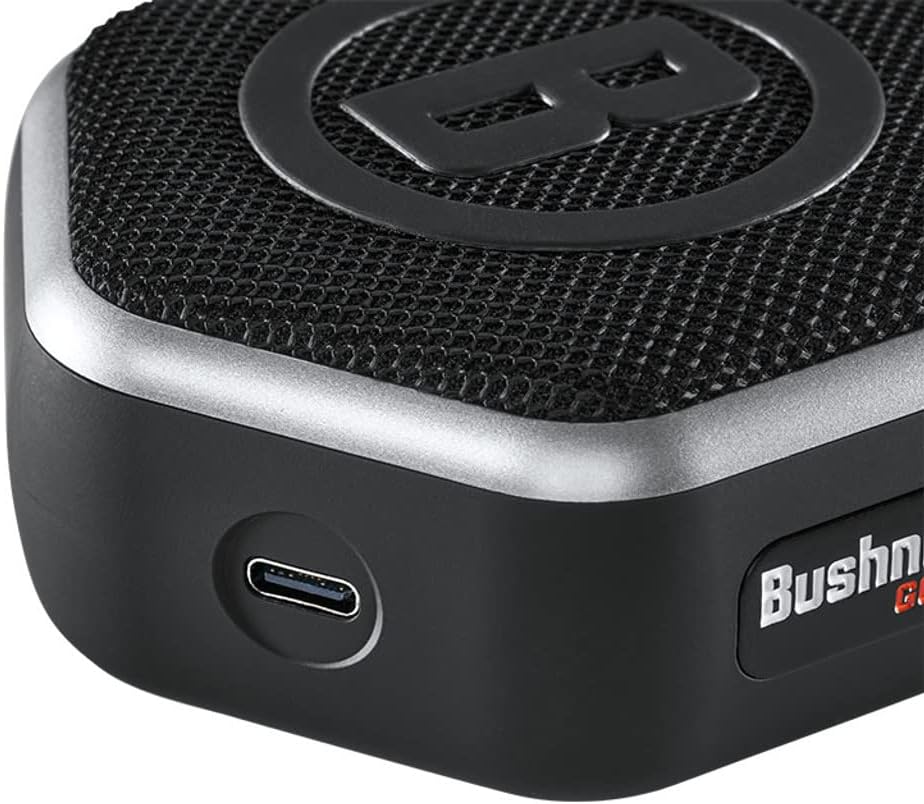

Immaġni: Close-up view of the USB-C charging port on the side of the Bushnell Wingman Mini speaker.

Image: The Wearable4U Ultimate Earbuds with their charging case, highlighting features like Bluetooth 5.0 and 1500 mAh power bank.

Setup

1. Iċċarġjar tal-Apparat

Before first use, fully charge the Wingman Mini using the provided USB-C cable and either the wall or car charger. The charging port is located on the side of the speaker. A full charge provides approximately 11 hours of battery life.

2. Tqabbil tal-Bluetooth

Power on the Wingman Mini by pressing and holding the power button.
Kun żgur li l-Bluetooth huwa attivat fuq l-ismartphone tiegħek.
Fittex għal available Bluetooth devices and select "Bushnell Wingman Mini" to pair.
Once paired, the speaker will confirm the connection.

3. Bushnell Golf App Installation

For full GPS functionality and custom sound bites, download the Bushnell Golf app from your smartphone's app store (Google Play or Apple App Store). Follow the in-app instructions to set up your profile and access golf course data.

Istruzzjonijiet Operattivi

1. Audible GPS Distances

With the Bushnell Golf app running and the Wingman Mini connected, press the 'B' button on the speaker to receive audible distances to the front, center, and back of the green. The speaker comes preloaded with over 38,000 golf courses worldwide.

2. Daqq tal-mużika

Once paired via Bluetooth, you can stream music from your smartphone or other Bluetooth-enabled devices. Use the volume controls on the speaker or your connected device to adjust audio levels.

3. Sejħiet mingħajr idejn

The built-in microphone allows you to take and make calls directly through the Wingman Mini when connected to your smartphone. Press the play/pause button to answer or end a call.

4. TWS Speaker Pairing (True Wireless Stereo)

If you have two Wingman Mini speakers, you can pair them together for a True Wireless Stereo experience. Refer to the Bushnell Golf app or the full product manual for detailed instructions on TWS pairing.

5. Attaching to Golf Cart/Bag

Utilize the integrated BITE magnetic cart mount to securely attach the speaker to a golf cart bar. Alternatively, use the provided carabiner clip to attach it to your golf bag.

Manutenzjoni

Tindif: Imsaħ il-kelliem b 'soft, damp drapp. Evita li tuża kimiċi ħarxa jew tindif li joborxu.
Ħażna: Aħżen l-apparat f'post frisk u niexef meta ma jkunx qed jintuża.
Reżistenza għall-Ilma: The Wingman Mini features IPX7 waterproof construction, meaning it can withstand immersion in up to 1 meter of water for 30 minutes. Ensure the charging port cover is securely closed before exposure to water.
Kura tal-batterija: Biex ittawwal il-ħajja tal-batterija, evita li tiċċarġja kompletament il-batterija ta' spiss. Iċċarġja l-apparat regolarment.

Issolvi l-problemi

Problema	Soluzzjoni
L-ebda enerġija/L-apparat mhux se jixgħel	Ensure the device is fully charged. Connect to a power source using the provided USB-C cable and charger.
Ma nistax nqabbad permezz tal-Bluetooth	Make sure the Wingman Mini is in pairing mode. Ensure Bluetooth is enabled on your smartphone and it is within range. Forget the device from your smartphone's Bluetooth settings and try pairing again. Restart both the speaker and your smartphone.
No audible GPS distances	Confirm the Wingman Mini is connected to your smartphone via Bluetooth. Ensure the Bushnell Golf app is open and actively tracking your round. Check that the speaker's volume is turned up. Verify GPS signal strength in your location.
Kwalità fqira tal-awdjo	Kun żgur li l-ispiker jinsab fil-firxa tal-Bluetooth tat-tagħmir tiegħek. Check for obstructions between the speaker and your device. Naqqas l-interferenza minn apparati oħra mingħajr fili. Kun żgur li s-sors tal-awdjo huwa ta’ kwalità tajba.

Speċifikazzjonijiet

Isem tal-Mudell: Wingman Mini Black/Silver
Numru tal-Mudell tal-Oġġett: w1
Piż tal-oġġett: 6 uqija
Dimensjonijiet tal-Prodott: 4 x 3.23 x 1.57 pulzieri
Tip ta 'batterija: 1 batterija tal-jone tal-litju (inkluża)
Ħajja tal-batterija: Madwar 11 Sigħat
Teknoloġija tal-Konnettività: Bluetooth
Karatteristiċi Speċjali: Audible GPS Distances, Built-in Microphone, Mini, TWS Speaker Pairing Technology, Waterproof (IPX7)
Tip ta 'Immuntar: Bite Mount
Tip ta' Mappa: Golf Course (preloaded with over 38,000 courses)
Kmand tal-Vuċi: Mikrofonu

Garanzija u Appoġġ

The Bushnell Wingman Mini comes with a Garanzija tal-Manifattur ta' 2 Snin. For warranty claims, technical support, or further assistance, please contact Wearable4U customer service or refer to the official Bushnell Golf websit għal riżorsi ta' appoġġ.

Manifattur: Wearable4U
