1. Prodott Aktarview
This manual provides instructions for the Bushnell Wingman View Golf GPS Bluetooth Speaker and the accompanying Wearable4U Ultimate Black Earbuds and charging accessories. The Bushnell Wingman View combines a high-quality Bluetooth speaker with a golf GPS display, offering audible and visual distance information for golf courses. The Wearable4U earbuds provide a personal audio experience, complemented by wall and car chargers for convenient power management.
1.1. X'hemm fil-Kaxxa
- 1x Bushnell Wingman View Bluetooth Speaker with Audible/Viewable GPS
- 1x Remote Control for Wingman View
- 1x USB-C Iċċarġjar Cable
- 1x Wearable4U Ultimate Black EarBuds
- 1x Wearable4U Earbuds Charging E-Bank Case
- 1x Wearable4U Wall Charger
- 1x Wearable4U Car Charger
2. Gwida ta' Setup
2.1. Bushnell Wingman View Setup tal-Ispeaker
- Iċċarġja lill-Ispeaker: Connect the provided USB-C charging cable to the Wingman View speaker and then to either the Wearable4U wall charger or car charger. A full charge provides up to 10 hours of operation.
- Tixgħel/Jitfi: Agħfas u żomm il-buttuna tal-qawwa (⏻) on the side of the speaker to turn it on or off.
- Tqabbil Bluetooth:
- Ensure the Wingman View huwa mixgħul.
- Attiva l-Bluetooth fuq l-ismartphone jew it-tablet tiegħek.
- Fittex għal "Wingman View" in your device's Bluetooth settings and select it to pair. A confirmation sound will indicate successful pairing.
- Bushnell Golf App Installation: Download the Bushnell Golf app from your device's app store. This app is essential for accessing course data and advanced features.
- Tqabbil tal-Kontroll mill-bogħod: The remote control is typically pre-paired. If re-pairing is needed, refer to the Bushnell Golf app for specific instructions.
- BITE Muntaġġ manjetiku: Il-Wingman View features an integrated BITE magnetic mount. This allows for secure attachment to a golf cart bar or any ferrous metal surface.
Image 2.1: The Bushnell Wingman View speaker demonstrating its magnetic attachment to a golf cart, alongside its remote control.
2.2. Wearable4U Ultimate Black Earbuds Setup
- Iċċarġjar tal-Earbuds u l-Każ: Place the earbuds into their charging E-Bank case. Connect the USB-C cable to the case and then to a power source (wall or car charger). The case's LED display indicates charge status.
- Tixgħel/Jitfi: Earbuds typically power on automatically when removed from the case and power off when returned. Manual power control may vary; refer to the specific earbud instructions if included separately.
- Tqabbil Bluetooth:
- Neħħi ż-żewġ earbuds mill-kaxxa tal-iċċarġjar.
- Attiva l-Bluetooth fuq l-ismartphone jew it-tablet tiegħek.
- Fittex għal the earbud device name (e.g., "Wearable4U Earbuds Pro") in your device's Bluetooth settings and select it to pair.
3. Istruzzjonijiet Operattivi
3.1. Bushnell Wingman View Operazzjoni tal-Ispeaker

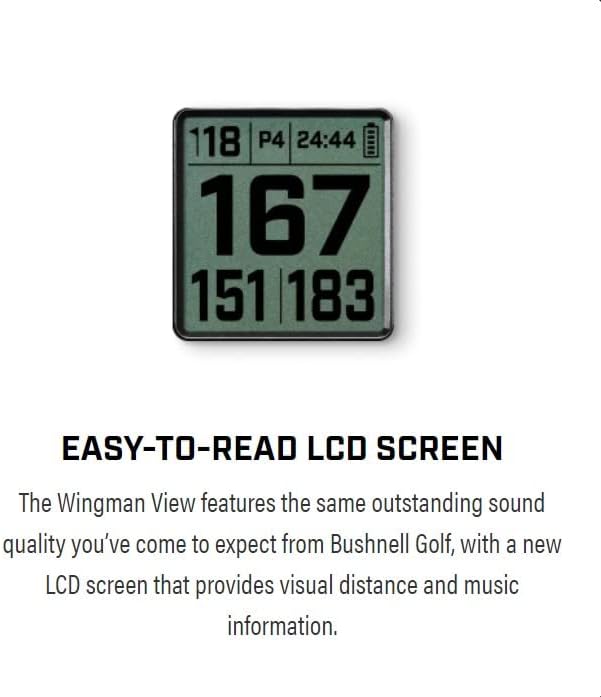

- GPS Distances: Once paired with the Bushnell Golf app and a course is selected, the LCD screen will display visual distances to the front, middle, and back of the green. It can also show up to 6 audible and viewable hazard distances per hole.
- Audible Distances: Press the remote button to hear audible distance readings for the current hole.
- Daqq tal-mużika: Connect your smartphone via Bluetooth to stream music through the speaker. Use the speaker's physical buttons (+ / -) or the remote to adjust volume and skip tracks.
- Funzjonijiet tal-Kontroll mill-bogħod: The redesigned remote allows you to:
- Get GPS distances.
- Aġġusta l-volum tal-kelliem.
- Change music tracks.
- Play pre-loaded sound bites or 1st tee introductions.
3.2. Wearable4U Ultimate Black Earbuds Operation
- Daqq tal-mużika: Once paired, stream audio from your device. Control playback (play/pause, skip) using the touch controls on the earbuds, if available, or directly from your connected device.
- Immaniġġjar tas-Sejħiet: Answer or end calls using the earbud controls.
4. Manutenzjoni
- Tindif: Uża artab, damp cloth to clean the exterior of the speaker and earbuds. Avoid harsh chemicals or abrasive materials.
- Reżistenza għall-Ilma: The Bushnell Wingman View is water resistant. However, it is not designed for submersion. Wipe dry if it gets wet. The Wearable4U earbuds are designed to be fearless of rain and sweat.
- Kura tal-batterija:
- Charge devices regularly, even if not in frequent use, to maintain battery health.
- Avoid extreme temperatures for storage and operation.
- Do not attempt to replace the internal batteries.
- Ħażna: Store devices in a cool, dry place when not in use.
5 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Wingman View not powering on. | Batterija baxxa. | Charge the speaker using the provided USB-C cable and charger. |
| Ebda konnessjoni Bluetooth. | L-apparat mhux fil-modalità ta' tqabbil; barra mill-firxa; interferenza. | Ensure device is in pairing mode. Move devices closer. Turn off other Bluetooth devices. Re-pair through settings. |
| Il-GPS mhux qed jakkwista sinjal. | Ostakolat view of sky; app not updated; course not downloaded. | Move to an open area. Ensure Bushnell Golf app is updated and the course is downloaded. |
| Kwalità tal-ħoss ħażina. | Low battery; device too far from speaker/earbuds; audio source issue. | Charge devices. Move connected device closer. Check audio source quality. |
| Il-kontroll remot mhux qed jirrispondi. | Remote battery low; not paired. | Ensure remote battery is charged (if applicable, or replace). Re-pair remote via Bushnell Golf app. |
6. Speċifikazzjonijiet tal-Prodott
6.1. Bushnell Wingman View Golf GPS Bluetooth Speaker
- Isem tal-Mudell: Wingman View
- Numru tal-Mudell tal-Oġġett: 362210
- Tip ta 'Immuntar: BITE Magnetic Mount
- Tip ta' Kelliem: Mibnija fil-
- Karatteristiċi Speċjali: Built-in USB port, LCD Display, Premium Sound Quality, Removable bite remote, View hazard distances
- Teknoloġija tal-Konnettività: Bluetooth
- Sors tal-Enerġija: Li jaħdem bil-batterija (batterija tal-jone tal-litju inkluża)
- Kapaċità tal-batterija: 350 Milliamp Sigħat
- Qawwa tal-Ħruġ Massimu tal-Ispeaker: 30 Watts
- Rispons tal-Frekwenza: 60 KHz
- Livell ta' Reżistenza għall-Ilma: Reżistenti għall-Ilma
- Dimensjonijiet tal-Prodott: 3.1"D x 3.2"W x 7.3"H
- Piż tal-oġġett: Approximately 0.811 ounces (speaker only, 23 Grams)
- Metodu ta' Kontroll: Remote
- Użu fuq ġewwa/barra: Barra
6.2. Wearable4U Ultimate Black Earbuds
- Komponenti Inklużi: Wearable4U Ultimate Black EarBuds, Charging E-Bank Case
- Power Bank Capacity (E-Bank Case): 1500 mAh
- Teknoloġija tal-Komunikazzjoni mingħajr Fili: Bluetooth 5.0 (implied by "Wearable4U Bluetooth EarBuds Pro" in feature bullets)
- Reżistenza għall-Ilma: Fearless of rain and sweat (as per feature bullets)
6.3. Charging Accessories
- 1x Ċarġer tal-Ħajt
- 1x Ċarġer tal-Karozza
7. Garanzija u Appoġġ
The Bushnell Wingman View Golf GPS Bluetooth Speaker comes with a Garanzija Limitata. For specific details regarding the warranty period and coverage, please refer to the documentation included with your product or visit the official Bushnell Golf websit.
For technical support, troubleshooting assistance, or warranty claims, please contact the respective manufacturers:
- Bushnell Golf: For inquiries related to the Wingman View speaker and its GPS/Bluetooth functionalities.
- Wearable4U: For inquiries related to the Ultimate Black Earbuds and charging accessories.
Dejjem żomm il-prova tax-xiri tiegħek għal skopijiet ta' garanzija.
