Nolan N-com B101 R Intercom User Manual

1. Introduzzjoni

The Nolan N-com B101 R Intercom is a communication system designed for integration with Nolan helmets, providing enhanced audio capabilities for riders. This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your N-com B101 R system.

2. Informazzjoni dwar is-Sigurtà

Please read all safety warnings and instructions carefully before using the N-com B101 R Intercom. Failure to follow these instructions may result in injury or damage to the device.

• Do not attempt to disassemble or modify the intercom unit.
• Ensure the unit is securely installed in the helmet before riding.
• Evita li tesponi l-apparat għal temperaturi estremi jew dawl tax-xemx dirett għal perjodi twal.
• Żomm l-apparat 'il bogħod mill-ilma u l-umdità.
• Always prioritize road safety. Do not operate the intercom in a way that distracts you from riding.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:

• Nolan N-com B101 R Intercom Unit
• Mikrofonu
• Speakers (2x)
• Ħardwer tal-Immuntar
• Cable tal-Iċċarġjar tal-USB
• Manwal għall-Utent (dan id-dokument)

Figure 3.1: The Nolan N-com B101 R Intercom packaging, showing the product and key features.

4. Prodott Aktarview

The N-com B101 R system is designed for seamless integration into compatible Nolan helmets. It features a compact main unit, high-quality speakers, and a microphone for clear communication.

Figura 4.1: Quddiem view of the Nolan N-com B101 R Intercom system integrated into a helmet, showing the main unit and microphone placement.

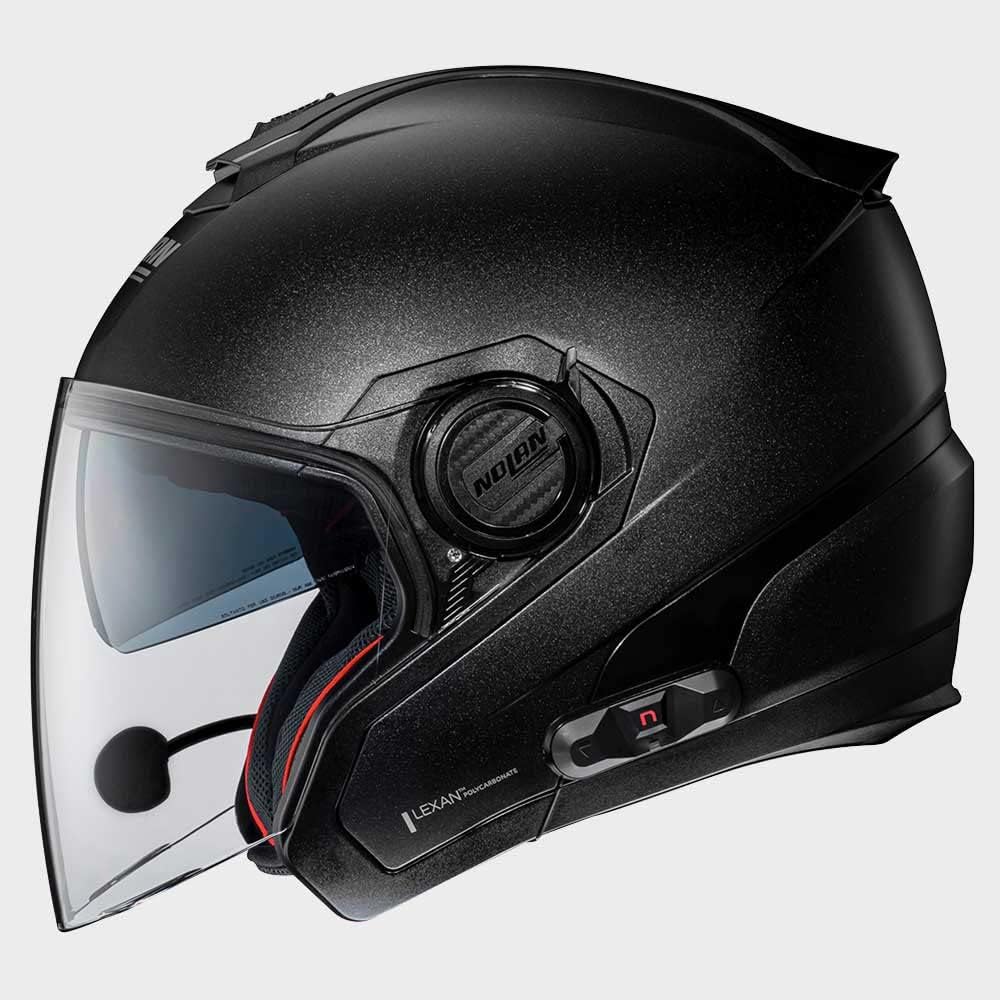

Figura 4.2: Ġenb view of the Nolan N-com B101 R Intercom system integrated into a helmet, highlighting the sleek profile of the communication unit.

Figura 4.3: Wara view of the Nolan N-com B101 R Intercom system integrated into a helmet, showing the discreet placement of the unit.

5. Setup u Installazzjoni

Follow these steps to install the N-com B101 R Intercom into your compatible Nolan helmet:

1. Ipprepara l-Elmu: Remove the helmet's internal padding as per your helmet's specific instructions to access the speaker and microphone recesses.
2. Installa l-Ispeakers: Place the speakers into the designated ear recesses inside the helmet. Ensure they are positioned comfortably and securely.
3. Installa l-Mikrofonu: Attach the microphone to the helmet's chin bar or cheek pad area, ensuring it is close to your mouth for optimal voice pickup. Route the cable discreetly along the helmet's interior.
4. Unità Prinċipali tal-Muntanja: Secure the main intercom unit to the exterior of the helmet using the provided mounting hardware. Typically, this involves a clip or adhesive mount on the side of the helmet.
5. Qabbad Kejbils: Connect the speaker and microphone cables to the main intercom unit. Ensure all connections are firm.
6. Reassemble Helmet: Carefully reinsert the helmet's internal padding, ensuring no cables are pinched or exposed.
7. Ħlas Inizjali: Before first use, fully charge the intercom unit using the supplied USB cable. The charging indicator will change when charging is complete.

6. Istruzzjonijiet Operattivi

6.1 Power On/Off

• Biex Tixgħel: Press and hold the Power button for approximately 3 seconds until you hear an audible tone or see the indicator light illuminate.
• Biex Tifi: Press and hold the Power button for approximately 3 seconds until you hear an audible tone and the indicator light turns off.

6.2 Tqabbil tal-Bluetooth

To pair your N-com B101 R with a mobile phone or other Bluetooth device:

1. Ensure the intercom is powered off.
2. Press and hold the Power button for approximately 5-7 seconds until the indicator light flashes rapidly, indicating pairing mode.
3. Fuq it-tagħmir mobbli tiegħek, ippermetti l-Bluetooth u fittex tagħmir disponibbli.
4. Select "N-com B101 R" from the list of found devices.
5. Jekk tintalab għal passcode, daħħal "0000".
6. Once paired, the indicator light on the intercom will change to a slow flash or solid blue.

6.3 Funzjonijiet Bażiċi

• Tweġiba/Tmiem Sejħa: Agħfas il-buttuna b'diversi funzjonijiet darba.
• Irrifjuta Sejħa: Agħfas u żomm il-buttuna Multi-funzjoni għal 2-il sekonda.
• Ilgħab/Pawża Mużika: Agħfas il-buttuna b'diversi funzjonijiet darba.
• Volum 'il fuq: Agħfas il-buttuna Volum 'il fuq.
• Volum 'l isfel: Agħfas il-buttuna Volum 'l isfel.

7. Manutenzjoni

Proper maintenance ensures the longevity and optimal performance of your N-com B101 R Intercom.

• Tindif: Uża artab, damp cloth to clean the exterior of the intercom unit. Do not use abrasive cleaners or solvents.
• Ħażna: When not in use for extended periods, store the intercom in a cool, dry place.
• Kura tal-batterija: To maintain battery health, charge the unit regularly, even if not in frequent use. Avoid fully discharging the battery before recharging.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

For warranty information and technical support, please refer to the official Nolan N-com webis-sit jew ikkuntattja lin-negozjant awtorizzat tiegħek. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

Għal aktar għajnuna, żur: www.n-com.it
