1. Introduzzjoni
This manual provides essential information for the safe and efficient operation of your DURATECH Hotsplash HS40-4KW Pool Heat Pump. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper use and to prevent damage or injury.
The Hotsplash HS40-4KW is a compact and efficient heat pump designed for heating swimming pools up to 12 cubic meters. It features an environmentally friendly R32 gas refrigerant, a corrosion-resistant titanium heat exchanger, and an intuitive control panel for ease of use. It is designed to operate effectively in ambient temperatures of +10 °C and above.
2. Informazzjoni dwar is-Sigurtà
Always adhere to the following safety guidelines to prevent electric shock, fire, injury, or damage to the unit:
- Ensure the unit is installed by a qualified professional in accordance with local electrical and plumbing codes.
- Tħaddimx l-unità jekk il-korda tad-dawl jew il-plagg ikun bil-ħsara.
- Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-unità waqt it-tħaddim.
- Do not insert objects into the fan grille or any openings.
- Skonnettja l-enerġija qabel ma tagħmel xi manutenzjoni jew tindif.
- Żgura ventilazzjoni xierqa madwar l-unità.
3. Komponenti tal-Prodott
Familiarize yourself with the main components of your Hotsplash HS40-4KW heat pump:
Figura 3.1: B'mod ġenerali view of the Hotsplash HS40-4KW pool heat pump, blue and black, with power cord and water hose connected. This image shows the compact design and the main connections.
Figura 3.2: Quddiem view of the Hotsplash HS40-4KW pool heat pump, showing the main fan and the "Hot Splash" logo, along with the water inlet and outlet connections. The fan draws air in for heat exchange.
Figura 3.3: Ġenb view of the Hotsplash HS40-4KW pool heat pump, highlighting the water inlet and outlet ports and the fan grille. These ports are crucial for connecting to your pool's filtration system.

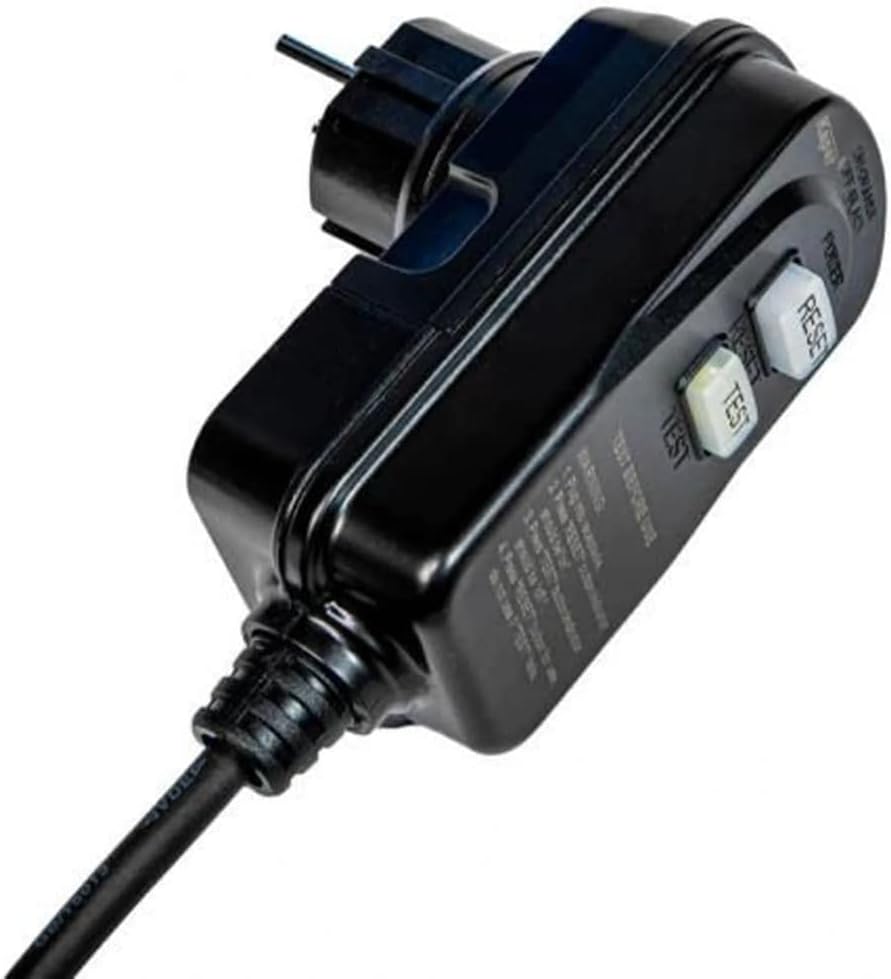

Figura 3.4: Close-up of the power plug for the Hotsplash HS40-4KW, featuring "TEST" and "RESET" buttons for safety. Always test the RCD/GFCI before each use.
Figura 3.5: A hand demonstrating the integrated carrying handle on the top of the Hotsplash HS40-4KW pool heat pump, highlighting its portability.
4. Setup u Installazzjoni
Proper installation is crucial for the performance and longevity of your heat pump. The unit should be placed on a stable, level surface with adequate clearance for air circulation (at least 50 cm around the fan outlet).
4.1 Tqegħid
- Place the heat pump outdoors, ensuring it is not exposed to direct sunlight for prolonged periods or heavy rain without adequate cover.
- Ensure the ambient temperature is above +10 °C for optimal operation.
- Consider the noise level and air discharge direction when choosing a location.
4.2. Konnessjonijiet tal-Ilma
Connect the heat pump to your pool's filtration system. The unit uses a full-flow technology, meaning the entire pool water flow passes through the heat pump.
- Identify the water inlet and outlet ports on the heat pump (refer to Figure 3.3).
- Connect the outlet of your pool filter pump to the heat pump's IN port.
- Connect the heat pump's BARRA port back to your pool's return line.
- Kun żgur li l-konnessjonijiet kollha huma siguri u ma jgħaddix ilma minnhom biex tevita t-tnixxijiet.
4.3. Konnessjoni Elettrika
The Hotsplash HS40-4KW comes with a pre-wired power cord and a safety plug (RCD/GFCI).
- Ensure the power outlet is suitable for the unit's electrical requirements (refer to specifications).
- Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
- Before each use, press the "TEST" button on the plug, then the "RESET" button to ensure the safety device is functioning correctly.
5. Istruzzjonijiet Operattivi
The Hotsplash HS40-4KW features an intuitive control panel with three buttons for easy operation.
5.1. L-Ewwel Bidu
- Ensure the pool filter pump is running and water is flowing through the heat pump. The heat pump requires water flow to operate.
- Plug in the heat pump and perform the RCD/GFCI test (Section 4.3).
- The unit will typically start automatically or can be turned on using the power button on the control panel.
5.2. L-issettjar tat-Temperatura Mixtieqa
Use the control panel buttons to adjust the target water temperature. Refer to the display for the current water temperature and the set temperature.
- Agħfas il- SET button to enter temperature adjustment mode.
- Uża l- UP u 'L isfel arrows to increase or decrease the desired temperature.
- Agħfas SET mill-ġdid jew stenna ftit sekondi biex is-setting jiġi ssejvjat.
5.3. Operazzjoni Normali
The heat pump will automatically turn on and off to maintain the set temperature, provided there is continuous water flow from the pool pump. The fan will operate to draw in ambient air for heat exchange.
6. Manutenzjoni
Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-pompa tas-sħana tiegħek.
6.1. Tindif
- Naddaf il-barra tal-unità perjodikament b'ċarruta ratba u damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
- Ensure the air intake and exhaust grilles are free from debris, leaves, and other obstructions. Blockages can reduce efficiency.
6.2. Winterization (If Applicable)
If you live in an area where temperatures drop below +10 °C and you will not be using the pool, it is recommended to winterize the heat pump:
- Skonnettja l-provvista tal-enerġija.
- Drain all water from the heat pump by disconnecting the water hoses.
- Store the unit in a dry, protected area, or cover it with a breathable, waterproof cover if left outdoors.
7 Issolvi l-problemi
Din it-taqsima tipprovdi soluzzjonijiet għal kwistjonijiet komuni li tista’ tiltaqa’ magħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel | No power; RCD/GFCI tripped; Insufficient water flow | Check power connection; Reset RCD/GFCI; Ensure pool pump is running and water flow is adequate. |
| Prestazzjoni fqira tat-tisħin | Low ambient temperature; Dirty coils/grilles; Incorrect temperature setting; Pool size too large | Ensure ambient temperature is above +10 °C; Clean unit; Verify temperature setting; Confirm pool volume is within recommended limits (up to 12 m³). |
| Ħoss mhux tas-soltu | Debris in fan; Loose components; Unit not level | Inspect and remove debris; Check for loose parts; Ensure unit is on a stable, level surface. |
| Tnixxija tal-ilma | Loose hose connections; Damaged O-rings | Issikka l-konnessjonijiet kollha tal-pajpijiet; Spezzjona u ibdel l-O-rings jekk ikunu bil-ħsara. |
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
8. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | HS40 |
| Dimensjonijiet tal-Prodott | 30 ċm (L) x 30 ċm (W) x 35 ċm (H) |
| Piż tal-Prodott | 16 Kilogrammi |
| Materjal | Plastik |
| Kulur | Blu |
| Funzjoni Speċjali | Hot Water (Pool Heating) |
| Volum Pool Rakkomandat | Sa 12 m³ |
| Temperatura Ambjentali Minima Operattiva | +10 °C |
| Refriġerant | R32 (Ma jagħmilx ħsara lill-ambjent) |
| Skambjatur tas-Sħana | Titanium (Corrosion-resistant) |
9. Informazzjoni dwar Garanzija
DURATECH products are manufactured to high-quality standards and are covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official DURATECH websit għal termini u kundizzjonijiet dettaljati tal-garanzija. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
10. Appoġġ għall-Klijent
For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please contact DURATECH customer support. Have your product model number (HS40) and purchase details ready when contacting support.
You can typically find contact information on the DURATECH official webis-sit jew fuq l-imballaġġ tal-prodott tiegħek.
