HOFTRONIC LED IP65 Wet Room Light

1. Introduzzjoni

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HOFTRONIC LED IP65 Wet Room Light. Please read these instructions carefully before installation and retain them for future reference.

This 120 cm LED wet room light is designed for both indoor and outdoor use, providing bright, daylight white illumination. It is glare-free, shock-resistant, durable, and energy-efficient. Multiple units can be connected in series, making it suitable for industrial settings, parking garages, cellars, and other demanding environments.

2. Istruzzjonijiet tas-Sigurtà

• Dejjem skonnettja l-enerġija qabel l-installazzjoni, il-manutenzjoni, jew it-tindif.
• L-installazzjoni għandha titwettaq minn elettriċista kwalifikat skont ir-regolamenti lokali tal-wajers.
• Timmodifikax il-prodott bl-ebda mod. Modifiki mhux awtorizzati jistgħu jannullaw il-garanzija u joħolqu riskji għas-sigurtà.
• Ensure the mounting surface is strong enough to support the fixture's weight.
• Tħarisx direttament fis-sors tad-dawl LED meta jkun mixgħul.
• This product is rated IP65 for protection against dust and water jets. Ensure all connections are properly sealed to maintain this rating.
• Operating temperature range: -20°C to 40°C. Do not operate outside this range.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel ma tipproċedi bl-installazzjoni:

• HOFTRONIC LED Wet Room Light Fixture (1 unit)
• Clips tal-Immuntar (2 unitajiet)
• Viti u Plakek tal-Ħajt (għall-immuntar)
• Cable Gland (pre-installed or included for wiring)
• Connecting Cable (for linking multiple fixtures, if applicable)

4. Installazzjoni

The HOFTRONIC LED wet room light features an integrated light source, eliminating the need for separate LED tubes. It comes complete with all necessary mounting accessories.

4.1 Immuntar tal-Fitture

1. Choose a suitable mounting location on a ceiling or wall.
2. Mark the positions for the mounting clips using the fixture as a guide.
3. Drill holes at the marked positions and insert wall plugs.
4. Secure the mounting clips to the surface using the provided screws.
5. Snap the LED fixture into the secured mounting clips. Ensure it is firmly seated.

Figure 1: Mounting the fixture. The image illustrates how to attach the mounting clips to a surface and then snap the LED light into place.

4.2 Konnessjoni Elettrika

1. Ensure the power supply is disconnected at the main circuit breaker.
2. Open the wiring compartment of the fixture.
3. Feed the main power cable through the cable gland.
4. Connect the live (L), neutral (N), and earth (PE) wires to the corresponding terminals inside the fixture.
5. Tighten the cable gland securely to maintain the IP65 rating.
6. Close the wiring compartment, ensuring a tight seal.

4.3 Il-Konnessjoni ta' Diversi Fixtures

Up to 20 lights can be linked together using the provided connectors. This allows for a continuous lighting solution from a single power source.

1. Connect the first fixture to the main power supply as described in Section 4.2.
2. Use the connecting cable to link the output of the first fixture to the input of the second fixture.
3. Ensure the cable glands for the linking cables are securely tightened to maintain the IP65 rating.
4. Repeat for additional fixtures, up to a maximum of 20 units.

Figure 2: Linking multiple fixtures. The image shows how two fixtures are connected end-to-end using a cable gland, indicating minimum and maximum cable diameters.

5. Istruzzjonijiet Operattivi

Once installed and connected to the power supply, the HOFTRONIC LED Wet Room Light operates by simply switching on the connected power circuit. This fixture is not dimmable.

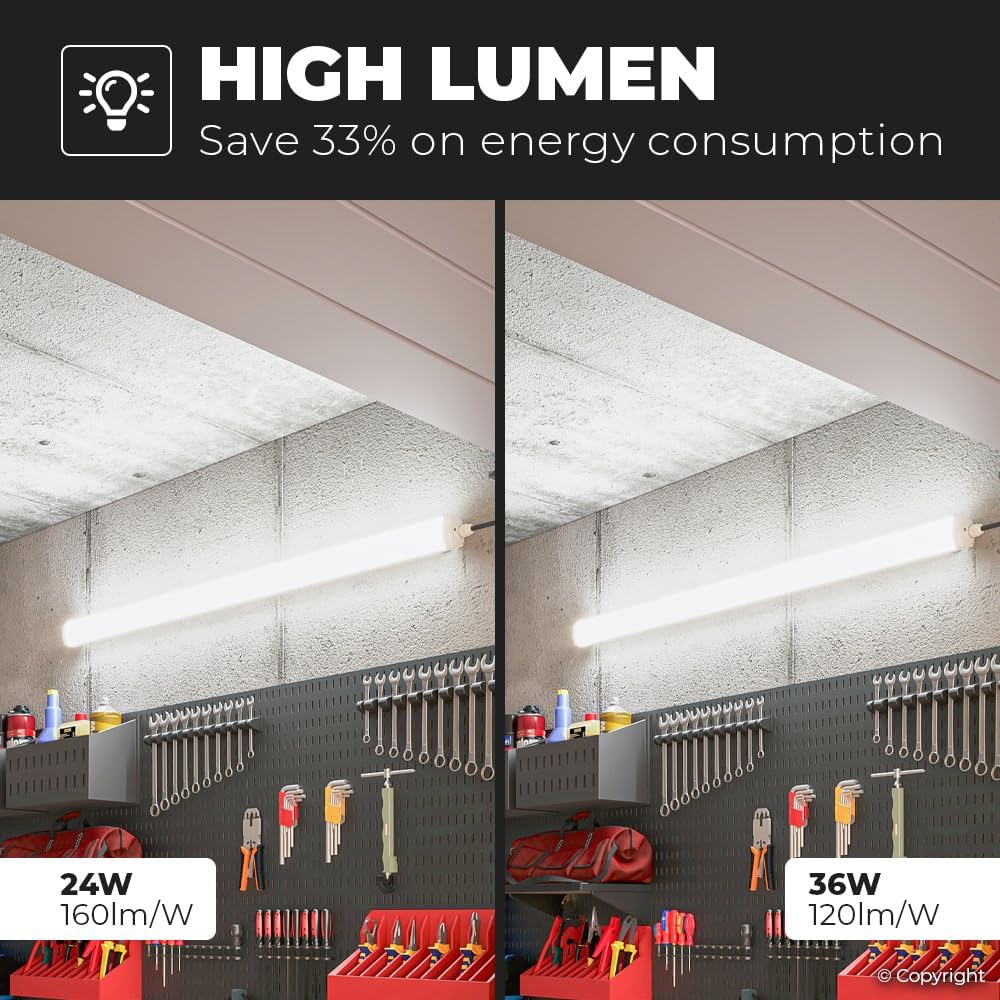

Figura 3: Eżample application in a garage. The light provides bright, even illumination for a workspace.

Figure 4: Versatile applications. The image demonstrates the light's suitability for diverse environments due to its robust design.

6. Manutenzjoni

• Tindif: Skonnettja l-provvista tal-enerġija qabel it-tindif. Uża drapp artab u damp cloth to wipe the surface of the fixture. Do not use abrasive cleaners or solvents.
• Spezzjoni: Periodically check the fixture and wiring for any signs of damage, wear, or loose connections. Ensure the cable glands remain tight.
• Sors LED: The LED light source is integrated and not user-replaceable. The fixture is designed for a long lifespan of 25,000 hours.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

Figure 5: Energy Label. For more details, refer to the Dejtabejż EPREL.

9. Garanzija u Appoġġ

HOFTRONIC products are designed for durability and performance. While specific warranty details are not provided in the product description, the manufacturer commits to responding to customer inquiries within 24 hours.

For any questions, technical assistance, or support, please refer to the contact information provided with your purchase or visit the official HOFTRONIC websit.
